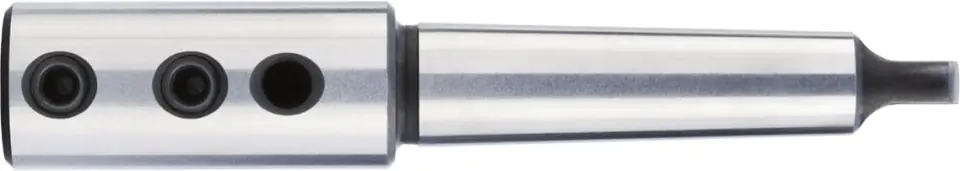

Dredge clamping chuck with guide pivot, with Morse cone shank
Material: hardened and grinded. The countersink and journal are fastened with screws, with the countersink being additionally protected against displacement by means of a mandrel
Universal grip MK2, wlk. 1 GFS to deepen.pivot.
PLN 653.05
Shipping from warehouse: B6
Estimated shipping: Tue, Dec 2 - Fri, Dec 5
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GfS
- Product code:
- 15813200 / 4033591011489
Share this product:

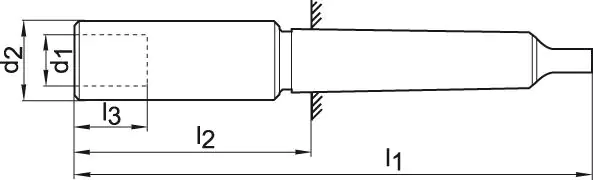

Specification
| Grip ø d3: | MK 2 |
|---|---|
| Head length l2: | 55 mm |
| Hole d1: | 14 mm |
| Length l3: | 20 mm |
| Ø drill degrees mm: | 1 |
| Ø head d2: | 24 mm |
| Total length l1: | 135 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
