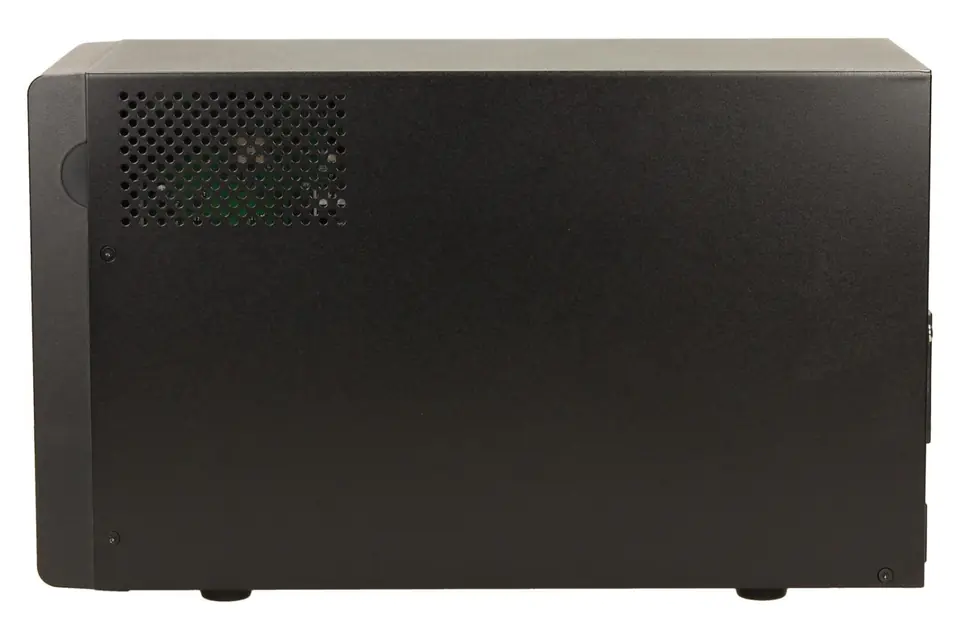

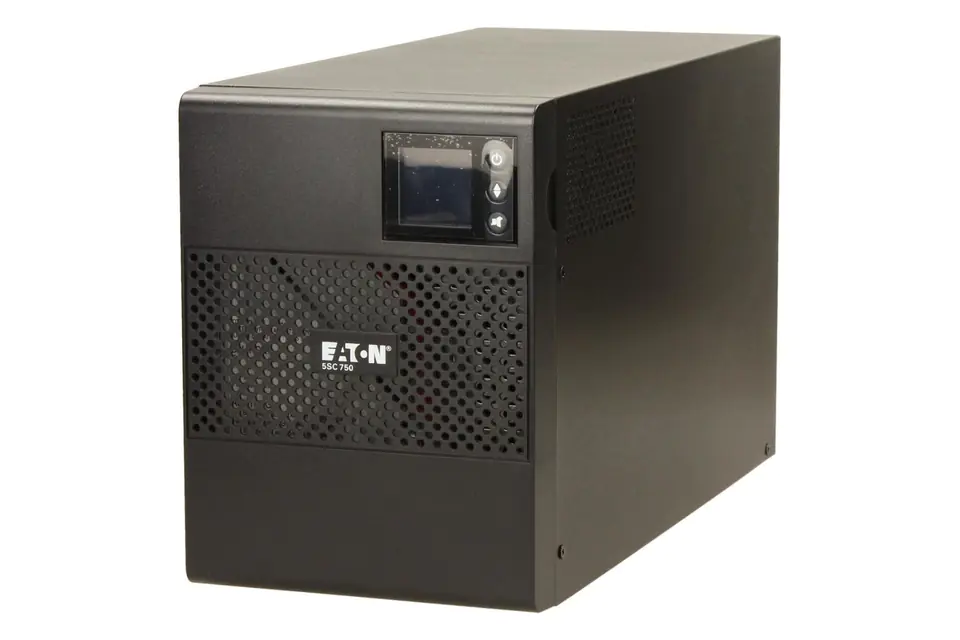

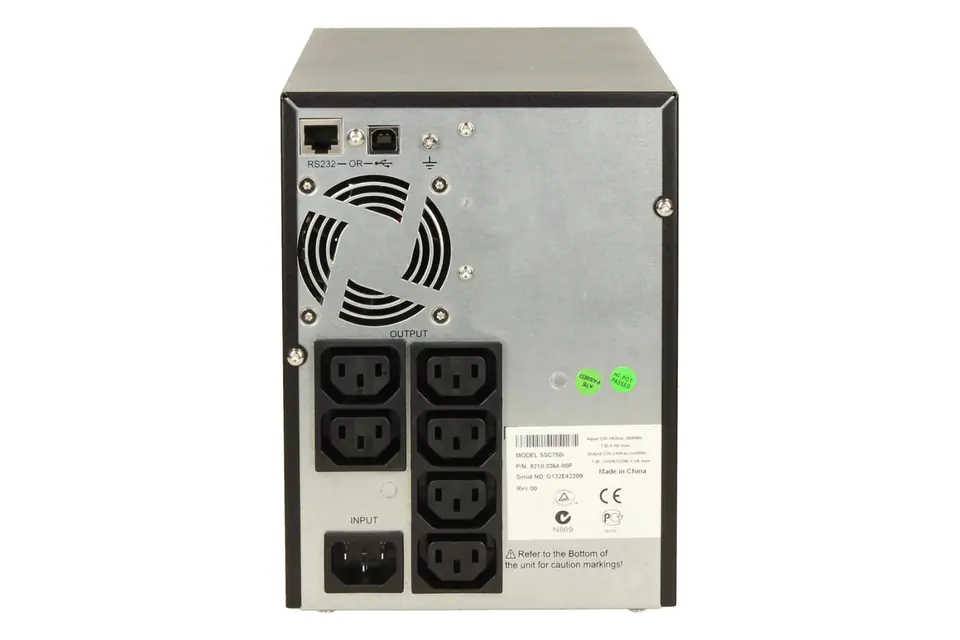

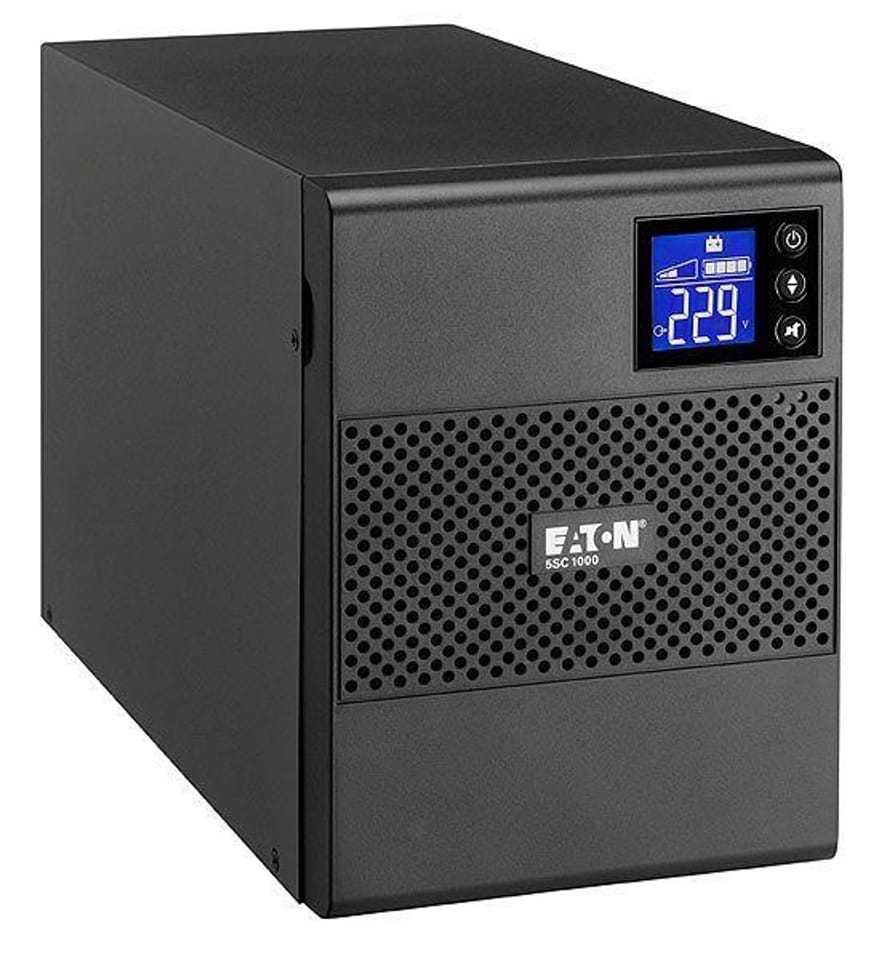

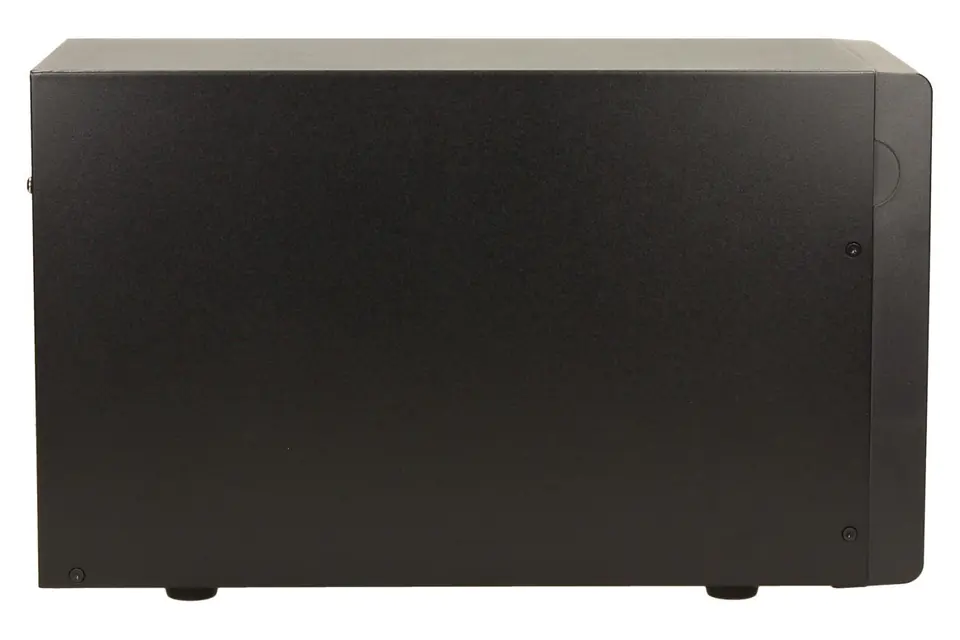

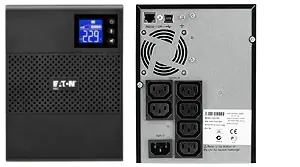

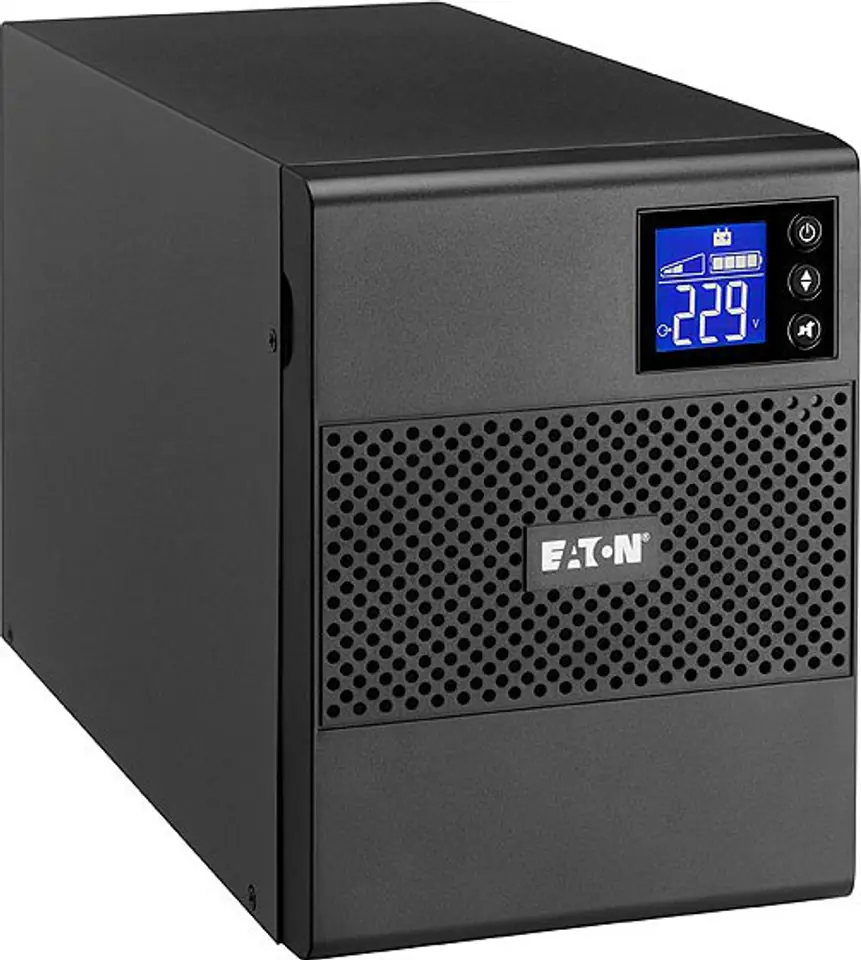

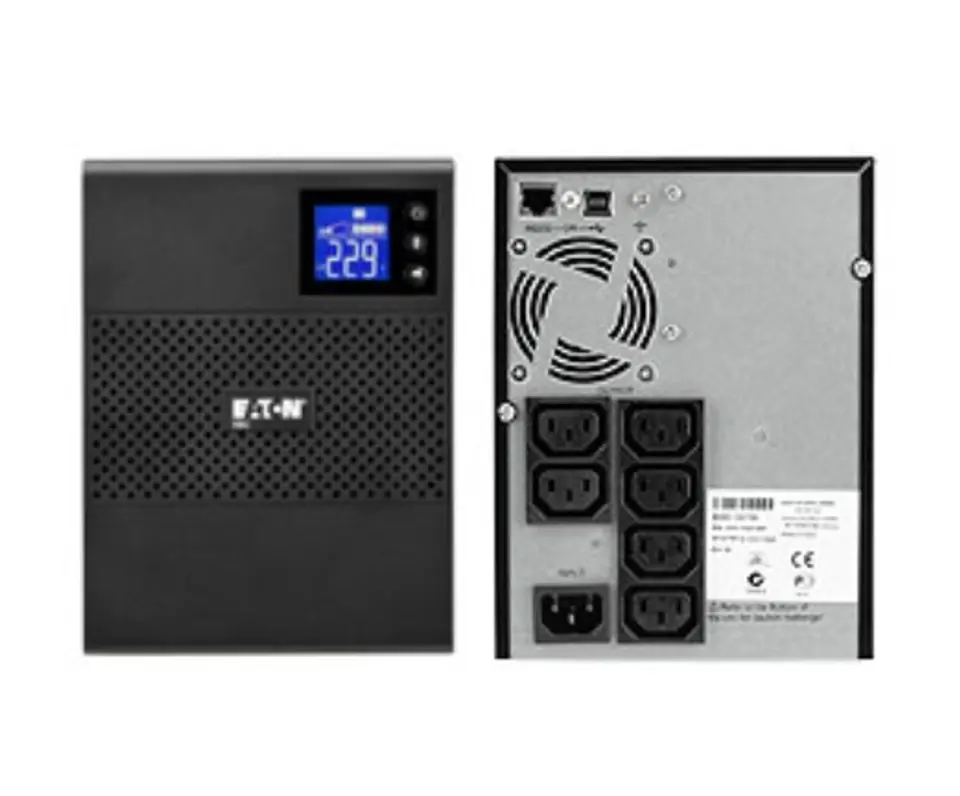

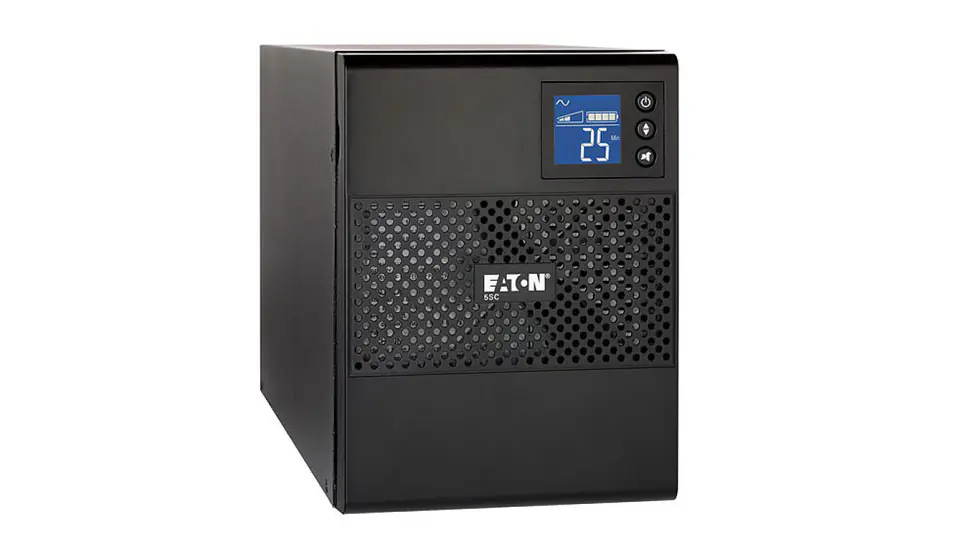

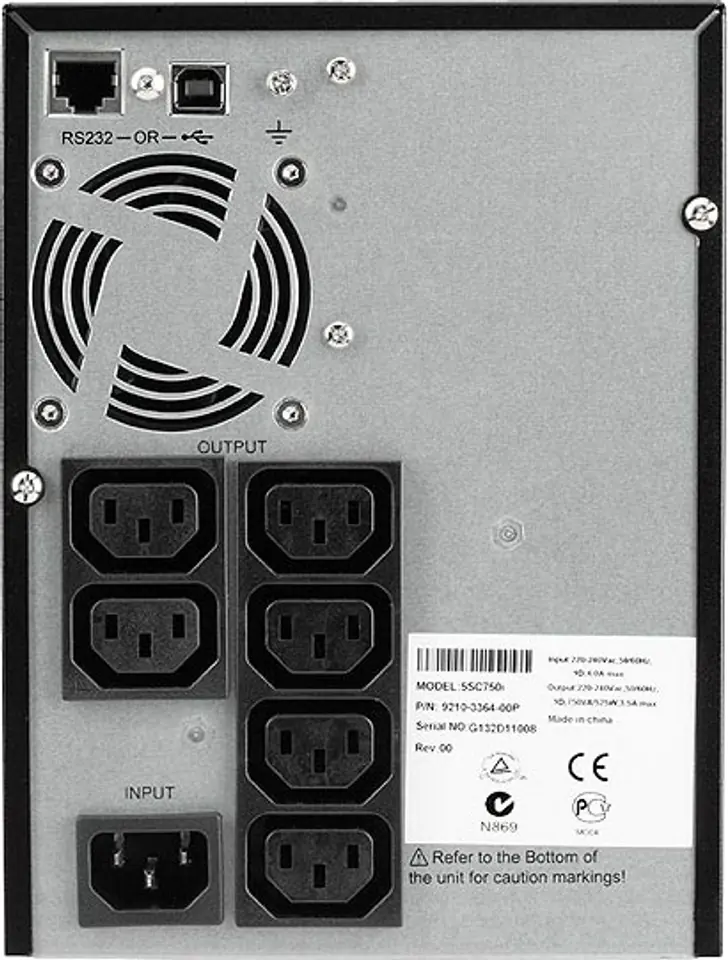

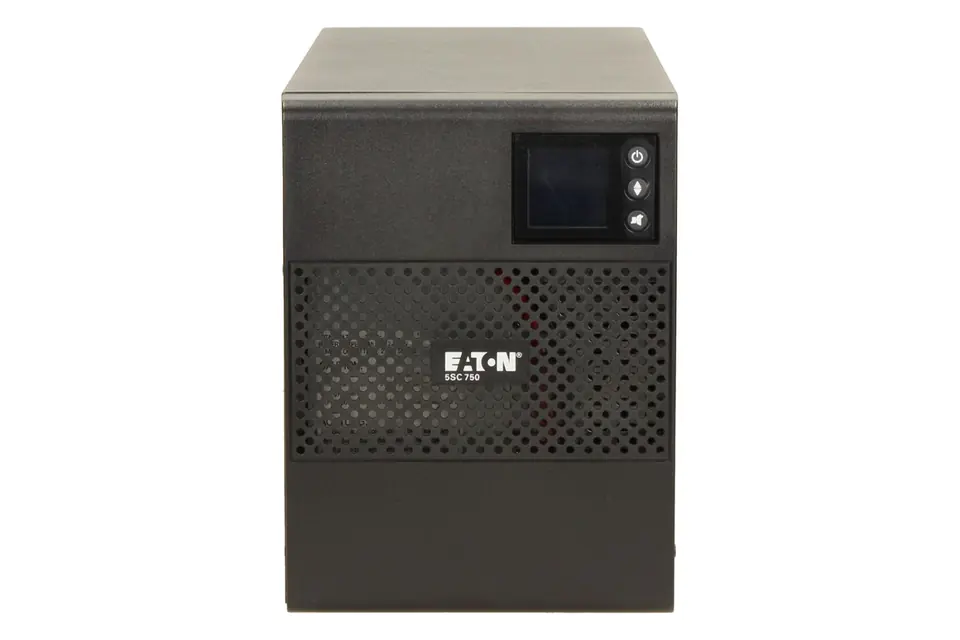

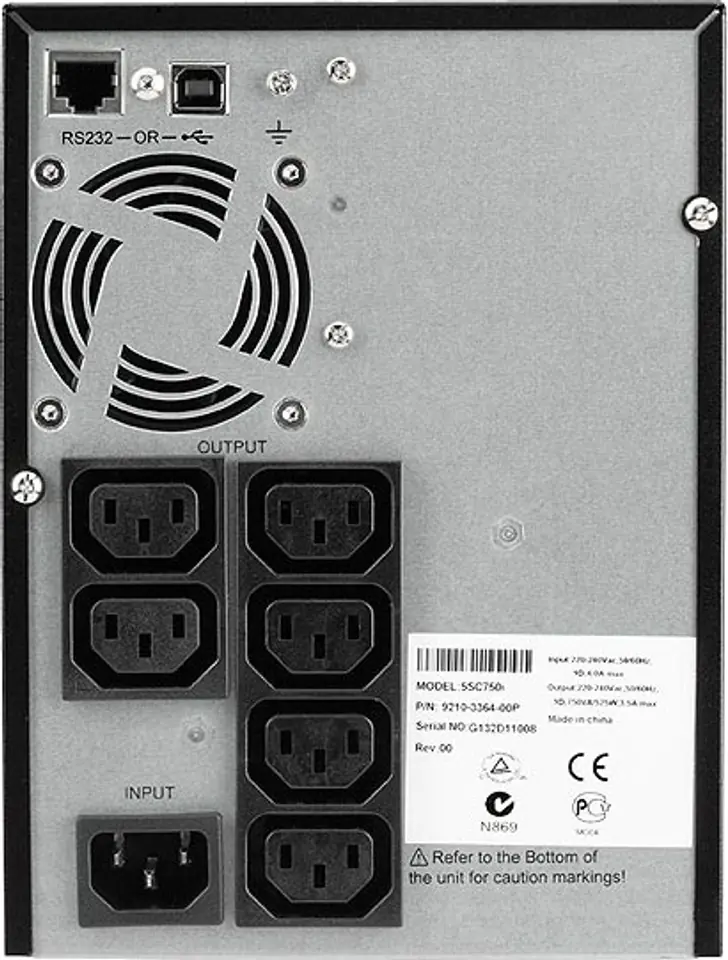

The Eaton 5SC750i is a 750VA/525W tower uninterruptible power supply (UPS) with six IEC320 sockets. It has USB and RS-232 communication connectors. Line-interactive architecture. Recommended for the protection of devices such as tower servers, network file servers, ticket machines or ATMs.
Uninterruptible power supply EATON 5SC 750 5SC750i 750VA
€392.14
Shipping from warehouse: A3
Estimated shipping: Mon, Dec 8 - Tue, Dec 9
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Eaton
- Product code:
- 9210-3364 / 0743172045157
Share this product:
Specification
| Ac outlet types: | C13 coupler |
|---|---|
| Ac outlets quantity: | 6 AC outlet(s) |
| Apparent power (va): | 750 |
| Architecture: | Line-interactive |
| Audible alarm(s): | Yes |
| Case: | Tower |
| Communication connectors: | 1x RS232, 1x USB |
| Depth: | 340 mm |
| Depth (cm): | 34 |
| Display type: | LCD |
| Efficiency: | 97% |
| Equipment: | Power cord |
| Form factor: | Tower |
| Harmonized system (hs) code: | 85078000 |
| Height: | 210 mm |
| Height (cm): | 21 |
| Hold time: | 13 min (50% load), 9 min (70% load) |
| Input frequency: | 50/60 Hz |
| Input operation voltage (max): | 276 V |
| Input operation voltage (min): | 184 V |
| Input voltage (v): | 184 - 276 |
| Kind: | Uninterruptible power supply |
| Led indicators: | Yes |
| Network ports: | 6x IEC320 C13 |
| Noise level: | 40 dB |
| Nominal input voltage: | 230 V |
| Nominal output voltage: | 230 V |
| Operating altitude: | 0 - 3000 m |
| Operating temperature (t-t): | 0 - 35 °C |
| Other parameters: | Lcd |
| Output operation voltage (max): | 240 V |
| Output operation voltage (min): | 220 V |
| Output power: | 525 W |
| Output power capacity: | 0.75 kVA |
| Output voltage (v): | 220/230/240 |
| Output voltage shape: | Sine wave |
| Power (w): | 525 |
| Power plug: | C14 coupler |
| Power protection features: | Overload |
| Product colour: | Black |
| Rs-232 ports: | 1 |
| Safety: | IEC 62040-1, CB Report (TUV) |
| Storage temperature (t-t): | -15 - 40 °C |
| Typical backup time at full load: | 5 min |
| Typical backup time at half load: | 12 min |
| Usb 2.0 ports quantity: | 1 |
| Warranty: | 2 years |
| Waveform: | Sine |
| Weight: | 10.4 kg |
| Weight (kg): | 10.4 |
| Width: | 150 mm |
| Width (cm): | 15 |
