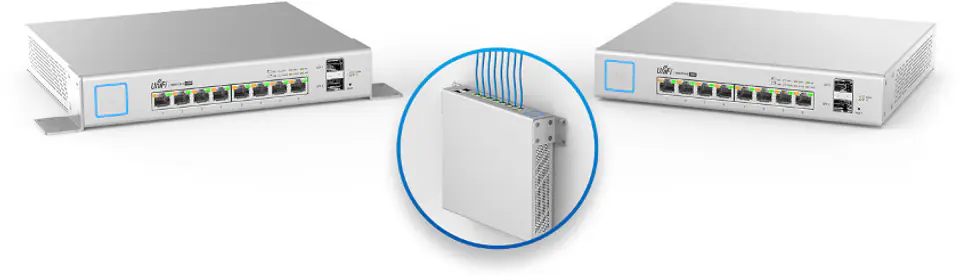

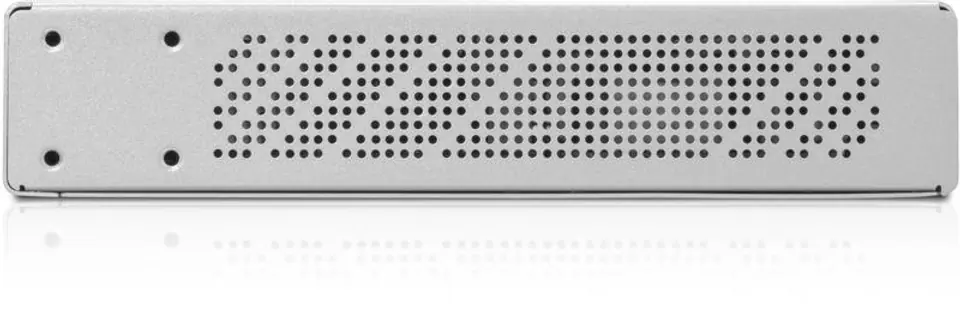

Ubiquiti Networks UniFi US-8-150W network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- US-8-150W / 0810354024467
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Authentication: | Port-based authentication |
| Authentication type: | IEEE 802.1x, RADIUS |
| Auto mdi/mdi-x: | Yes |
| Auto-sensing: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Built-in processor: | Yes |
| Cables included: | AC |
| Console port: | RJ-45 |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth: | 204 mm |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Fanless: | Yes |
| Flash memory: | 32 MB |
| Flow control support: | Yes |
| Forwarding rate: | 14.88 Mpps |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 43 mm |
| Internal memory: | 256 MB |
| Jumbo frames: | 9216 |
| Jumbo frames support: | Yes |
| Led indicators: | Activity, Status, Link, PoE, Speed |
| Link aggregation: | Yes |
| Mac address table: | 16384 entries |
| Memory type: | DDR3-SDRAM |
| Mounting brackets included: | Y |
| Networking standards: | IEEE 802.3af, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1x, IEEE 802.3ad, IEEE 802.1D, IEEE 802.3z, IEEE 802.3u, IEEE 802.3at, IEEE 802.1w |
| Number of vlans: | 255 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -5 - 45 °C |
| Port mirroring: | Yes |
| Power consumption (max): | 150 W |
| Power consumption (typical): | 20 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 34.2 W |
| Power over ethernet (poe) voltage range: | 50 - 57 V |
| Power over ethernet plus (poe+) ports quantity: | 8 |
| Power supply included: | Yes |
| Processor frequency: | 400 MHz |
| Processor model: | ARM Cortex-A9 |
| Product colour: | Grey |
| Quick start guide: | Y |
| Rack mount kit: | Y |
| Reset button: | Y |
| Screws included: | Y |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 20 Gbit/s |
| Throughput: | 14.88 Mpps |
| Total power over ethernet (poe) budget: | 150 W |
| Virtual lan features: | Tagged VLAN |
| Vlan support: | Yes |
| Wall mountable: | Y |
| Weight: | 1.65 kg |
| Width: | 235 mm |
