| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Authentication: | Guest VLAN, Port-based authentication |
| Authentication type: | IEEE 802.1x, RADIUS |
| Auto-sensing: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Configuring location settings (cli): | Yes |

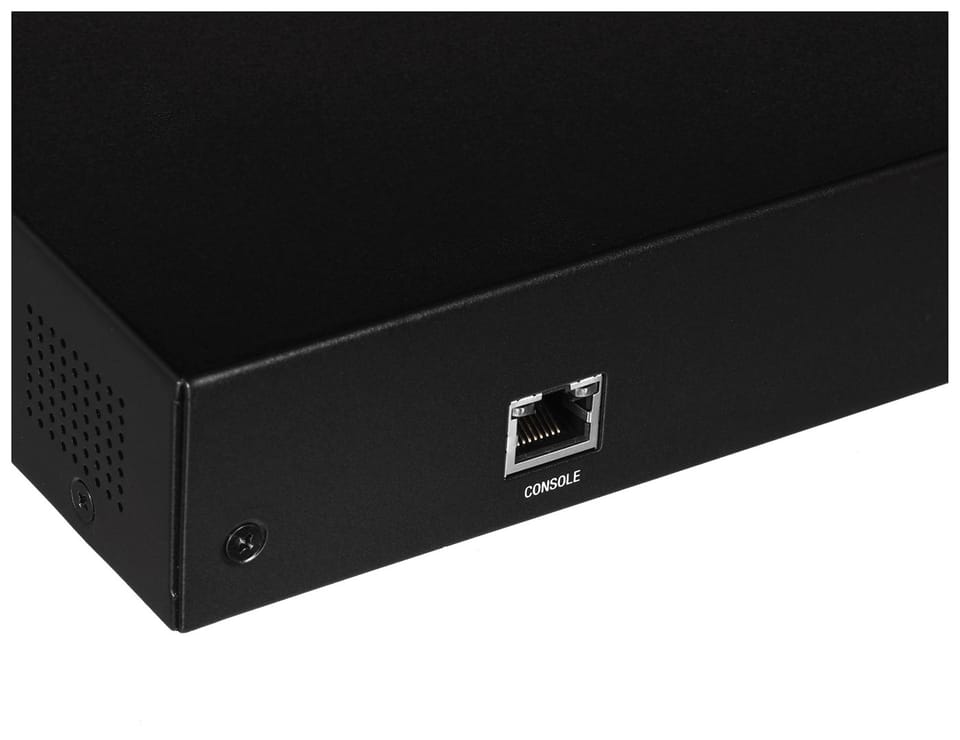

| Console port: | RJ-45 |
| Copper ethernet cabling technology: | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Depth: | 285.6 mm |
| Dhcp features: | DHCP server, DHCP snooping |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Flow control support: | Yes |
| Form factor: | 1U |
| Forwarding rate: | 38.69 Mpps |
| Full duplex: | Yes |
| Gigabit ethernet (copper) ports quantity: | 24 |
| Half duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44.5 mm |
| Igmp snooping: | Yes |
| Jumbo frames support: | Yes |
| Led indicators: | PoE, Link, Activity |
| Link aggregation: | Yes |
| Mac address filtering: | Yes |
| Mac address table: | 8000 entries |
| Management protocols: | SNMP v1/v2/v3, Telnet |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3af, IEEE 802.3at |
| Number of queues: | 8 |
| Number of vlans: | 4093 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -5 - 40 °C |
| Port mirroring: | Yes |
| Power consumption (max): | 250 W |
| Power consumption (typical): | 250 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 34.2 W |
| Power over ethernet (poe) type supported: | Passive PoE, Active PoE |
| Power supply included: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Security algorithms: | SSH-2, SSH-1.5, SSL/TLS |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Static route: | Yes |
| Switch layer: | L2/L3 |
| Switch type: | Managed |
| Switching capacity: | 52 Gbit/s |
| System event log: | Yes |
| Throughput: | 38.69 Mpps |
| Virtual lan features: | Tagged VLAN, Private VLAN, Voice VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 3.7 kg |
| Width: | 485 mm |

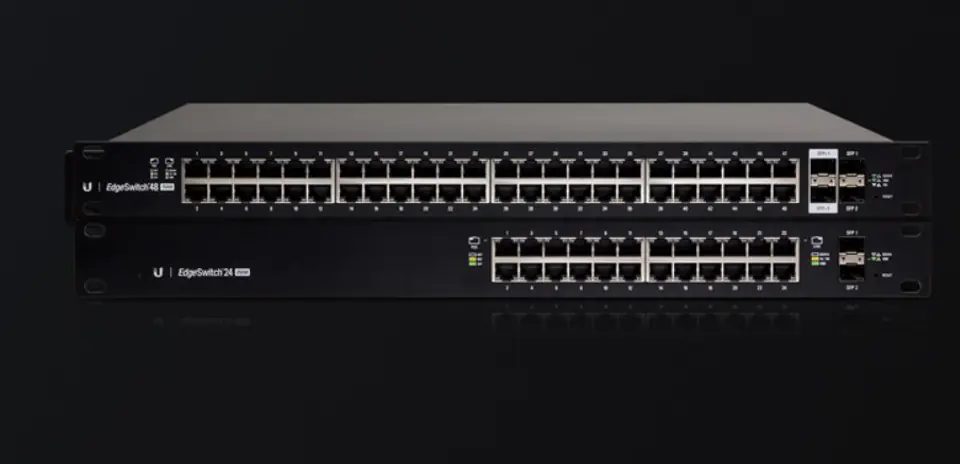

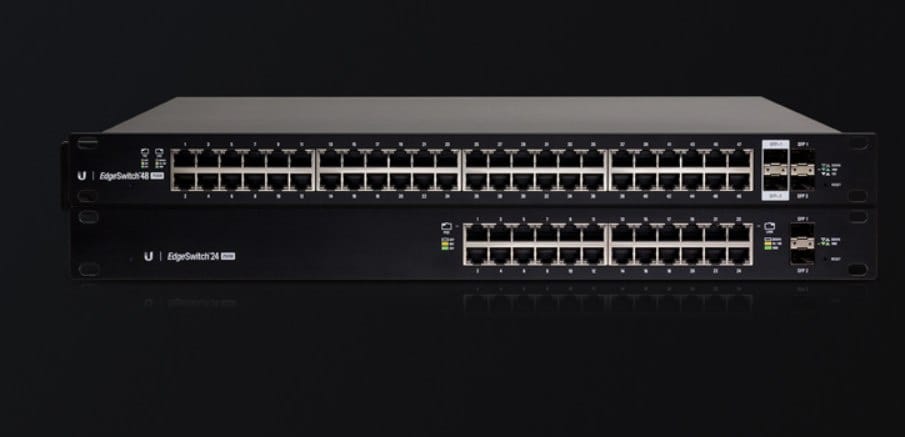

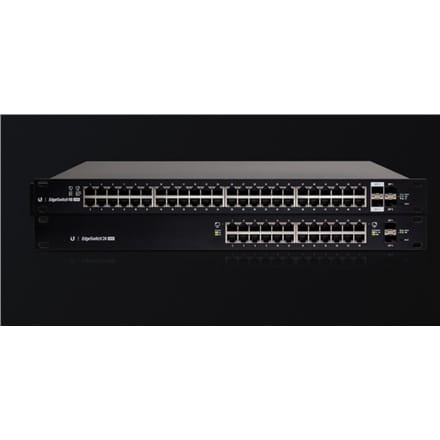

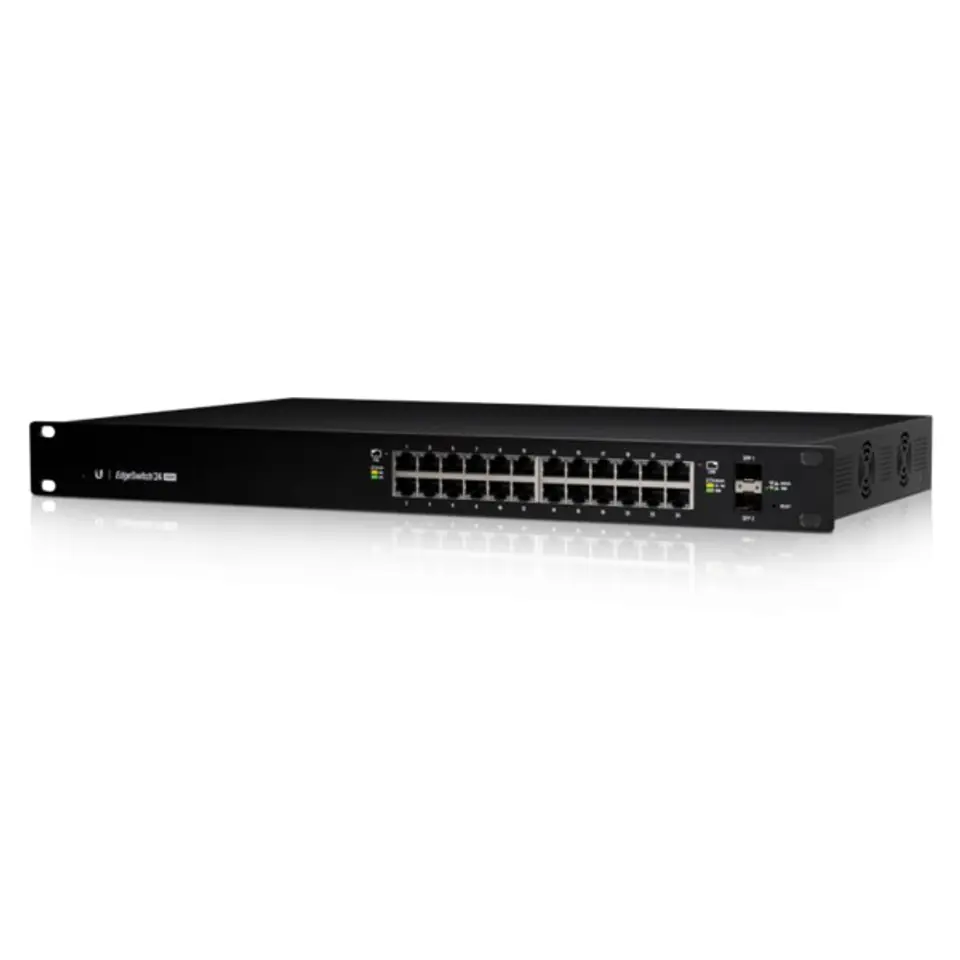

The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
The EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

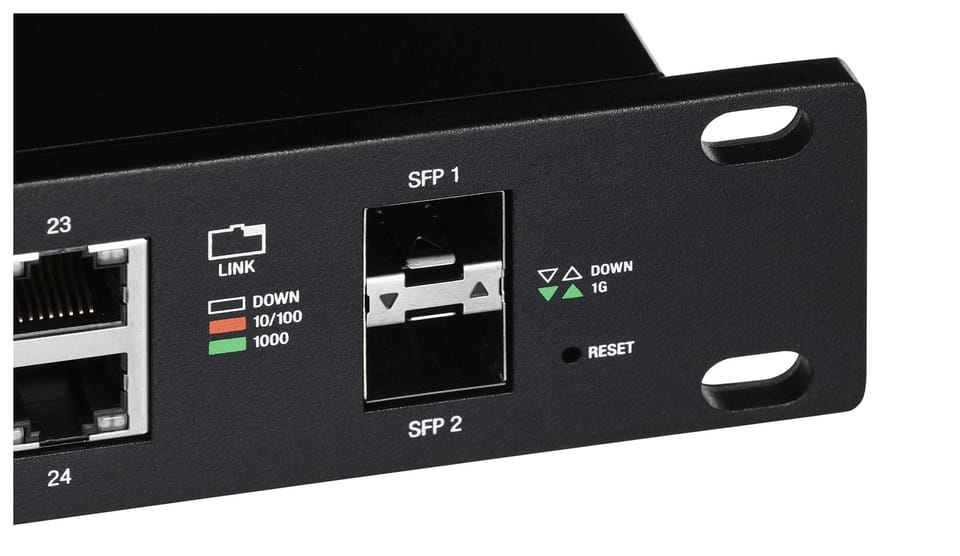

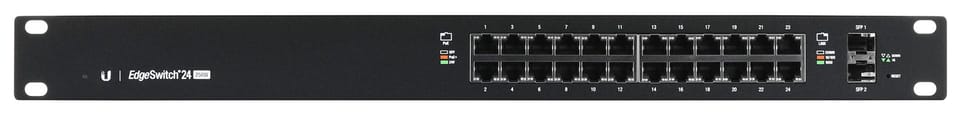

Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
