UBIQUITI NANOSTATION-M5 ACCESS POINT

Name: UBIQUITI NANOSTATION-M5 ACCESS POINT
Brand: Ubiquiti
SKU: 515277
Price: 123.65 EUR
Availability: InStock

€123.65

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, May 7 - Fri, May 10

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: NANOSTATION-M5 / 5902887018138

Specification

Antenna type:	2Tx 2Rx MIMO16 dBi Integrated
Dimensions:	278 x 80 x 59 mm
Frequency range:	5470 MHz ... 5825 MHz
Lan ports:	2 x 10/100 Mbps BASE-TX (Cat. 5, RJ-45)
Main beam width in horizontal plane (h):	43 °
Main beam width in vertical plane (v):	41 °
Memory:	32 MB SDRAM, 8 MB FLASH
Operating modes:	Station, Station WDS, Access Point Access Point WDS
Operating system:	AirOS
Operating temperature:	-30 °C ... 75 °C
Permissible relative ambient humidity:	5 % ... 95 %
Polarity:	vertical/horizontal

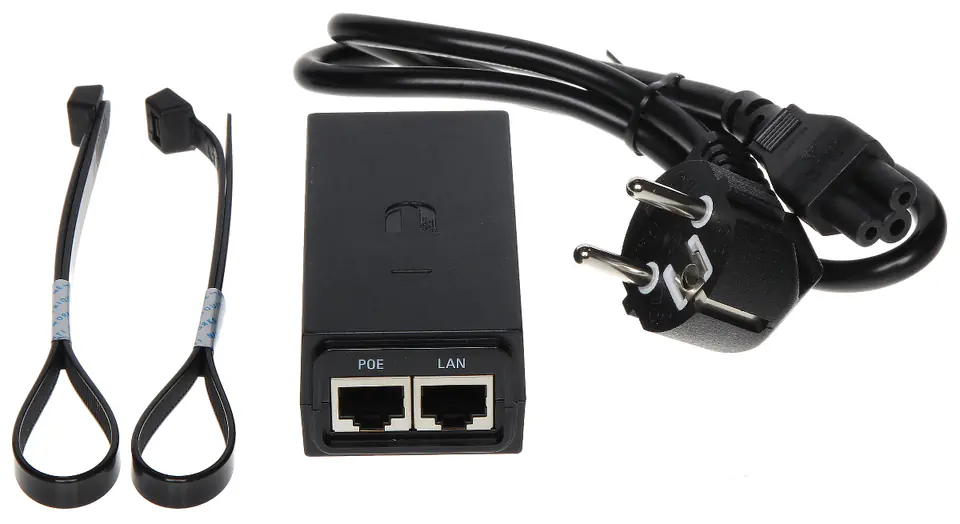

Power:	24 V / 0.5 A (power adapter included)
Processor:	Atheros MIPS 24KC, 400MHz
Producer / brand:	Ubiquiti
Receiver sensitivity:	-94 dBm @ 6 ... 24 Mbps -80 dBm @ 36 Mbps -77 dBm @ 48 Mbps -75 dBm @ 54 Mbps
Scales:	0.3 kg
Security:	15kV overvoltage protection for radio path
Standards:	IEEE 802.11a IEEE 802.11n
Transmitter power:	27 dBm @ 6 ... 24 Mbps 25 dBm @ 36 Mbps 23 dBm @ 48 Mbps 22 dBm @ 54 Mbps
Vswr:	1.6 : 1
Warranty:	2 years

UBIQUITI NanoStation NANOSTATION-M5 is a device operating in the 2x2 MIMO (Multiple Input Multiple Output) standard

The use of a new dual-polarization antenna with 16dBi gain, and operation in the MIMO standard allow to set up more efficient links (up to 150 Mbps) over a distance of up to 15 km

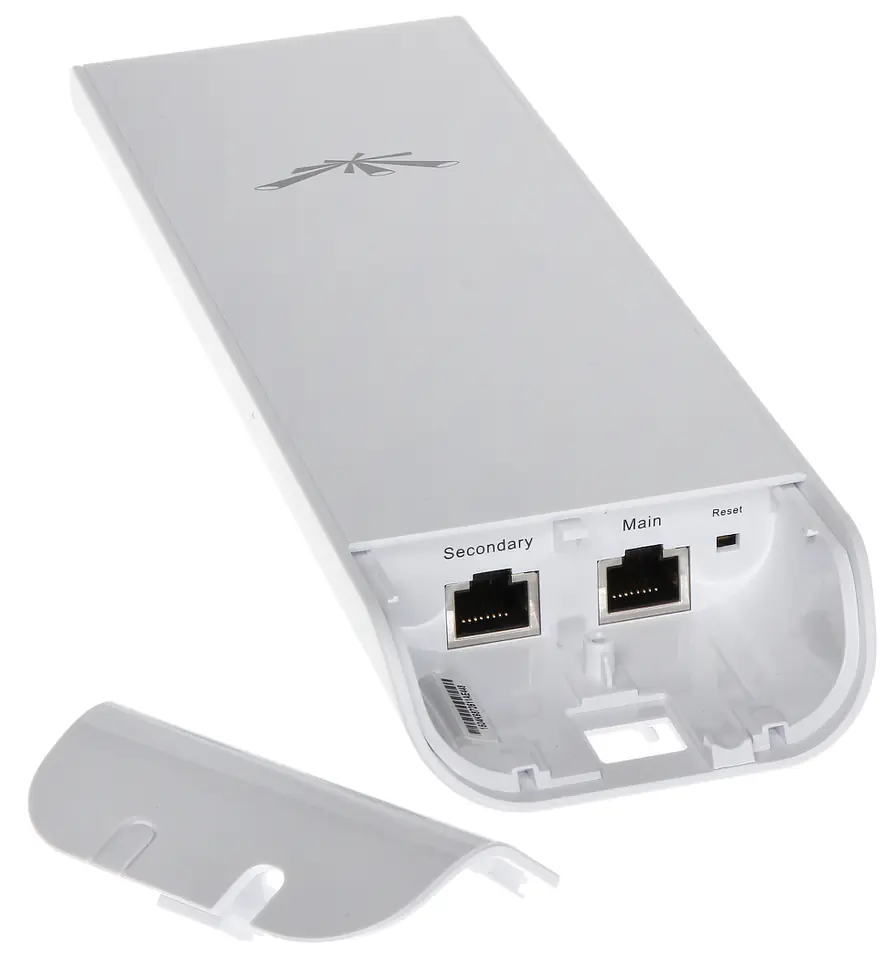

NANOSTATION-M5 is additionally equipped with 2 LAN ports, one of which offers PoE (PoE Output) function, while the other allows you to provide access to the network to another device without the use of additional switches.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
