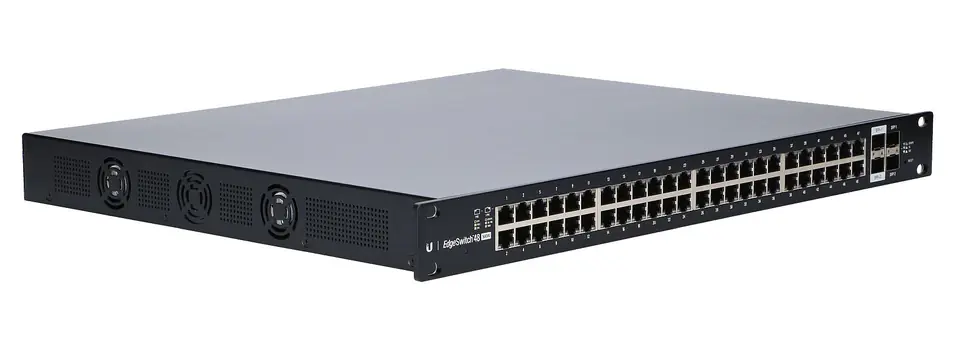

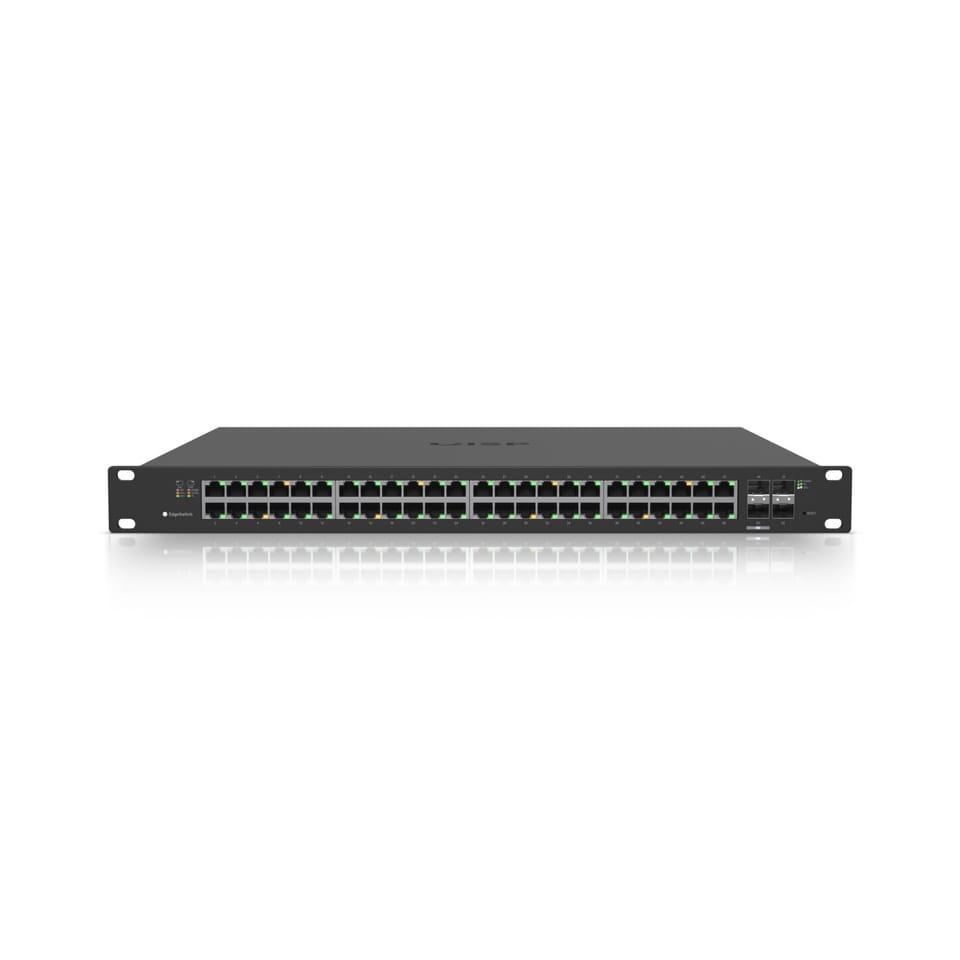

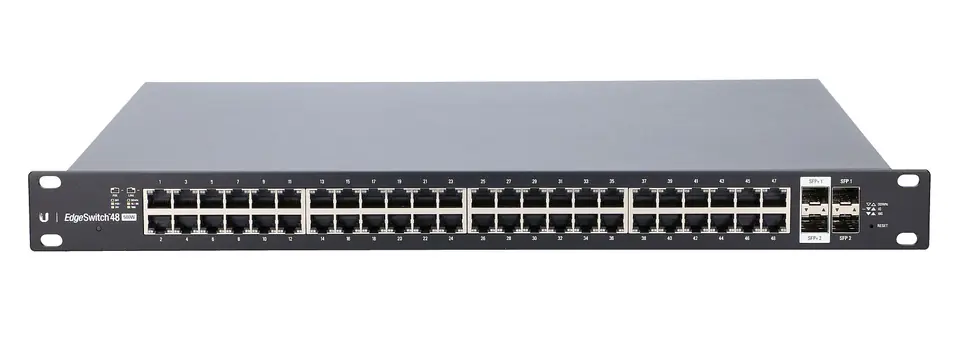

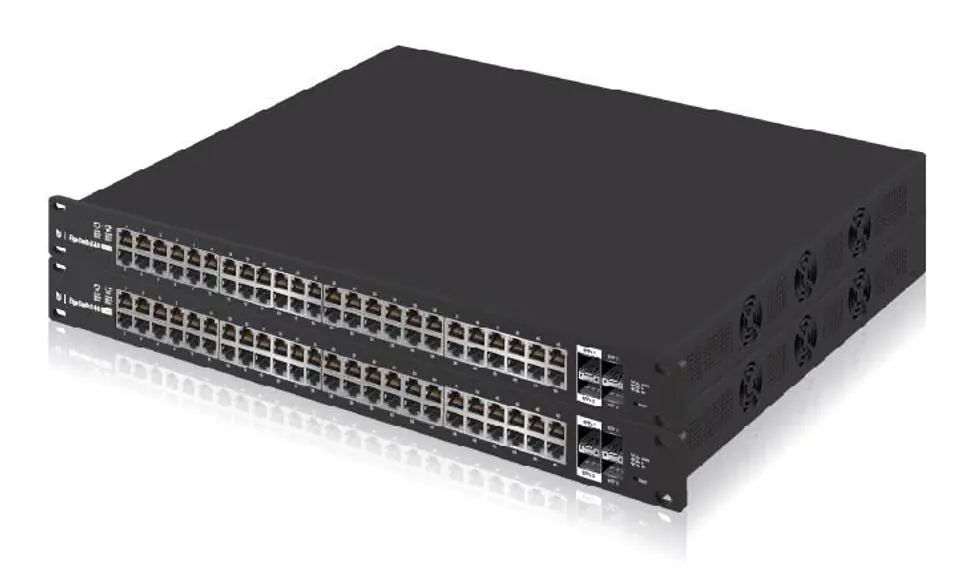

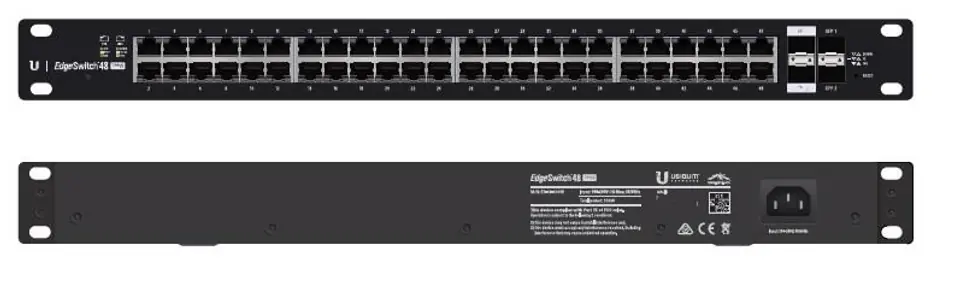

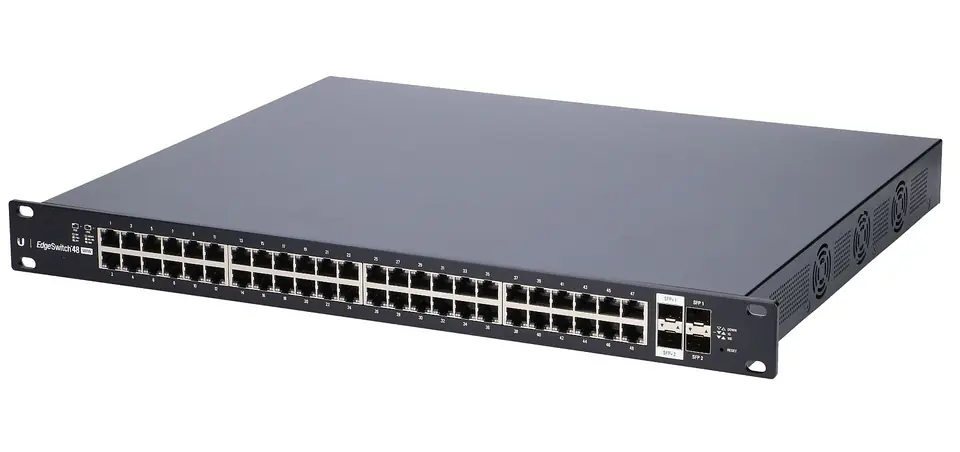

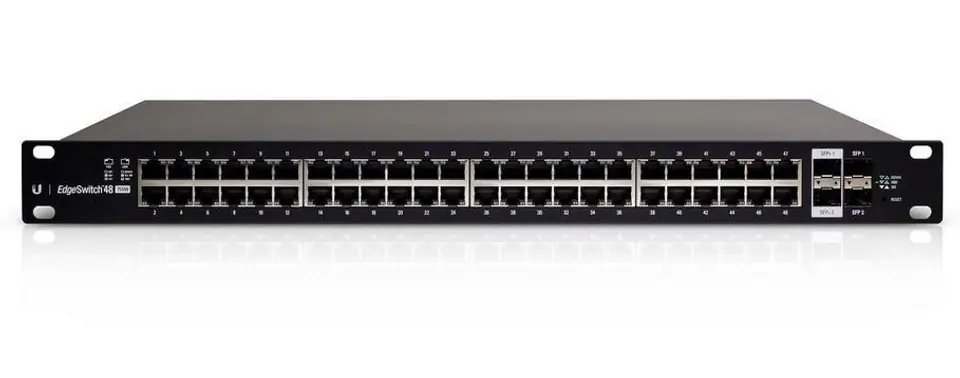

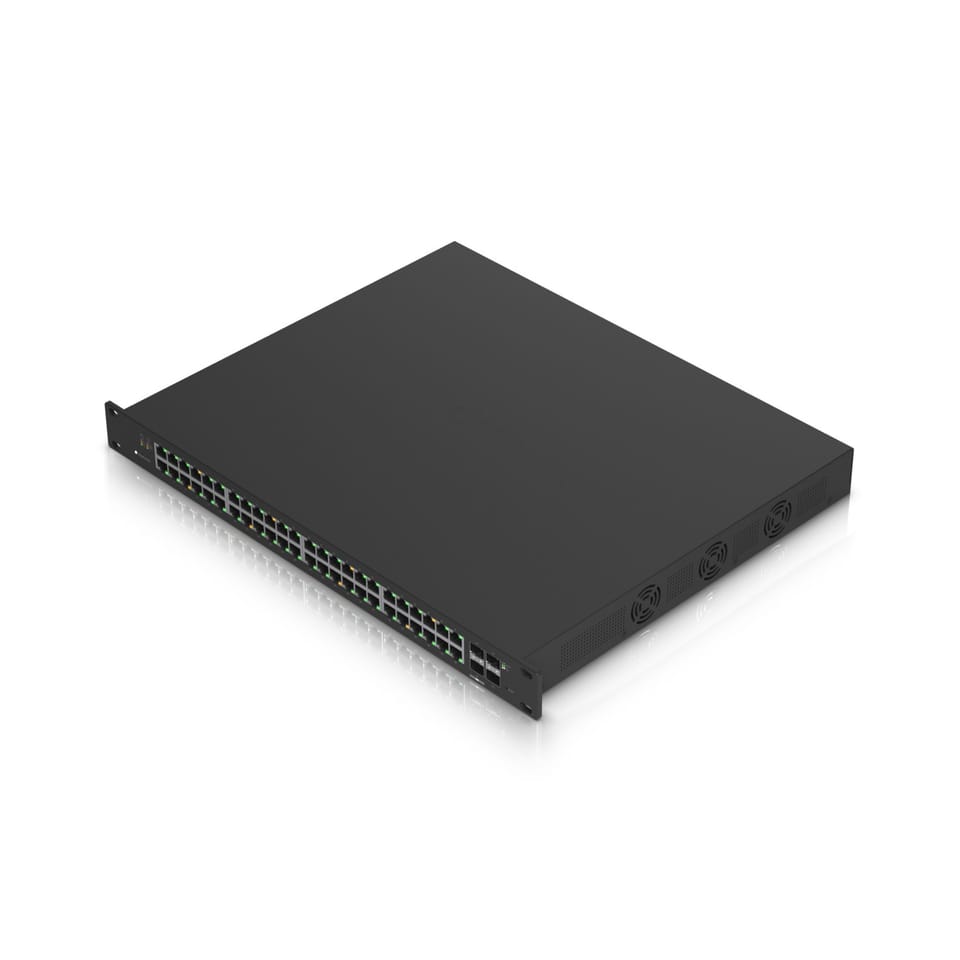

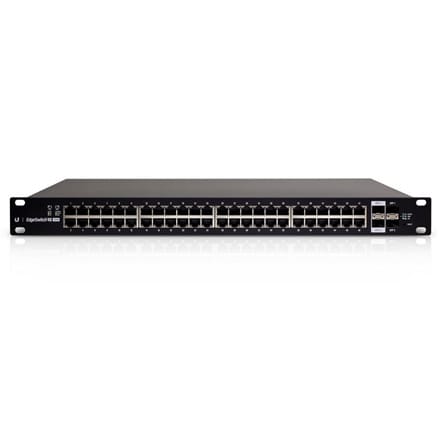

Ubiquiti ES-48-500W network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet PoE) 1U Blac

Name: Ubiquiti ES-48-500W network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet PoE) 1U Blac
Brand: Ubiquiti
SKU: 1481724
Price: 916.06 EUR
Availability: InStock

€916.06

PoE) 1U Blac

Shipping from warehouse: ⁨A1⁩

Estimated shipping: Fri, Oct 17 - Mon, Oct 20

14 days returnUnconditional return policy

Availability:: running out
Brand:
Product code:: ES-48-500W / 0810354022272

Specification

10g support:	Yes
Ac input frequency:	50 - 60 Hz
Ac input voltage:	100 - 240 V
Access control list (acl):	Yes
Access control list (acl) rules:	10
Basic switching rj-45 ethernet ports quantity:	48
Basic switching rj-45 ethernet ports type:	Gigabit Ethernet (10/100/1000)
Broadcast storm control:	Yes

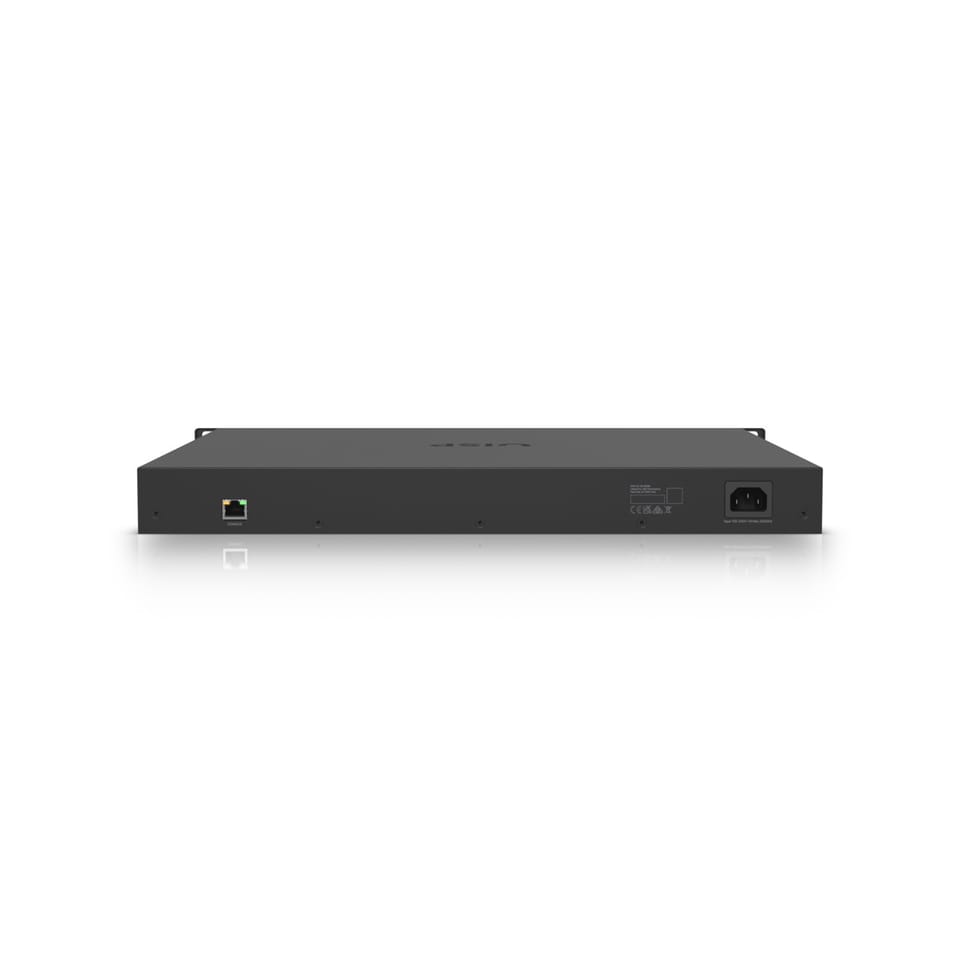

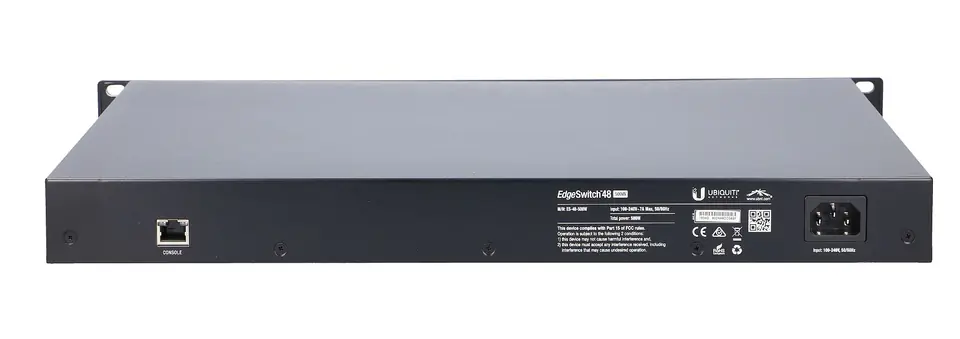

Console port:	RJ-45
Copper ethernet cabling technology:	100BASE-TX, 1000BASE-T, 10BASE-T
Depth:	347.6 mm
Dhcp features:	DHCP snooping, DHCP server
Flow control support:	Yes
Form factor:	1U
Forwarding rate:	104.16 Mpps
Gigabit ethernet (copper) ports quantity:	48
Harmonized system (hs) code:	85176990
Height:	44.5 mm
Igmp snooping:	Yes
Jumbo frames support:	Yes
Led indicators:	PoE, Link, Activity
Link aggregation:	Yes
Mac address filtering:	Yes
Mac address table:	16384 entries
Management protocols:	SNMP V1, V2, V3
Multicast support:	Yes
Networking standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.1x, IEEE 802.1ab, IEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ac
Number of queues:	8
Number of vlans:	4093
Operating relative humidity (h-h):	5 - 95%
Operating temperature (t-t):	-5 - 40 °C
Port mirroring:	Yes
Power consumption (typical):	500 W
Power over ethernet (poe):	Yes
Product colour:	Black
Quality of service (qos) support:	Yes
Rack mounting:	Yes
Sfp module slots quantity:	2
Sfp+ module slots quantity:	2
Spanning tree protocol:	Yes
Switch layer:	L2/L3
Switch type:	Managed
Switching capacity:	140 Gbit/s
Virtual lan features:	Voice VLAN, Port-based VLAN
Vlan support:	Yes
Web-based management:	Yes
Weight:	5.3 kg
Width:	485 mm

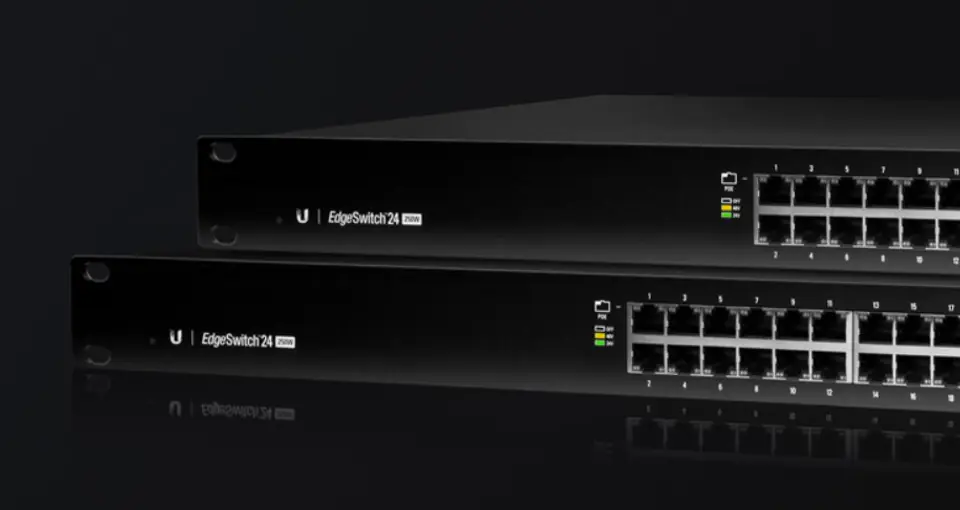

Managed PoE+ Gigabit Switch with SFP

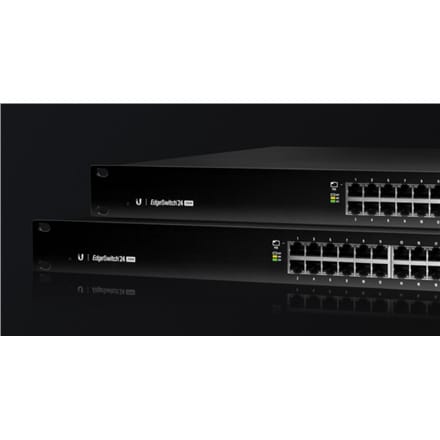

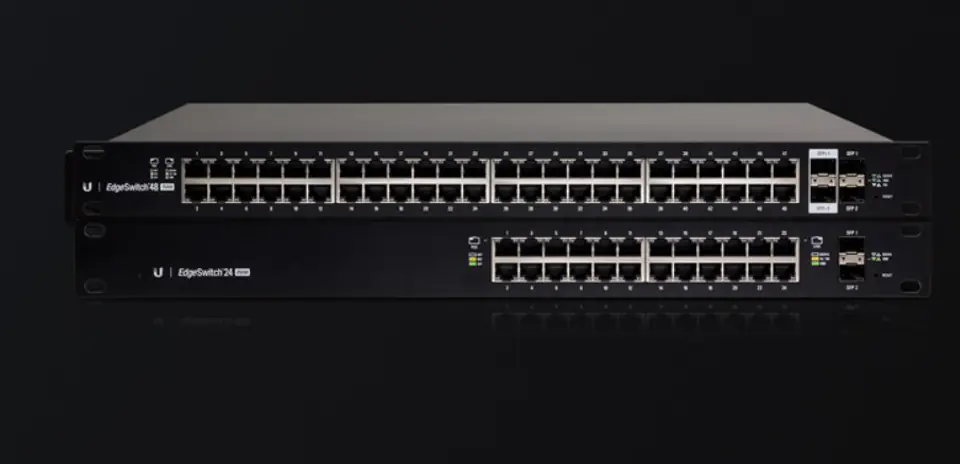

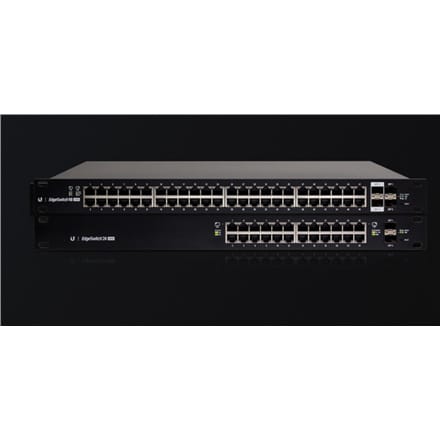

Available with 24 or 48 RJ45 Gigabit ports, the EdgeSwitch delivers robust performance, PoE+ support and intelligent switching for growing networks.

Powerful Enterprise Switch ModelsThe EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.

Enterprise-Class FeaturesThe EdgeSwitch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Optical Fiber BackhaulTwo SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

Breakthrough ValueThe EdgeSwitch provides top price/performance value: a full-featured, enterprise-class switch starting at $199 USD MSRP.

Convenient PoE+ SupportThe EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
