Twist drill with cylindrical shank

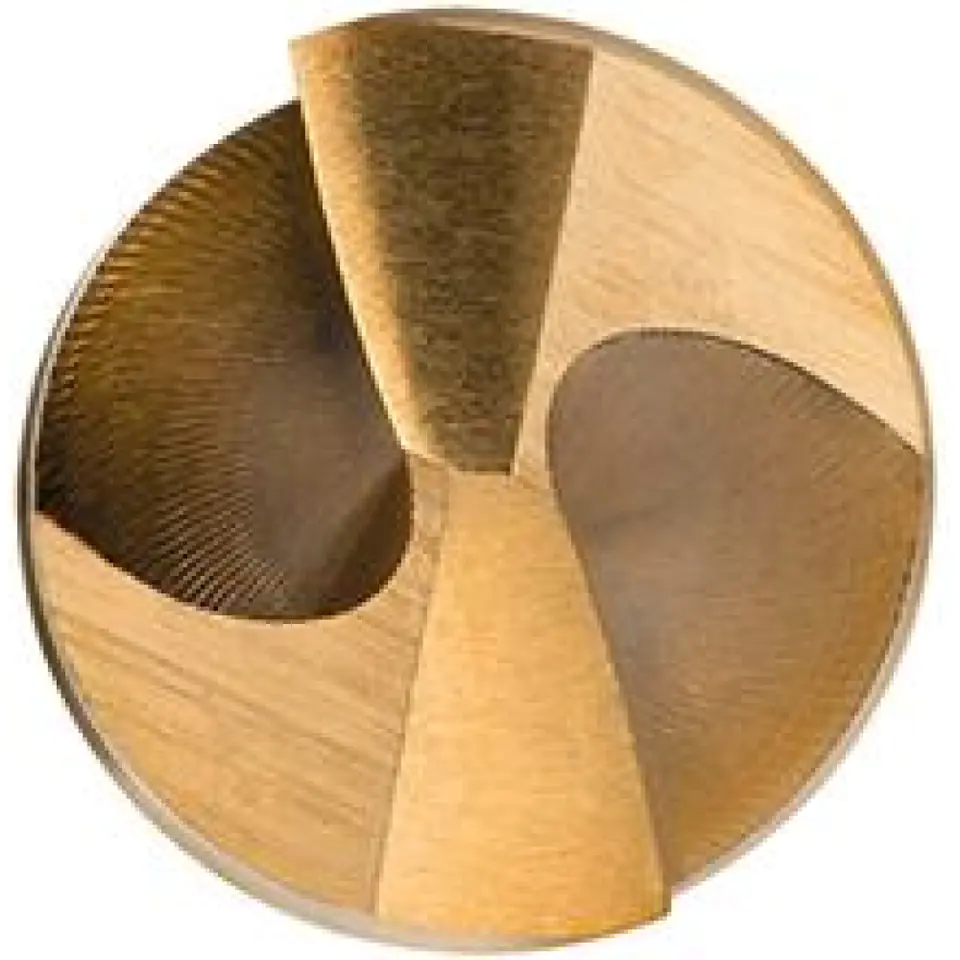

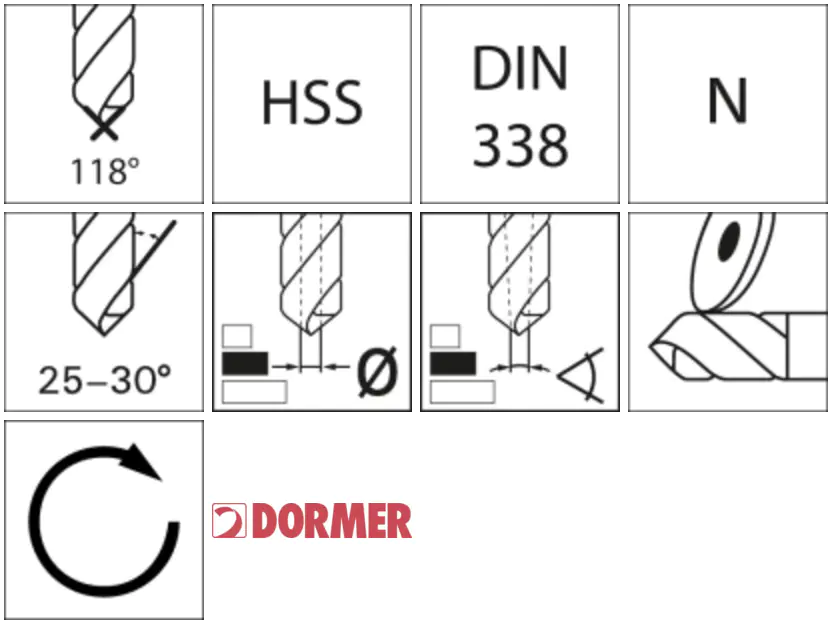

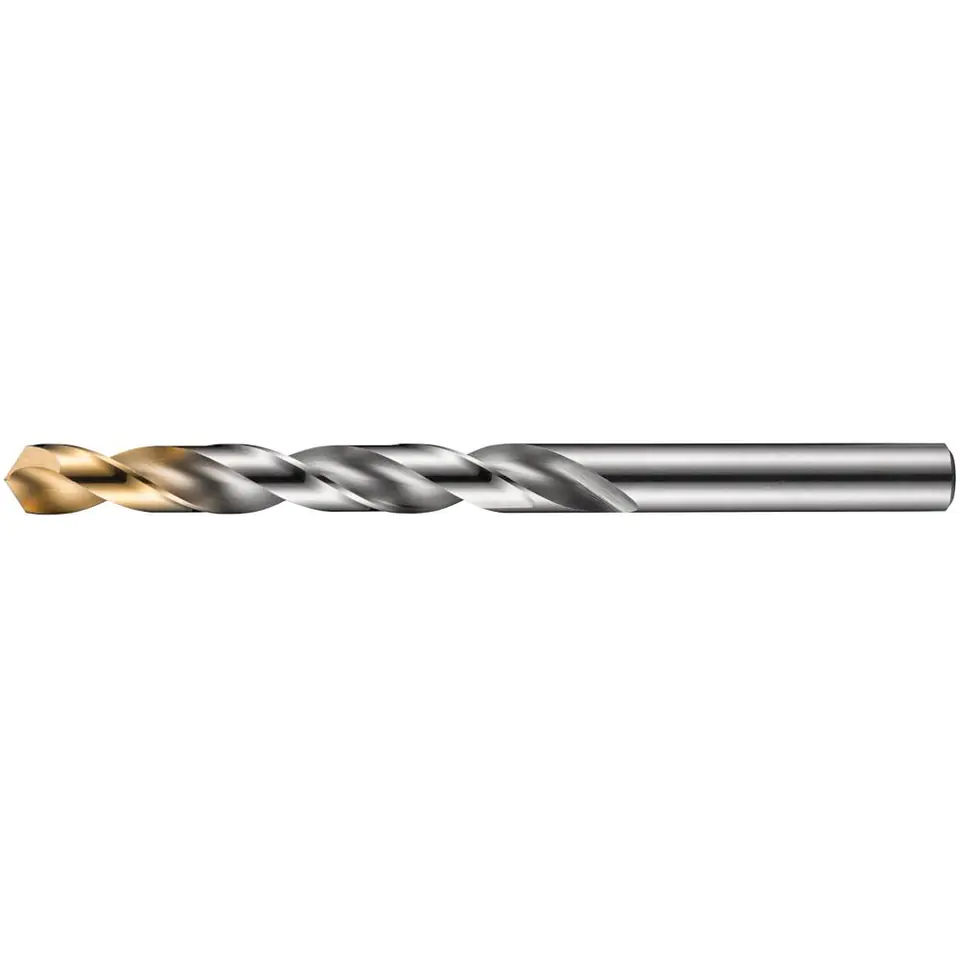

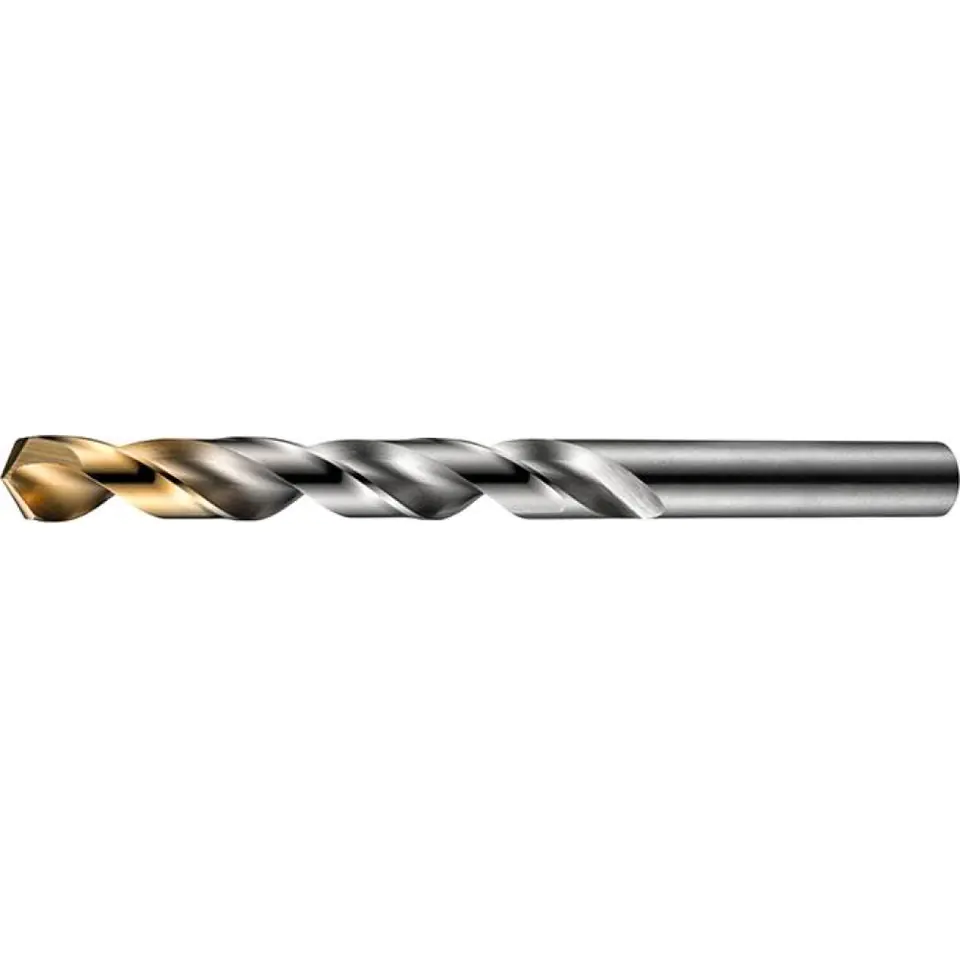

Twist drill bit HSS DIN338N12,5mm 118G type N 4xD A002 TiN Tip DORMER
€15.36
Shipping from warehouse: B6
Estimated shipping: Fri, May 3 - Mon, May 6
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- DORMER
- Product code:
- A00212.5 / 7320760351765
Share this product:
Specification
| Aluminium < 8% krzemu: | 50 |
|---|---|
| Aluminium > 8% silicon: | 33 |
| Always < 1000 n/mm²: | 18 |
| Always < 1400 n/mm²: | 10 |
| Always < 700 n/mm²: | 40 |
| Always < 700 n/mm² f: | 0.2 mm/rev |
| Cast iron gg/gts: | 40 |
| Copper alloys: | 33 |
| Ggg cast iron: | 30 |
| Graphite gfk/cfk/duropl.: | 28 |
| Hardened steels < 55 hrc: | 10 |
| Inox austenite.: | 12 |
| Inox duplex: | 13 |
| Inox ferrite./martenz.: | 16 |
| No: | A00212.5 |
| Ø h7: | 12.5 mm |
| Overall length: | 151 mm |
| Shell: | Tin |
| Spiral length: | 101 mm |
| Titanium > 850 n/mm²: | 13 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
