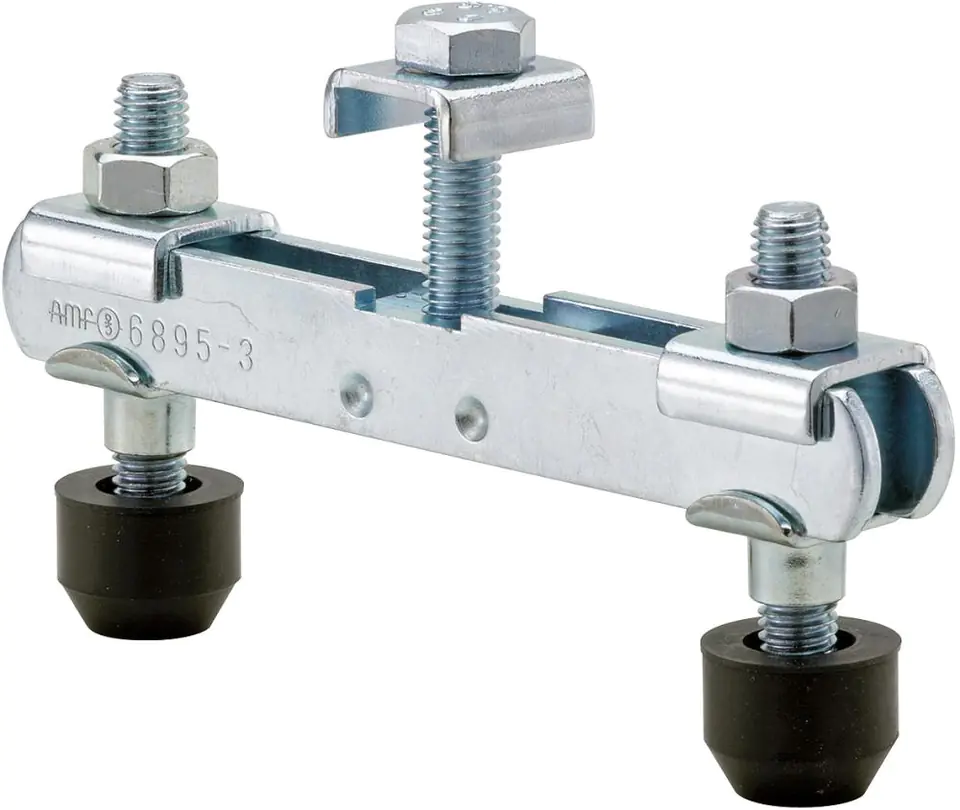

Transverse arm for quick-clamping clamps
Material: galvanized and passivated.
Application: for simultaneous fastening of 2 small parts, as well as for reliable and strong clamping of large parts in 2 points. Possibility of mounting pressure bolts from above or below the clamping arm.
Scope of delivery: complete with heat-boosted pressure screws and fixing screw.
Suitable for quick-clamping clamps (art. codes 3935, 3936, 3937). Suitable for quick-clamping clamps (art. codes 3935, 3936, 3937).
Transverse arm for fast-power clamps, up to 6 AMF
€41.43
Shipping from warehouse: B6
Estimated shipping: Thu, Apr 9 - Mon, Apr 13
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- AMF
- Product code:
- 99564 / 4020772099565
Share this product:
Specification
| Mounting range: | 54-200 mm |
|---|---|
| Scales: | 985 g |
| Screw din 933: | M12 x 80 |
| Size: | 6 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
