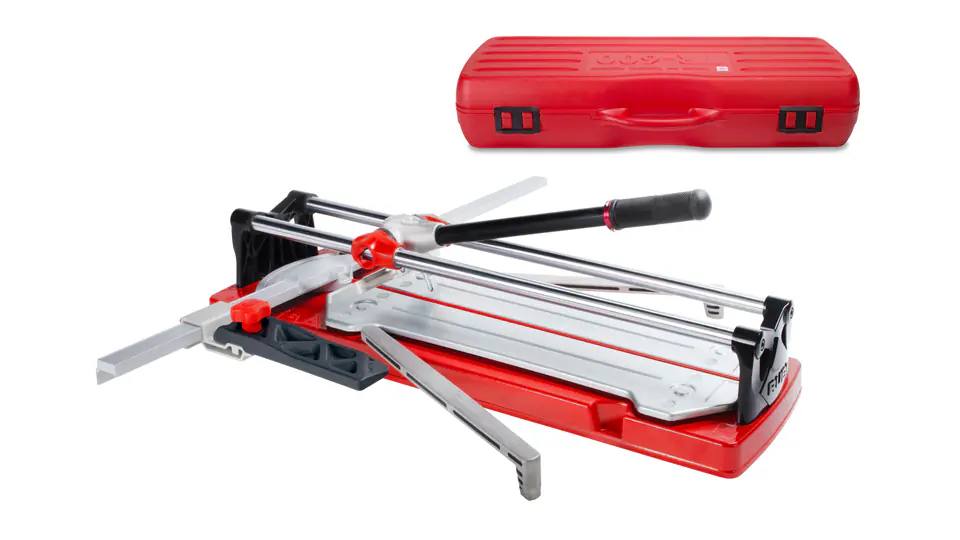

TR-710 MAGNET CUTTER

The most important feature of the TR-MAGNET manual cutter is the mobile multi-point breaker,
thanks to which these cutters are ideal for diagonal cuts.
In addition, the rotary measure found in this model helps to achieve very high cutting accuracy.

TR-MAGNET manual cutters are suitable for intensive cutting of ceramic tiles (especially type BIII)
and terracotta tiles (type BIIa), as well as frequent cuts of porcelain tiles (type BIa) with a thickness of up to 15 mm.

The RUBI TR-MAGNET multi-point breaker ensures optimum quality of cross-cut cuts from one to
the second corner of the tile. In addition, the TR-MAGNET model is distinguished by a breaker system that allows the operator to work with one hand.

The MAGNET system locks the breaker in the upper position, facilitating the cutting of the plate and improving visibility.
Then, by a simple movement of the stick upwards, the breaker foot is lowered,
which can exert a maximum pressure of 800 kg for a clean and precise cut.

All models of the TR-MAGNET range have a swivel measure with a central attachment point for quick
and precise determination of the cutting angle from -45o through 0° to 45°.
The rotary measure is complemented by a side measure made of technical plastic, very helpful in making serial cuts.

RUBI TR-MAGNET cutters have a strong double-layer aluminium base
with pressure damping tops and supports for large format tiles.

The guides in TR-MAGNET cutters are ground and calibrated and protected against corrosion.
The dual guide system guarantees better visibility and thus the highest possible accuracy of each cut.

The possibility of using all interchangeable cutting knives in the range from 6 to 22 mm allows the use of
TR-MAGNET cutters for cutting any ceramic material with maximum productivity and cutting quality.

TR-MAGNET manual cutters come standard with two cutting knives: one 6 mm
for cutting ceramic wall tiles and 10 mm for porcelain tiles or stone tiles.
Another important distinguishing feature of the RUBI cutter is the carrying case
with reinforced hinges and buckle for easy transport and storage.
