Specification

2.4 ghz:	Yes
5 ghz:	Yes
6 ghz:	No
Access control list (acl):	Yes
Airtime fairness (atf):	Yes
Antenna gain level (max):	5 dBi
Antenna type:	Internal
Antennas quantity:	2
Automatic channel selection:	Yes
Band steering:	Yes
Beamforming:	Yes
Cable lock slot:	No
Cabling technology:	10/100/1000Base-T(X)
Dc-in jack:	Yes
Depth:	86 mm
Ethernet lan (rj-45) ports:	4
Ethernet lan data rates:	100, 10, 1000 Mbit/s
Firmware upgradeable:	Yes
Frequency band:	2.4, 5 GHz
Height:	42.6 mm
Ip address filtering:	Yes
Led indicators:	Yes
Mac address filtering:	Yes
Maximum data transfer rate:	2402 Mbit/s
Maximum data transfer rate (2.4 ghz):	574 Mbit/s
Maximum data transfer rate (5 ghz):	2402 Mbit/s
Mounting kit:	Yes
Networking standards:	IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11ax, IEEE 802.11a, IEEE 802.3at
Number of products included:	1 pc(s)
Number of ssid supported:	16
Number of users:	100 user(s)
Operating relative humidity (h-h):	10 - 90%
Operating temperature (t-t):	0 - 40 °C
Package depth:	184 mm
Package height:	56 mm
Package type:	Box
Package weight:	400 g
Package width:	117 mm
Placement:	Wall
Power consumption (typical):	12 W
Power over ethernet (poe):	Yes
Product colour:	White
Quality of service (qos) support:	Yes
Rate limiting:	Yes
Remote authentication dial-in user service (radius):	Yes
Reset button:	Yes
Security algorithms:	WPA3-Enterprise, SSH, WPA-Enterprise, SNMPv3, HTTPS, SNMP, WPA2-Enterprise, SNMPv2
Service set identifier (ssid) features:	Multiple SSIDs
Storage relative humidity (h-h):	5 - 90%
Storage temperature (t-t):	-40 - 70 °C
Sustainability certificates:	RoHS
Syslog:	Yes
Transmitting power (ce):	20 - 23 - 26 dBm
Transmitting power (fcc):	21 - 21 dBm
Vlan support:	Yes
Wan connection:	Ethernet (RJ-45)
Web-based management:	Yes
Wi-fi multimedia (wmm)/(wme):	Yes
Width:	143 mm
Wireless isolation:	Yes

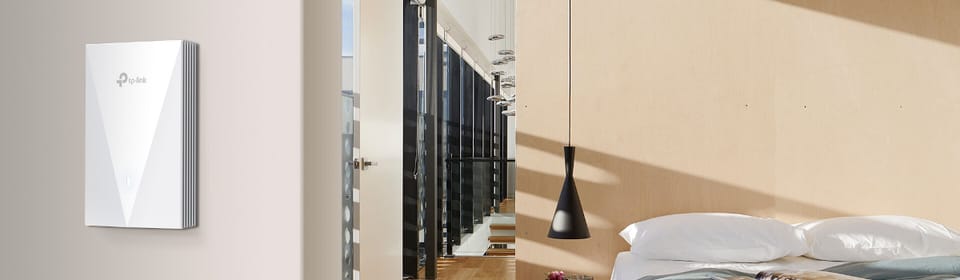

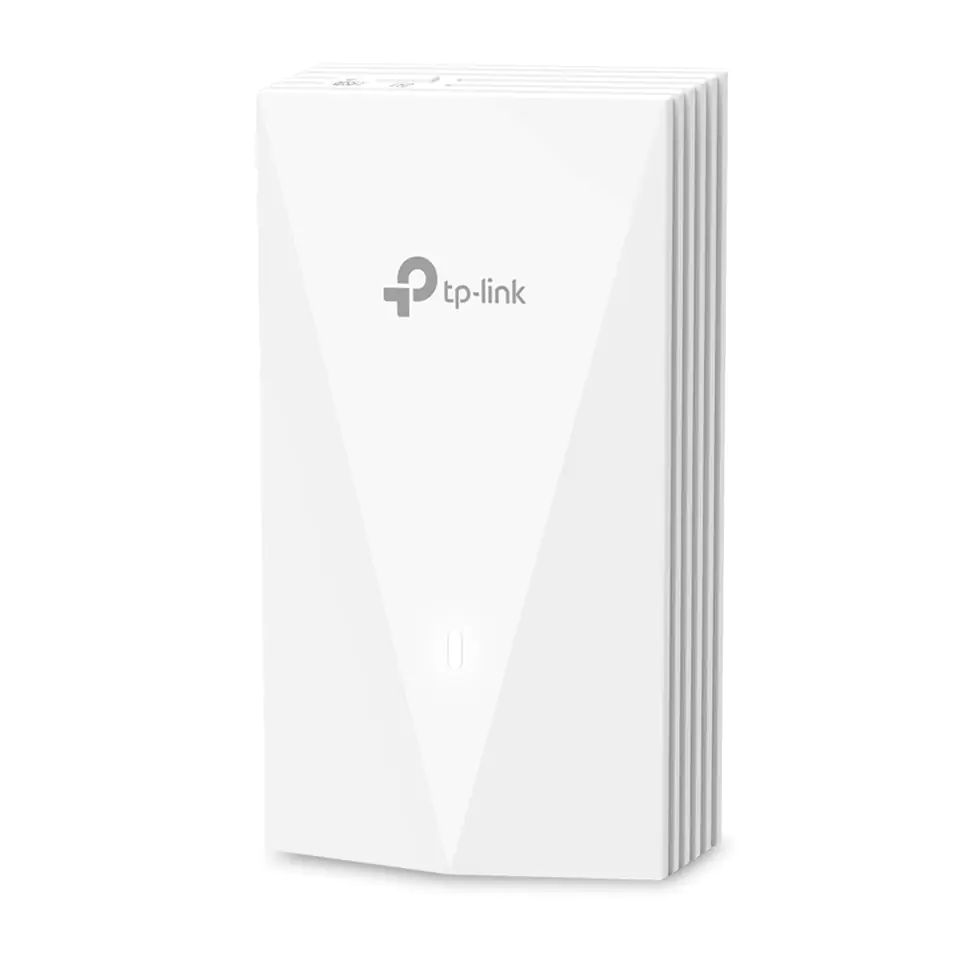

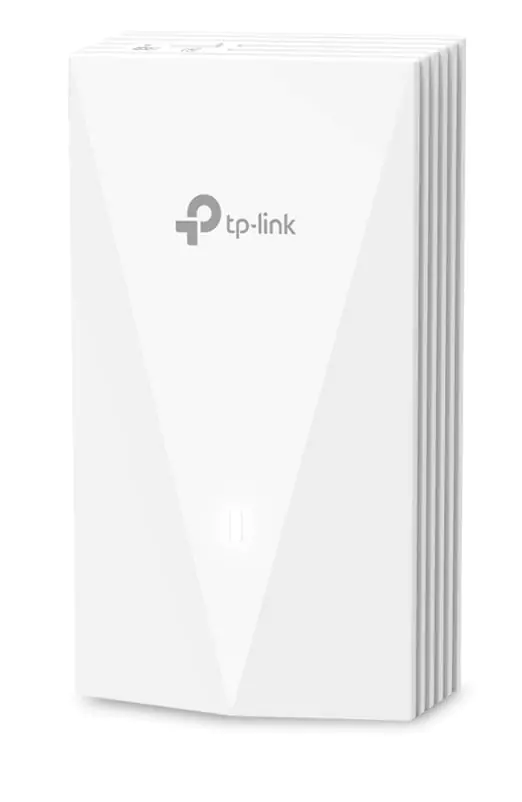

Wireless, wall-mounted WiFi 6 access point, AX3000

Blazing Fast WiFi 6 AX3000: Simultaneous 574Mbps speed on the 2.4GHz band and 2402Mbps speed on the 5GHz band, for a total WiFi speed of 2976Mbps.
High connectivity performance: Data transmission to multiple devices at the same time and lower latency.

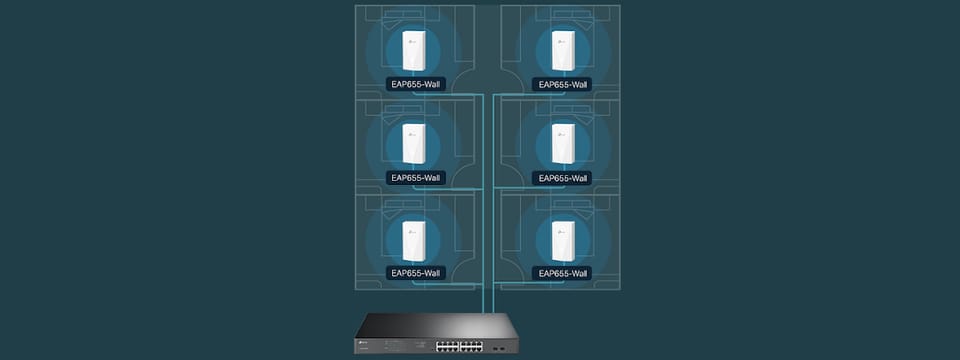

Full Wi-Fi coverage in the room: Ensure a strong signal and Wi-Fi coverage in every corner of the room.
Gigabit Ports: Connect multiple wired devices with three Gigabit downlink ports, including one with PoE Pass-Through.
Centralized management: Integration with the Omada SDN platform provides Cloud access and remote management.
Secure guest network: Multiple authentication methods are available (SMS/Facebook Wi-Fi/Voucher) and numerous technologies that protect access to the wireless network.§

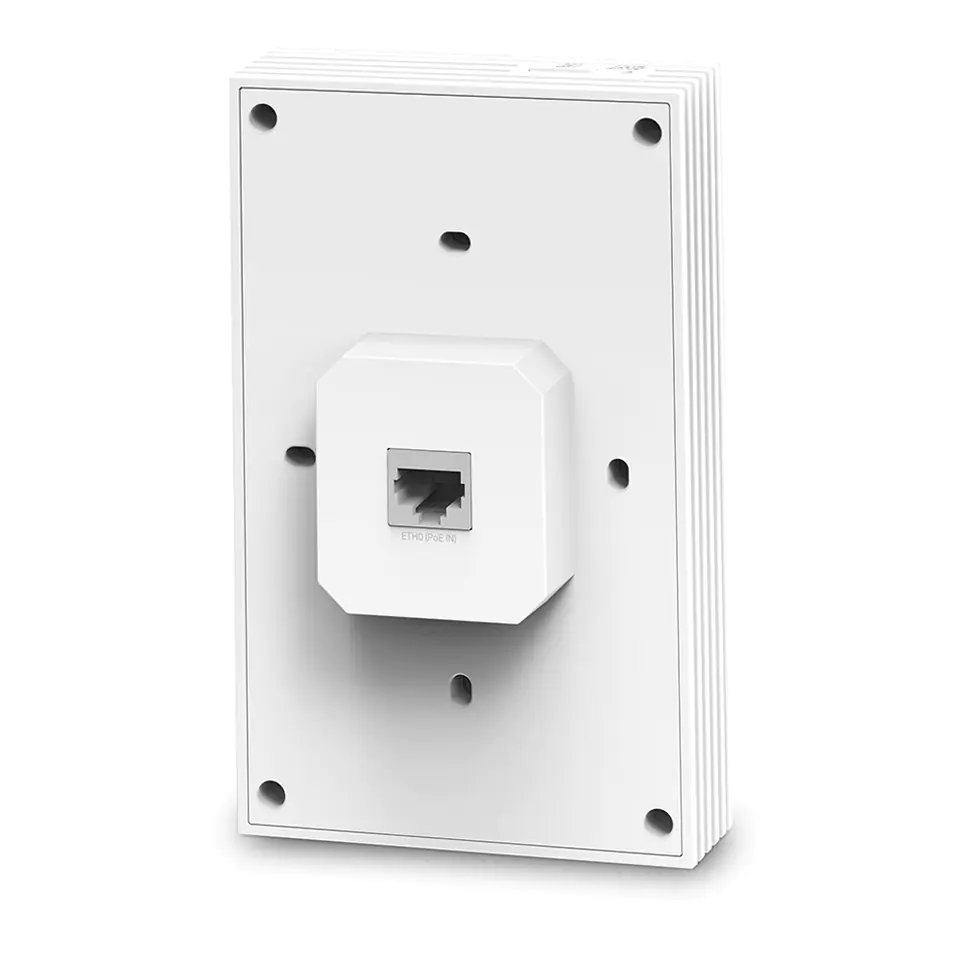

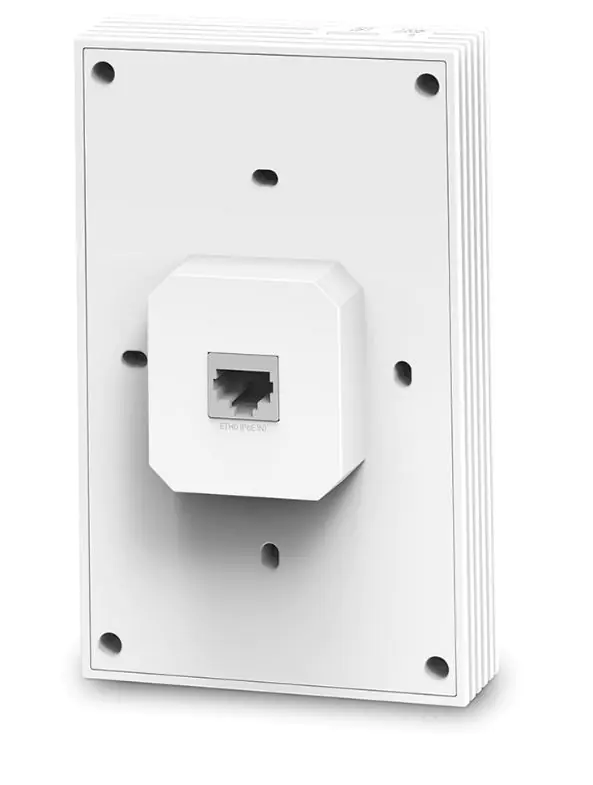

Easy Installation and PoE Support: The design is easy to install thanks to compatibility with 86mm and EU standard junction box and support for 802.3af/at PoE.

Blazing fast Wi-Fi 6, AX3000

Wi-Fi 6 delivers faster speeds, lower latency, less interference, and more capacity. Enjoy more than twice the speed of Wi-Fi 5 available in the next era of Wi-Fi 6, reaching speeds up to 2976Mbps.

Not only Speed but also Safety

Secure your network and its data against Brute Force attacks and snooping with enterprise-grade WPA3 encryption, portal authentication, and guest network segregation.

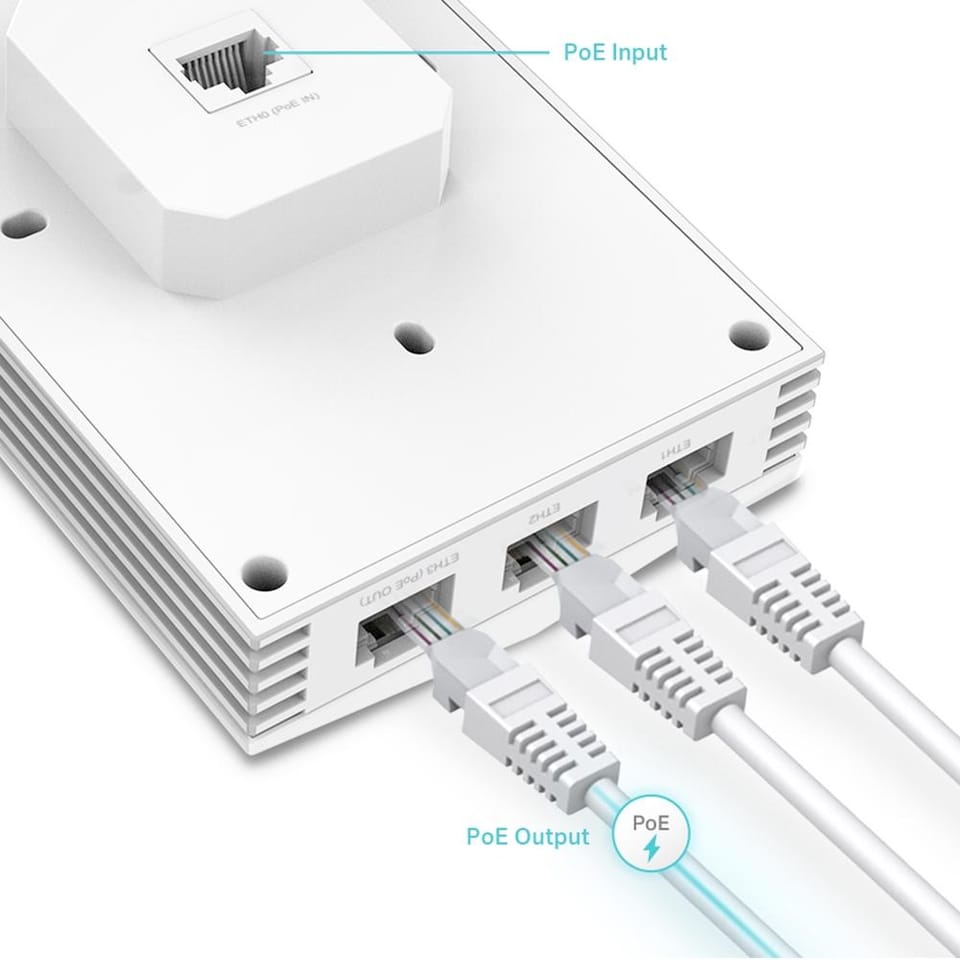

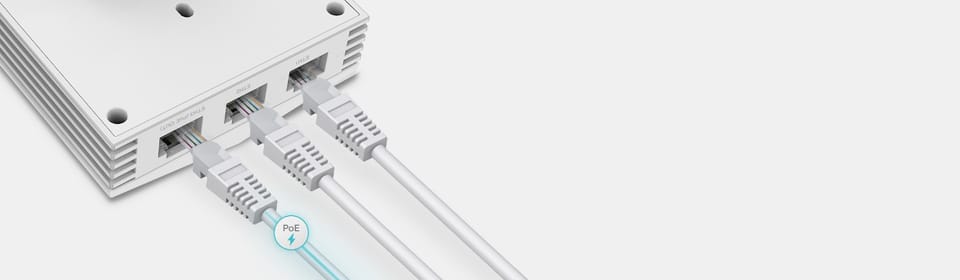

Gigabit ports. Network connection

Devices such as VoIP phones can be powered without the use of additional electrical cables, thanks to the PoE Pass-Through function of one of the Downlink ports. Four ports (1 Uplink + 3 Downlink) transmit data at high speed, allowing devices to connect to your gigabit network.

Seamless deployment with PoE power

Thanks to the support for PoE 802.3af/802.3at, there is no need to distribute additional cabling. Connect the device to your existing Ethernet cables and you're done!

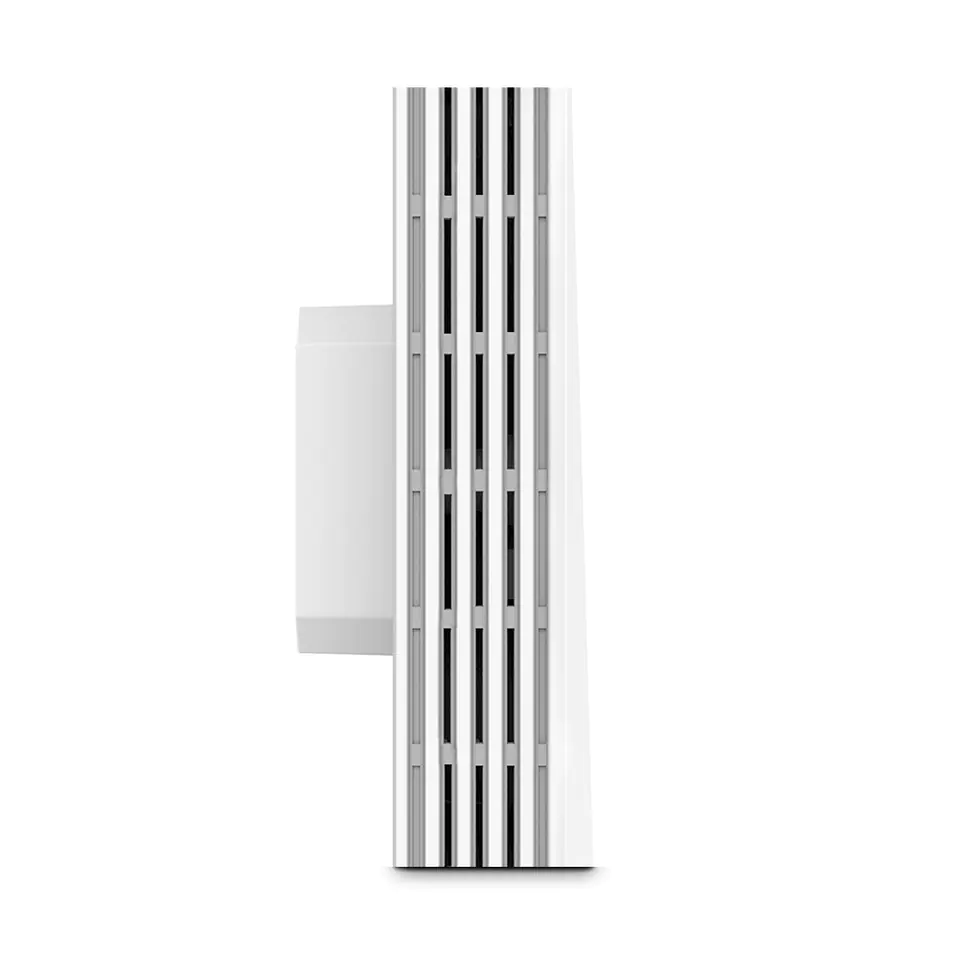

Quick and simple installation

Thanks to the easy-to-install design, there is no need to spend time and money on a specialist who will install our EAP.

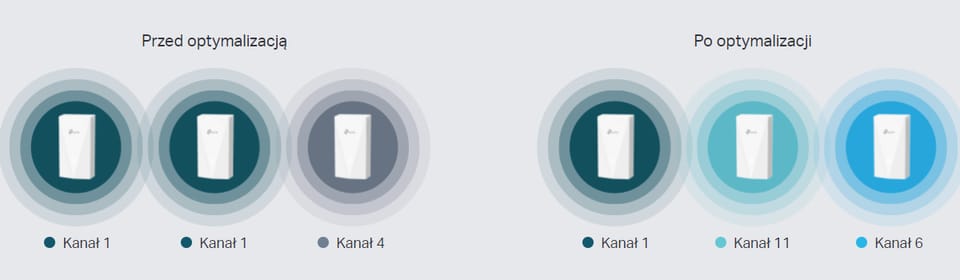

Automatic Channel Selection and Power Control optimize performance

Provides high wireless performance while reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring access points on the same network.

Integration with the Omada SDN platform

The Omada Software Defined Networking (SDN) platform integrates network devices such as Access Points, Switches and Routers to provide 100% centralized cloud management and a highly scalable network managed from a single interface.

Easy management through the Omada app

Network configuration via the application takes only a few minutes. Omada allows you to adjust settings to your preferences, monitor network status and manage connected clients - all from your smartphone or tablet.
