| 10g support: | No |
|---|---|
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Authentication: | MAC-based authentication, Port-based authentication |
| Authentication type: | RADIUS |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | 2.5G Ethernet (100/1000/2500) |
| Broadcast storm control: | Yes |
| Cloud-managed: | Yes |
| Compliance certificates: | Federal Communications Commission (FCC), RoHS, CE |
| Configuring location settings (cli): | Yes |
| Depth: | 131 mm |
| Dhcp features: | DHCP relay, DHCPv6 client, DHCPv6 snooping, DHCP server |
| Ethernet lan data rates: | 10,100,1000,2500 Mbit/s |
| Flow control support: | Yes |
| Form factor: | Desktop/Wall-Mounting |
| Forwarding rate: | 59.52 Mpps |
| Heat dissipation: | 614.58 BTU/h |
| Height: | 35 mm |
| Igmp snooping: | Yes |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Loop protection: | Yes |
| Mac address table: | 16000 entries |
| Mib support: | Y |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x |
| Number of vlans: | 4000 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet buffer memory: | 9 MB |
| Port mirroring: | Yes |

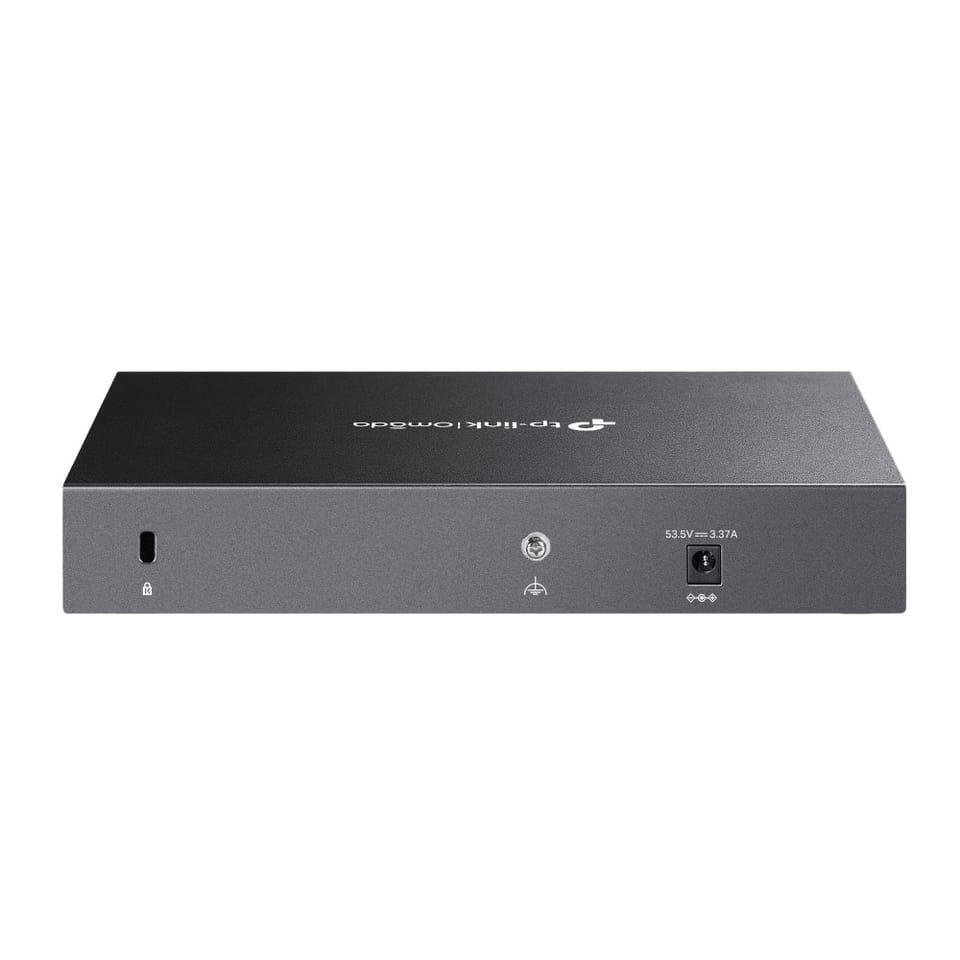

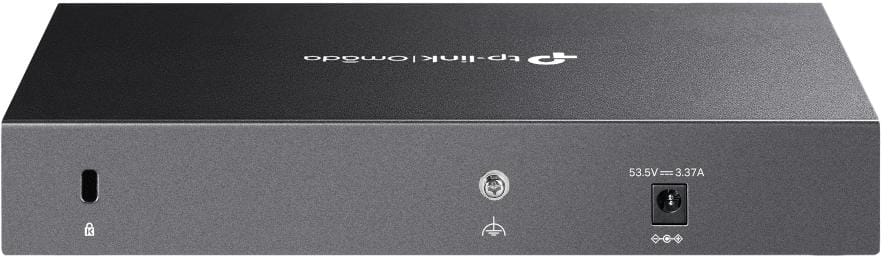

| Power connector: | AC/DC |
| Power consumption (max): | 180.1 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet plus (poe+) ports quantity: | 8 |
| Power source: | AC |
| Power supply included: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Quick start guide: | Yes |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Reset button: | Yes |
| Security algorithms: | SNMPv2, SNMPv3, SNMP |
| Sfp+ module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Static route: | Yes |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Sustainability compliance: | Yes |
| Switch layer: | L2/L2+ |
| Switch type: | Managed |
| Switching capacity: | 80 Gbit/s |
| System event log: | Yes |
| Total power over ethernet (poe) budget: | 160 W |
| Virtual lan features: | Protocol-based VLAN, Voice VLAN, Tagged VLAN |
| Vlan support: | Yes |

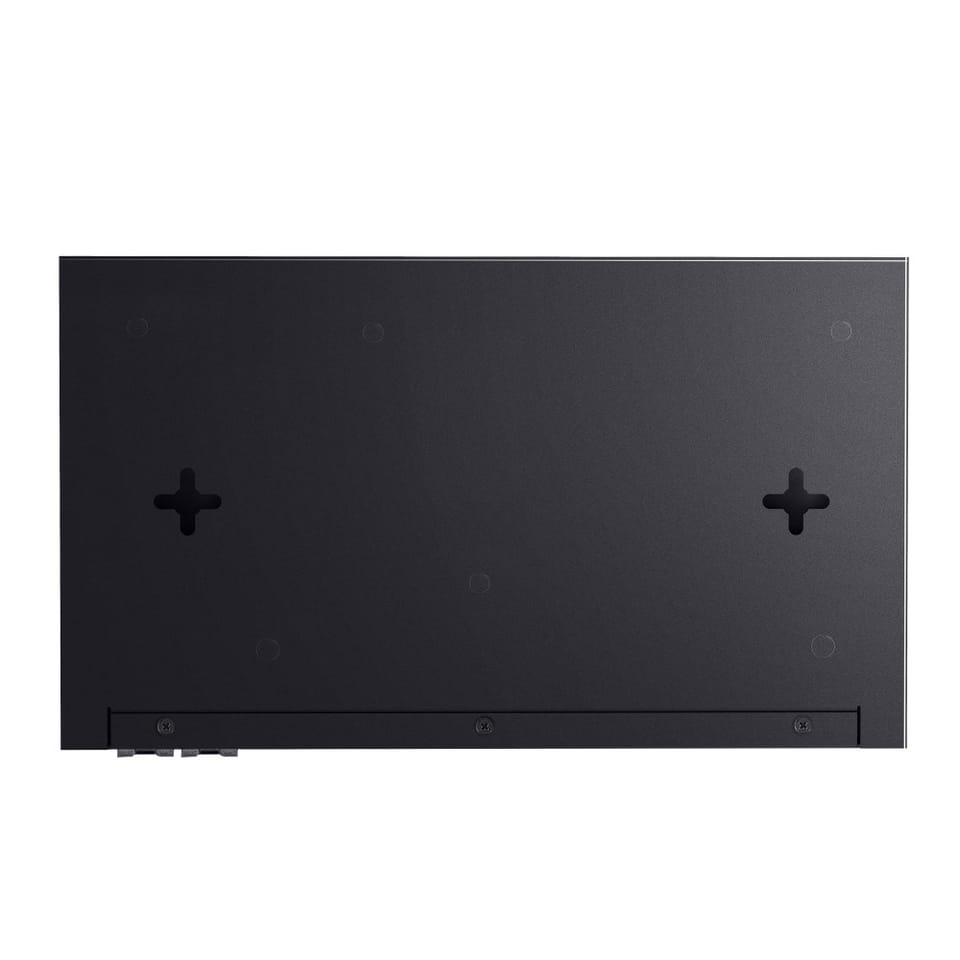

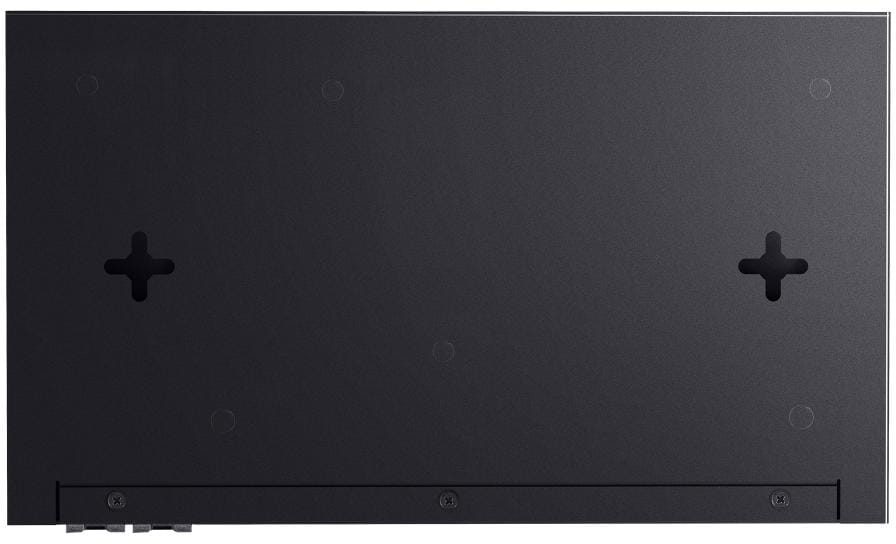

| Wall mountable: | Yes |
| Web-based management: | Yes |
| Width: | 226 mm |

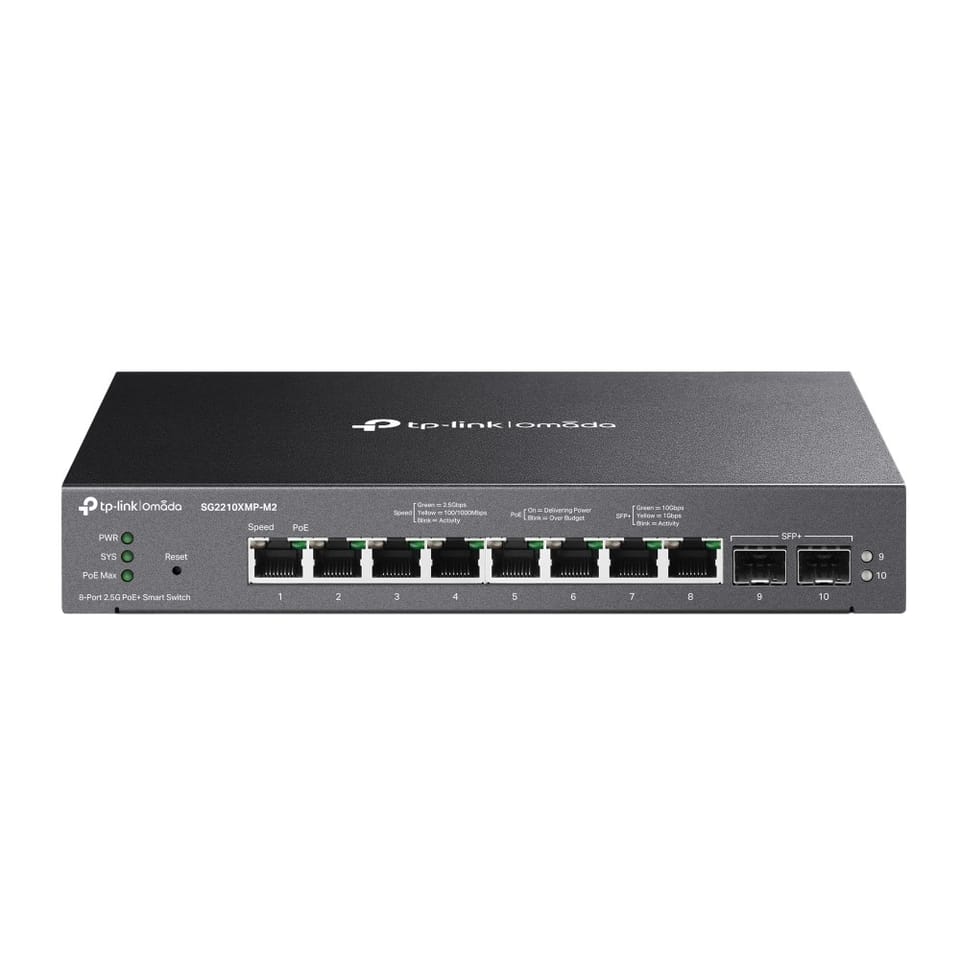

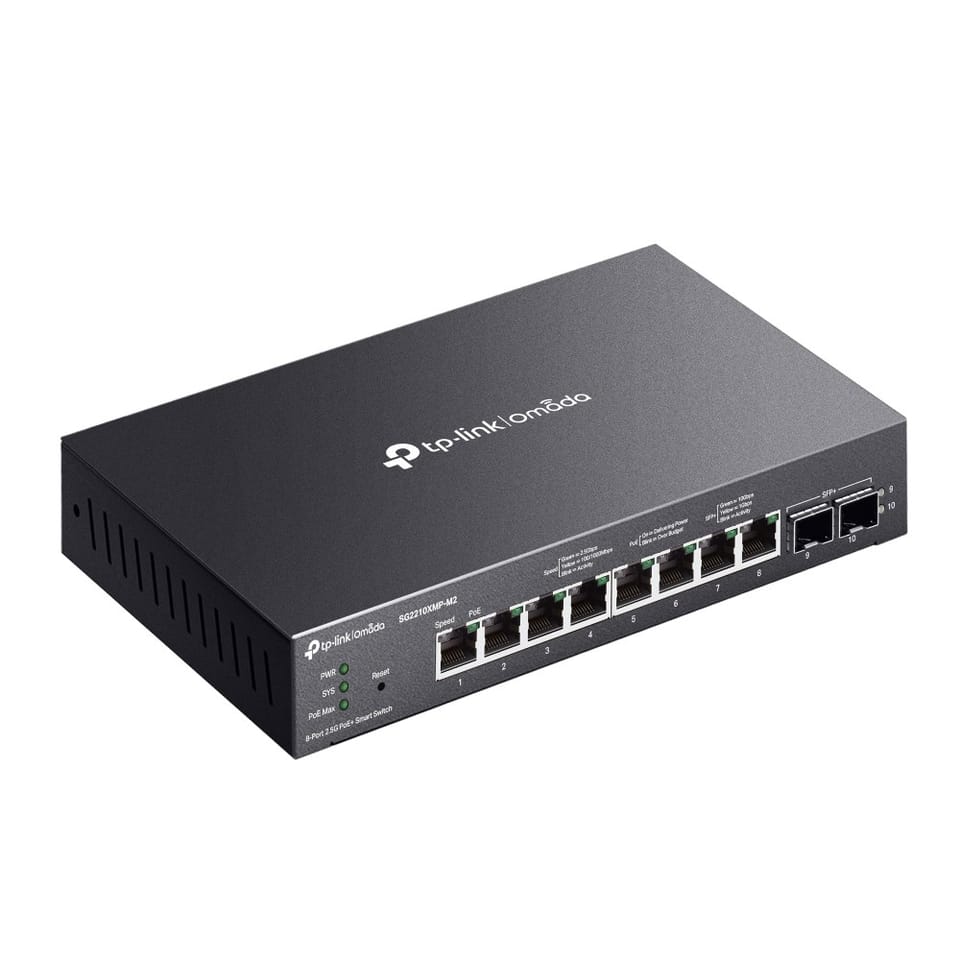

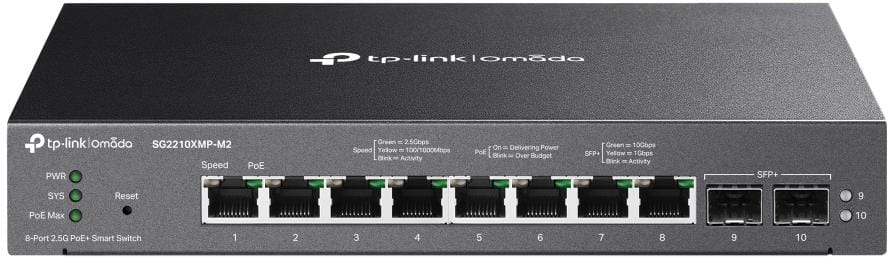

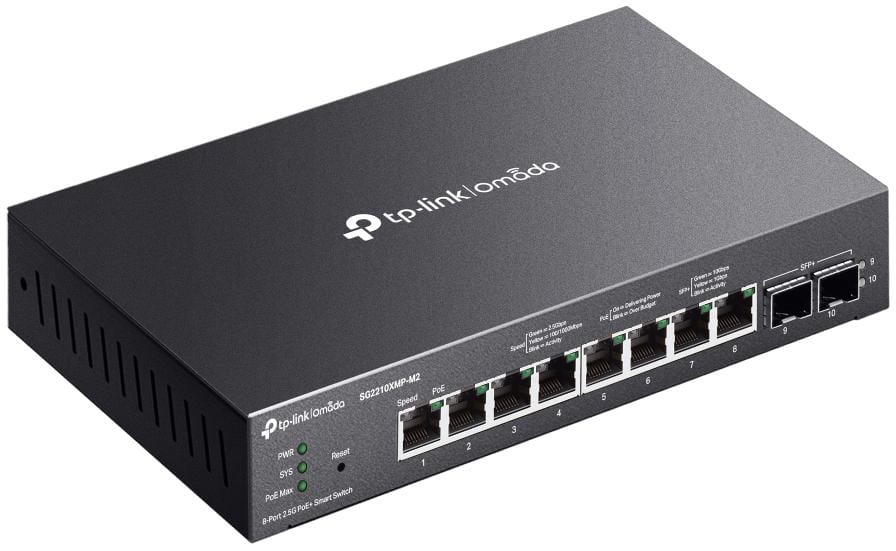

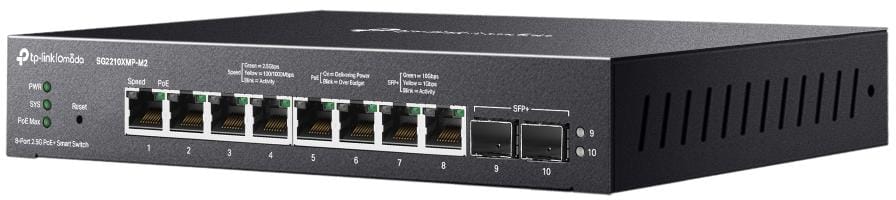

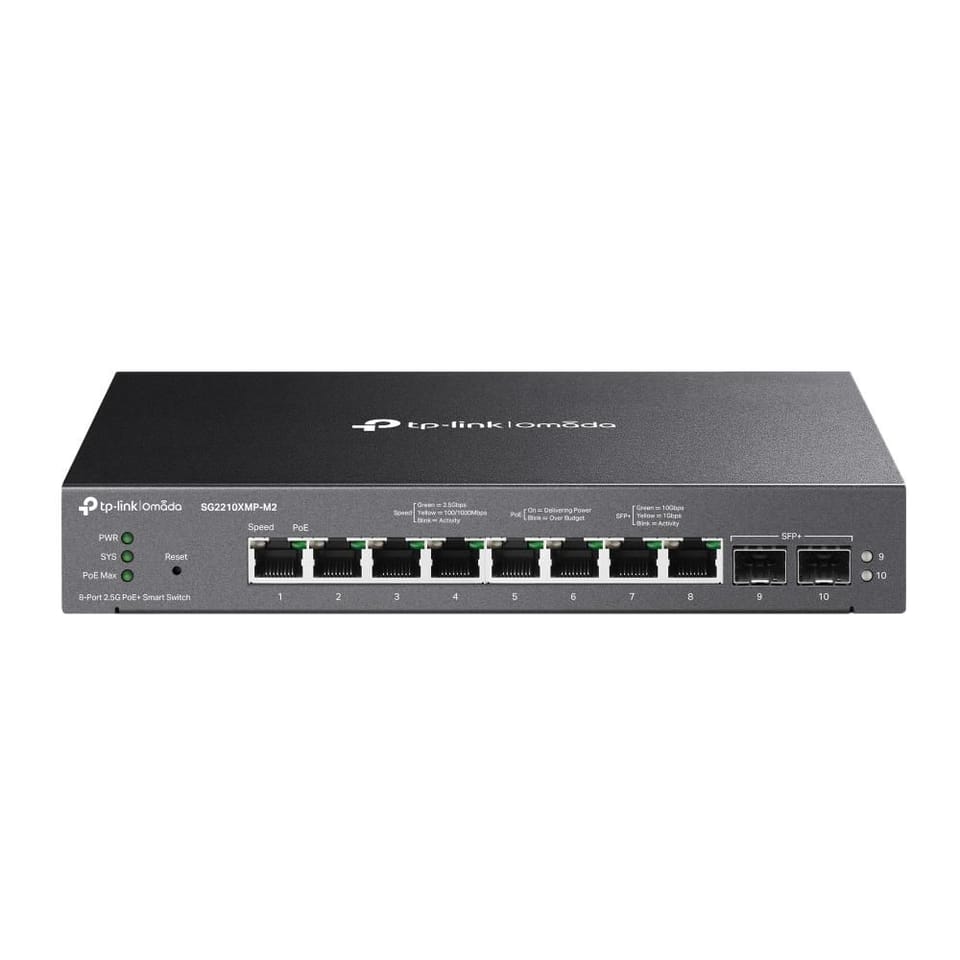

SG2210XMP-M2
Omada Smart Switch, 2 x 10GE SFP+, 8 x 2.5GBASE-T PoE+ ports
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
