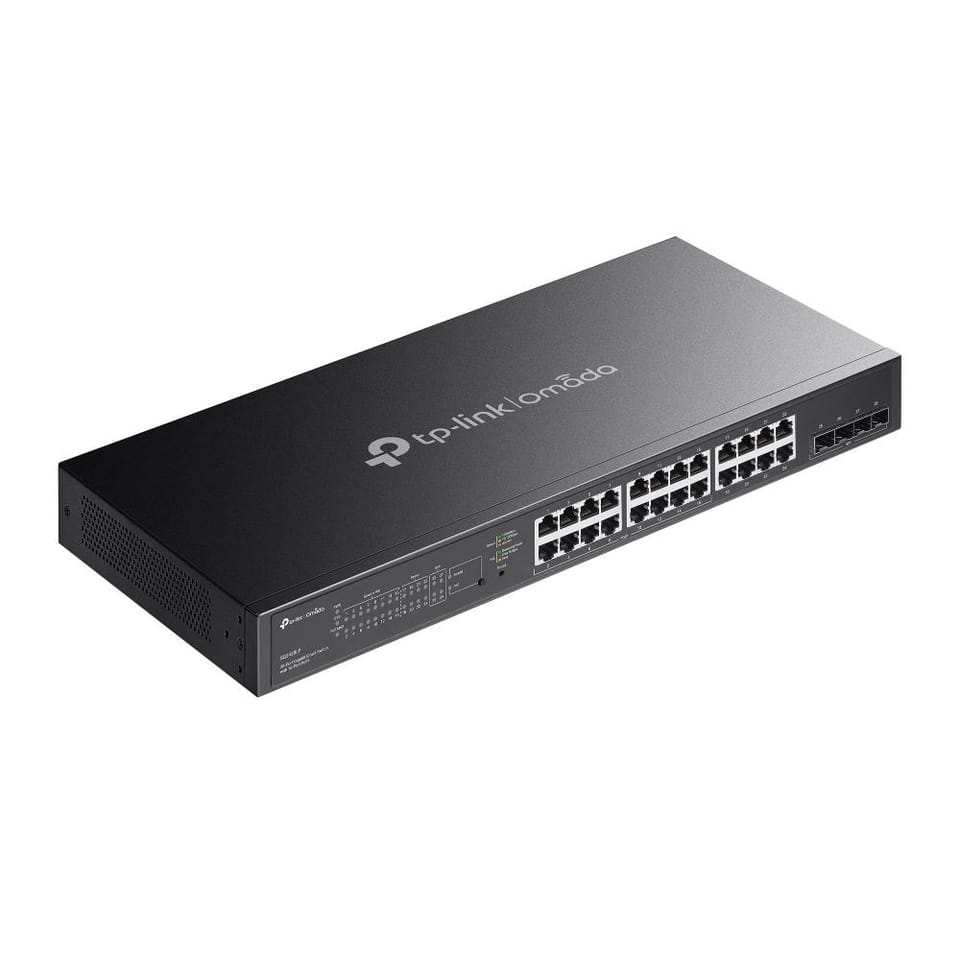

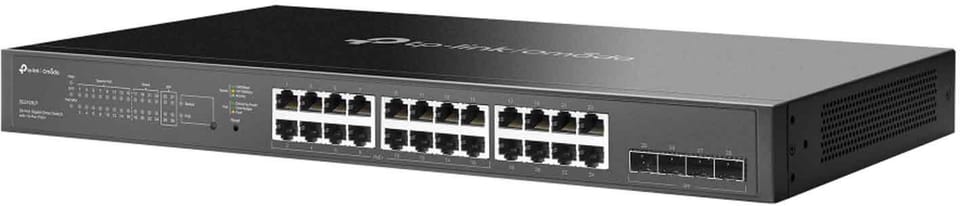

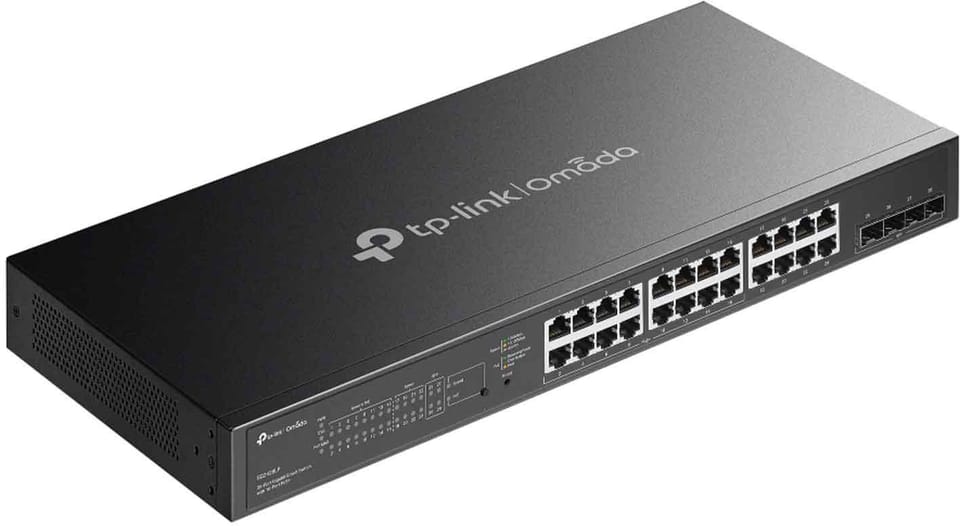

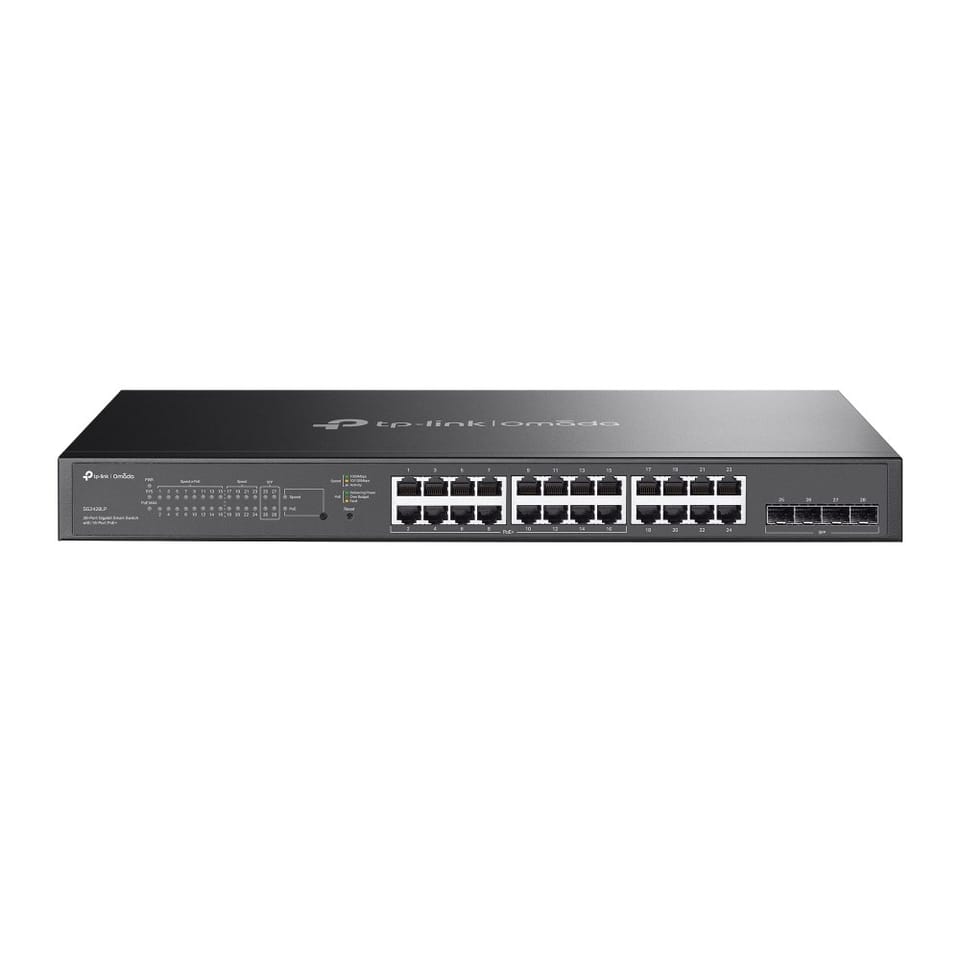

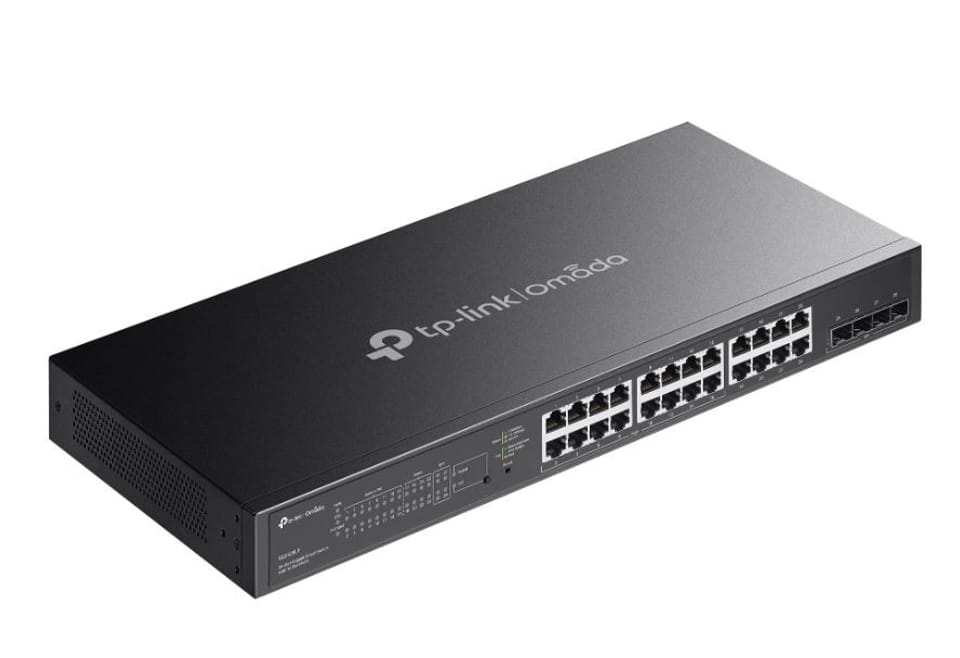

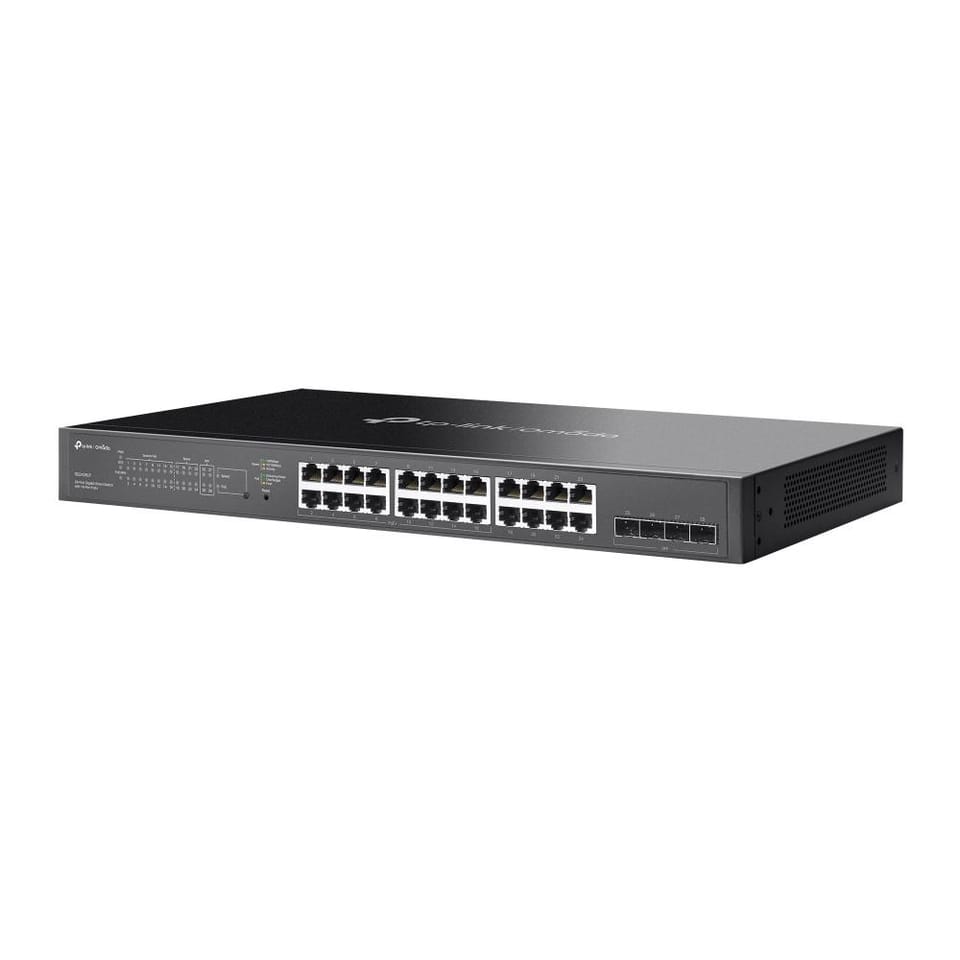

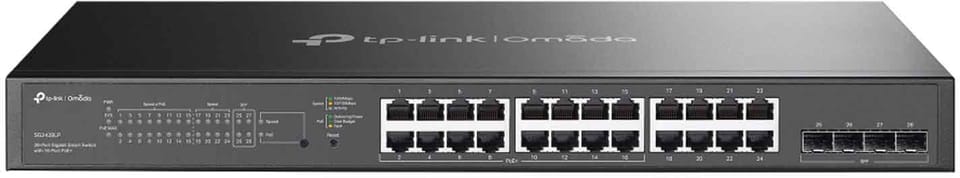

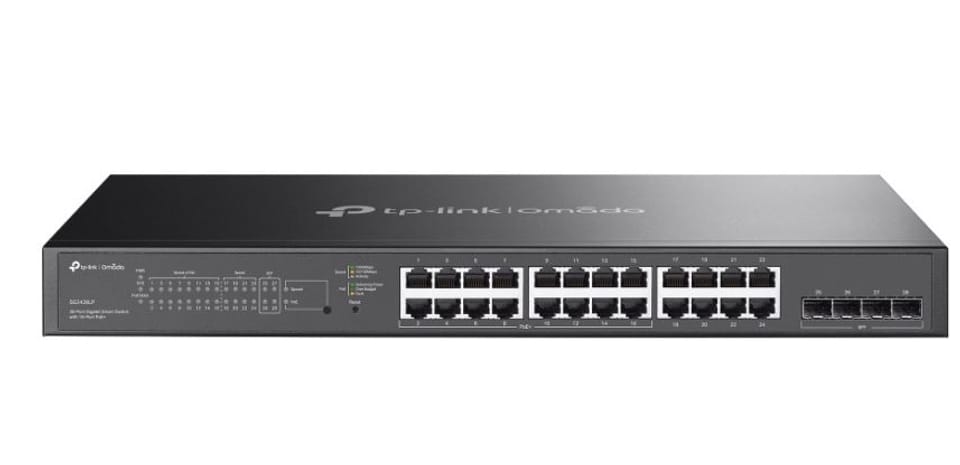

- 16× Gigabit 802.3af/at PoE+ ports
- 8× Gigabit RJ45 non-PoE ports and 4× Gigabit SFP slots
- 150W total PoE budget, with the ability to deliver up to 30W PoE per port
- Centralized cloud management via web page or Omada app
- Standalone device management via web page, command line interface (CLI), SNMP, and RMON
- Static routing helps direct internal traffic for greater efficiency
- VLAN, ACL, QoS, and IGMP snooping
- Fanless design for quiet operation

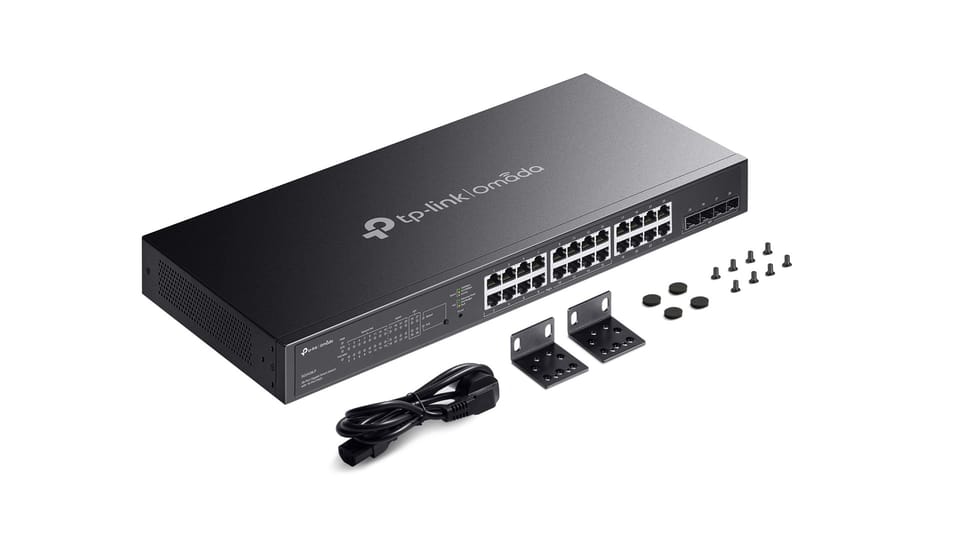

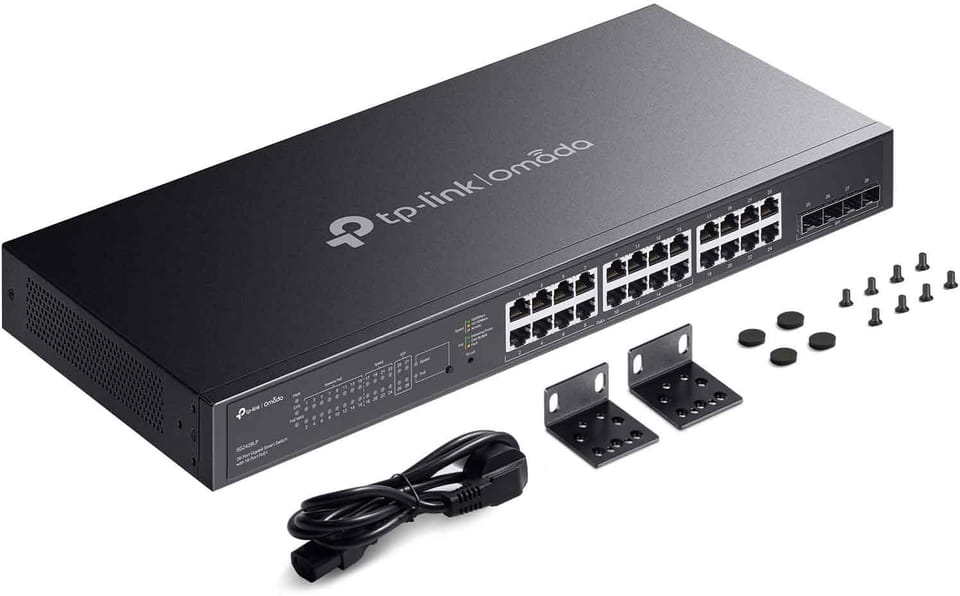

- Rugged metal housing and rack-mount design
TP-Link Controller Cloud Omada OC400
€324.62
Shipping from warehouse: H7
Estimated shipping: Wed, Apr 30 - Mon, May 5
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Tp-Link
- Product code:
- SG2428LP / 8885020620832
Share this product:
Specification
| 10g support: | No |
|---|---|

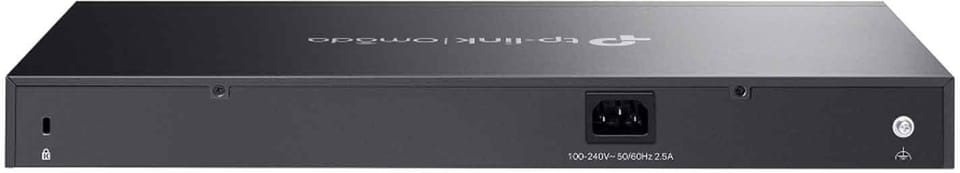

| Ac input frequency: | 50/60 Hz |

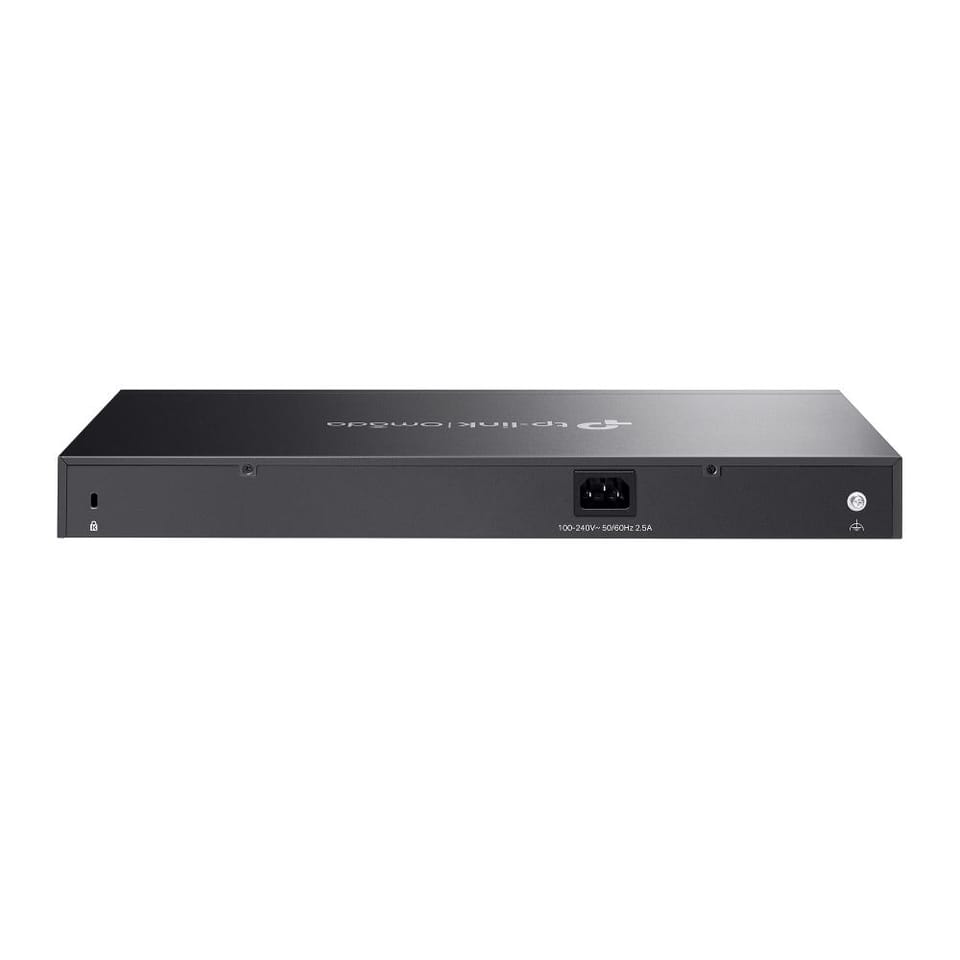

| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Cloud-managed: | Yes |
| Depth: | 220 mm |
| Dhcp features: | DHCP server, DHCP relay |
| Fanless: | Yes |
| Flow control support: | Yes |
| Forwarding rate: | 41.66 Mpps |
| Heat dissipation: | 628 BTU/h |
| Height: | 44 mm |
| Igmp snooping: | Yes |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Mac address filtering: | Yes |
| Mac address table: | 8000 entries |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3at, IEEE 802.3af |
| Number of vlans: | 4000 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Packet buffer memory: | 4.1 MB |
| Password protection: | Yes |
| Power consumption (max): | 184.7 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 16 |
| Power source: | AC/PoE |
| Product colour: | Grey |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Sfp module slots quantity: | 4 |
| Spanning tree protocol: | Yes |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Switch layer: | L2/L2+ |
| Switch type: | Managed |
| Switching capacity: | 56 Gbit/s |
| Total power over ethernet (poe) budget: | 150 W |
| Virtual lan features: | Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Tagged VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Width: | 440 mm |
