| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 26 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Cable types supported: | Cat5, Cat5e, Cat3, Cat4, Cat6 |
| Cables included: | AC |
| Copper ethernet cabling technology: | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Depth: | 220 mm |
| Fiber ethernet cabling technology: | 1000BASE-X |
| Flow control support: | Yes |
| Form factor: | 1U |
| Forwarding rate: | 41.7 Mpps |
| Gigabit ethernet (copper) ports quantity: | 26 |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44 mm |
| Igmp snooping: | Yes |
| Jumbo frames: | 10000 |
| Jumbo frames support: | Yes |
| Link aggregation: | Yes |
| Mac address table: | 8000 entries |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.3af, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at |

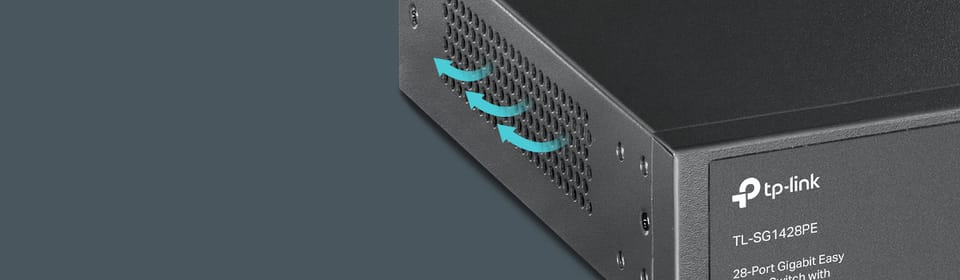

| Number of fans: | 2 fan(s) |
| Number of queues: | 4 |
| Number of vlans: | 32 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Package depth: | 528 mm |
| Package height: | 100 mm |
| Package weight: | 3.94 kg |
| Package width: | 336 mm |
| Packet buffer memory: | 4.1 MB |
| Port mirroring: | Yes |
| Power consumption (max): | 1039.03 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 24 |
| Power source: | AC |
| Power supply included: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |

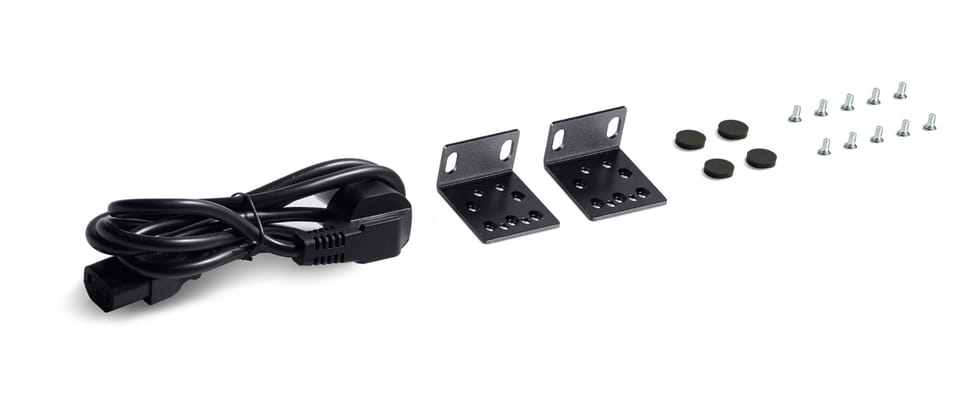

| Rack mount kit: | Yes |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Security algorithms: | SNMPv3, SNMP, SNMPv2 |
| Sfp module slots quantity: | 2 |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Store-and-forward: | Yes |
| Switch layer: | L2 |
| Switch type: | Managed |
| Switching capacity: | 56 Gbit/s |
| Total power over ethernet (poe) budget: | 250 W |
| User guide: | Yes |
| Virtual lan features: | Port-based VLAN, Tagged VLAN |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Width: | 440 mm |
