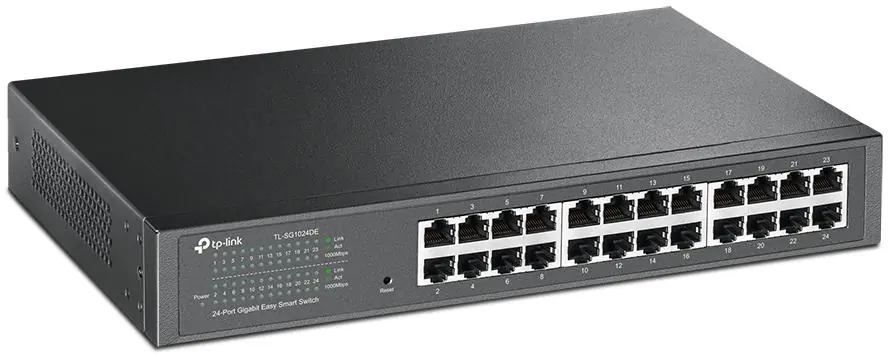

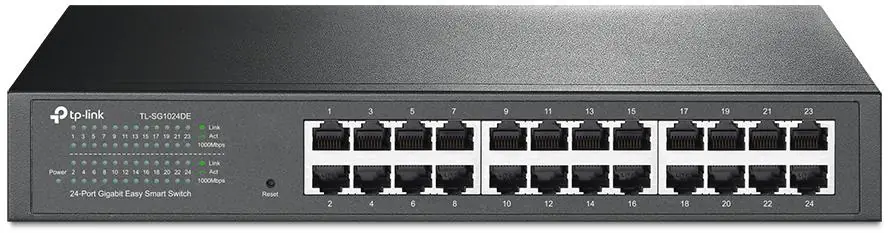

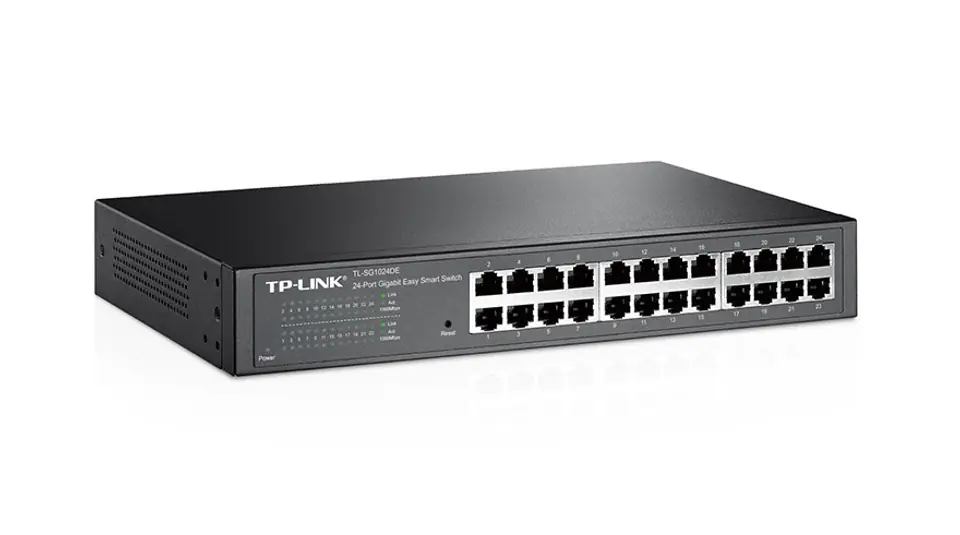

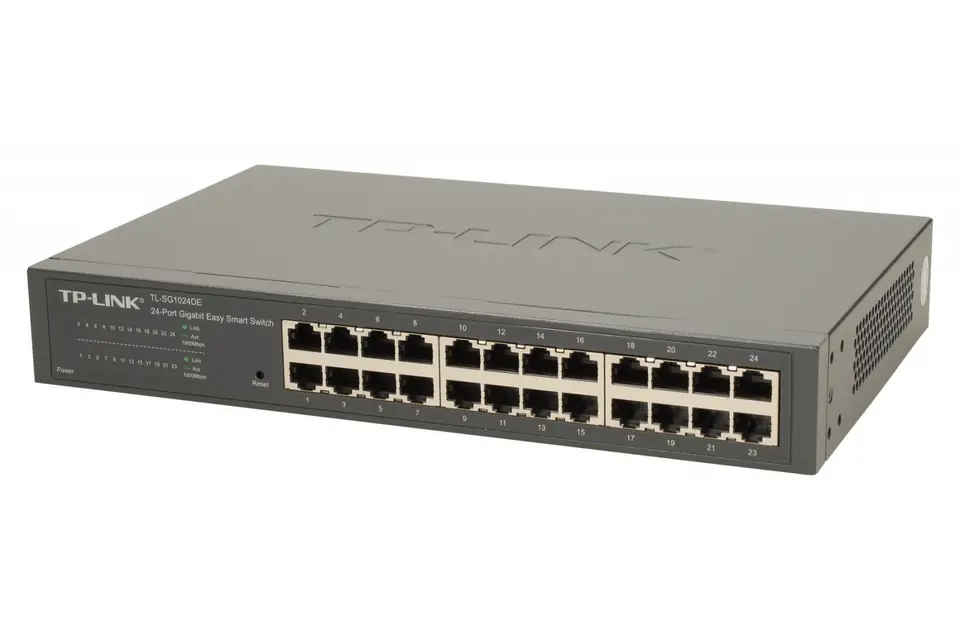

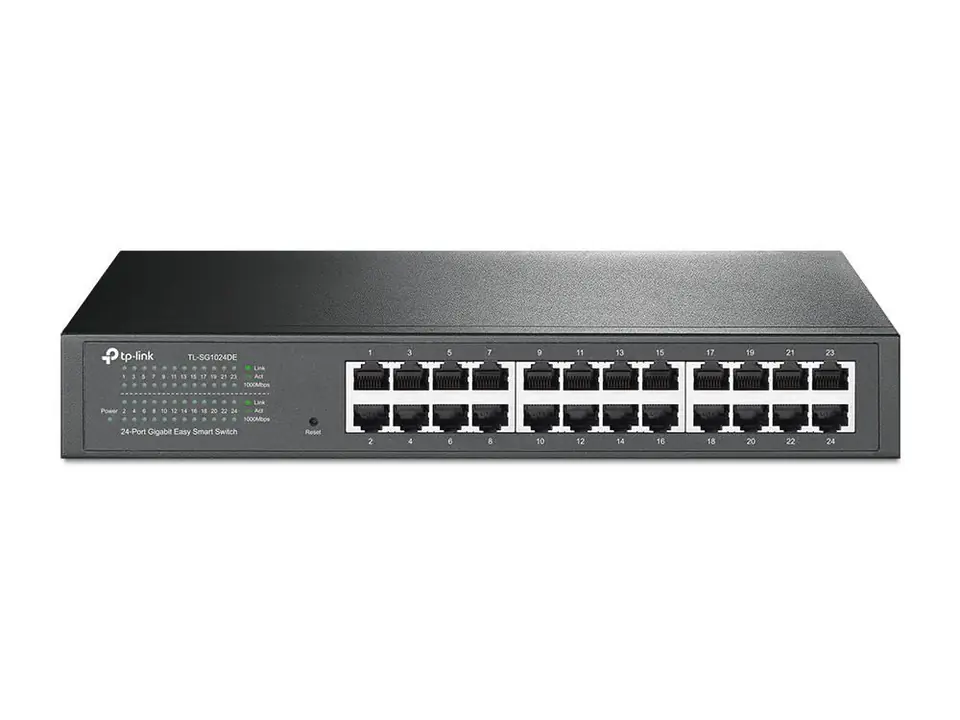

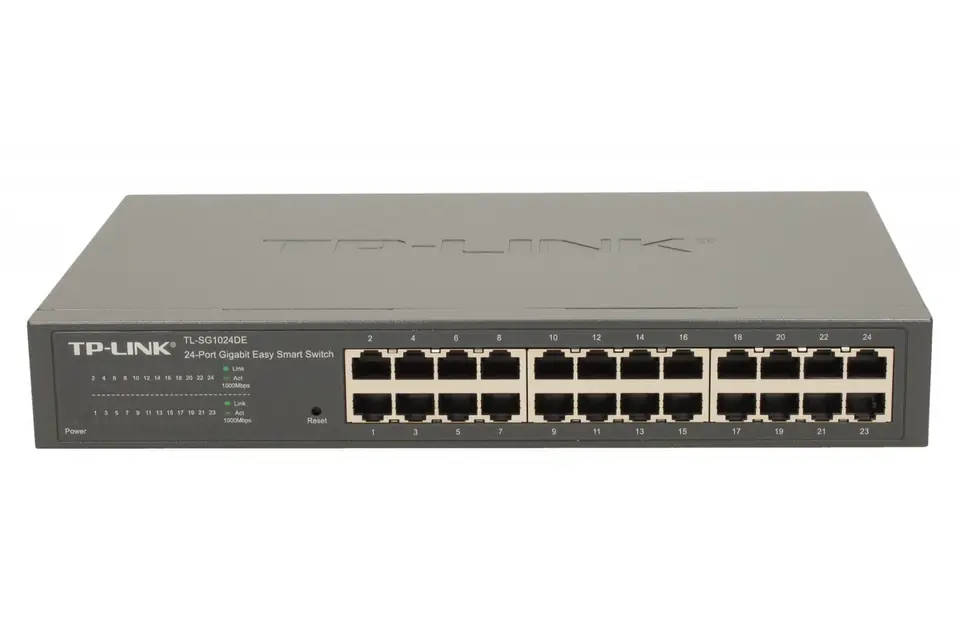

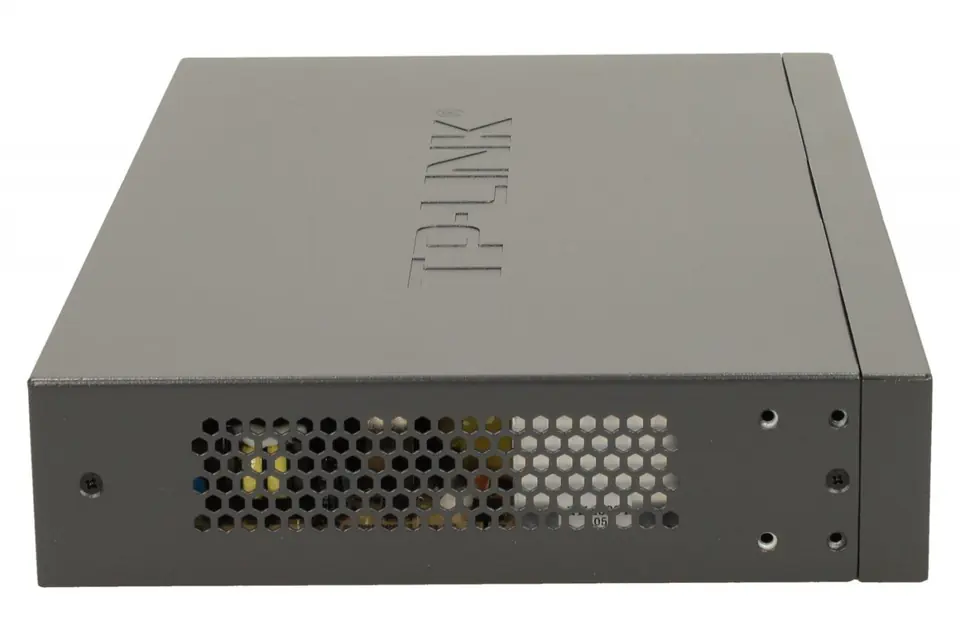

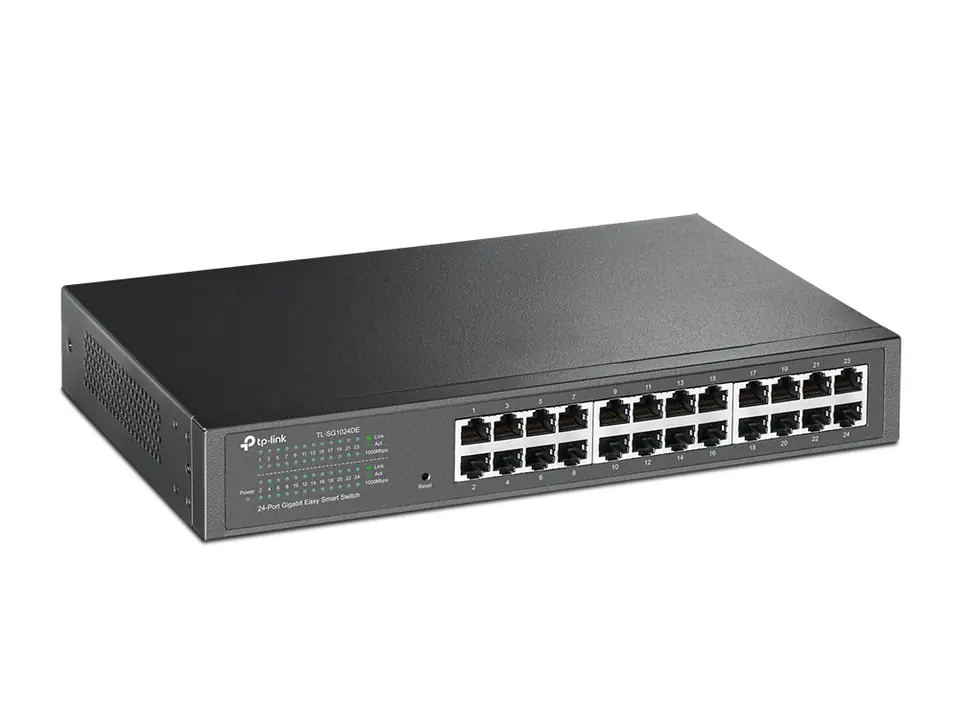

TP-Link 24-Port Gigabit Easy Smart Switch

€116.03
Shipping from warehouse: ⁨N2⁩
Estimated shipping: Mon, May 6 - Tue, May 7
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Tp-Link
Product code:
TL-SG1024DE / 6935364021245

Specification

10g support:No
Ac input frequency:50 - 60 Hz
Ac input voltage:100 - 240 V
Auto mdi/mdi-x:Yes
Auto-negotiation:Yes
Basic switching rj-45 ethernet ports quantity:24
Basic switching rj-45 ethernet ports type:Gigabit Ethernet (10/100/1000)
Broadcast storm control:Yes
Cable types supported:Cat6, Cat3, Cat5
Cables included:AC
Copper ethernet cabling technology:10BASE-T, 1000BASE-T, 100BASE-TX
Depth:180 mm
Flow control support:Yes
Form factor:1U
Forwarding rate:35.7 Mpps
Gigabit ethernet (copper) ports quantity:24
Harmonized system (hs) code:85176990
Heat dissipation:114.37 BTU/h
Height:44 mm
Igmp snooping:Yes
Jumbo frames:9216
Jumbo frames support:Yes
Led indicators:Yes
Link aggregation:Yes
Loop protection:Yes
Mac address table:8000 entries
Networking standards:IEEE 802.3, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1p, IEEE 802.3u
Number of queues:4
Number of vlans:32
Operating relative humidity (h-h):10 - 90%
Operating temperature (t-t):0 - 40 °C
Package depth:400 mm
Package height:80 mm
Package type:Box
Package weight:2.02 kg
Package width:250 mm
Packet buffer memory:0.512 MB
Port mirroring:Yes
Power consumption (max):14.86 W
Power source:AC
Power supply included:Yes
Product colour:Black
Quality of service (qos) support:Yes

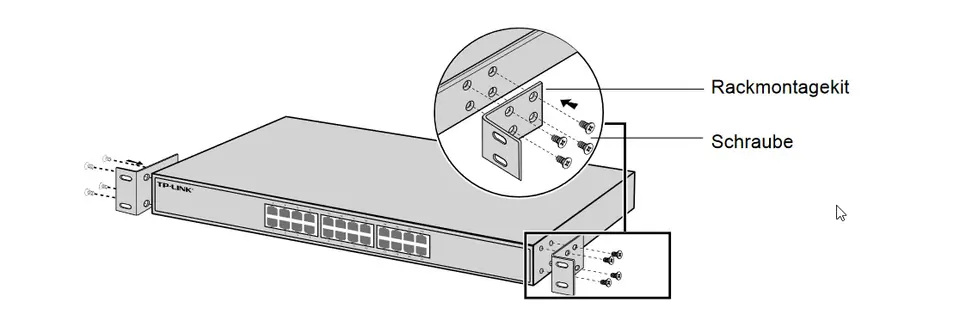

Rack mount kit:Yes
Rack mounting:Yes
Rate limiting:Yes
Storage relative humidity (h-h):5 - 90%
Storage temperature (t-t):-40 - 70 °C
Switch layer:L2
Switch type:Managed
Switching capacity:48 Gbit/s
User guide:Yes
Virtual lan features:Tagged VLAN, Port-based VLAN
Vlan support:Yes
Web-based management:Yes
Width:294 mm

PS PRZEŁĄCZNIK TYPU DESKTOP/DO MONTAŻU W SZAFIE 24 PORTY GB

Standardy i protokołyIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Porty24 porty RJ45 10/100/1000Mb/s (automatyczna negocjacja szybkości połączeń)Automatyczne krosowanie (Auto-MDI/MDIX)
Okablowanie sieciowe10Base-T: Kabel UTP kat. 3, 4 lub 5 (do 100m)100Base-Tx: Kabel UTP kat. 5, 5e lub wyższej (do 100m)
BezwentylatorowyTak
Zabezpieczenia fizyczneNie

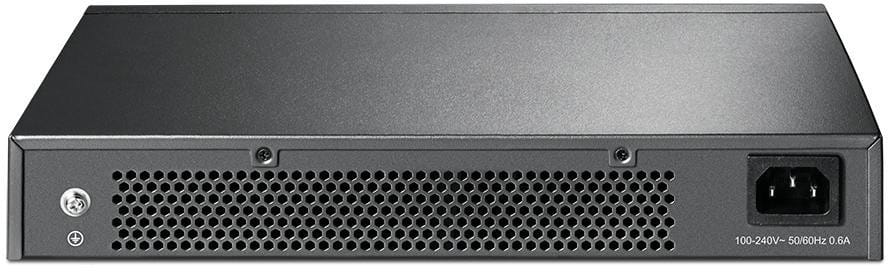

Zasilanie100-240VAC, 50/60Hz
Wymiary (S x G x W)294*180*44 mm (11,6*7,1*1,7 cala)
MontażMożliwość montażu w szafie rack
Maks. zużycie energii13,08 W (220 V/50 Hz)
Ilość generowanego ciepła44,63 BTU/h
Wydajność przełączania48Gb/s
Szybkość przekierowań pakietów35,7 Mp/s
Tablica adresów MAC8K
Ramki jumbo10KB
Technologia GreenTak
Architektura przełączaniaStore-and-Forward
CertyfikatyFCC, CE, RoHS
Środowisko pracyDopuszczalna temperatura pracy: 0?~40? (32?~104?):Dopuszczalna temperatura przechowywania: -40?~70? (-40?~158?):Dopuszczalna wilgotność powietrza: 10%~90%, niekondensującaDopuszczalna wilgotność przechowywania: 5%~90%, niekondensująca

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
