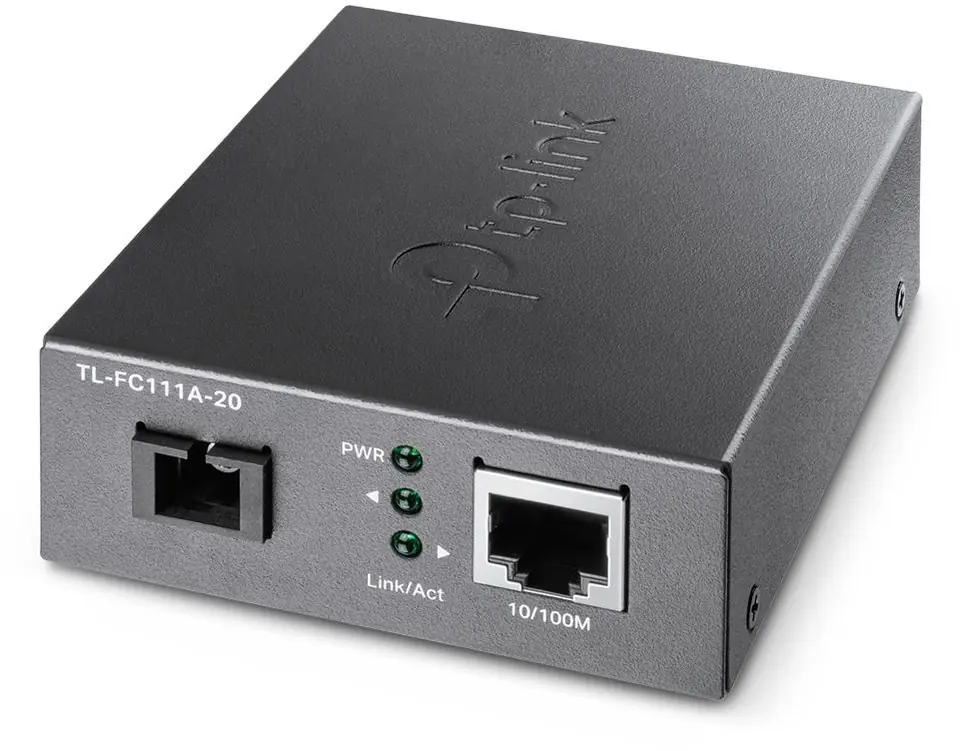

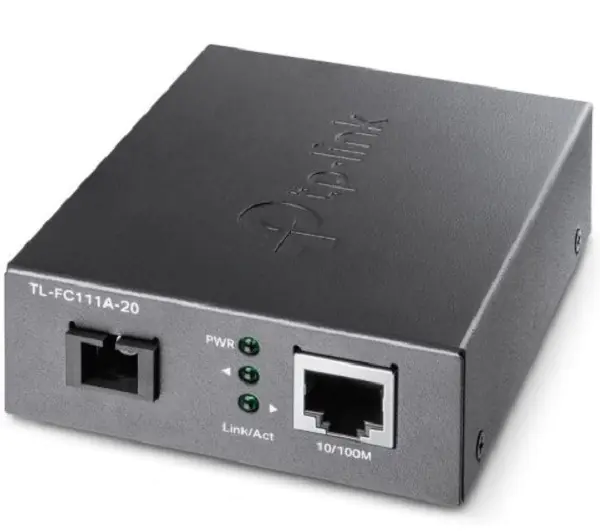

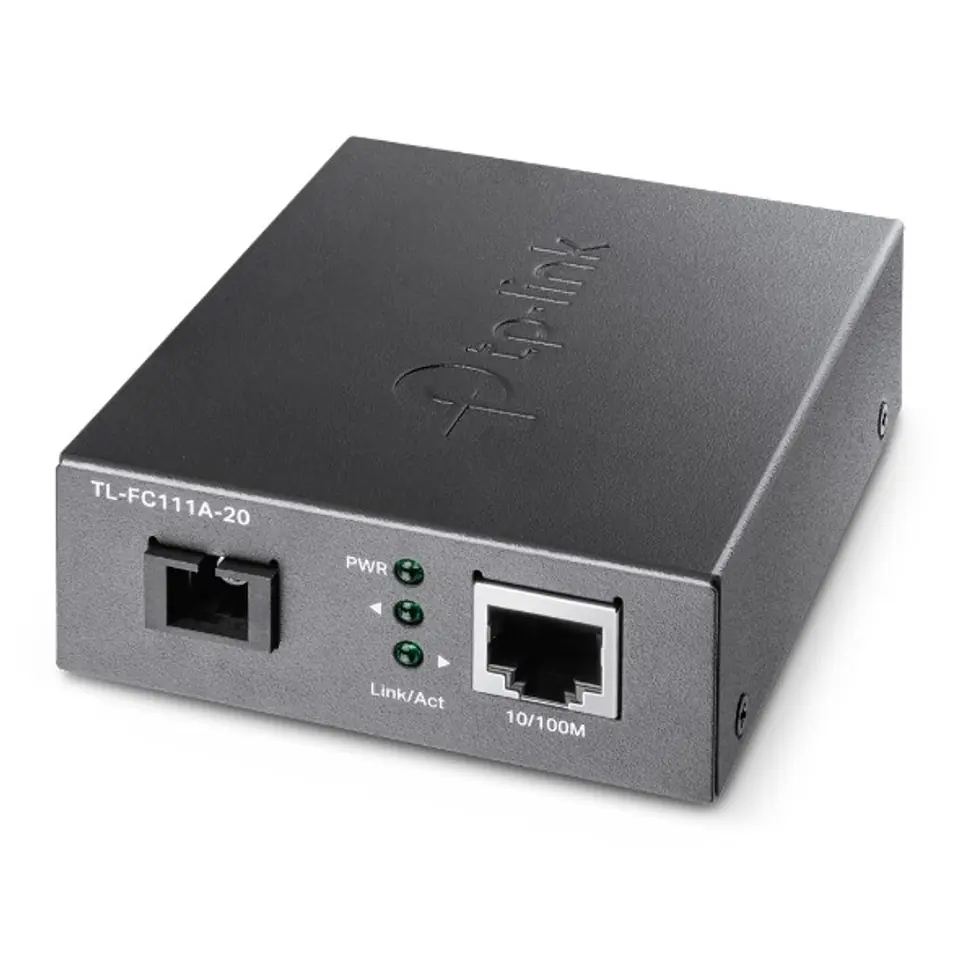

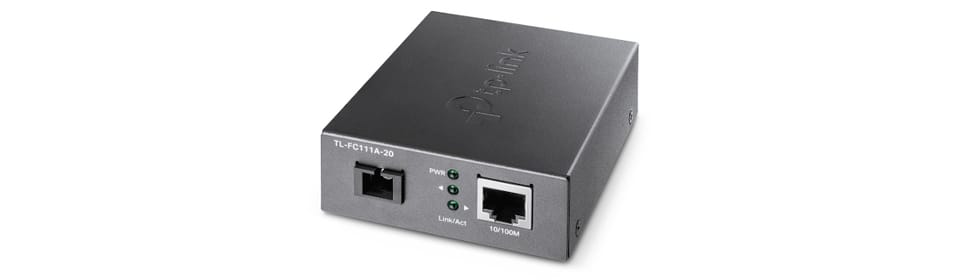

MEDIA KONWERTER WDM TP-LINK TL-FC111A-20
- Model: TL-FC111A-20
- Typ okablowania: Światłowód jednomodowy
- Typ złącza 1: SC
- Typ złącza 2: RJ45
- Maksymalny zasięg: 20 km
TP-Link 10/100 Mbps WDM Media Converter
€23.34
Shipping from warehouse: H7
Estimated shipping: Mon, May 6 - Tue, May 7
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Tp-Link
- Product code:
- TL-FC111A-20 / 6935364010980
Share this product:
Specification
| Auto mdi/mdi-x: | Yes |
|---|---|
| Auto-negotiation: | Yes |
| Cable types supported: | Cat3, Cat5, Cat5e, Cat4 |
| Connectivity technology: | Wired |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-T |
| Depth: | 73 mm |
| Duplex system: | Half, Full |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 100 Mbit/s, 10 |
| Fiber cable diameters supported (core/cladding): | 9/125 µm |
| Fiber ethernet cabling technology: | 100BASE-FX |
| Fiber mode structure: | Single-mode |
| Fiber optic connector: | SC |
| Fiber ports quantity: | 1 |
| Flow control support: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 27 mm |
| Internal: | No |
| Led indicators: | Power, Activity, Link |
| Maximum data transfer rate: | 100 Mbit/s |
| Maximum transfer distance: | 20000 m |
| Networking standards: | IEEE 802.3u, IEEE 802.3, IEEE 802.3i |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Output current: | 0.6 A |
| Output voltage: | 5 V |
| Package depth: | 204 mm |
| Package height: | 65 mm |
| Package weight: | 360 g |
| Package width: | 165 mm |
| Product colour: | Black |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Sustainability certificates: | RoHS |
| Width: | 94.5 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
