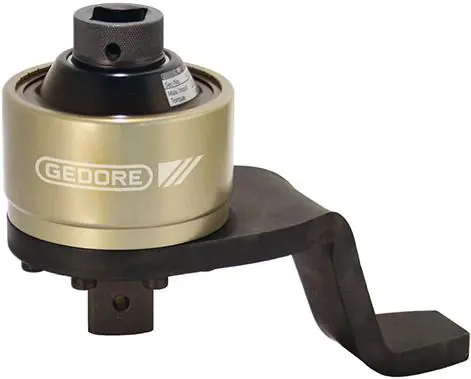

Torque amplifier rotation. DVI Z 2800Nm 1." GEDORE

€1,833.68
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Aug 4 - Wed, Aug 6
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
GEDORE
Product code:
2653273 / 4010886934463

Specification

Drive quadrangle:3/4 inch, 1 inch
Gear ratio:1:5,5
Max. torque at the input:550 N·m
Reaction arm:Z-shape
Torque at output:500–2800 N·m
Weight:3.9 kg

DREMOPLUS ALU torque amplifier, shear polygon overload protection

Execution: High performance aluminum housing, forged chrome vanadium steel reaction arm for better capture of reaction forces. The single-stage planetary gearbox with low clearance guarantees high product strength and measurement accuracy. Guaranteed accuracy of indications ± 3% tolerance. Square drive pin with holes for torque reinforcement through impact sockets in combination with a lock and rubber ring.
Use: For controlled tightening of bolts and loosening of bolted joints with a torque wrench. Ideal for use in the construction of bridges, ships, aircraft, trains, as well as machinery and other equipment in industry, refineries, motor vehicle technology and construction sites.
Scope of delivery: Torque multiplier with integrated reaction arm, factory control certificate, setting table and stable transport case with foam insert.

Overload protection with overload mandrel If the transmission is overloaded by applying too much force, the drive stem breaks. The transmission is not damaged. After replacing the drive quadrilateral, the torque multiplier is ready for use.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
