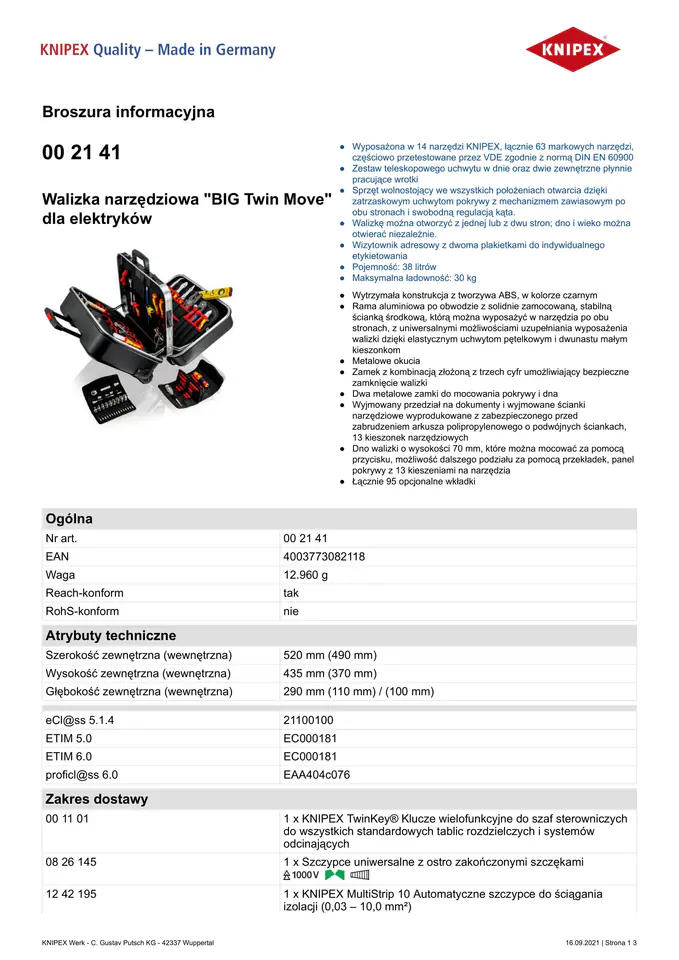

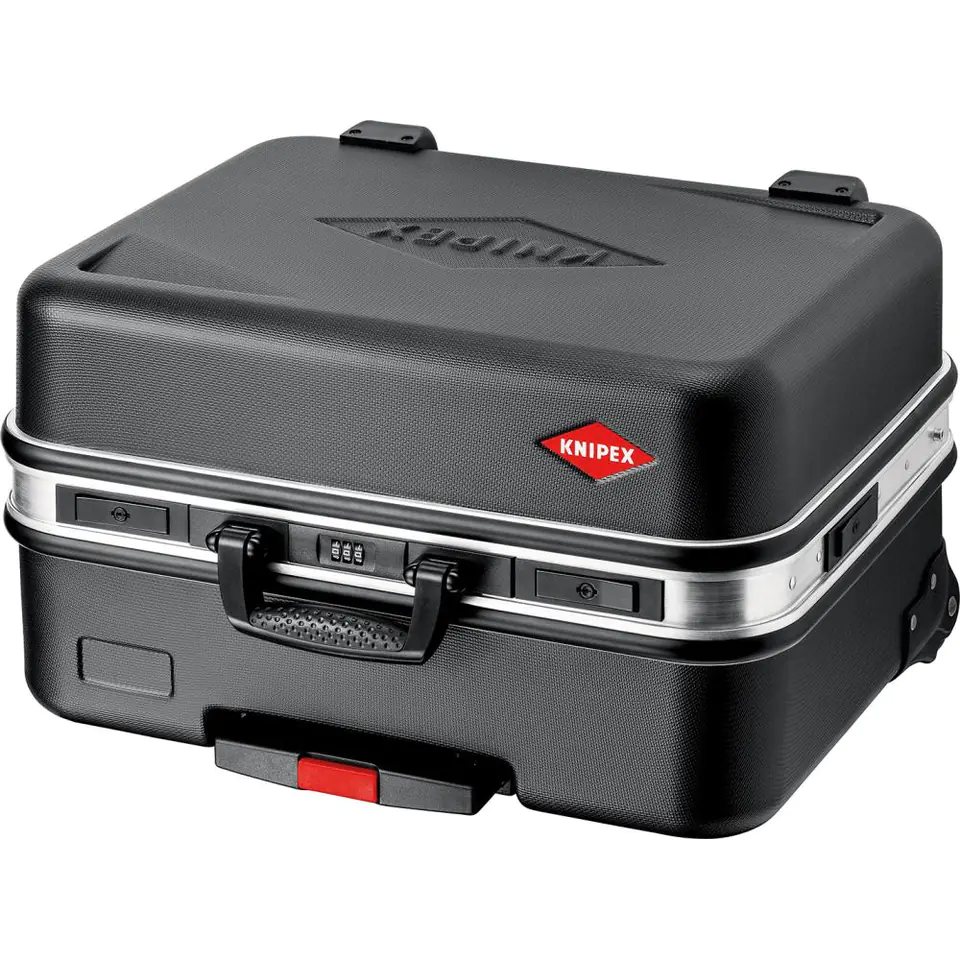

TOOL CASE 'BIG TWIN MOVE' FOR ELECTRICIANS 63-PIECES

Specifications:

Article no.: 00 21 41
EAN: 4003773082118
Weight: 12.960 g
Reach-conform: yes
RohS-conform: no
External width (internal): 520 mm (490 mm)
External height (internal): 435 mm (370 mm)
External Depth (Inner): 290 mm (110 mm) / (100 mm)



Equipped with 14 KNIPEX tools, a total of 63 branded tools, partially tested by VDE according to DIN EN 60900

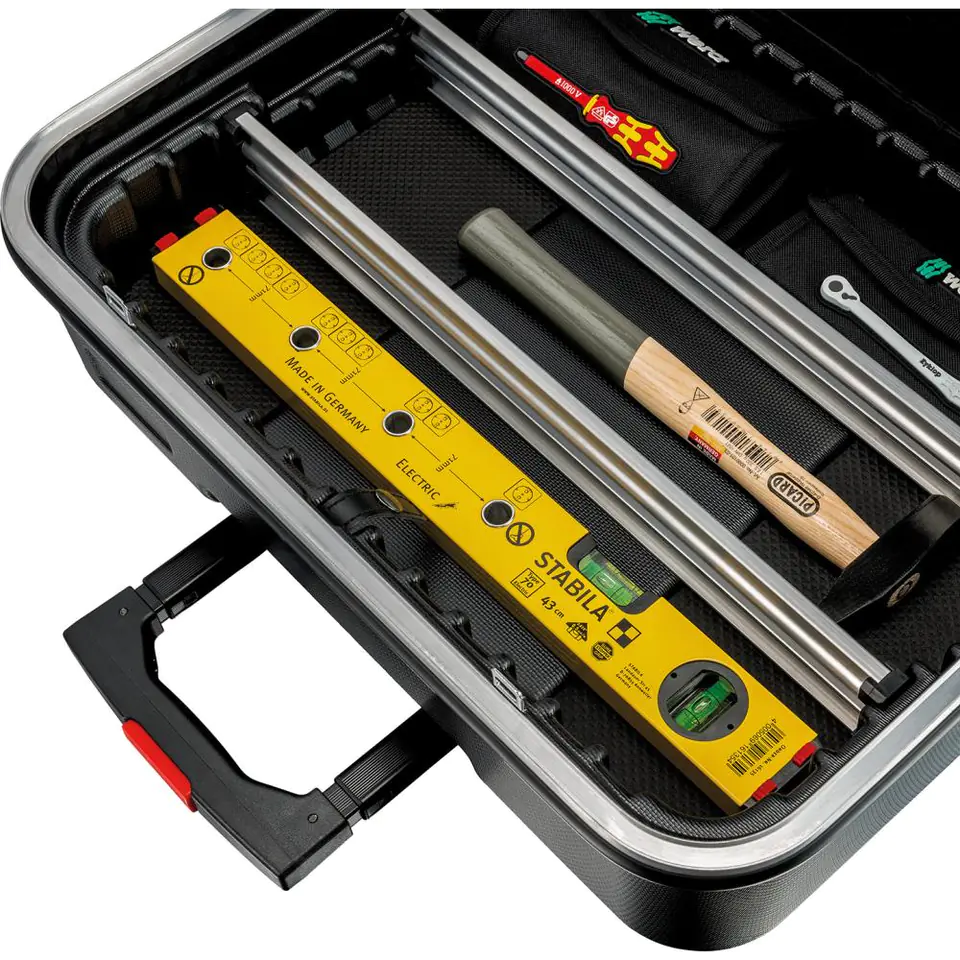

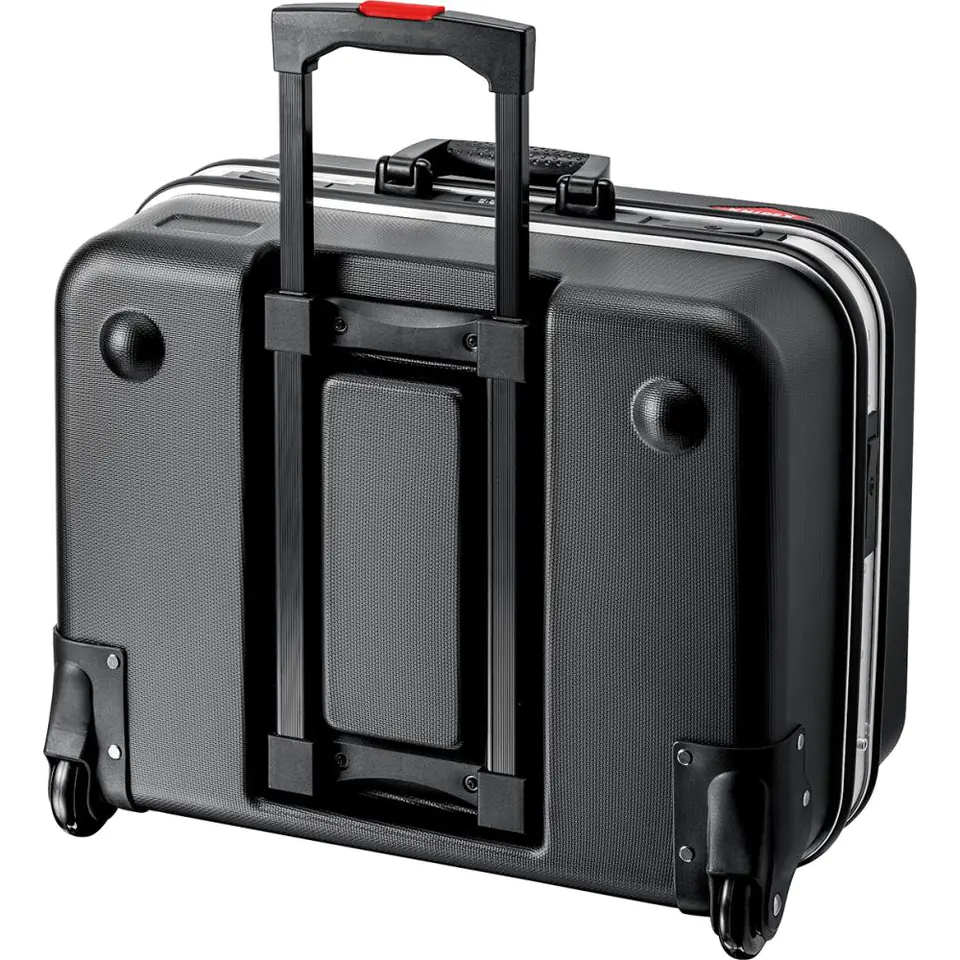

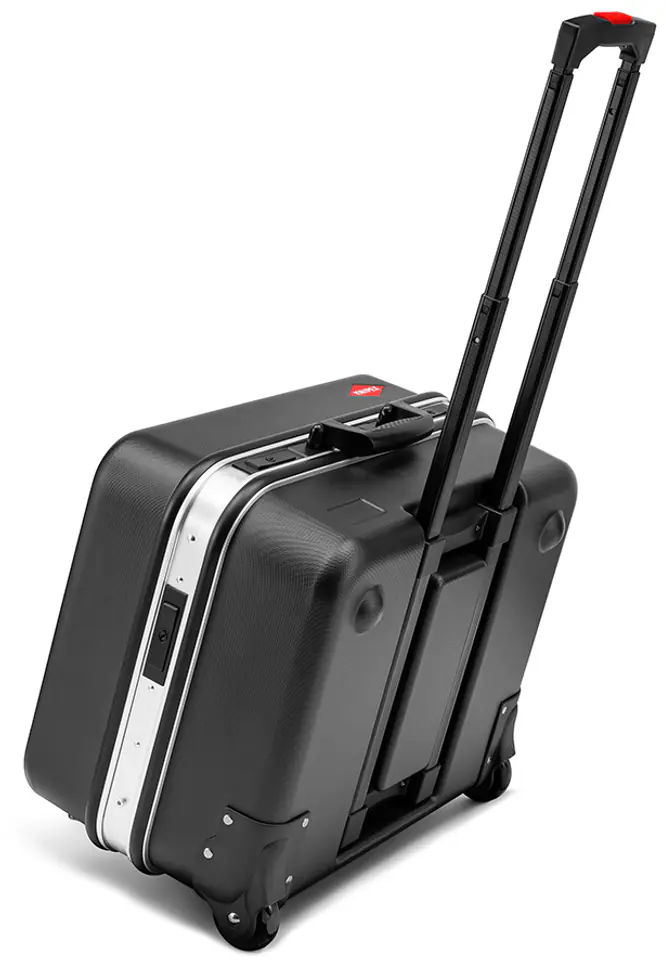

A set of telescopic handle in the bottom and two external smoothly operating roller skates

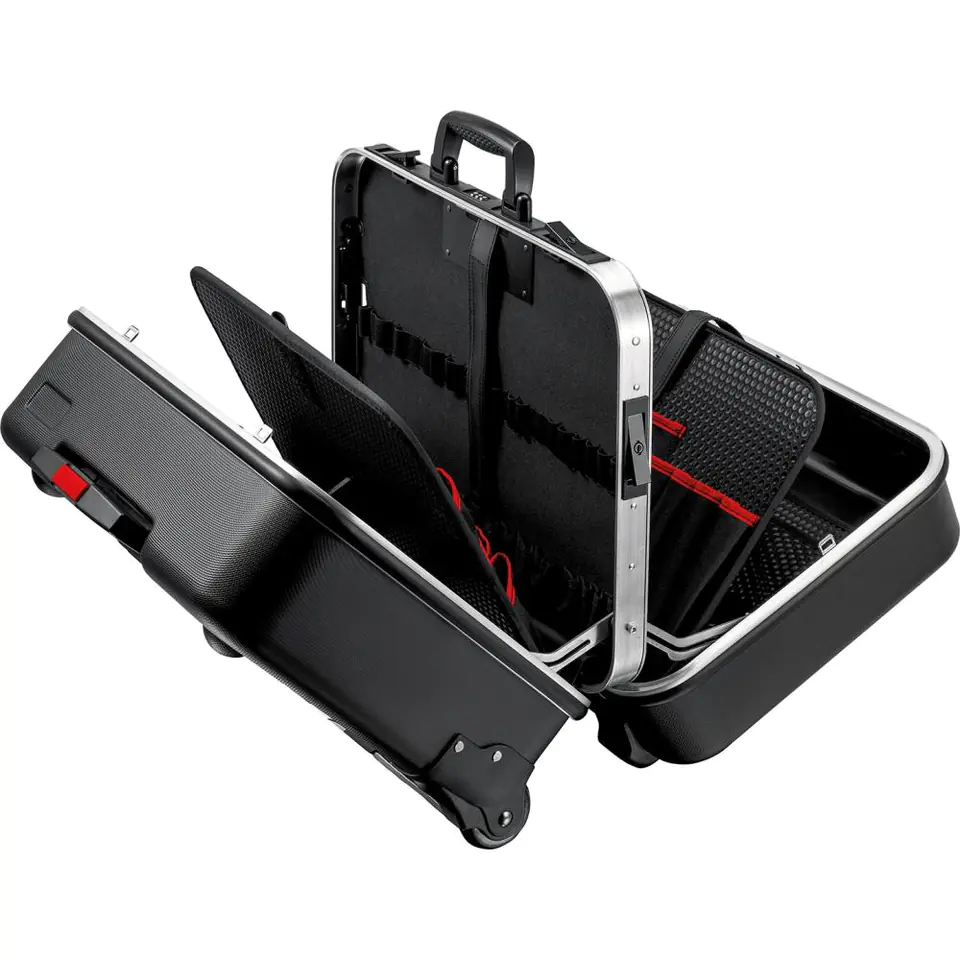

Freestanding equipment in all opening positions thanks to snap-on lid holders with hinged mechanism on both sides and free angle adjustment.

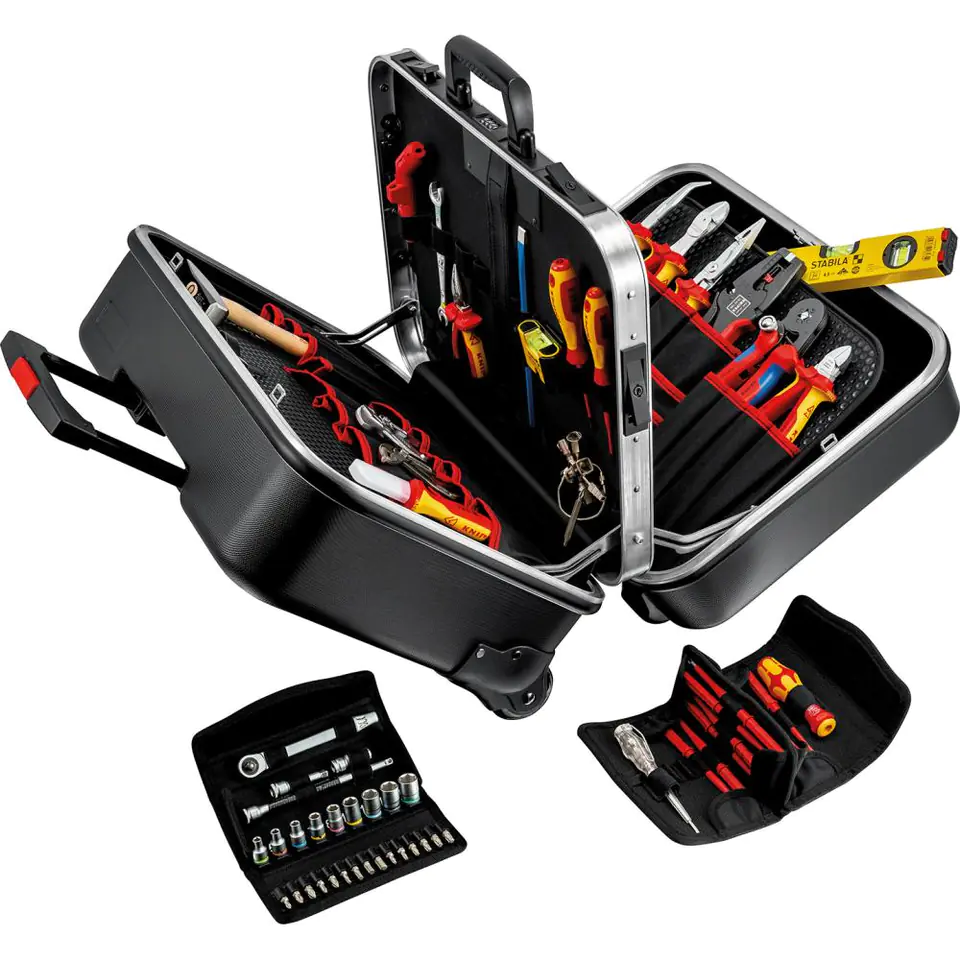

The suitcase can be opened from one or two sides, the bottom and lid can be opened independently.
Address card holder with two badges for individual labelling
Capacity: 38 litres
Maximum load capacity: 30 kg

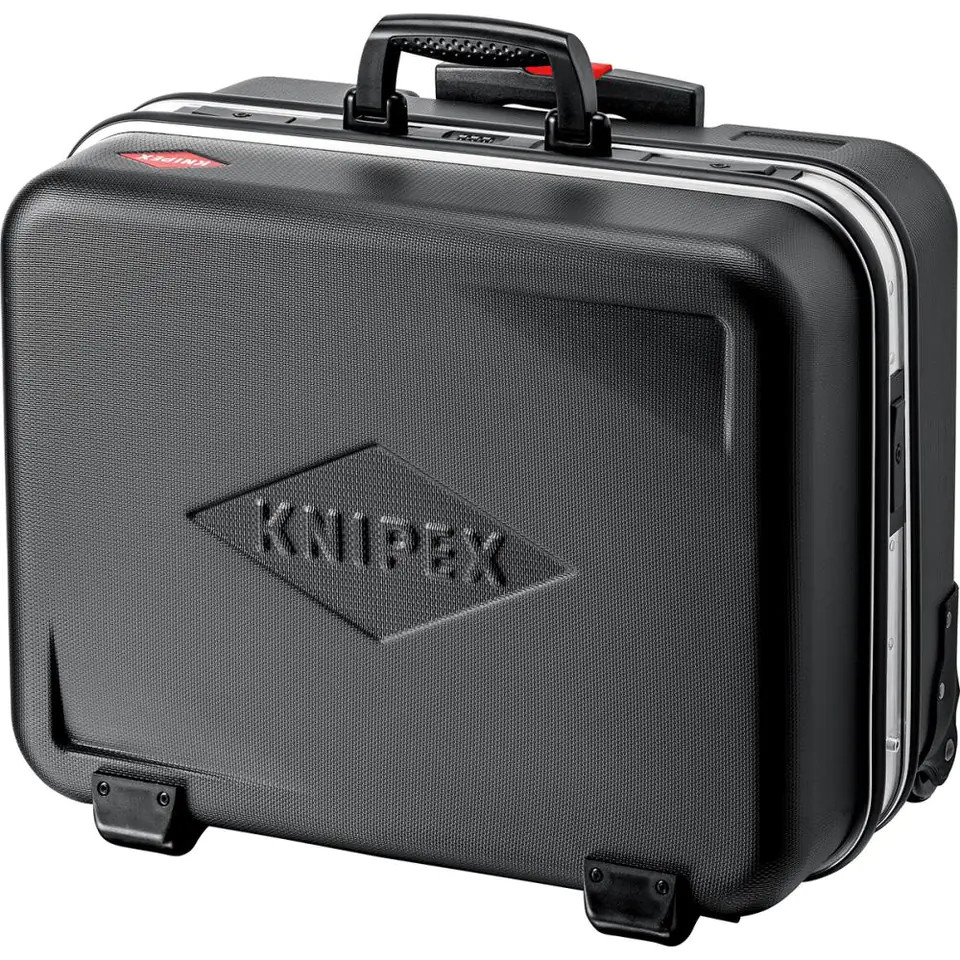

Durable ABS plastic construction in black
Perimeter aluminium frame with a solidly fixed, stable centre wall that can be equipped with tools on both sides, with universal possibilities to complement the suitcase equipment thanks to flexible loop handles and twelve small pockets
Metal fittings
Three-digit lock for safe closure
Two metal locks for fixing the cover and bottom
Removable document compartment and removable tool walls made of dirt-resistant double-walled polypropylene sheet, 13 tool pockets
The bottom of the case with a height of 70 mm, which can be fixed with a button, the possibility of further division with spacers, cover panel with 13 tool pockets
A total of 95 optional inserts

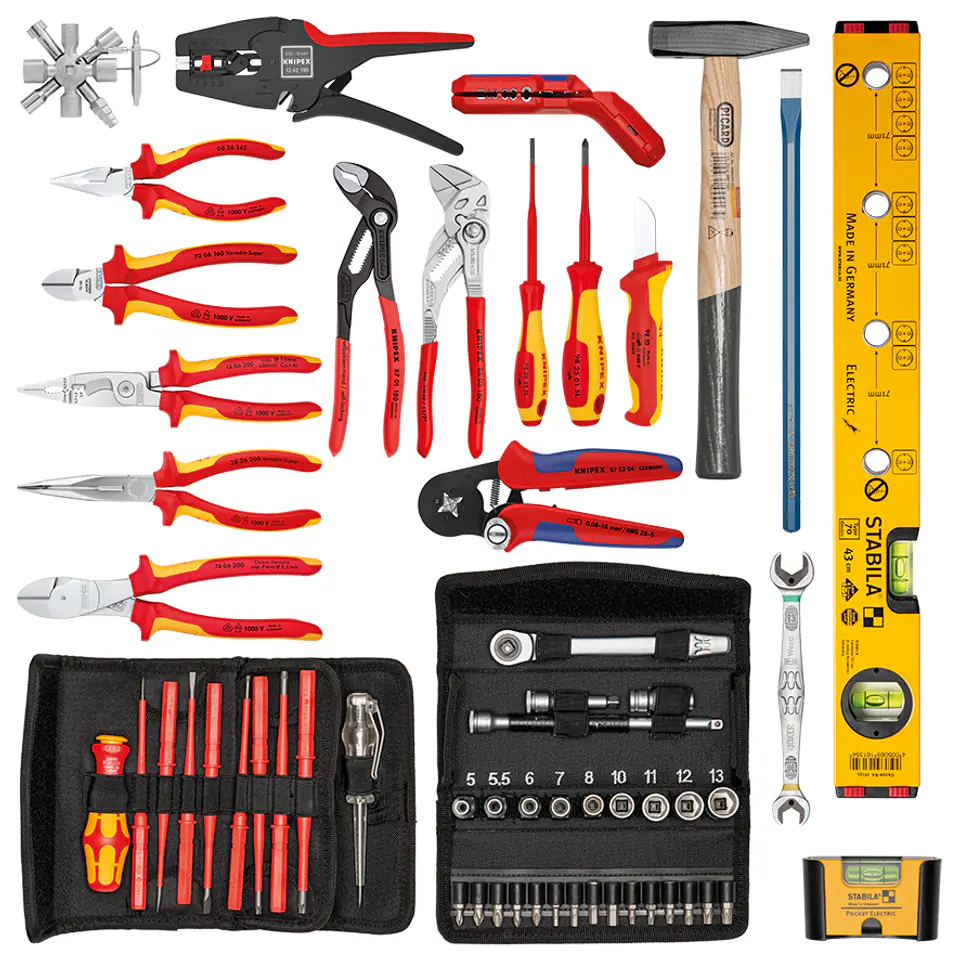

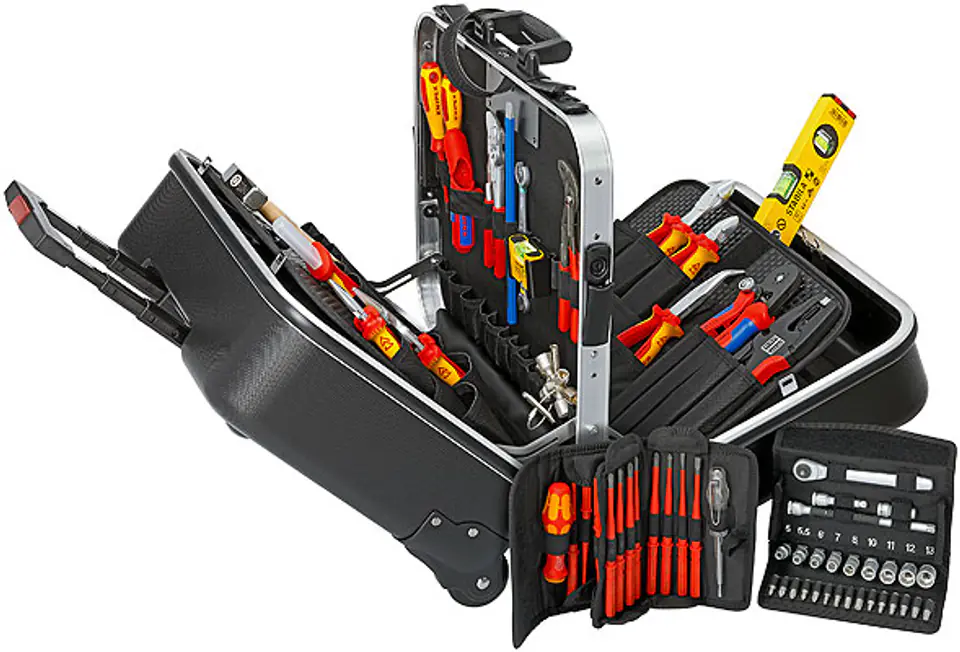

Content

00 21 41 LE 1x Tool case "Big Twin Move"
00 11 01 1x KNIPEX TwinKey® Multifunction Keys for Control Cabinets
for all standard switchboards and systems
shut-off
08 26 145 1 x Jaw-pointed universal pliers
12 42 195 1 x KNIPEX MultiStrip 10 Automatic Pull Pliers
insulation (0.03 – 10.0 mm2)
KNIPEX Werk - C. Gustav Putsch KG - 42337 Wuppertal 16.09.2021 | Page 1 3

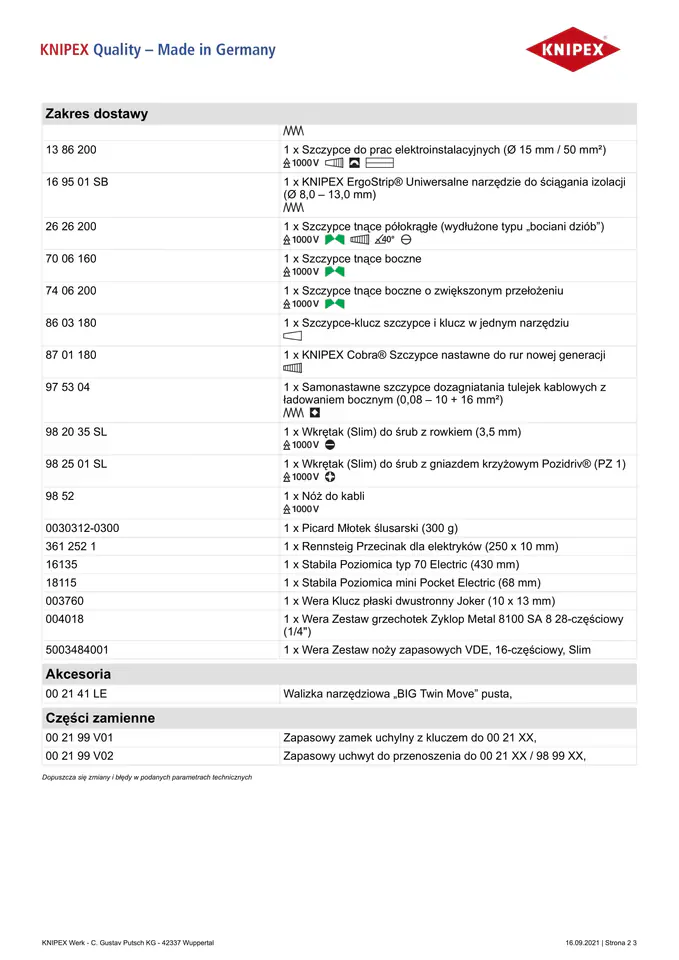

Scope of delivery
13 86 200 1 x Electrical installation pliers (Ø 15 mm / 50 mm2)
16 95 01 SB 1 x KNIPEX ErgoStrip® Universal Stripping Tool
(Ø 8.0 – 13.0 mm)
26 26 200 1 x Semicircular cutting pliers (elongated stork beak type)
70 06 160 1 x Side cutting pliers
74 06 200 1 x Side cutting pliers with increased ratio
86 03 180 1 x Key pliers, pliers and wrench in one tool
87 01 180 1 x KNIPEX Cobra® New Generation Tube Adjustable Pliers
97 53 04 1 x Self-adjusting crimping pliers for cable sleeves with
side charging (0.08 – 10 + 16 mm2)
98 20 35 SL 1 x Screwdriver (Slim) for slotted head screws (3.5 mm)
98 25 01 SL 1 x Screwdriver (Slim) for Pozidriv® cross socket screws (PZ 1)
98 52 1 x Cable knife
0030312-0300 1 x Picard Locksmith's hammer (300 g)
361 252 1 1 x Rennsteig Floor cutter for electricians (250 x 10 mm)
16135 1 x Stabila Level Type 70 Electric (430 mm)
18115 1 x Stabila Mini Pocket Electric Level (68 mm)
003760 1 x Wera Double-sided Joker Flat Wrench (10 x 13 mm)
004018 1 x Wera Zyklop Metal 8100 SA 8 28pcs Ratchet Set
(1/4")
5003484001 1 x Wera VDE Spare Knife Set, 16 pieces, Slim

Spare parts:

00 21 99 V01 Spare tilting lock with key for 00 21 XX,
00 21 99 V02 Spare carrying handle for 00 21 XX / 98 99 XX,

**

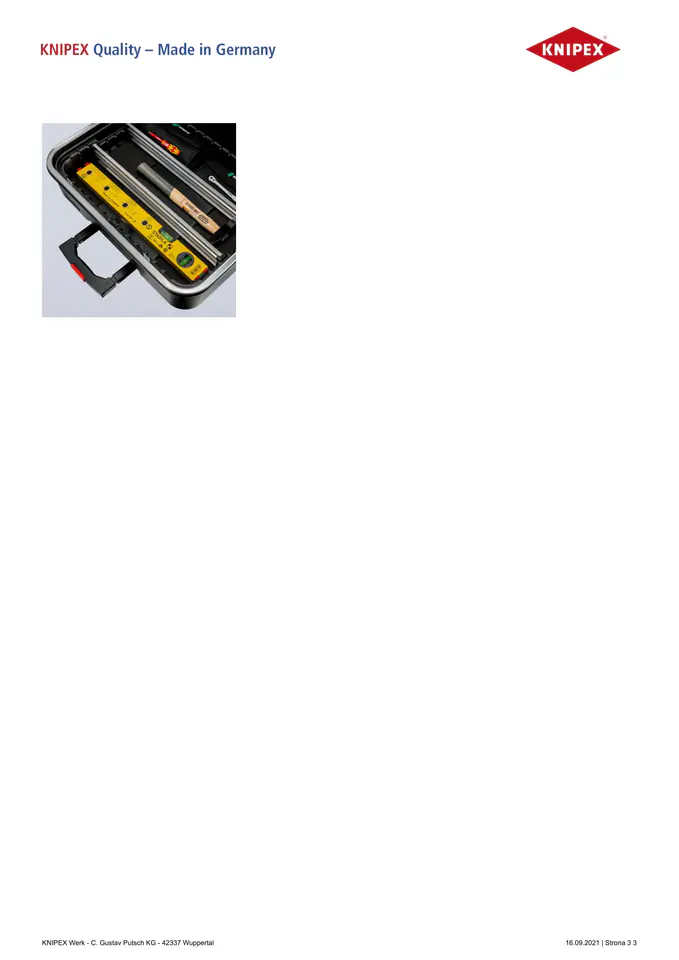

Illustrative photos.
