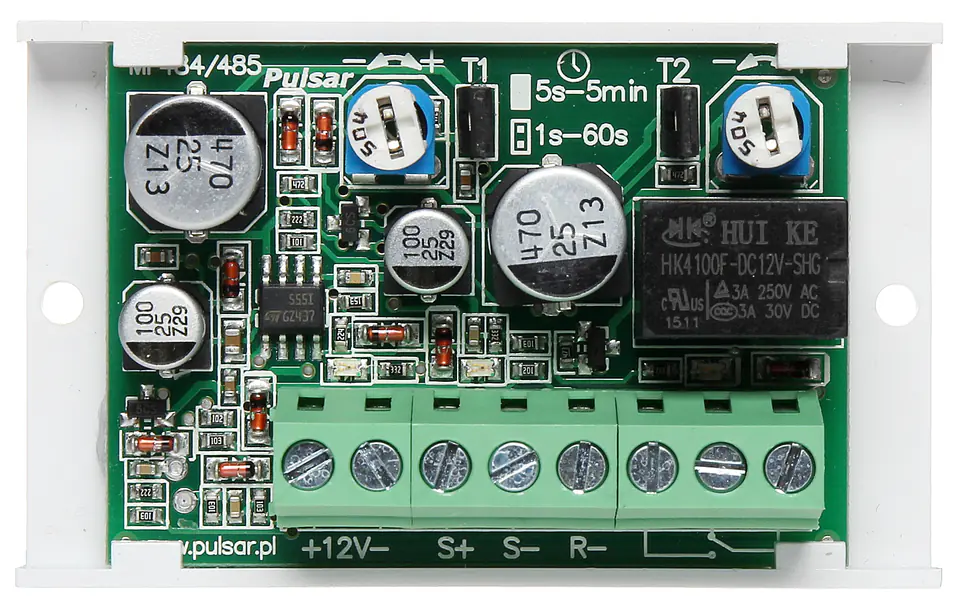

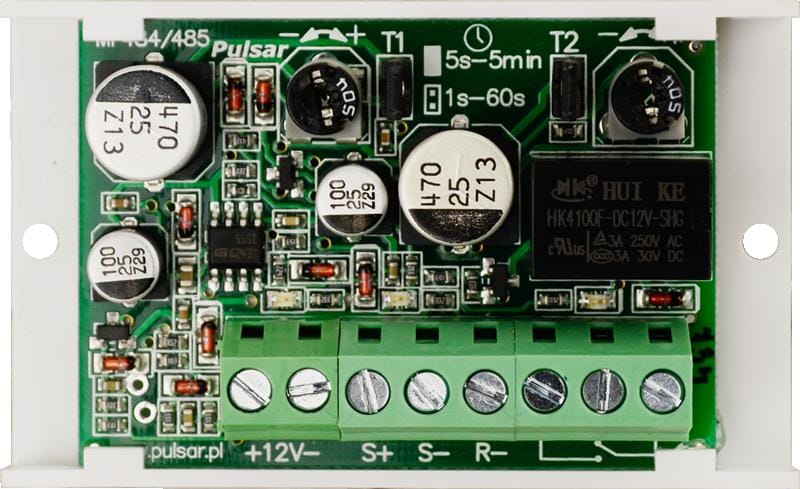

TIMER MODULE AWZ-526

€16.42

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, May 20 - Tue, May 21

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: AWZ-526 / 5902135302170

Specification

-10 °c ... 40 °c:	Operating temperature:
0.035 kg:	Scales:
1:	Number of relay outputs:
1 a (max) @ 30 v dc / 50 v ac (max):	Contact load capacity:
1 x no/nc:	Egress:
10 ... 14 vdc:	Power:
2 years:	Warranty:
35 ma (max):	Current consumption:
69 x 43 x 22 mm:	Dimensions:
Pulsar:	Manufacturer / Brand:
Time setting range1. range : 1 s ... 60 s ,2. range : 5 s ... 5 minutes led signaling:	Selected features:

AWZ-526 allows you to extend a short trigger pulse by the time set by a potentiometerThe device can work in 2 modes: extending the time from the moment the pulse appears or extending the time from the moment the trigger signal disappears

The device can be used to extend short pulses controlling e.g. the operation of bolts, solenoid valves, bistable control, as well as to make a transition in access control projects, with logical dependencies on the status: controller, door opening sensor (reed switch), output button, etc.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
