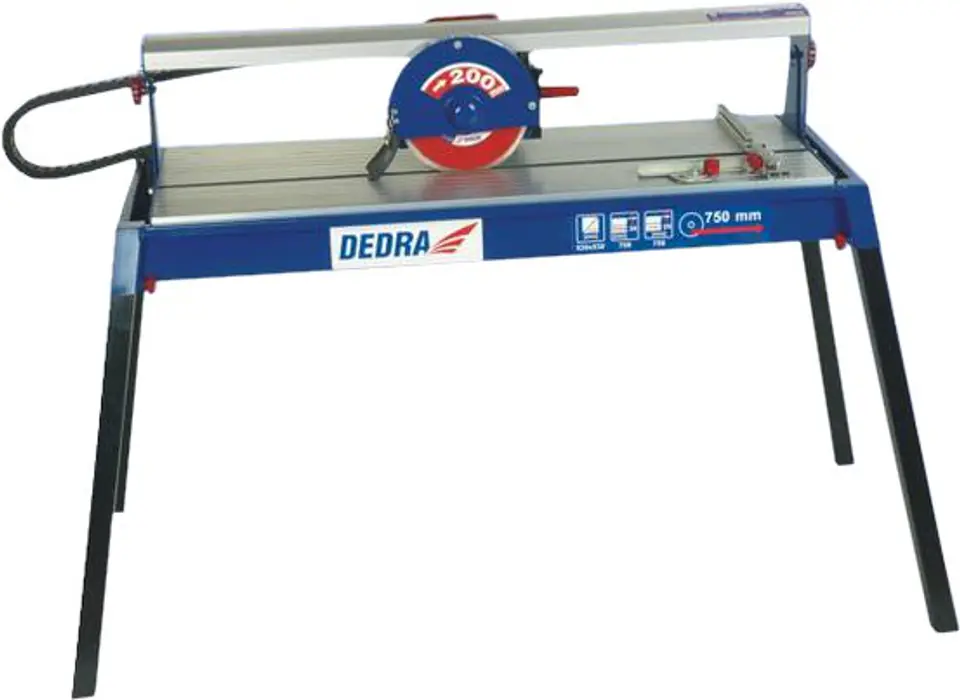

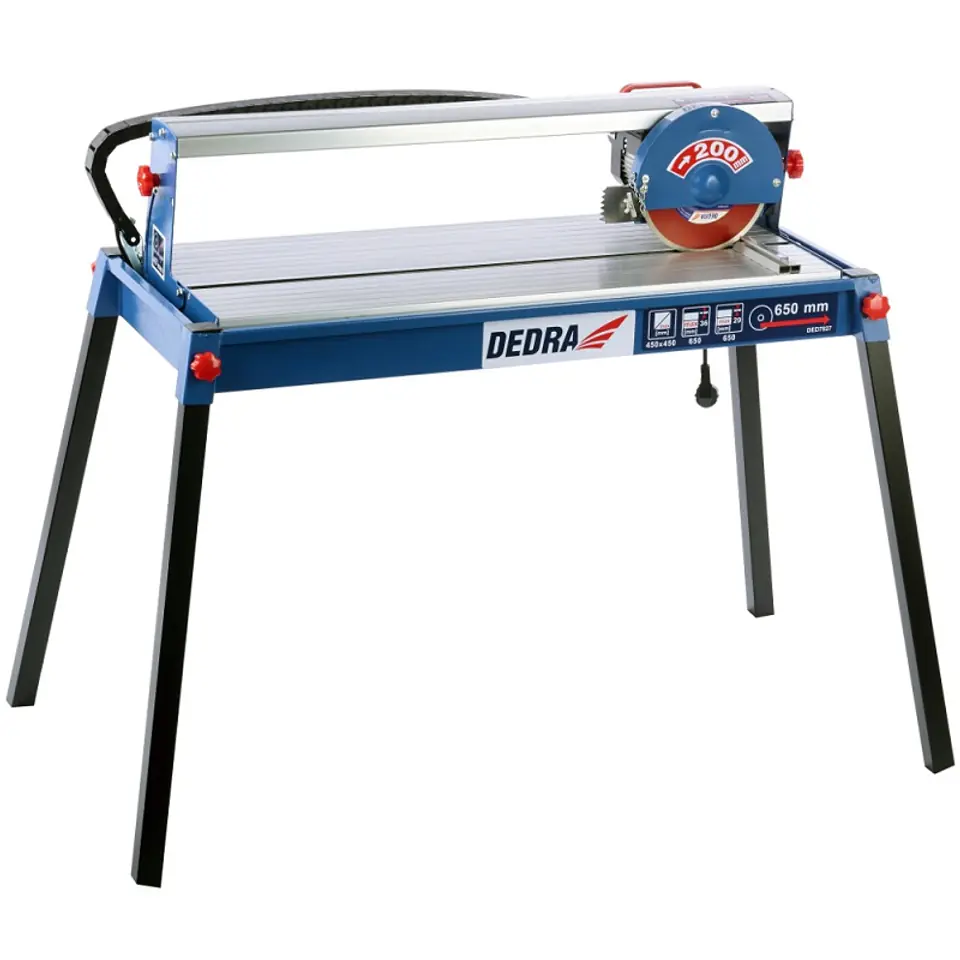

Dedra DED7828 tile cutter
Circular cutter with a diamond saw, designed for cutting all kinds of cladding tiles, both wall
as well as floor and stone, brick, clinker brick and other ceramic materials with dimensions in the field of use.
Wet treatment system using water as a refrigerant and dust agent, fed directly onto the diamond blade.
Thanks to this, the spread of spoil and dust has been significantly reduced during operation. Water is fed to the disc using a pump.
-Induction motor type
-Rated motor power 800W /230V
-Rotational speed of the circular saw 2950 rpm
-Diameter of circular saw 200mm
-Diameter of the mounting hole of the circular saw 25.4 mm
-Dimensions of the working table 990mmx 394mm
-Maximum cutting length 750mm
-Maximum cutting thickness 36mm
-Maximum cutting thickness at beveling 45° to 29mm
-Range of deviations of the working head (from vertical) from 0° degrees to 45°
-Degree of protection against moisture and foreign bodies IP 54
-Water tank capacity about 12 l
-Water pump power 8.5W
-Maximum water temperature in circulation up to 35° C
-Weight (with body) 30 kg
Including:
-Cutter DED7828
-Metal table
-Diamond blade
