Internal thread cutter, solid carbide, TMC SP
Design: ultrafine grain cemented carbide, with internal coolant supply (from M4 thread size), with 27 dextrorotatory grooves for optimal cutting conditions. Thanks to the milling technique in the machining process, the exact thread depth, very high quality of the thread surface, the possibility of machining hard-to-machine materials and the production of threads close to the bottom are achieved.
Application: thread milling and countersinking with one tool. For metric regular threads (both right and left) according to DIN 13 for through and blind holes.
Note: solid carbide cutters for other types of threads (UNC, UNF, pipe thread, etc.) available on request.
Thread cutter TMCSP VHMTiCN, shank HA 1,5xD, internal coolant M5 GÜHRING
This product is not available
- Availability:
- expected delivery
- Brand:
- GÜHRING
- Product code:
- 9035250050000 / 4031093623766
Share this product:

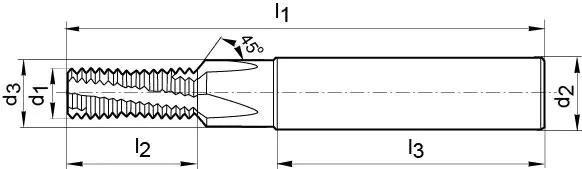

Specification
Aluminium > 8% silicon: | 150 |
---|---|
Cast iron gg/gts: | 100 |
Cutting part length l2: | 9.2 mm |
Ggg cast iron: | 90 |
Hardened steel < 55 hrc: | 70 |
Hardened steel < 60 hrc: | 50 |
Inox ferrite./martenz.: | 60 |
Jump: | 0.80 mm |
Number of grooves: | 3 |
Shank diameter d2: | 6 mm |
Shank length l3: | 36 mm |
Steel < 1000 n/mm2: | 80 |
Steel < 1400 n/mm2: | 75 |
Steel < 700 n/mm2: | 85 |
Thread: | M5 |
Total length l1: | 54 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
