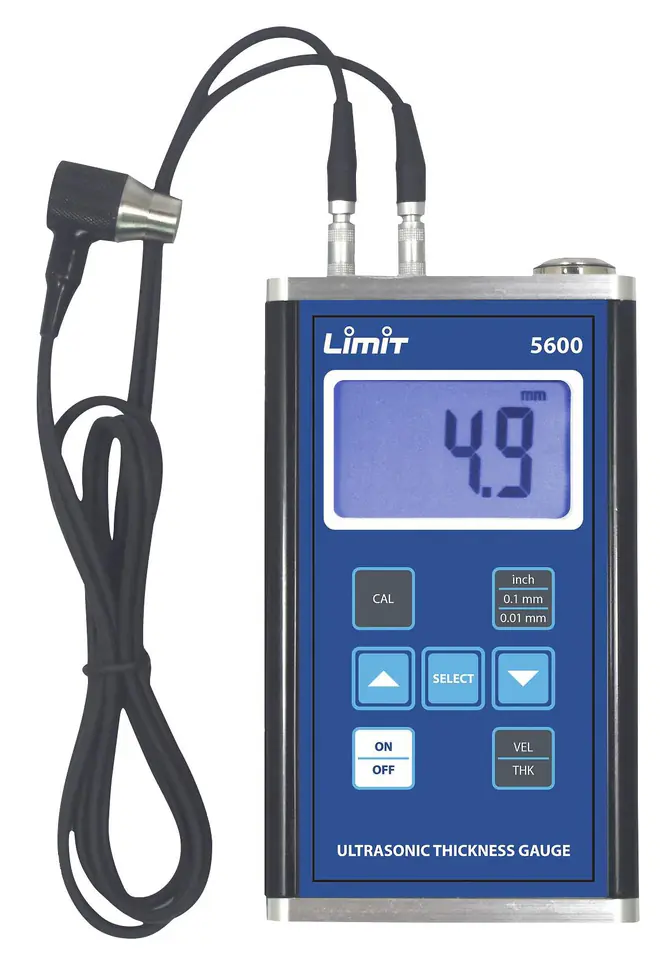

A digital instrument that measures the thickness of most homogeneous materials using ultrasonic technology. Measuring the thickness of a material using ultrasound is especially useful when there is access from only one side of the object. E.g. pipelines, tanks, cisterns, glass structures, etc. Materials suitable for ultrasonic thickness measurement are metals, glass and plastics. The condition is the homogeneity of the material, the parallelism of the walls on both sides, and that the surfaces are not too uneven. Auto power off after 2 minutes. Probe diameter 8 mm. AA batteries purchased separately.
Thickness gauge Limit 5600
€559.60
Shipping from warehouse: B6
Estimated shipping: Mon, May 6 - Wed, May 8
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- LIMIT
- Product code:
- 144840303 / 7311662200237
Share this product:
Specification
| Accuracy: | ± 0.5% +0.05 mm |
|---|---|
| Battery type: | AA (1.5 V) |
| Item number: | 144840303 |
| Maximum humidity (% rh): | 80.0000 |
| Measuring range: | 0.75 mm - 400.0 mm |
| Number of batteries (pcs): | 2 |
| Operating temperature (°c): | 0 - +40 |
| Package dimensions (mm): | 55x205x245 |
| Package quantity (pcs): | 1 |
| Resolution 1 (inch): | <10" = 0.001 |
| Resolution 1 (mm): | ≥10 mm = 0.1 |
| Resolution 2 (inches): | ≥10" = 0.01 |
| Resolution 2 (mm): | <10 mm = 0.01 |
| Weight (kg): | 0.340000 |
