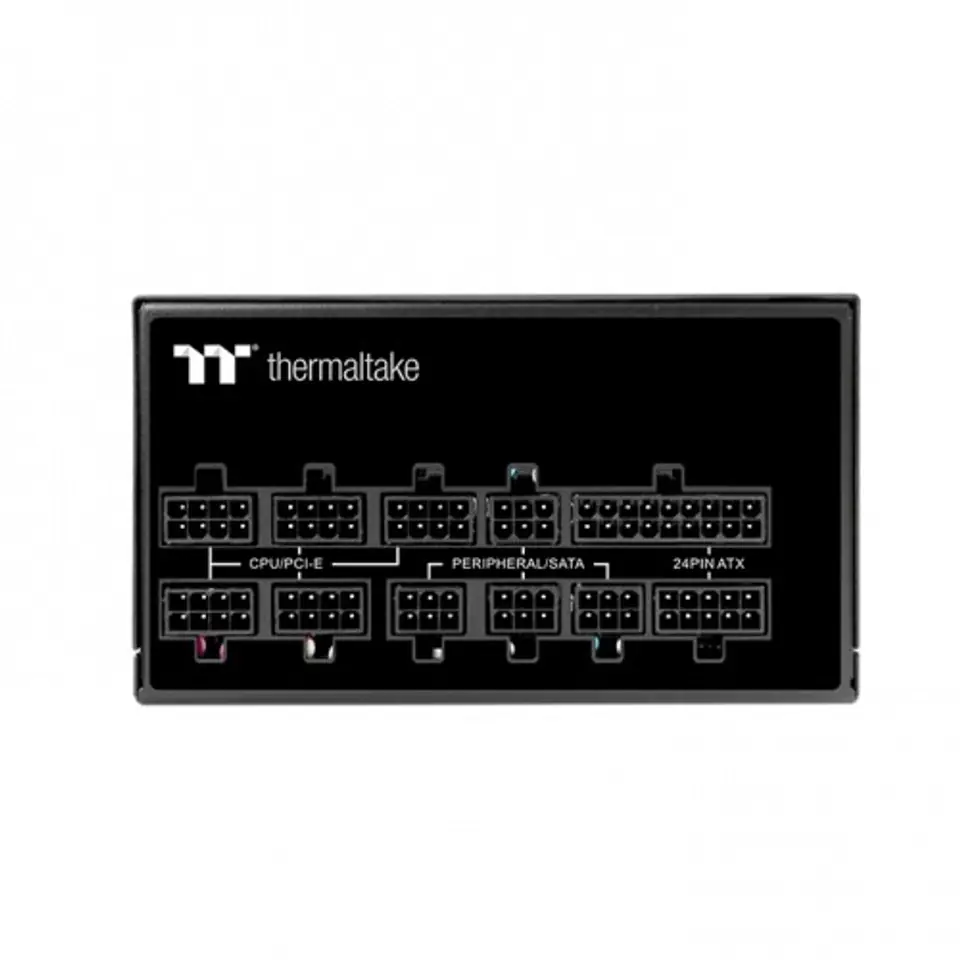

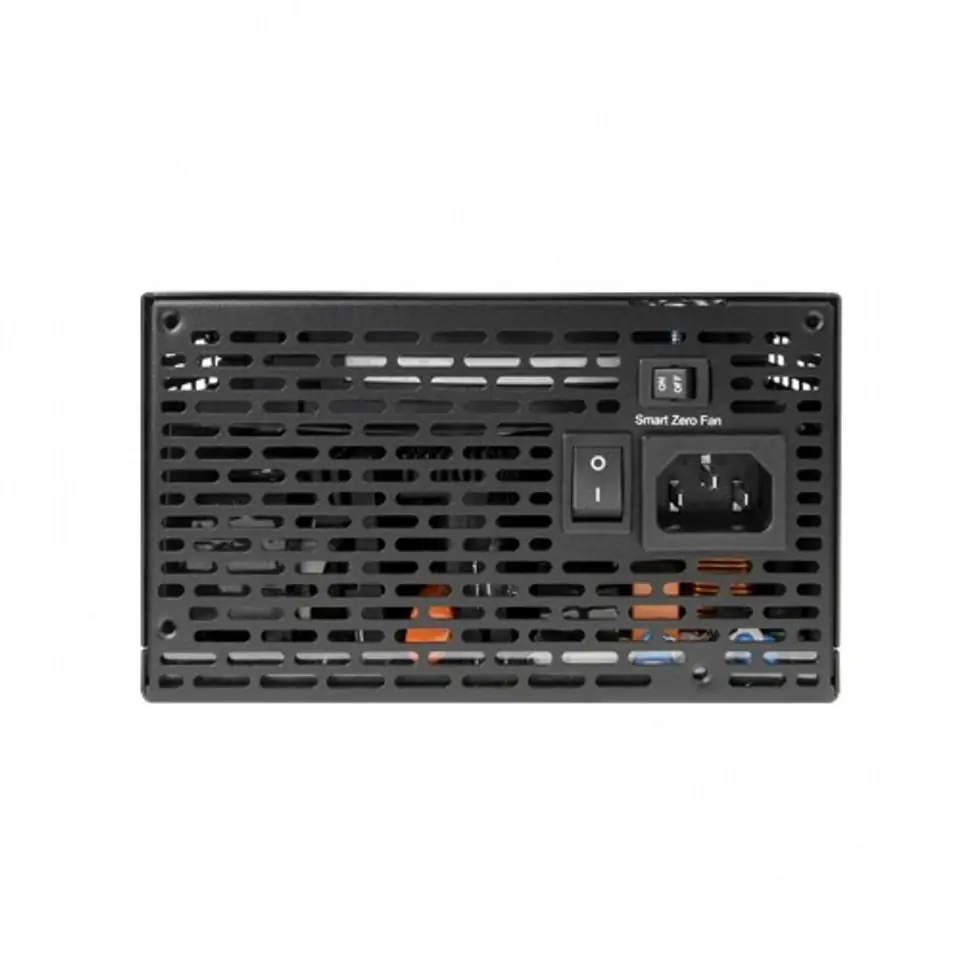

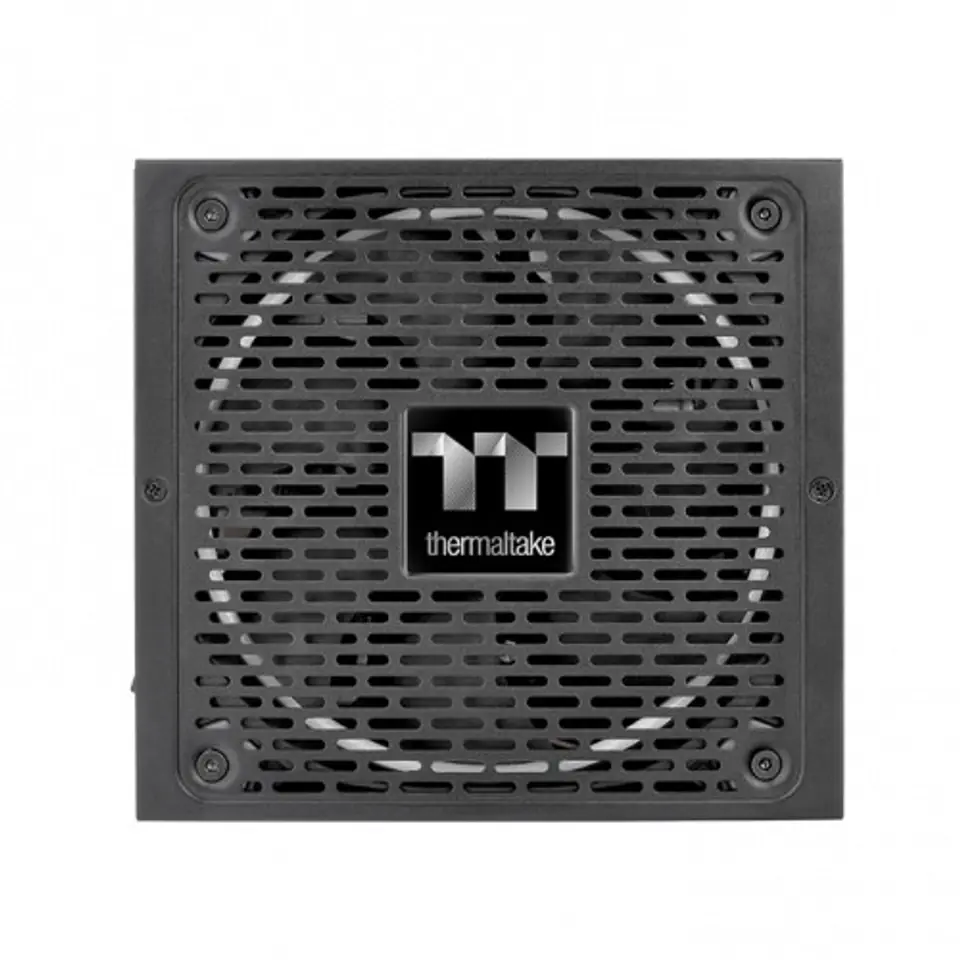

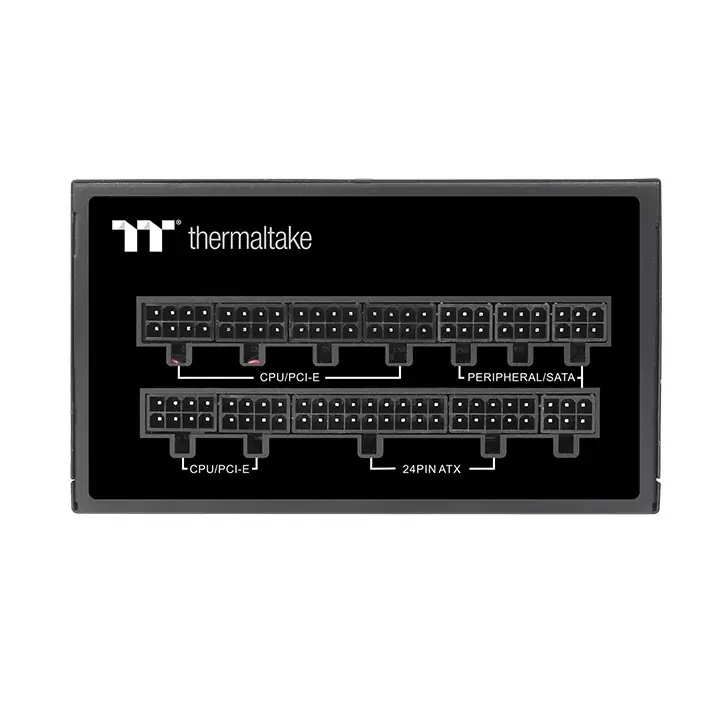

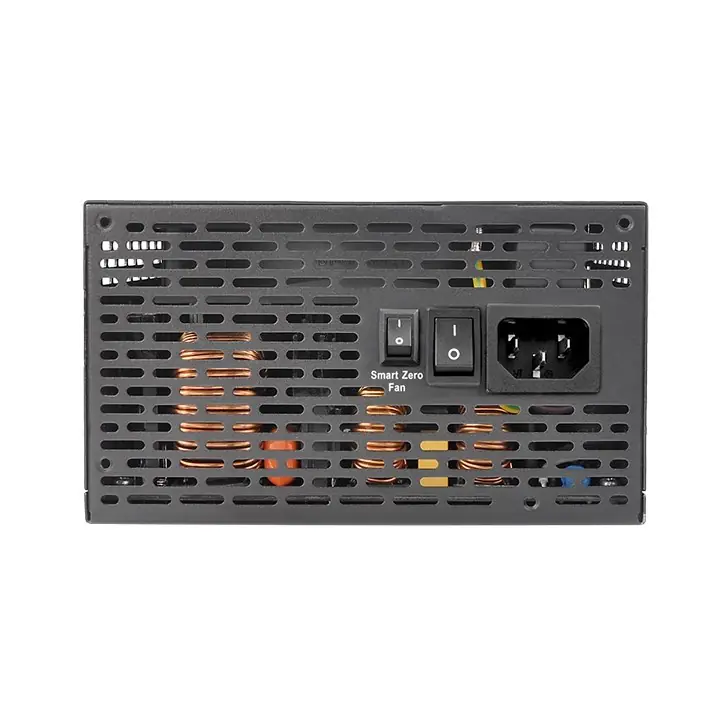

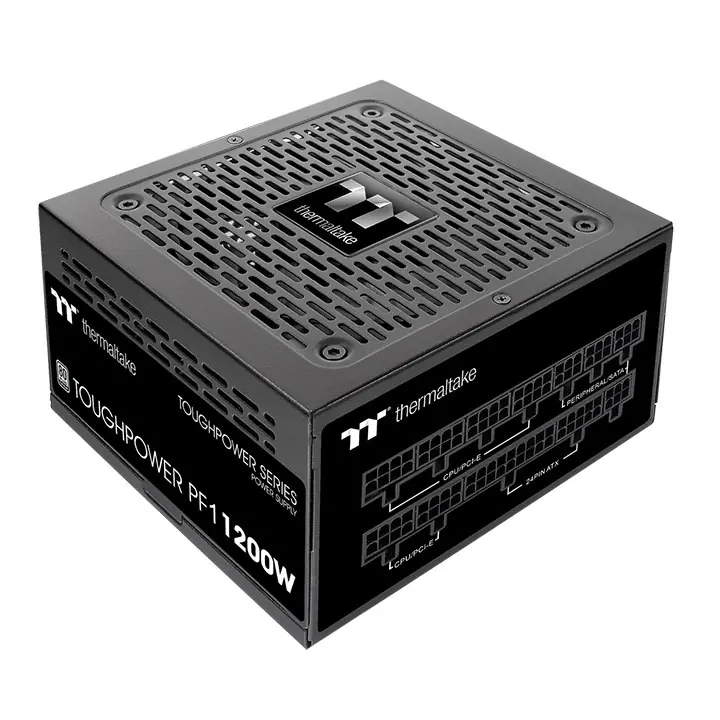

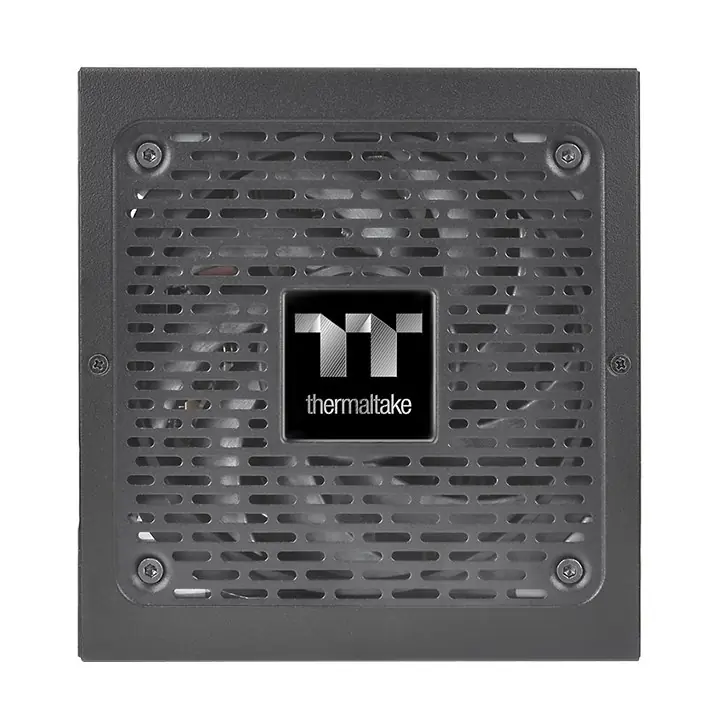

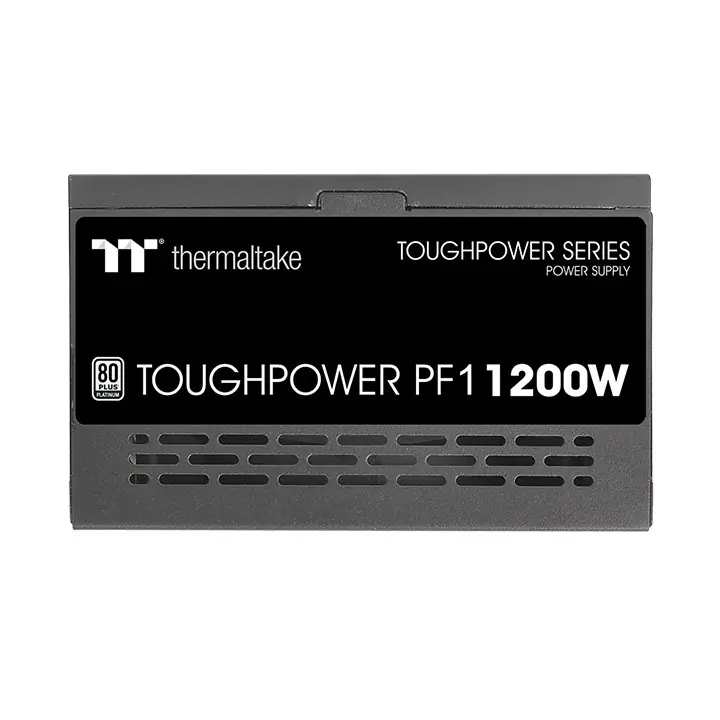

Power Supply - ToughPower PF1 1200W Fmod Platinum full JP CAP
Thermaltake Toughpower PF1 power supply unit 1200 W 24-pin ATX ATX Black
€253.26
Shipping from warehouse: M7
Estimated shipping: Thu, Nov 6 - Mon, Nov 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Thermaltake
- Product code:
- PS-TPD-1200FNFAPE-1 / 4713227530149
Share this product:
Specification
| 80 plus certification: | 80 PLUS Platinum |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (24-pin): | Yes |
| Bearing technology: | HDB |
| Cable tie(s) included: | Yes |
| Cabling type: | Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 1200 W |
| Combined power (+3.3v): | 130 W |
| Combined power (+5v): | 130 W |
| Combined power (+5vsb): | 12.5 W |
| Depth: | 140 mm |
| Eps power connector (4+4 pin): | Yes |
| Eps power connector (8-pin): | Yes |
| Fan diameter: | 12 cm |
| Floppy disk drive cable length: | 15 cm |
| Floppy drive power connector: | 1 |
| Height: | 86 mm |
| Hold time: | 16 ms |
| Input current: | 8 - 20 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 100 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 2.5 A |
| Mean time between failures (mtbf): | 120000 h |
| Motherboard power cable length: | 60 cm |
| Motherboard power connector: | 24-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 12 |
| On/off switch: | Yes |
| Operating relative humidity (h-h): | 20 - 85% |
| Operating temperature (t-t): | 5 - 50 °C |
| Pci express power cable length: | 65 cm |
| Pci express power connectors (6+2 pin): | 8 |
| Peak power: | 1400 W |
| Peripheral (molex) power cable length: | 500 mm, 950 mm, 800, 650 |
| Peripheral (molex) power connectors (4-pin): | 8 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Overheating, Short circuit, Over voltage, Under voltage, Over current, Over power |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 650, 950 mm, 500, 800 mm |
| Silent mode: | Yes |
| Storage relative humidity (h-h): | 10 - 95% |
| Storage temperature (t-t): | -40 - 55 °C |
| Total power: | 1200 W |
| Width: | 150 mm |
