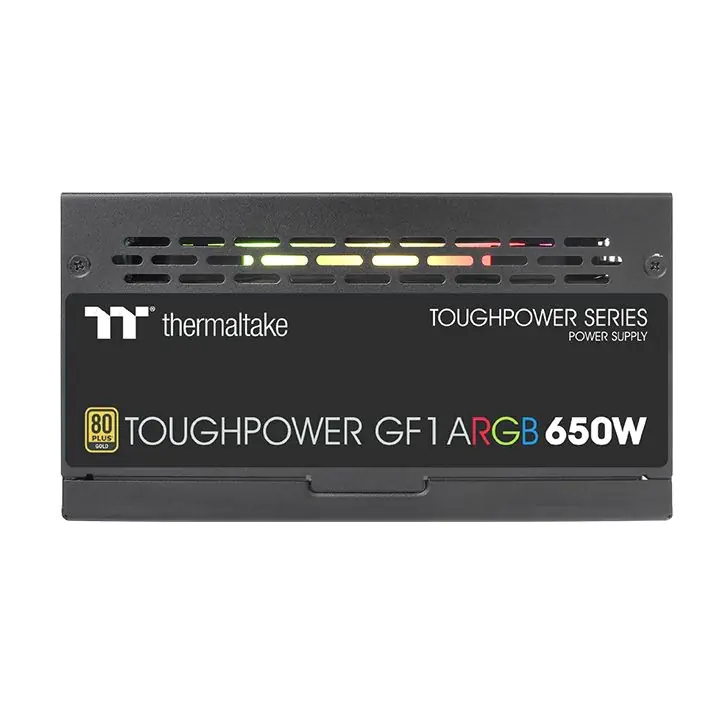

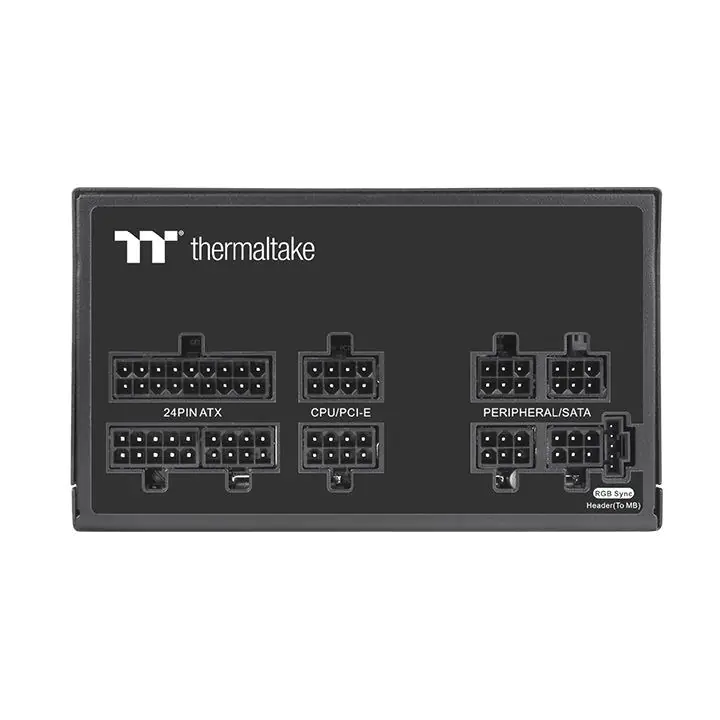

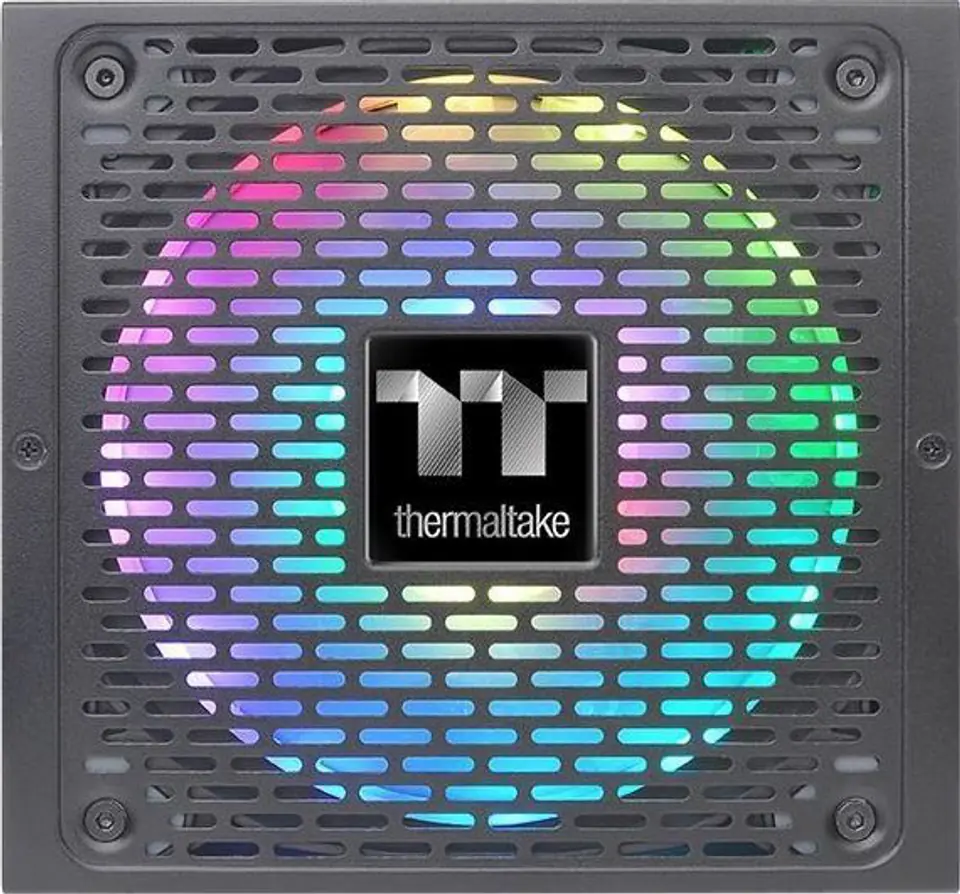

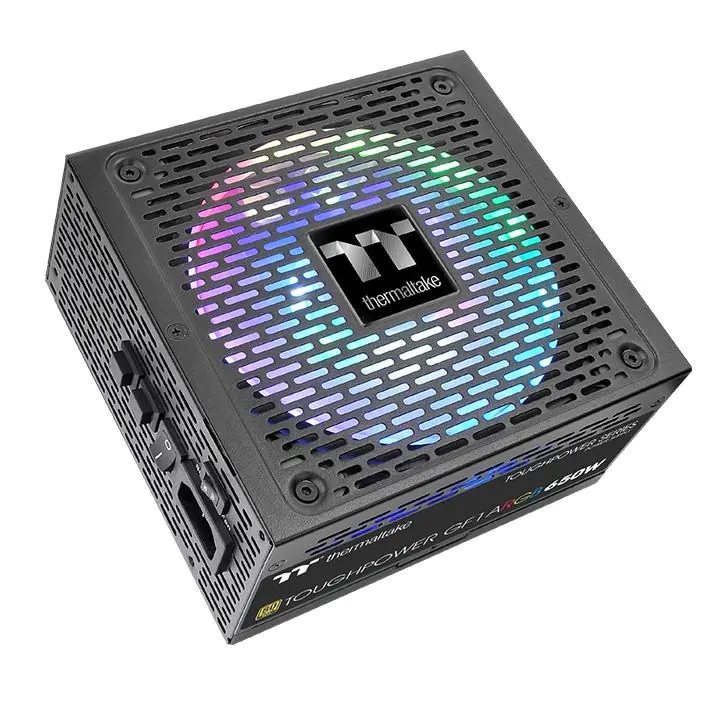

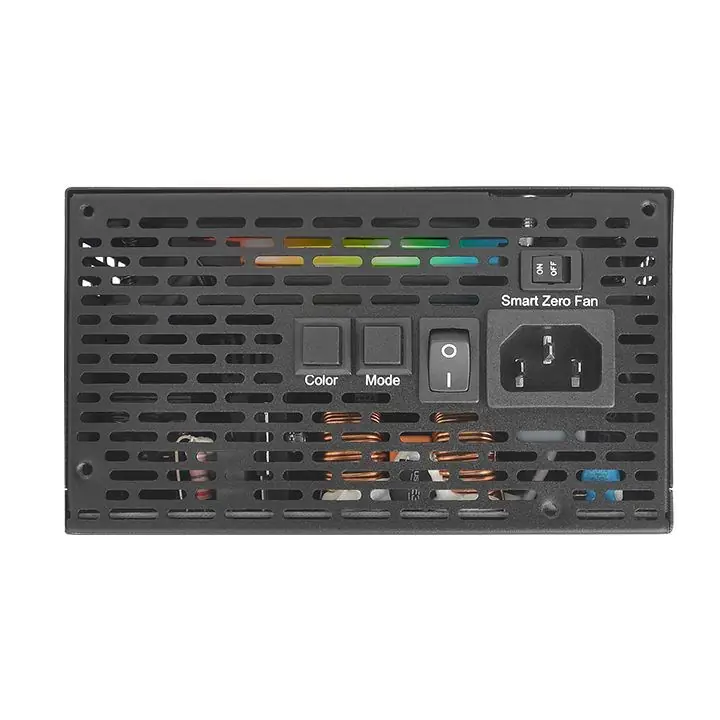

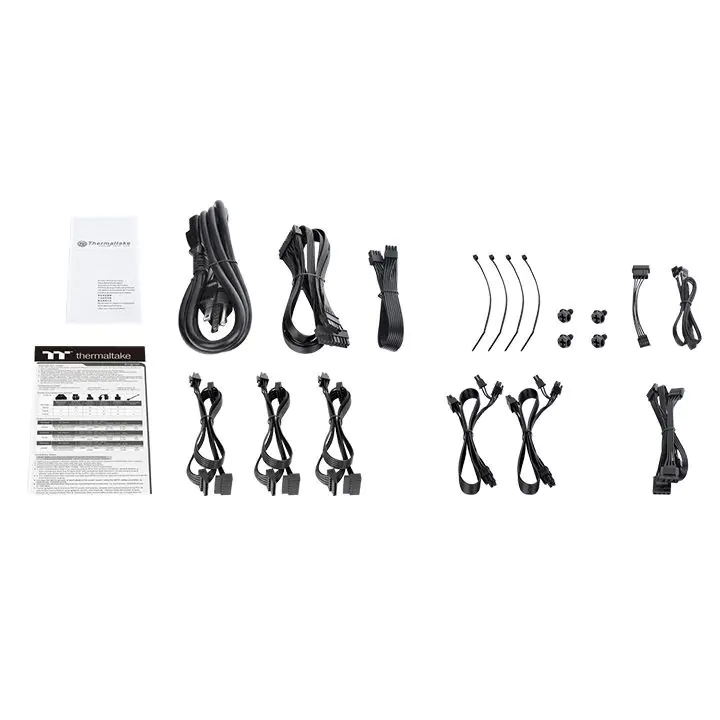

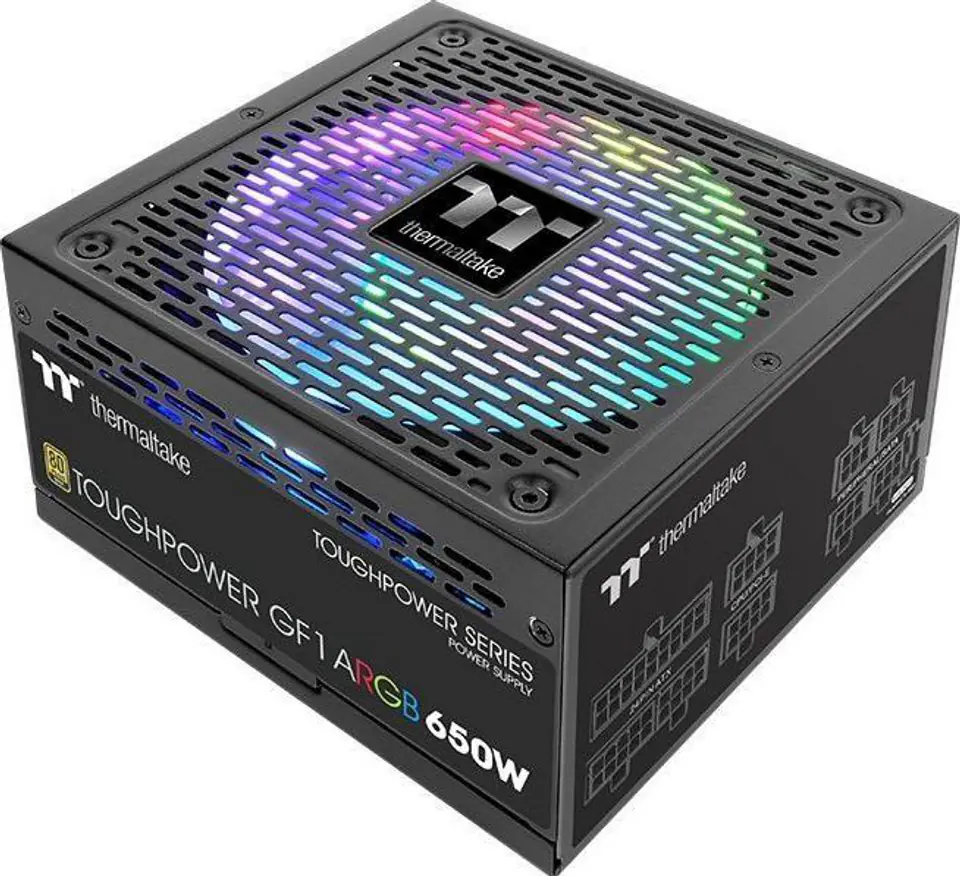

Thermaltake PS-TPD-0650F3FAGE-1 power supply unit 650 W 20-pin ATX ATX Black
€155.61
Shipping from warehouse: A3
Estimated shipping: Tue, Jun 10 - Fri, Jun 13
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Thermaltake
- Product code:
- PS-TPD-0650F3FAGE-1 / 4713227521277
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (24-pin): | Yes |
| Combined power (+12v): | 650 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 15 W |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 160 mm |
| Floppy disk drive connector: | Yes |
| Floppy drive power connector: | 1 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Illumination: | Yes |
| Input current: | 10 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 54.2 A |
| Max output current (+3.3v): | 22 A |
| Max output current (+5v): | 22 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 120000 h |
| Motherboard power cable length: | 65 cm |
| Motherboard power connector: | 20-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 9 |
| On/off switch: | Yes |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | 0 - 50 °C |
| Pci express power connectors (6+2 pin): | 4 |
| Peak power: | 780 W |
| Peripheral (molex) power connectors (4-pin): | 4 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Short circuit, Over voltage, Over current |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 500 mm, 150 |
| Storage temperature (t-t): | -20 - 70 °C |
| Total power: | 650 W |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
