| 80 plus certificate: | 80 PLUS BRONZE |
|---|---|
| 80 plus certification: | 80 PLUS Bronze |
| Ac input frequency: | 50 Hz |
| Ac input voltage: | 200 - 240 V |
| Applied backlight: | No |
| Atx 24-pin plugs (20+4): | 1 |
| Atx version: | 2.51 |
| Atx version: | 2.51 |
| Bearing technology: | Sleeve |
| Bulk box width (external): | 311 mm |
| Cables: | PCIe, SATA |
| Cables included: | PCIe, SATA |
| Cabling type: | Semi-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 672 W |
| Combined power (+3.3v): | 130 W |
| Combined power (+5v): | 130 W |
| Combined power (+5vsb): | 15 W |
| Compliant standards: | ATX 12V 2.51, EPS 12V 2.92 |
| Cooling type: | Active |
| Cpu connector (4+4 pin): | Yes |
| Cpu power cable length: | 60 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 140 mm |
| Depth (mm): | 140 |
| Destiny: | PC |
| Diameter of fan canopy: | 12 cm |
| Efficiency: | 89% |
| Environmental certificate (sustainability): | RoHS, ENERGY STAR |
| Eps version: | 2.92 |
| Fan diameter: | 12 cm |
| Floppy disk drive connector: | 1 |
| Floppy drive power connector: | 1 |
| Floppy plugins: | No |
| Gross weight of main (external) enclosure: | 15.3 kg |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Height (mm): | 86 |
| Height of reference box (external): | 556 mm |
| Hold time: | 17 ms |
| Input current: | 6 A |
| Line: | System Power |
| Line current: | +12V1 - 33A, +12V2 - 25A, -12V - 0.3A, +3.3V - 24A, +5Vsb - 3A, +5V - 15A |
| Main box length (outer): | 215 mm |
| Manual: | Yes |
| Master (outer) case gross weight: | 15.3 kg |
| Master (outer) case height: | 556 mm |
| Master (outer) case length: | 215 mm |
| Master (outer) case width: | 311 mm |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v1): | 33 A |
| Max output current (+12v2): | 25 A |
| Max output current (+3.3v): | 24 A |
| Max output current (+5v): | 15 A |
| Max output current (+5vsb): | 3 A |
| Maximum output current (-12 v): | 0.3 A |
| Maximum output current (+12 v1): | 33 amps |
| Maximum output current (+12 v2): | 25 amps |
| Maximum output current (+3.3v): | 24 amps |
| Maximum output current (+5 v): | 15 amps |
| Maximum output current (+5 vsb): | 3 A |
| Modular wiring type: | Yes |
| Molex plugins: | 2 |

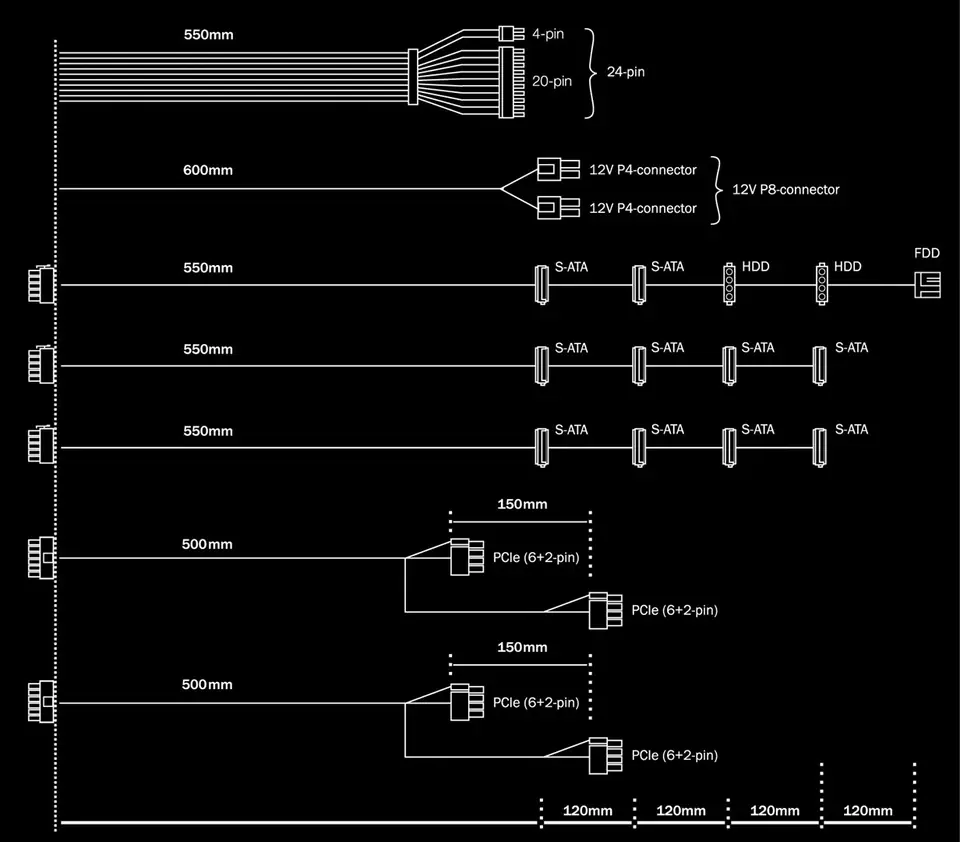

| Motherboard cable length: | 55 cm |
| Motherboard power cable length: | 55 cm |
| Motherboard power connector: | 20+4 pin ATX |

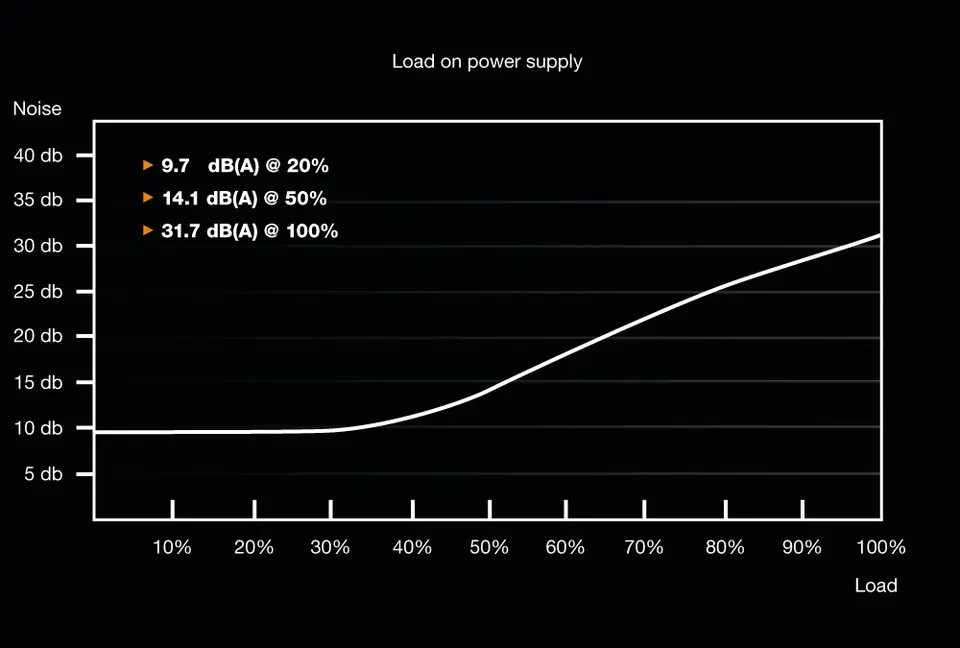

| Noise level (at full load, 100 %): | 31.7 dB |
| Noise level (full-load mode, 100%): | 31.7 dB |
| Noise level (quiet mode, 50%): | 14.1 dB |
| Noise level (silent mode, <30 %): | 9.7 dB |
| Noise level (silent mode, <30%): | 9.7 dB |
| Noise level (silent mode, 50 %): | 14.1 dB |
| Number of fans: | 1 fan(s) |
| Number of pata power connectors: | 2 |
| Number of sata power connectors: | 10 |
| Other connectors: | 1x Power supply EPS12V 8-pin |
| Other parameters: | 80 Plus Bronze Certificate |
| Package depth: | 268 mm |
| Package height: | 195 mm |
| Package type: | Box |
| Package weight: | 2.44 kg |
| Package width: | 97 mm |
| Pause time: | 17 ms |
| Pci express power cable length: | 50 cm |
| Pci express power cable length: | 50 cm |
| Pci express power connectors (6+2 pin): | 4 |
| Pci express power connectors (6+2 pin): | 4 |
| Pci-e 6-pin slots: | No |
| Pci-e 8-pin slots: | 4 |
| Pfc: | Active |
| Pfc (power factor correction) type: | Active |
| Power factor: | 0.95 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Overheating, Over power, Under voltage, Over current, Short circuit, Over voltage |
| Power supply (w): | 700 |
| Power supply efficiency (%): | 89 |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Product depth: | 140 mm |
| Product height: | 86 mm |
| Product weight: | 1.69 kg |
| Product width: | 150 mm |
| Products in the main (outer) case: | 6 pcs. |
| Products per master (outer) case: | 6 pc(s) |
| Purpose: | PC |
| Sata plugs: | 10 |
| Sata power cable length: | 550, 670 mm |
| Screws included: | Yes |
| Security measures applied: | OCP, OVP, UVP, SCP, OTP, OPP |
| Sustainability certificates: | ENERGY STAR, RoHS |
| Total power: | 700 W |
| Total power (-12v): | 3.6 W |
| Total power (+12 v): | 672 watts (Printing) |
| Total power (+3.3 v): | 130 watts (Printing) |
| Total power (+5 v): | 130 watts (Printing) |
| Total power (+5 vsb): | 15 watts |
| Type of cooling: | Fan 120 mm |
| Type of packaging: | Box |
| Type of power supply (psu): | ATX |
| Type of wiring: | Semi-modular |
| User's guide: | Yes |
| Warranty: | 3 years |
| Weight: | 1.69 kg |
| Weight with packaging: | 2.44 kg |
| Width: | 150 mm |
| Width (mm): | 150 |

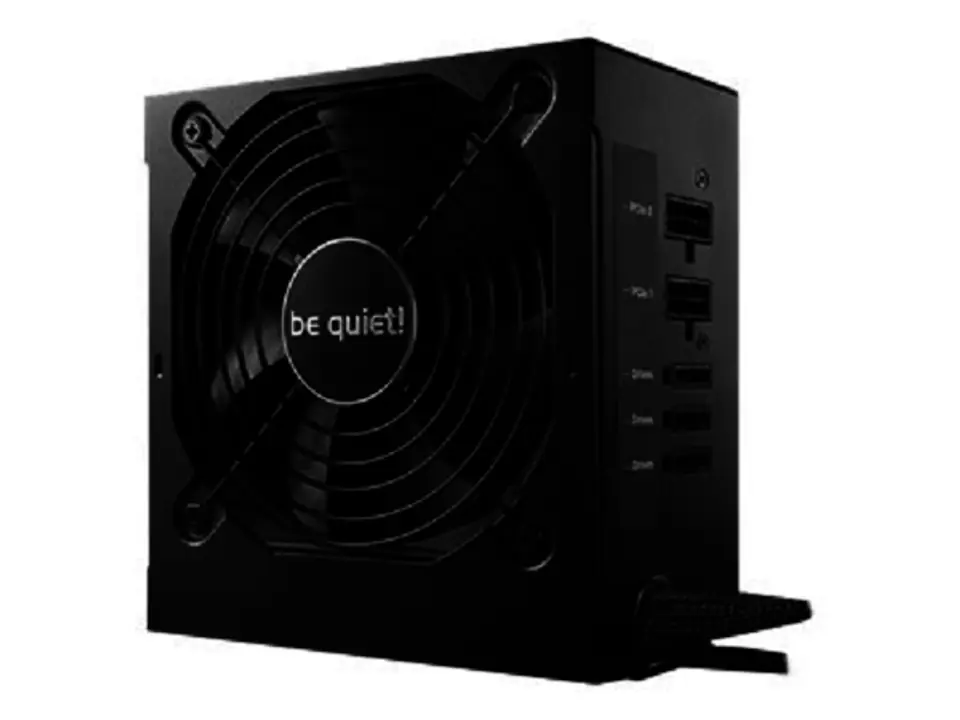

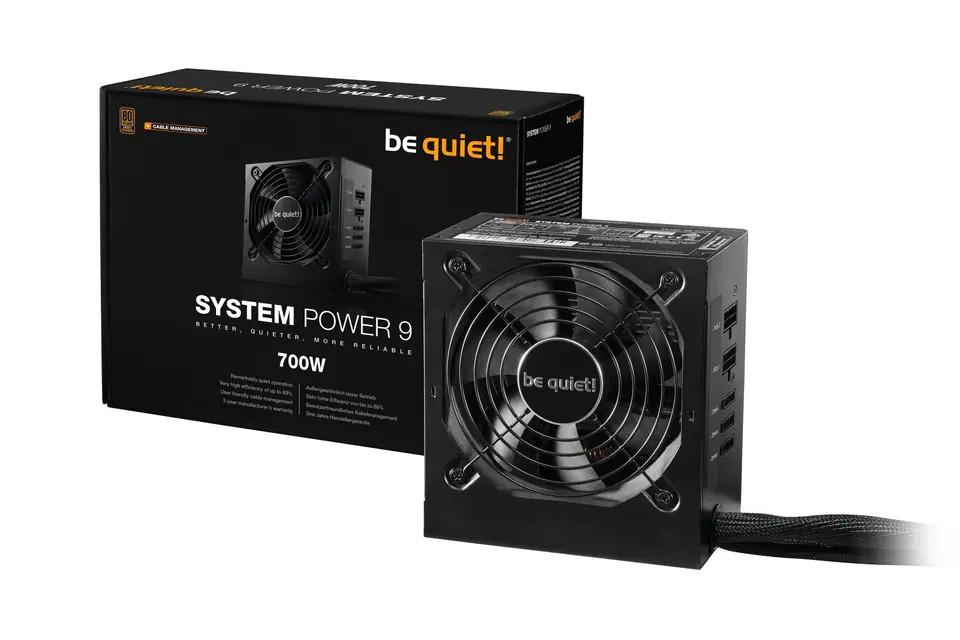

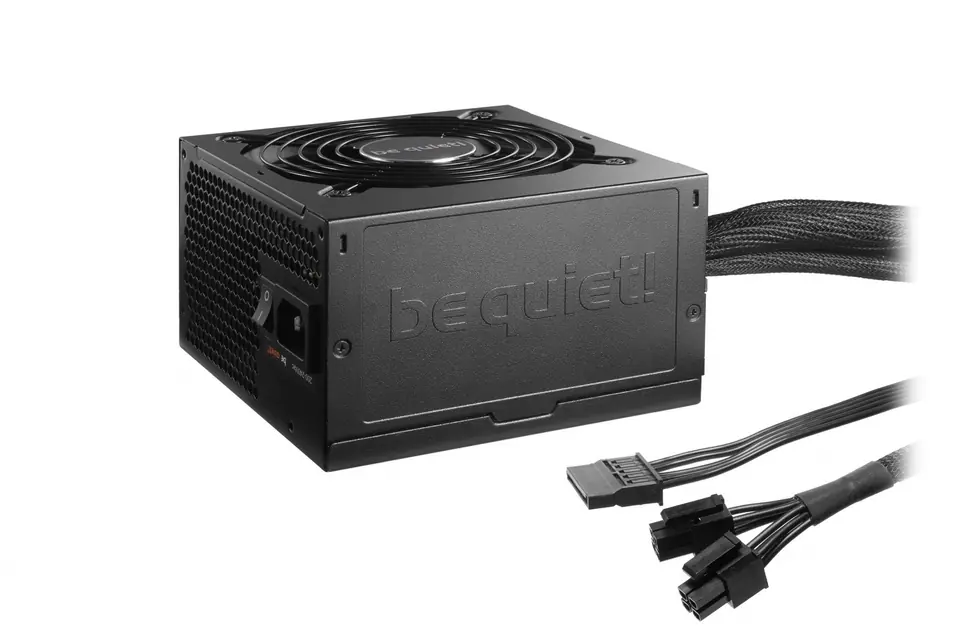

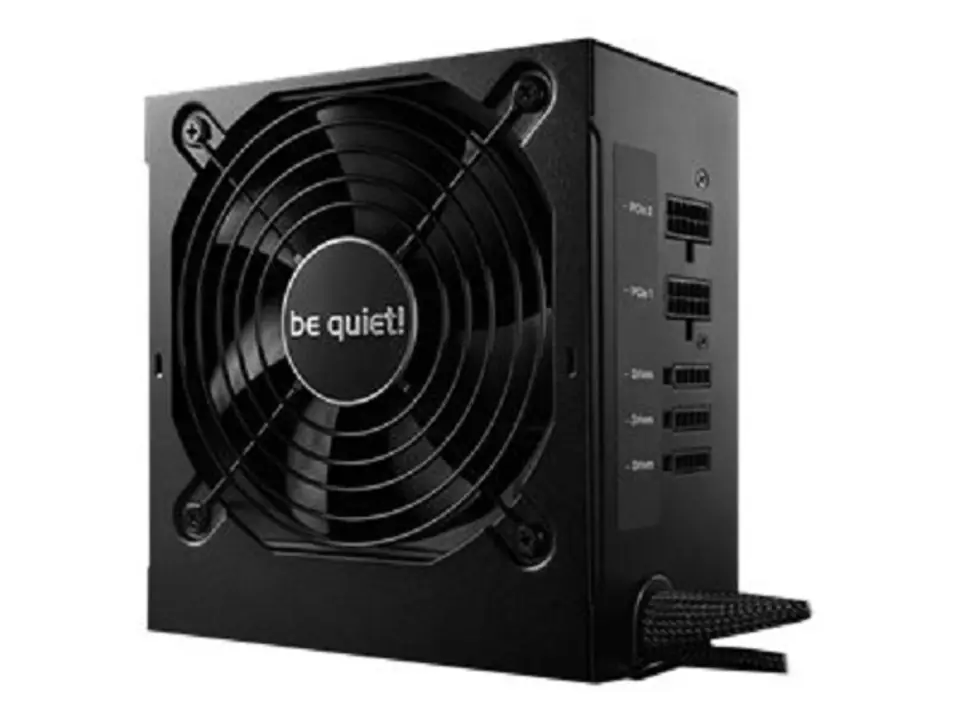

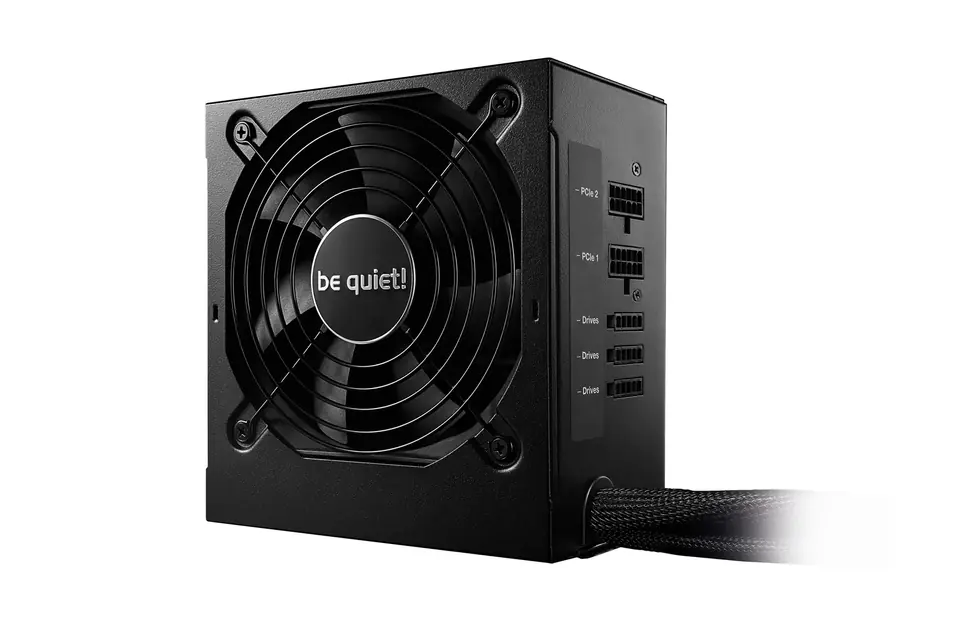

SYSTEM POWER 9 CM 700W PROVEN RELIABILITY AND GOOD PERFORMANCE
be quiet! System Power 9 CM 700W offers silence and the famous reliability of be quiet! for all PC system integrators.
Safety:
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
