Tentacles for internal measurements, analog./digital. 10-30mm KRÖPLIN

This product is not available
Availability:
expected delivery
Brand:
Kroeplin
Product code:
L210 / 4332163400608

Specification

Depth of measurement:85 mm
Error limit:0.030 mm
Groove depth:5.2 mm
Groove width:1.2 mm
L. fixed measuring tip:5.3 mm
L. measuring tip movement.:5.3 mm
Measuring load:1.1–1.6 N
Measuring range:10-30 mm
Read:0.010 mm
Repeatability limit:0.010 mm
Type of measuring tip::ball Ø 1.0 (1) mm

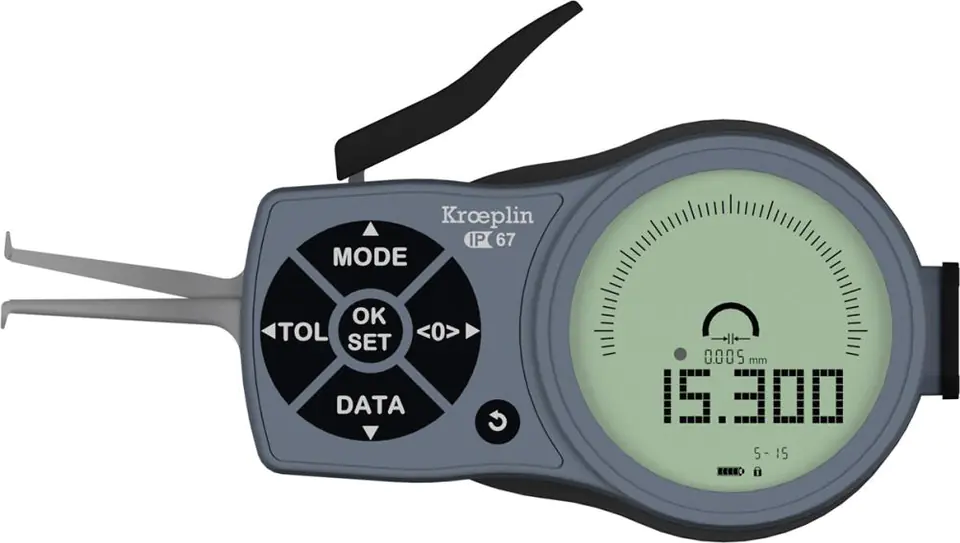

Macacles for internal measurements with analog and digital display

Design: the measuring tentacles are characterized by a clearly made LCD display, which facilitates the correct reading of the measured values. Supplied with screwdriver and 2 AAA/LR03 batteries, 1.5 V, in a shipping package.
Functions: absolute and relative measurement program, mm/inch switching, red-green traffic lights for tolerance measurements, numerical increment value switching.

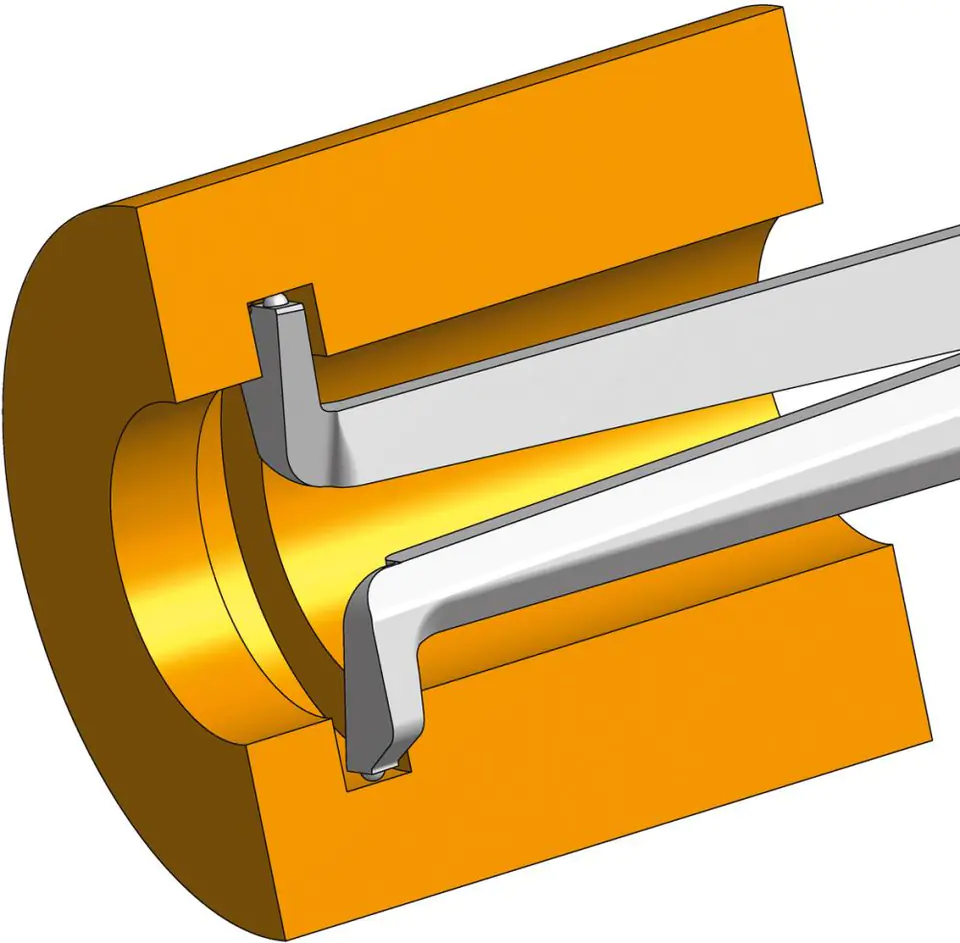

Application: for measuring grooves and holes.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
