| Depth of measurement: | 12 mm |
|---|---|
| Error limit: | 0.015 mm |
| Groove depth: | 0.7 mm |
| Groove width: | 0.5 mm |
| L. fixed measuring tip: | 0.9 mm |
| L. measuring tip movement.: | 0.9 mm |
| Measuring load: | 0.8–1.2 N |
| Measuring range: | 2.5-12 mm |
| Read: | 0.005 mm |
| Repeatability limit: | 0.005 mm |
| Type of measuring tip: | :blade R 0,1 (1) mm |

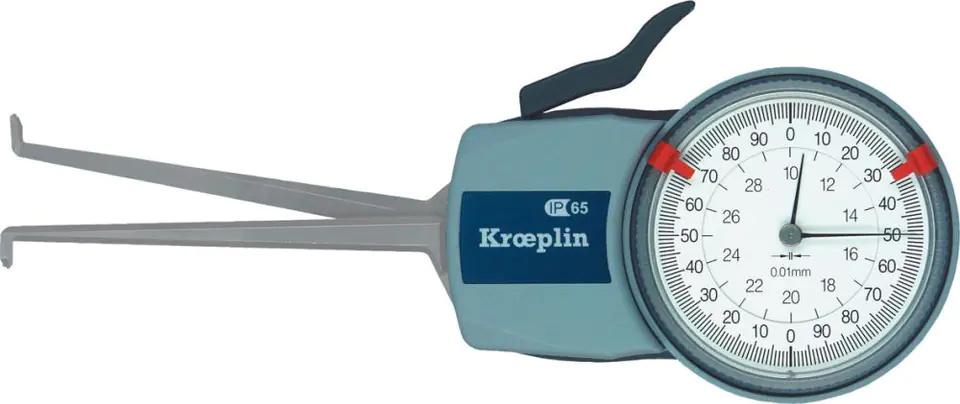

Intertest internal measuring tentacles with rack and pinion gear
Design: for use in harsh workshop conditions, cushioned drive mechanism with steel transmission spring for greater accuracy, carbide measuring surfaces, movable tolerance markers. Delivery in transport packaging.

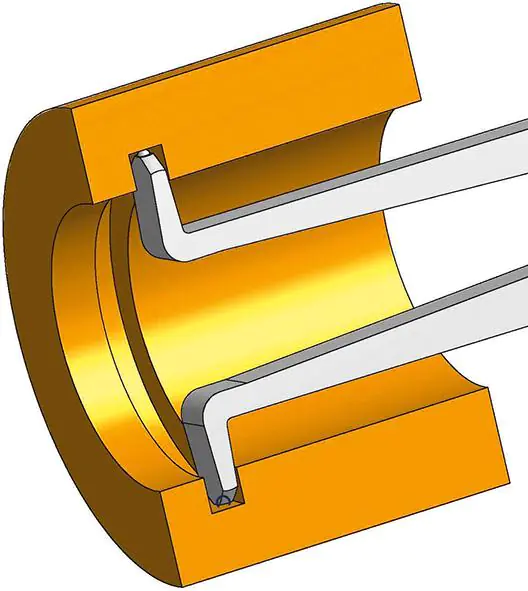

Application: for measuring internal grooves and undercuts.
Readability 0.005 mm
