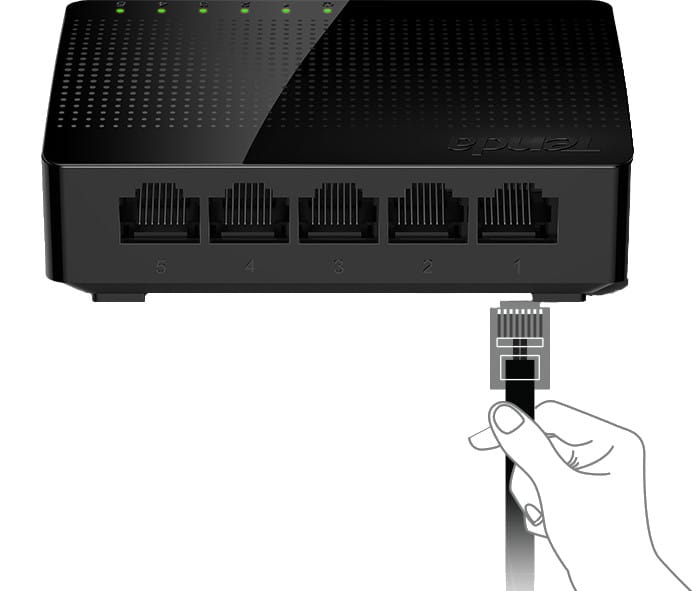

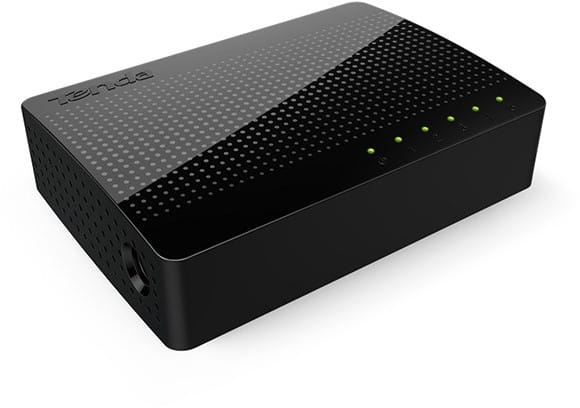

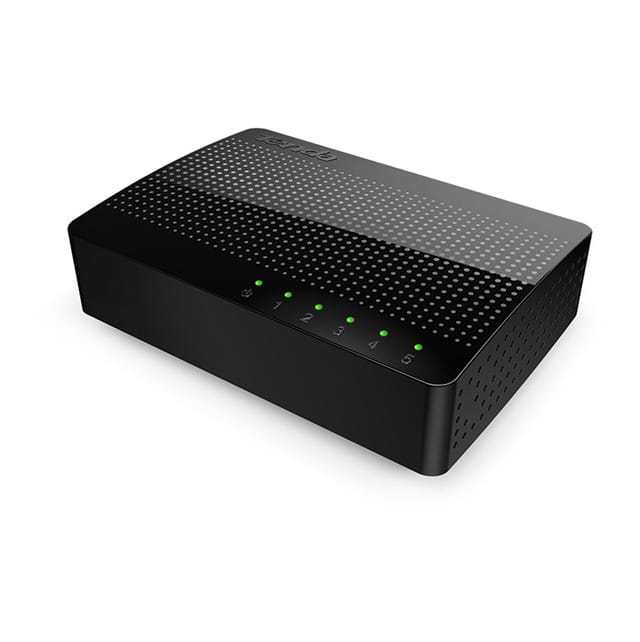

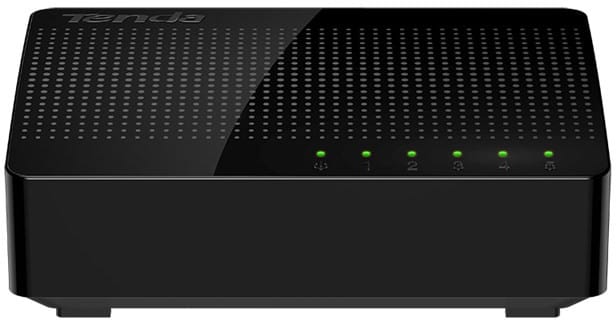

Tenda SG105 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
€10.10 incl. 23% VAT
€8.21 excl. VAT
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- SG105 / 6932849436273
Share this product:
Specification
| Ac adapter included: | Y |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Y |
| Basic switching rj-45 ethernet ports quantity: | 5 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Cable types supported: | Cat5, Cat5e, Cat3 |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth: | 66 mm |
| Full duplex: | Y |
| Gigabit ethernet (copper) ports quantity: | 5 |
| Harmonized system (hs) code: | 85176990 |
| Height: | 23 mm |
| Jumbo frames: | 15000 |
| Led indicators: | Activity, Power, Link |
| Mac address auto-aging supported: | Y |
| Mac address auto-learning supported: | Y |
| Mac address table: | 4000 entries |
| Maximum cable length: | 100 m |
| Networking standards: | IEEE 802.3x, IEEE 802.3ab, IEEE 802.3u |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Output current: | 0.6 A |
| Output voltage: | 5 V |
| Packet forwarding rate (1 gbps): | 1488000 pps |
| Packet forwarding rate (10 mbps): | 14880 pps |
| Packet forwarding rate (100 mbps): | 148800 pps |
| Power connector: | DC-in jack |
| Power consumption (typical): | 2.5 W |
| Power over ethernet (poe): | N |
| Power supply included: | Y |
| Product colour: | Black |
| Quick start guide: | Y |
| Rack mounting: | N |
| Stackable: | N |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Store-and-forward: | Y |
| Switch type: | Unmanaged |
| Switching capacity: | 10 Gbit/s |
| Width: | 96 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
