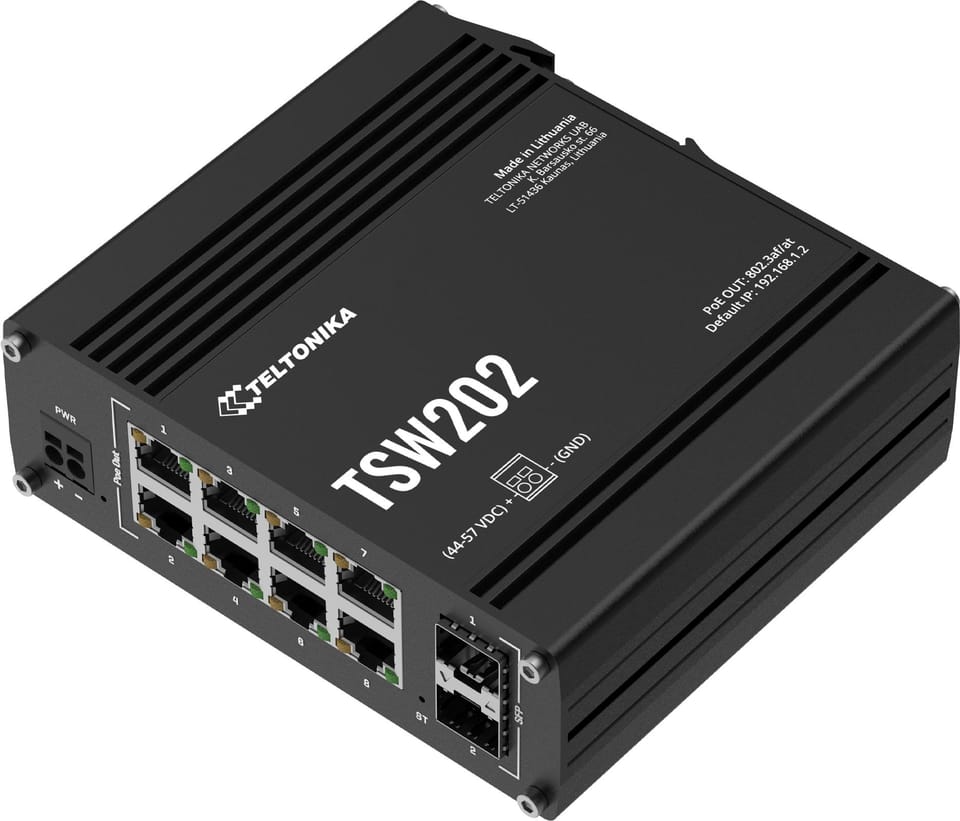

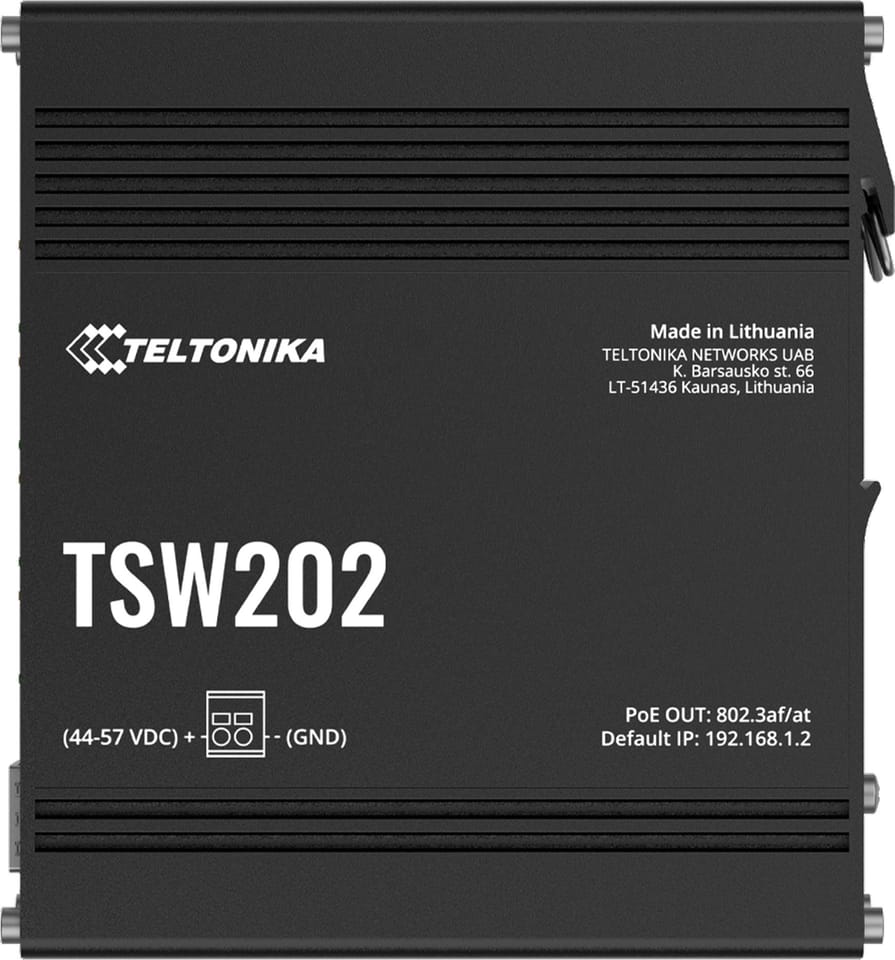

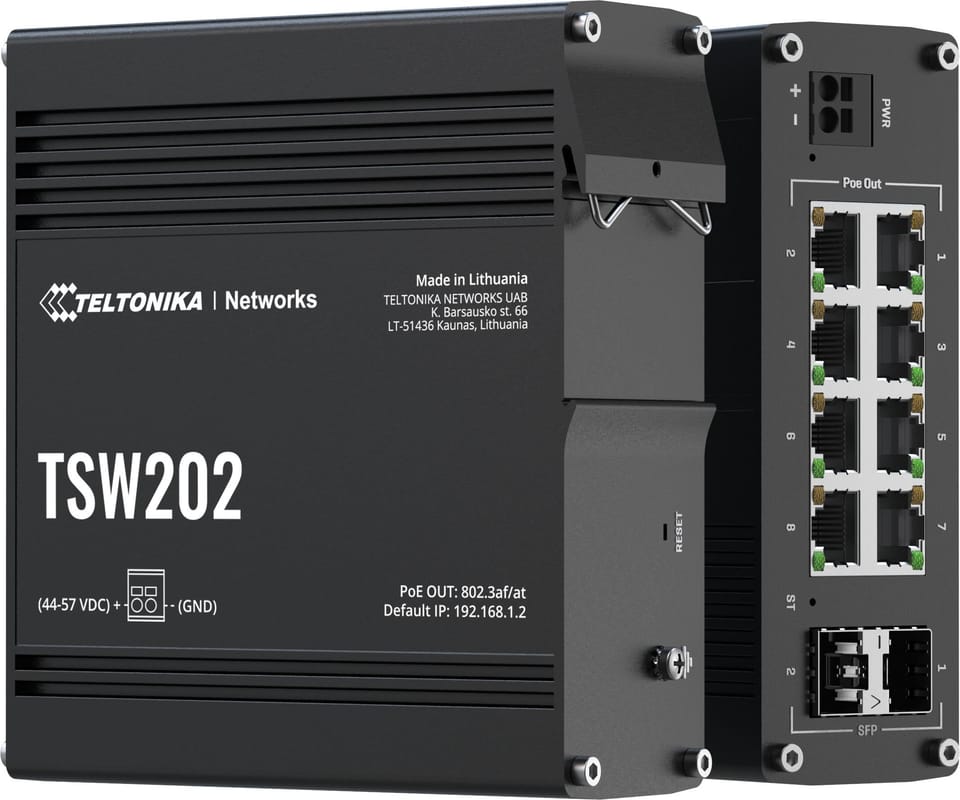

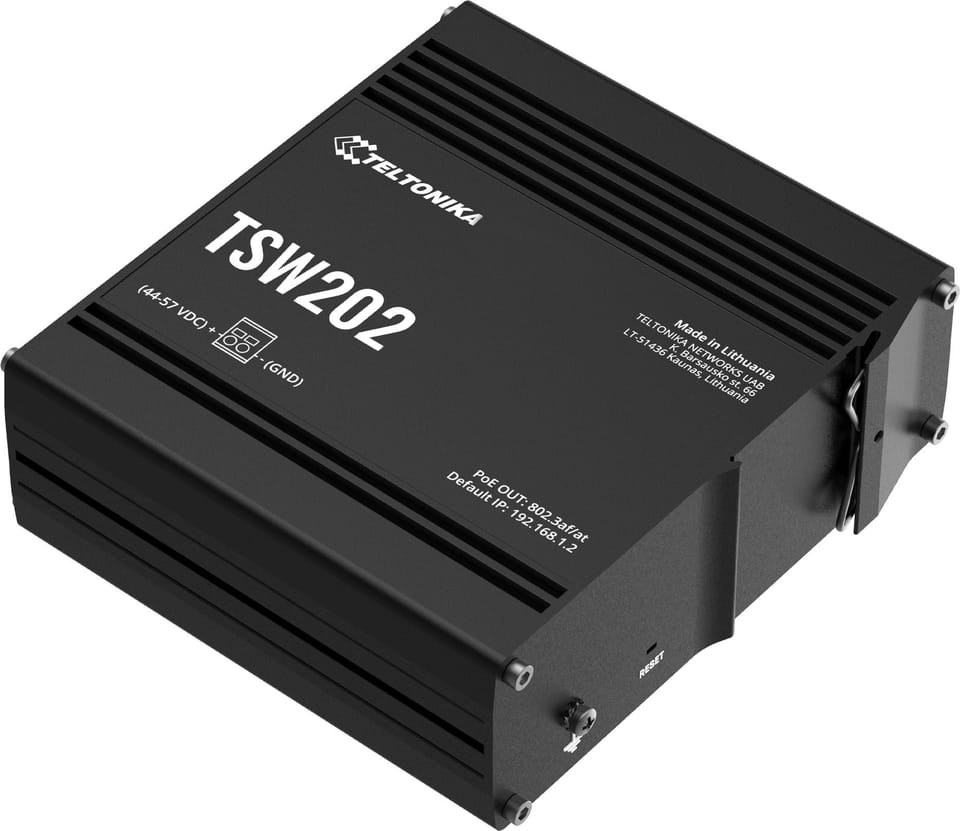

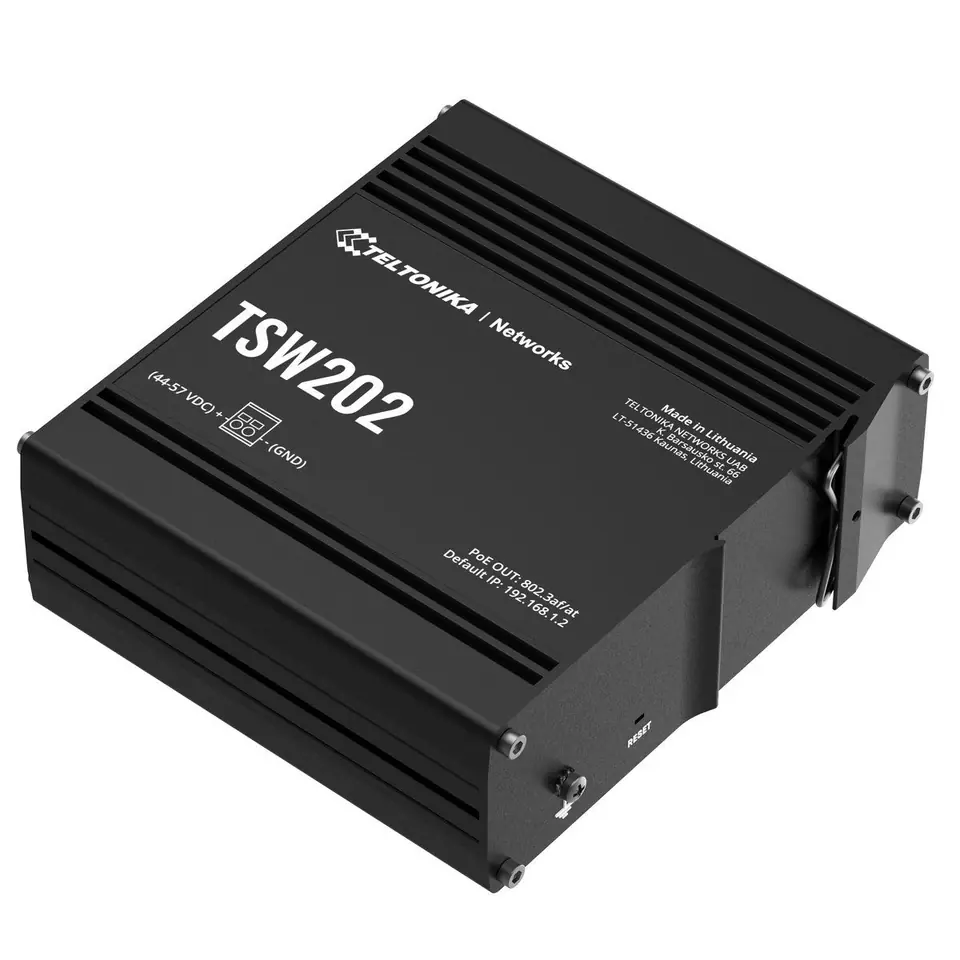

Teltonika Switch, 8 ports | TSW202 | L2 managed | Wall-mountable | SFP ports quantity 2

PLN 626.04
Shipping from warehouse: ⁨B3⁩
Estimated shipping: Wed, Apr 30 - Mon, May 5
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Teltonika
Product code:
TSW202000000 / 4779051840281

Specification

10g support:No
Active link detection:Yes
Auto-negotiation:Yes

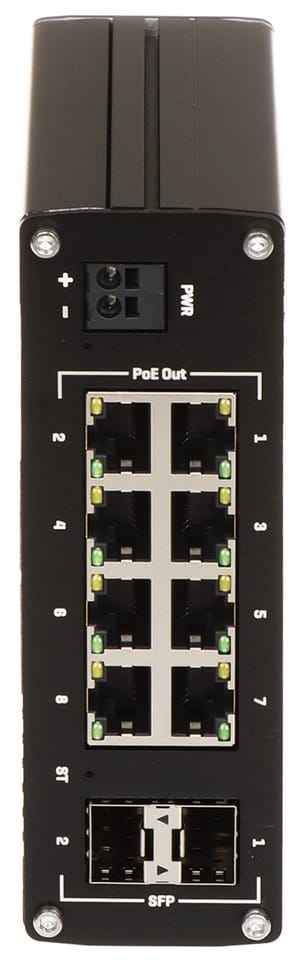

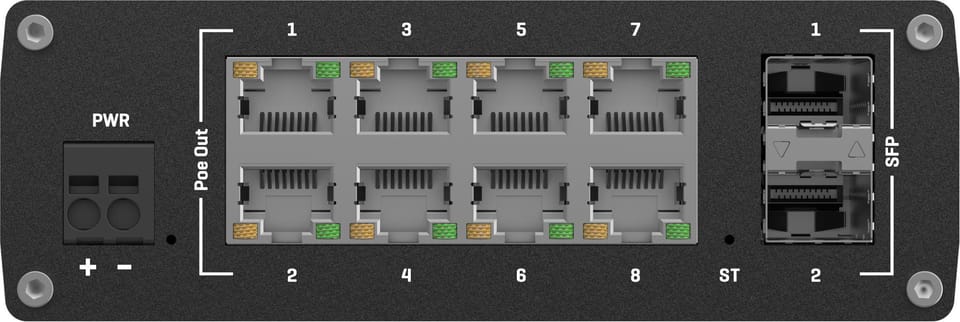

Basic switching rj-45 ethernet ports quantity:8
Basic switching rj-45 ethernet ports type:Gigabit Ethernet (10/100/1000)
Depth:44.2 mm
Dhcp features:DHCP client
Din rail mounting:Yes
Full duplex:Yes
Gigabit ethernet (copper) ports quantity:8
Height:122 mm
Housing material:Aluminium
Igmp snooping:Yes
Installed sfp modules quantity:2
International protection (ip) code:IP30
Jumbo frames:10000
Jumbo frames support:Yes
Led indicators:Status, Power
Link aggregation:Yes
Mac address table:8000 entries
Networking standards:IEEE 802.3z, IEEE 802.3af, IEEE 802.1p, IEEE 802.3at
Operating temperature (t-t):-40 - 75 °C
Port mirroring:Yes
Power connector:Terminal block (3-pin)
Power over ethernet (poe):Yes
Power over ethernet (poe) ports quantity:8
Power over ethernet (poe) power per port:30 W
Power over ethernet (poe) type supported:Active PoE
Power supply included:No
Product colour:Aluminium, Blue
Quality of service (qos) support:Yes
Rack mounting:No

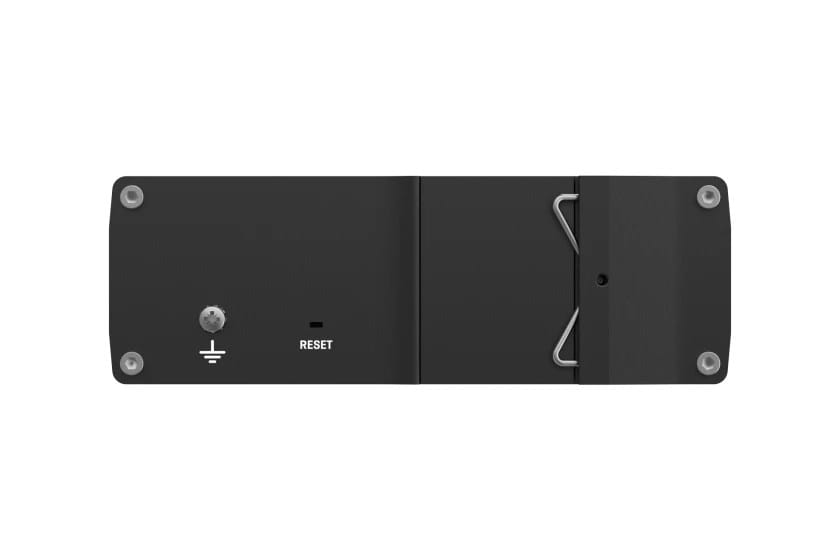

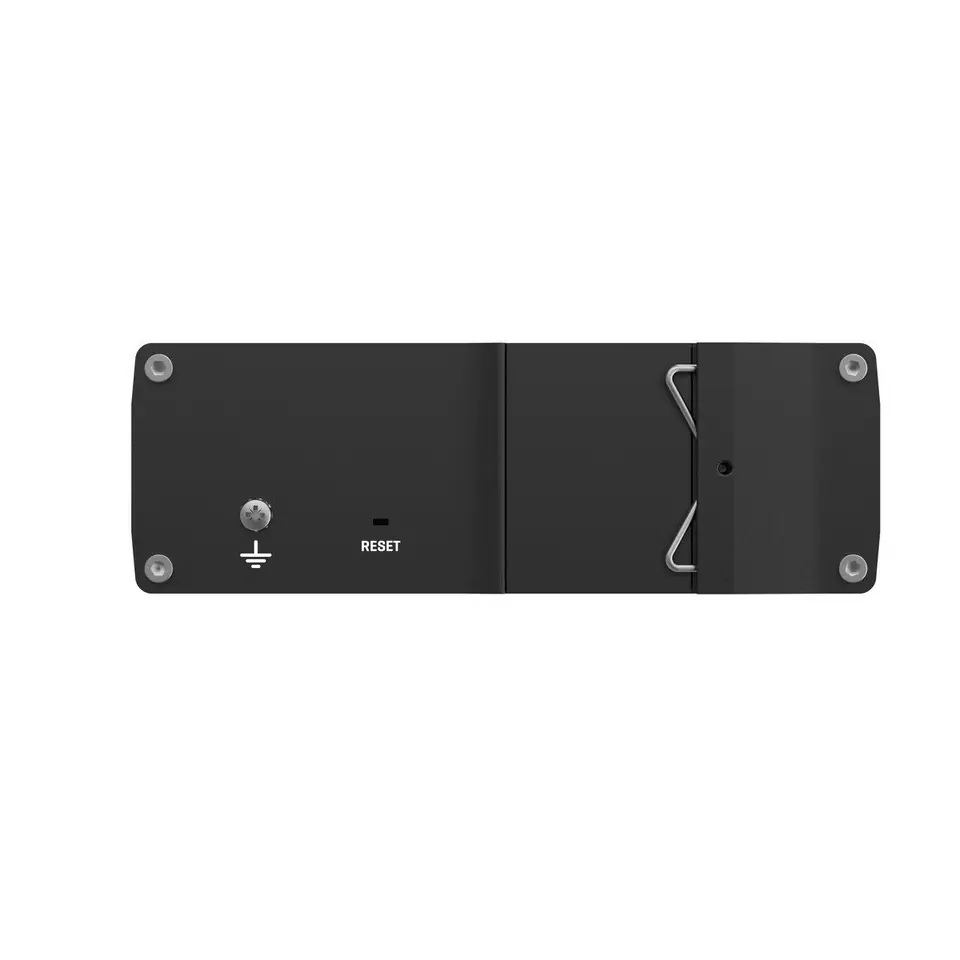

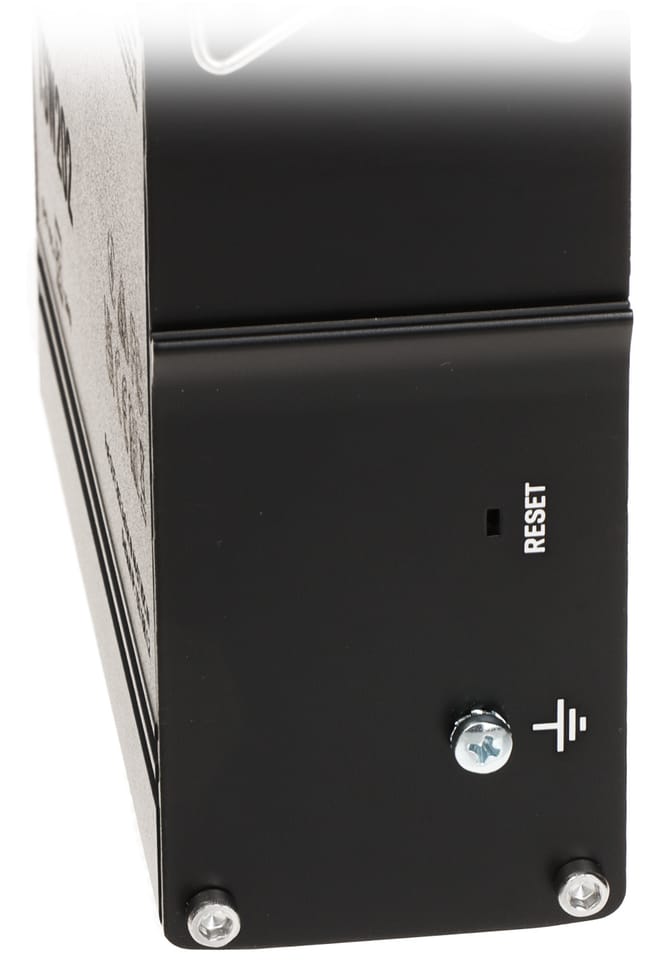

Reset button:Yes
Stackable:No
Switch layer:L2
Switch type:Managed
Switching capacity:20 Gbit/s
Total power over ethernet (poe) budget:240 W
Vlan support:Yes
Web-based management:Yes
Weight:610 g
Width:132 mm

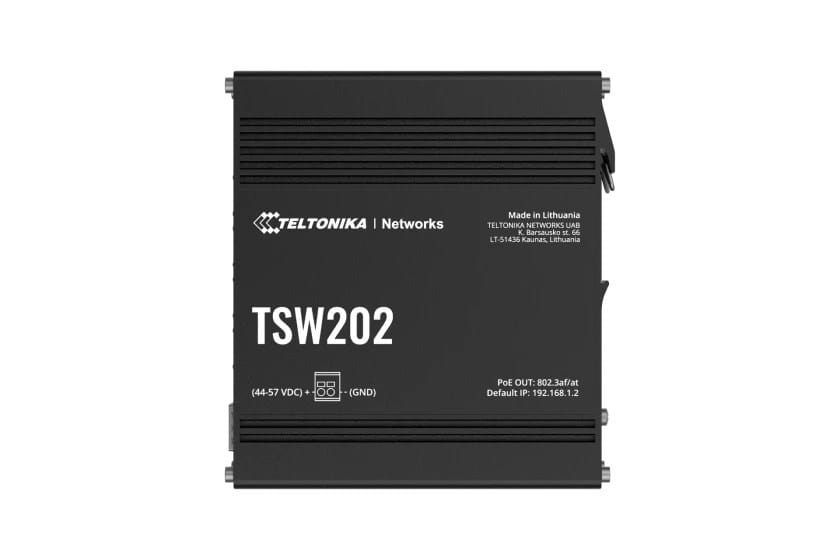

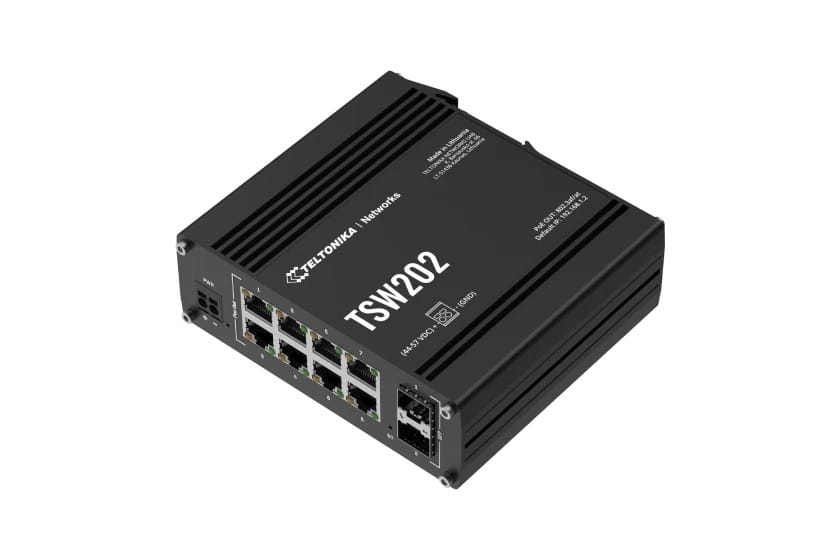

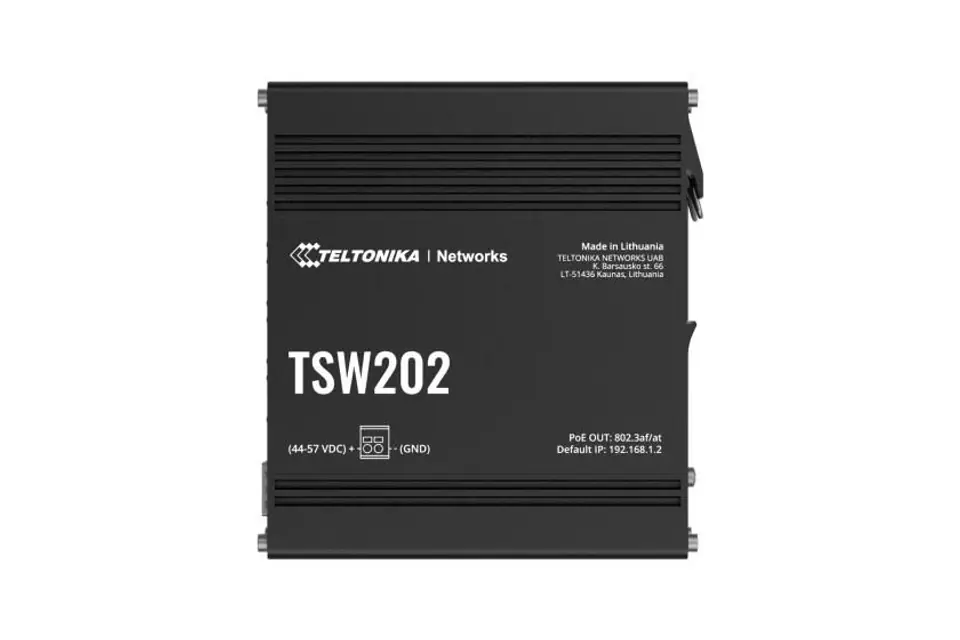

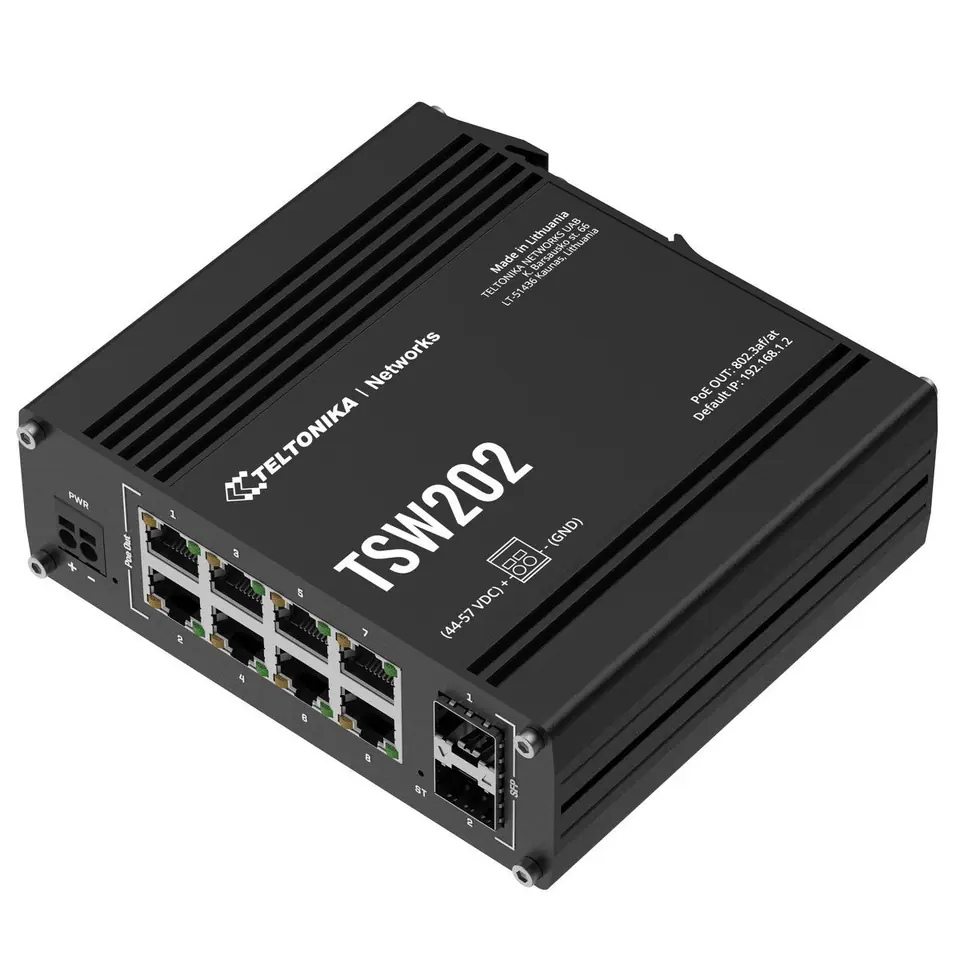

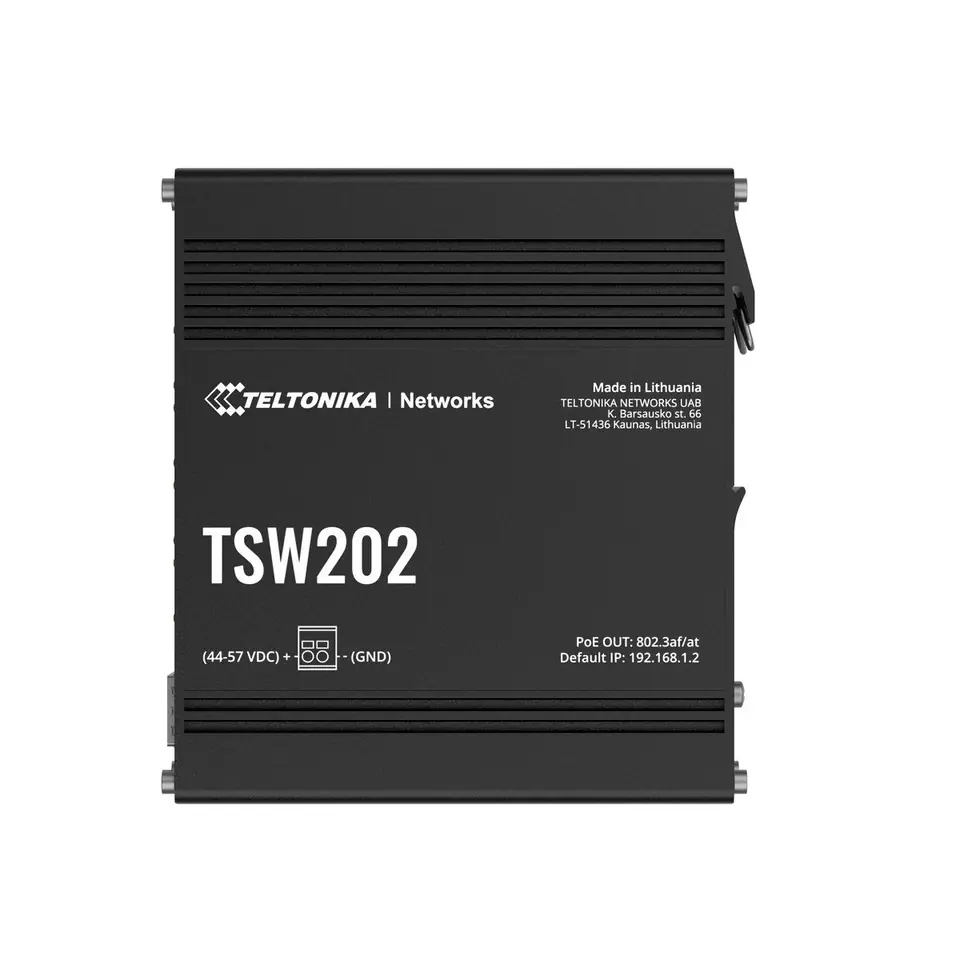

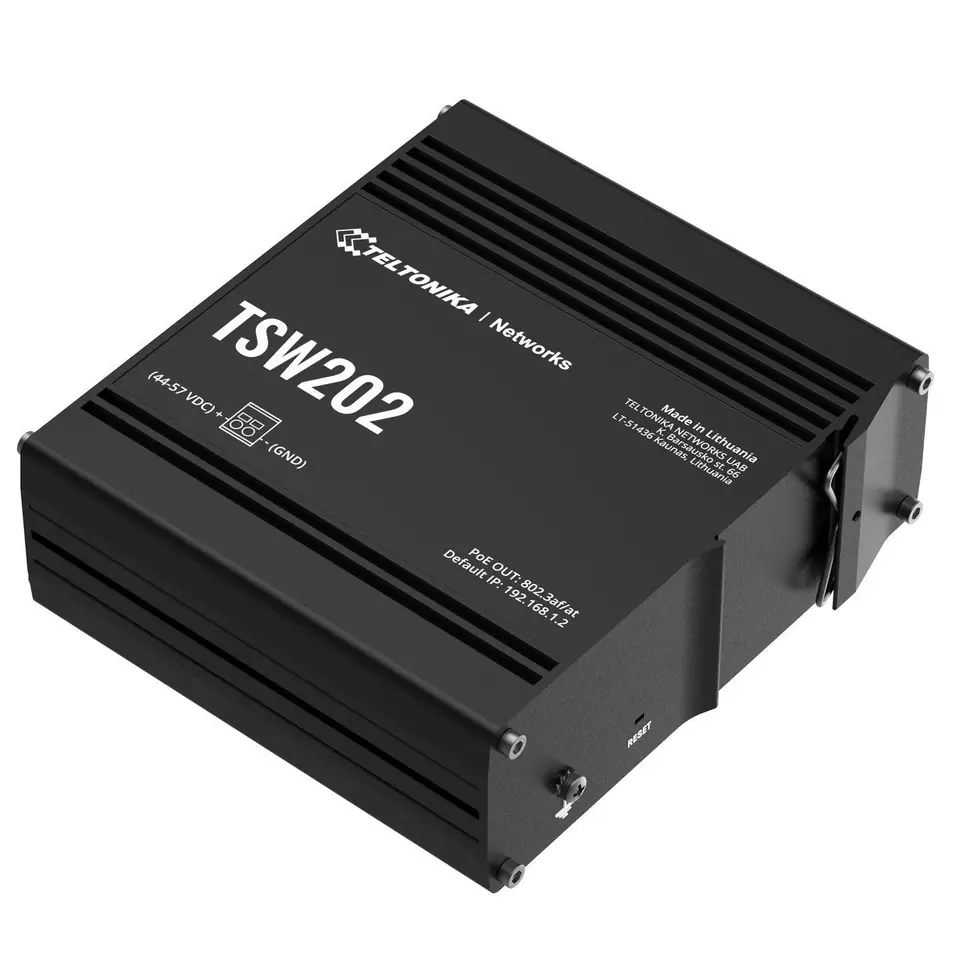

TSW202 is the first managed industrial switch from Teltonika Networks, offering greater control over the flow of data on your network and the role of ports in your solution.

  • PoE+ with a maximum power of 30 W per port and a total power of 240 W for PSE makes the TSW202 centralize power. PoE management gives you greater control over power distribution in your solution, allowing you to enable or disable PoE on selected ports.

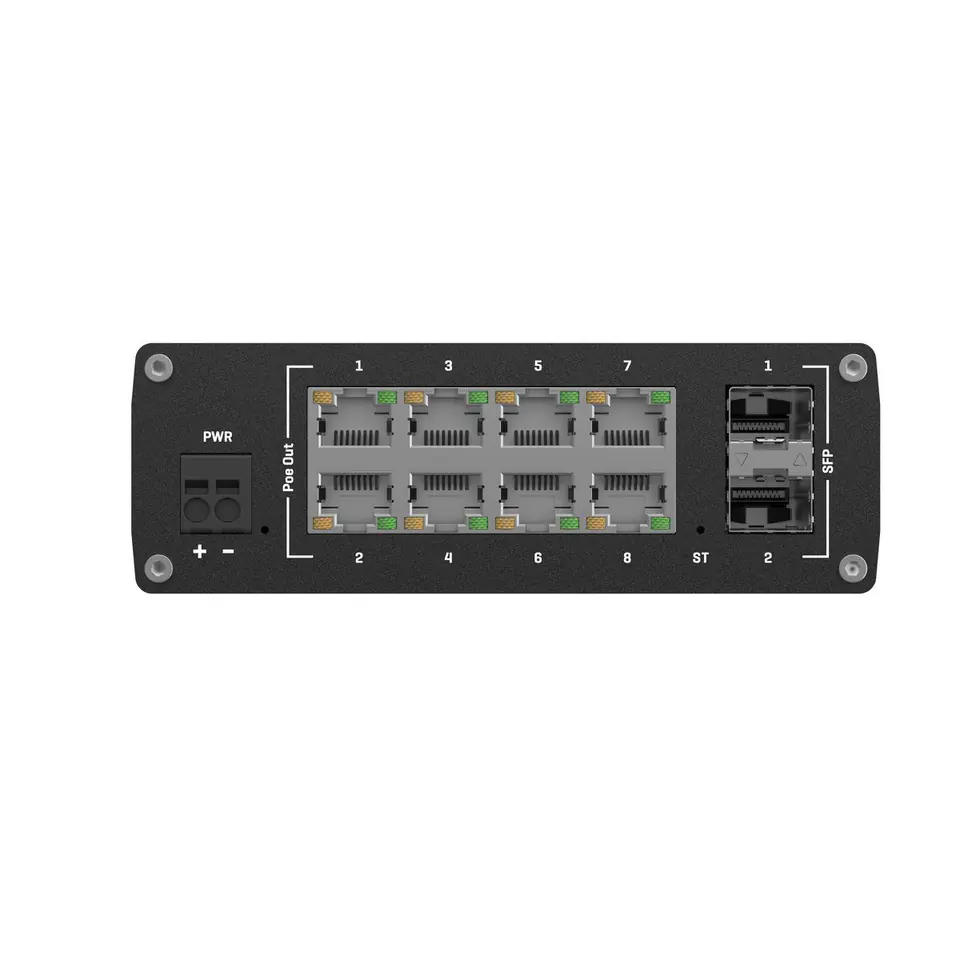

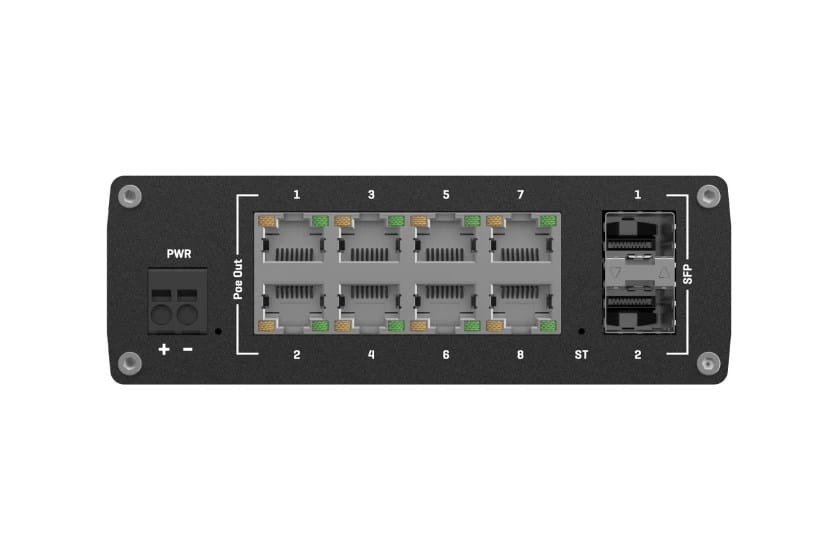

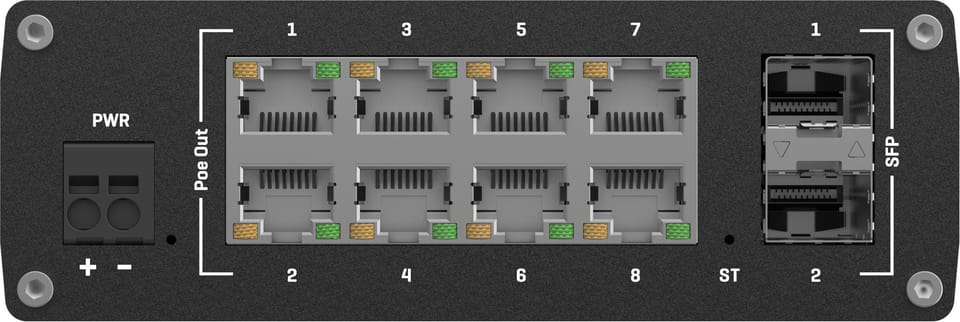

  • The switch is equipped with 8 Gigabit Ethernet LAN ports, allowing you to manage, configure and monitor your network. Additional software features, such as QoS, increase effective bandwidth management and the classification and prioritization of network traffic.

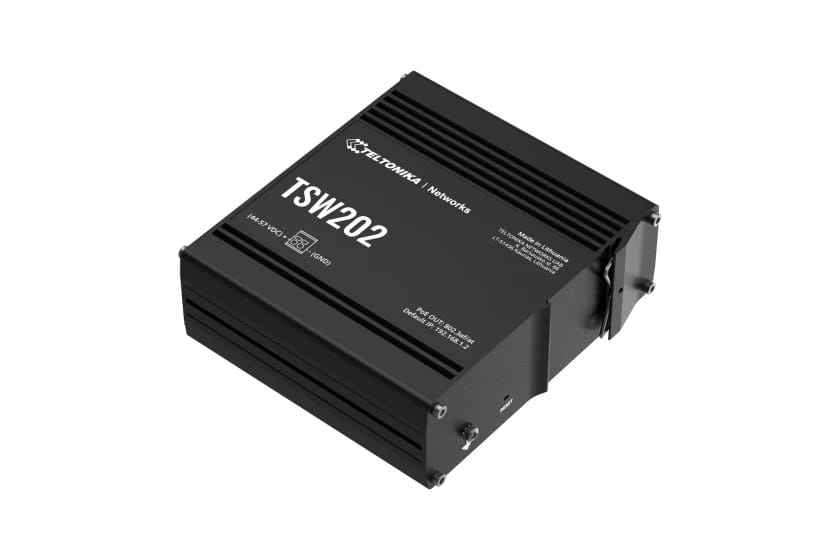

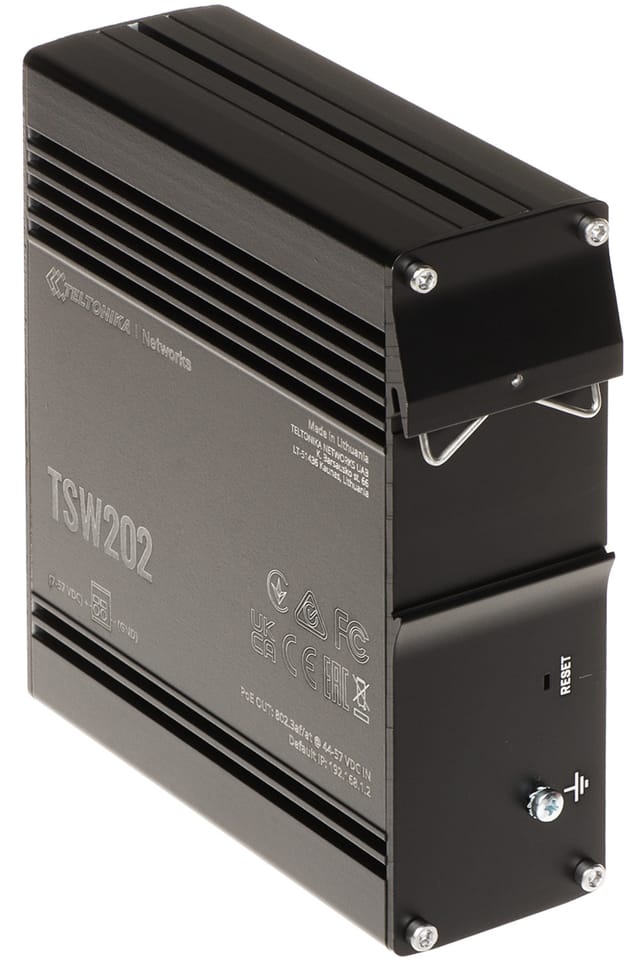

  • Designed for industrial environments, the TSW202 features an integrated DIN rail mount, a robust aluminum housing, and resistance to extreme temperatures and vibration, ensuring maximum durability with ease of installation.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
