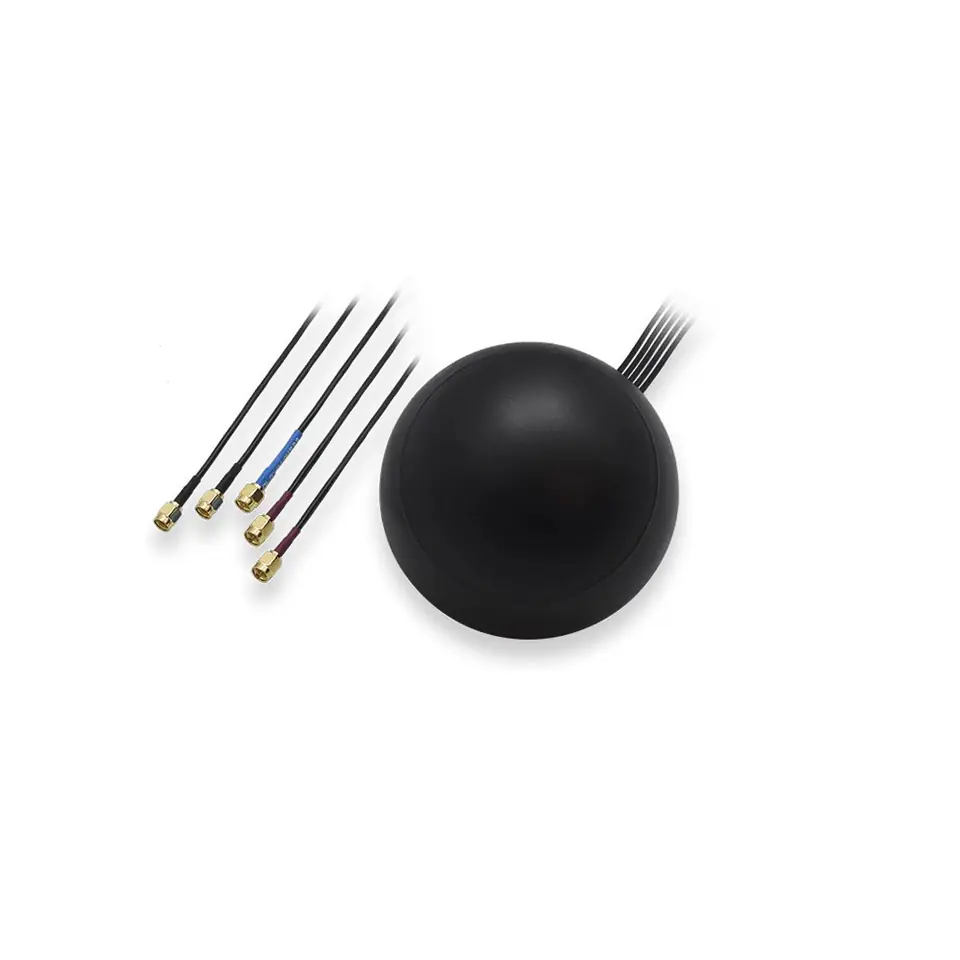

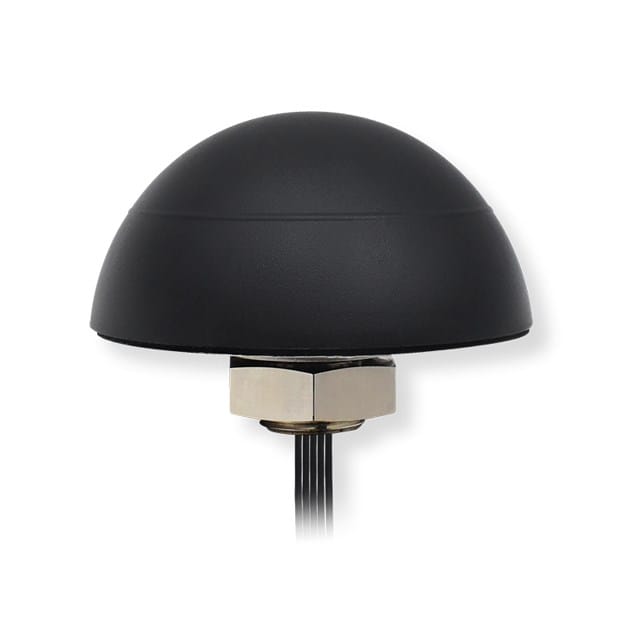

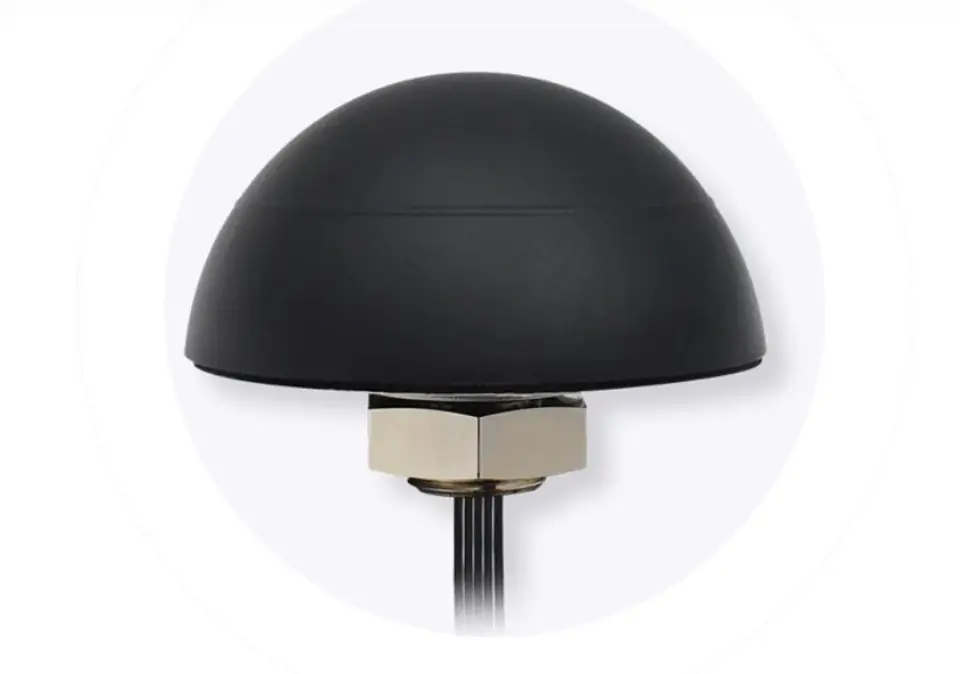

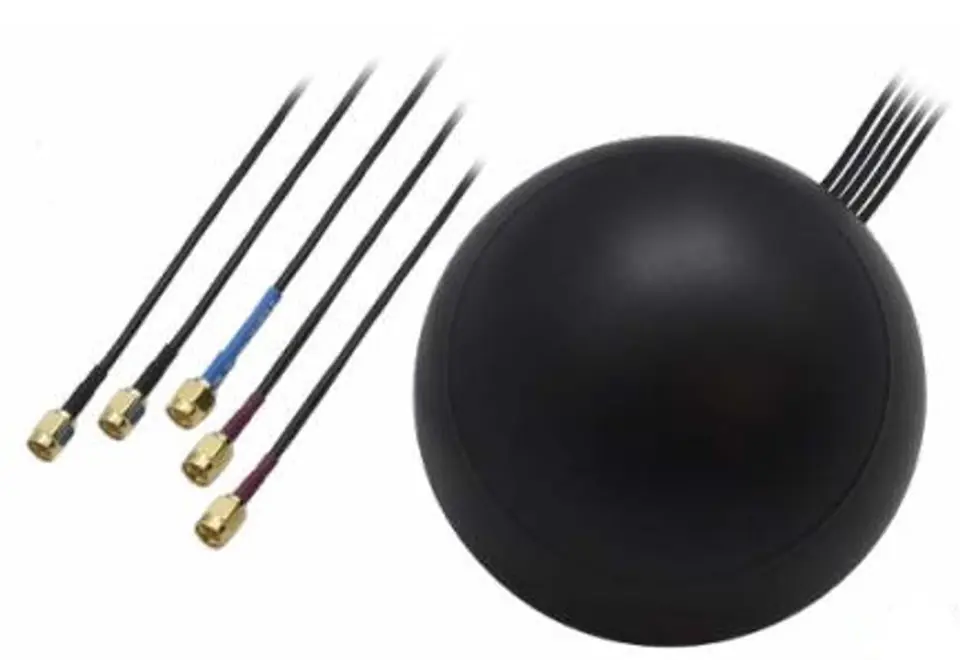

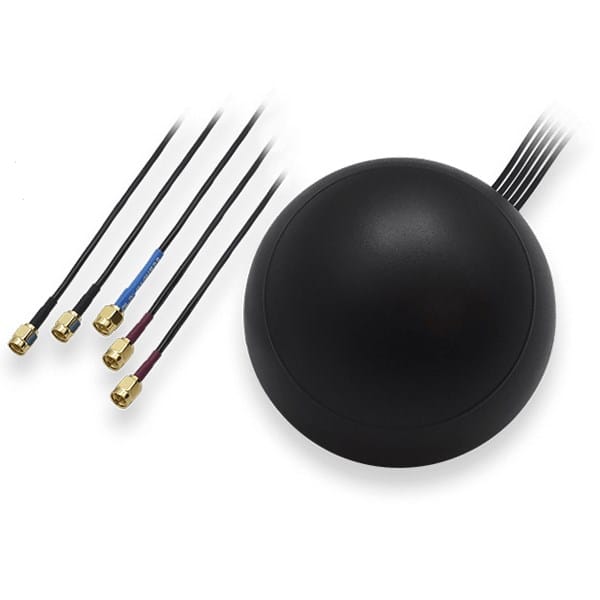

Teltonika 003R-00253 | Combo Antenna | MIMO LTE/GPS/WIFI, rooftop
This product is not available
- Availability:
- expected delivery
- Brand:
- Teltonika
- Product code:
- TEL COMBO MIMO PR1KCO28 / 5903148916750
Share this product:
Specification
| Antenna connector type: | SMA |
|---|---|
| Antenna gain (2.4 ghz): | 2 dBi |
| Antenna gain (5 ghz): | 2 dBi |
| Antenna gain level (max): | 28 dBi |
| Antenna type: | MIMO directional antenna |
| Cable length: | 3 m |
| Cable type: | RG174 |
| Compliance certificates: | RoHS |
| Connector gender: | Male |

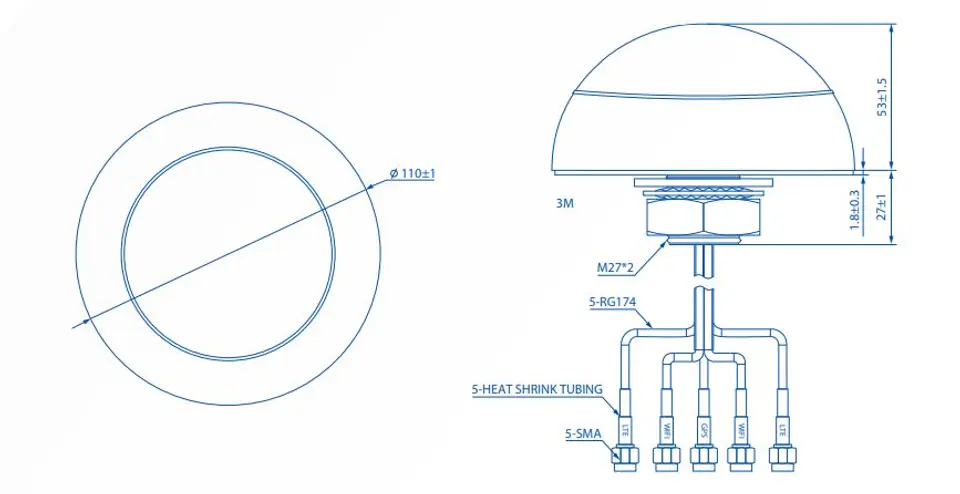

| Diameter: | 11 cm |
| Frequency band: | 1.57542 - 1.61, 0.698 - 0.96, 1.71 - 2.69, 2.4 - 2.4835, 4.9 - 5.825 GHz |
| Harmonized system (hs) code: | 85177100 |
| Height: | 55 mm |
| Housing material: | Acrylonitrile butadiene styrene (ABS) |
| Impedance: | 50 Ω |
| Input voltage: | 3 - 5 V |
| International protection (ip) code: | IP67 |
| Polarization: | Linear polarization |
| Power consumption: | 15 mA |
| Power source type: | DC |
| Product colour: | Black |
| Voltage standing wave ratio (vswr): | 2/2.5/3 |
| Weight: | 550 g |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
