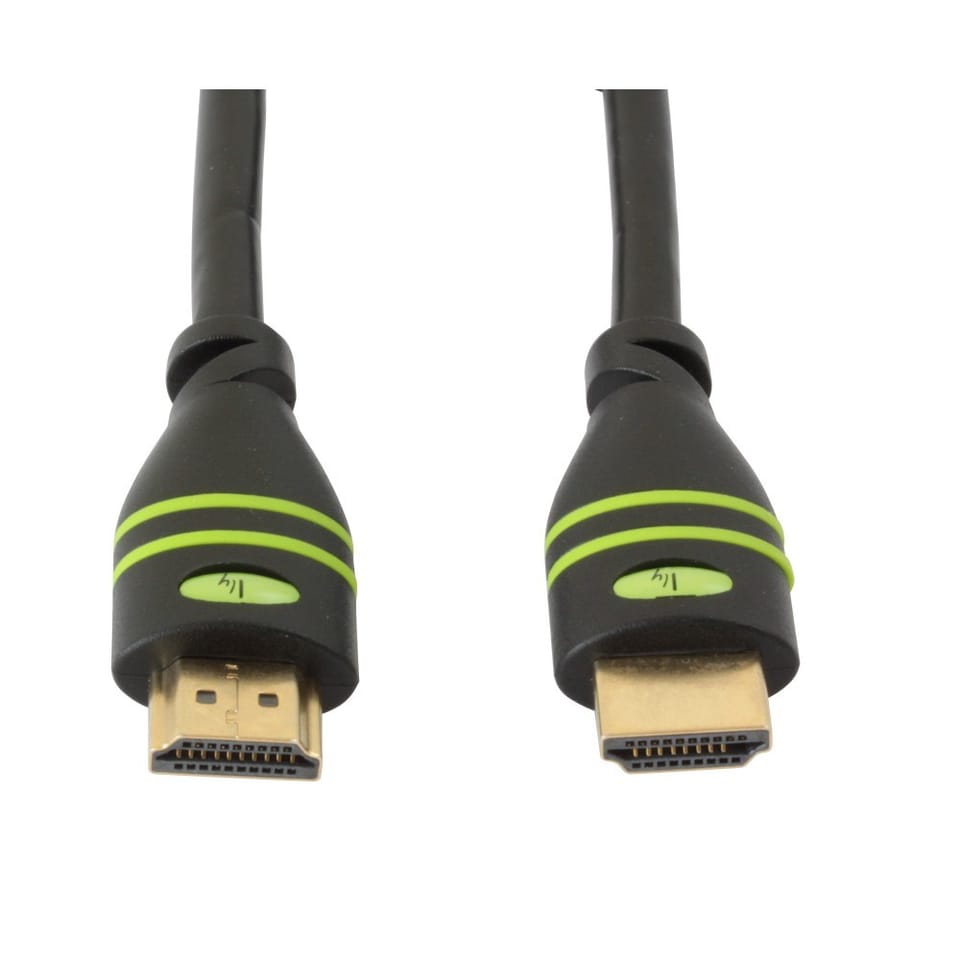

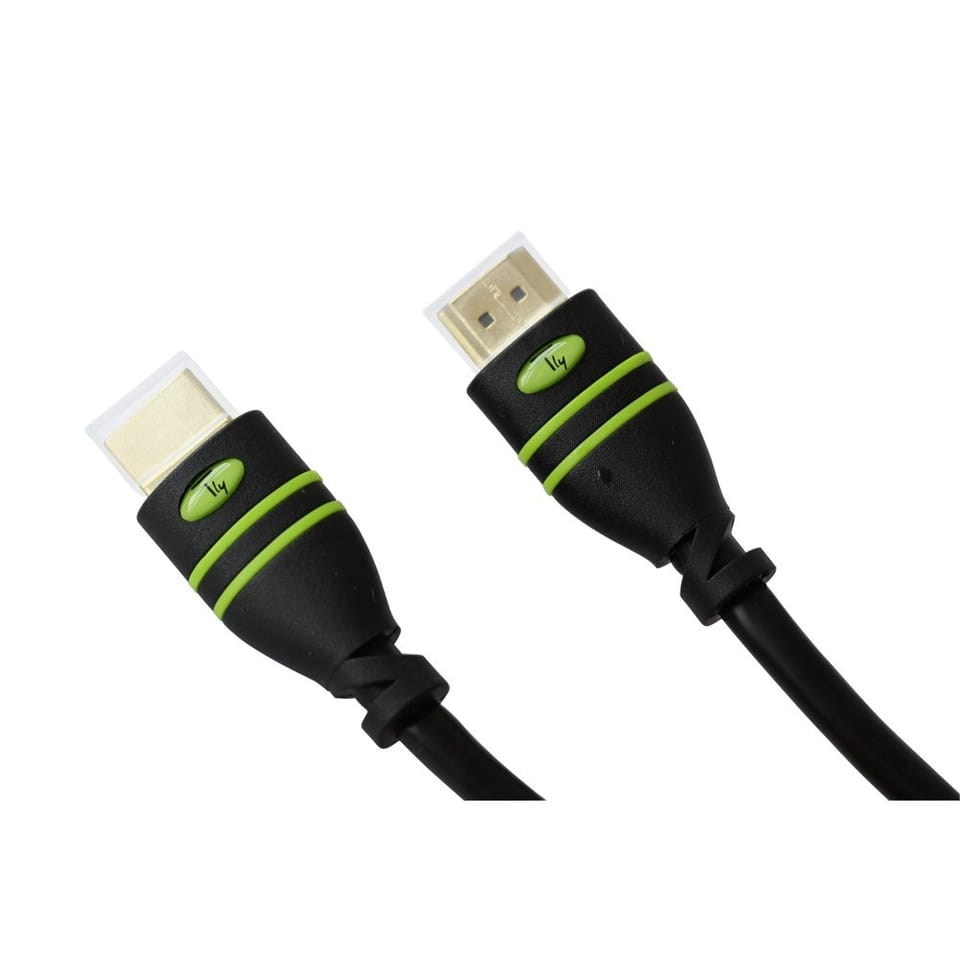

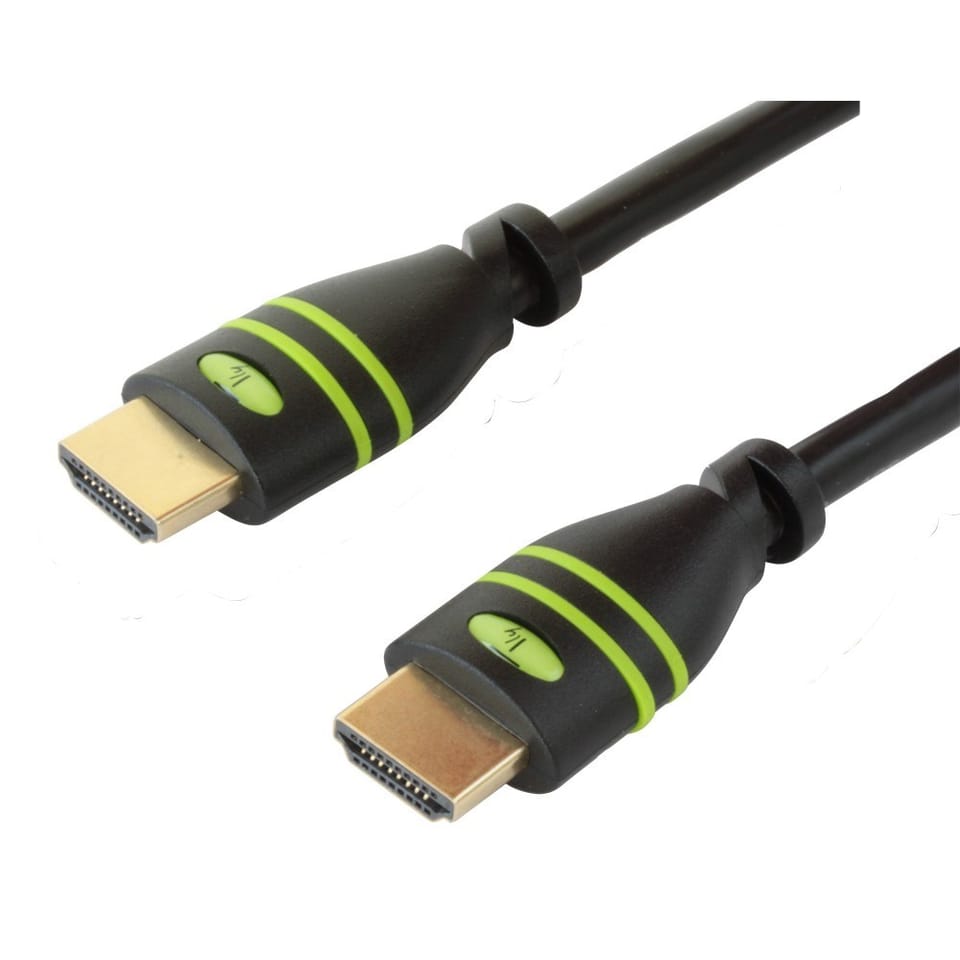

TECHLY 304505 15m /s1x HDMI (plug) 1x HDMI plug
€57.60
Shipping from warehouse: M7
Estimated shipping: Mon, Apr 28 - Thu, May 1
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Techly
- Product code:
- 5802533 / 8057685304505
Share this product:
Specification
| 3d: | Yes |
|---|---|
| Angle plug: | no |
| Audio return channel (arc): | Yes |
| Awg wire size: | 26 |
| Bandwidth: | 340 MHz |
| Cable jacket material: | Polyvinyl chloride (PVC) |
| Cable length: | 15 m |
| Cable length (m): | 15 |
| Cable shielding: | Aluminum mylar foil |
| Cable type: | HDMI to HDMI |
| Colour: | Black |
| Compliance certificates: | RoHS, CE |
| Connector 1: | HDMI Type A (Standard) |
| Connector 1 gender: | Male |
| Connector 2: | HDMI Type A (Standard) |
| Connector 2 gender: | Male |
| Connector contacts plating: | Gold |
| Connector gender: | Male connector / Male connector |
| Data transfer rate: | 10 Gbit/s |
| Data transfer rate per channel (max): | 3.4 Gbit/s |
| Data transfer speed: | 10.2 Gbps at 340 MHz |
| Dolby technologies: | DTS-HD Master Audio, Dolby TrueHD, Dolby Digital Plus |
| Gold-plated plug: | yes |
| Harmonized system (hs) code: | 84733080 |
| Hdcp: | Yes |
| Hdmi ethernet channel: | Yes |
| Magnetically shielded: | Yes |
| Maximum resolution: | 1920 x 1080 pixels |
| Number of shielding layers: | 2 |
| Other parameters: | 30 AWG, Triple shielding, Insulation resistance: 50 MOhm, Rated current: 0.5 A DC, Rated surge voltage: 300 V DC, Built-in rubber bendless, Encapsulated PVC sheath, HEC ready, HDMI Ethernet channel support up to 100 Mbps, Cable diameter: 6 mm, Connector resistance: 2 Ohm, Audio return channel (ARC) support, High Speed HDMI Ethernet compatible |
| Package type: | Bag |
| Product colour: | Black |
| Quantity per pack: | 1 pc(s) |
| Supported resolution: | 4096 x 2160 |
| Supported video modes: | 480i, 2160p, 480p, 1080p, 720p, 720i, 1080i, 2160i |
| Technologies: | HDMI |
| Transmitted signal: | Audio-Video |
| Vendor code: | 304505 |
| Warranty: | 3 years |
| Warranty period: | 3 year(s) |
| Weight: | 1.25 kg |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
