Tapmatic Thread Holder M8-025 M10,0-30 TAPMATIC

This product is not available
Availability:
expected delivery
Brand:
TAPMATIC
Product code:
23825 / 4330816874776

Specification

Collets:J461, J462
Compressive length compensation h:17 mm
Cutting range in steel:M10 – M30
Cylindrical mandrel s:25 mm

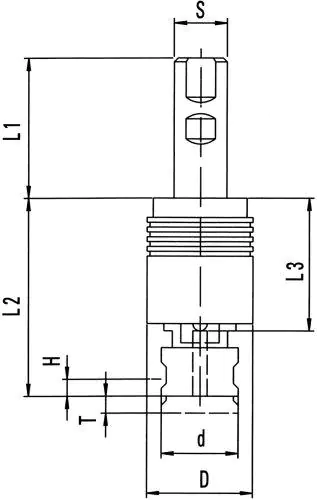

Dimension d:57 mm
Dimension l1:56 mm
Dimension l2:128 mm
Dimension l3:78 mm
Length compensation stretching t:17 mm
Model:SM 8-025
Scales:2 kg

Threading holder, cylindrical shank

Execution: length compensation is done by stretching and compression, which equalizes the difference between the feed of the machine and the pitch of the thread. With compression spring system in the cutting part and adjustable quadrangular carrier.
Application: thanks to CNC apparatus, state-of-the-art taps can be used, which can work at a high, constant cutting speed. Ideal for demanding series production, especially on CNC machining centers and on all reversing machine tools.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
