| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 220 - 240 V |
| Combined power (-12v): | 6 W |
| Combined power (+12v): | 360 W |
| Combined power (+3.3v): | 180 W |
| Combined power (+5v): | 180 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Cpu power connector (4+4 pin): | Y |
| Depth: | 140 mm |
| Fan diameter: | 12 cm |
| Height: | 85 mm |
| Input current: | 4.5 A |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v): | 30 A |
| Max output current (+3.3v): | 24 A |
| Max output current (+5v): | 25 A |
| Max output current (+5vsb): | 2.5 A |
| Motherboard power connector: | 20+4 pin ATX |
| Noise level: | 14 dB |
| Number of fans: | 1 fan(s) |
| Number of pata power connectors: | 2 |
| Number of sata power connectors: | 3 |
| Package depth: | 165 mm |
| Package height: | 100 mm |
| Package weight: | 1.4 kg |
| Package width: | 207 mm |
| Pci express power connectors (6+2 pin): | 1 |
| Power factor correction (pfc) type: | Active |
| Product colour: | Black |
| Total power: | 550 W |
| Weight: | 1.28 kg |
| Width: | 150 mm |

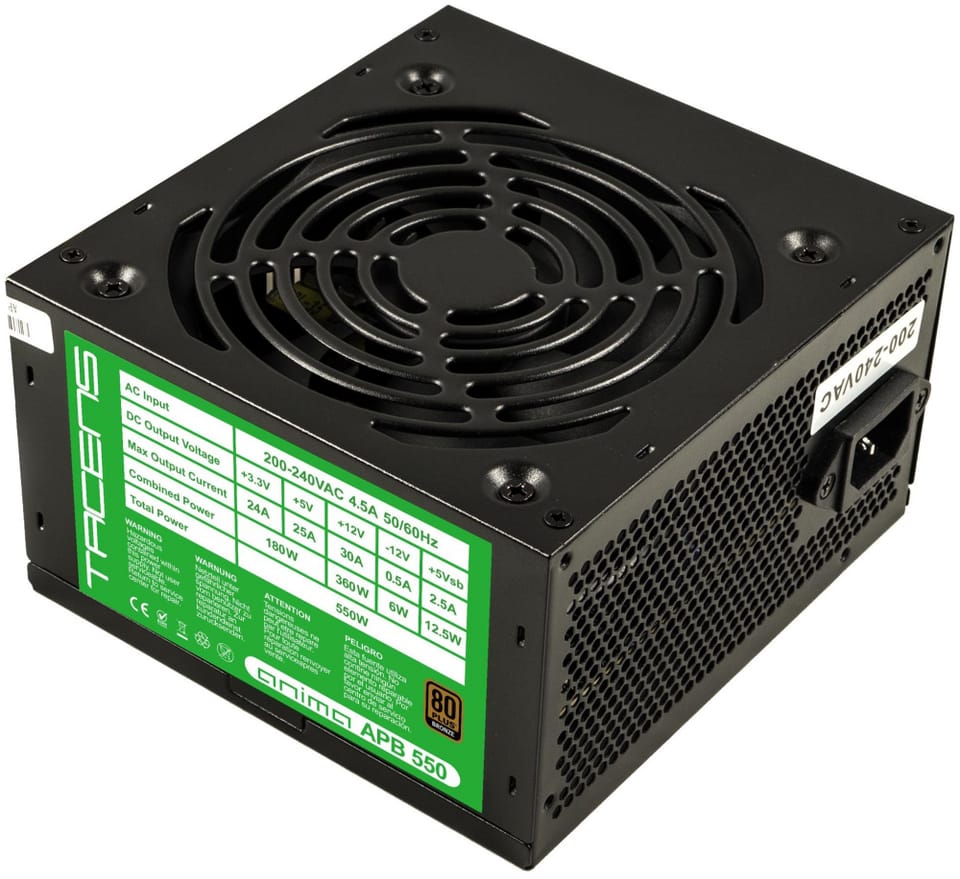

APB550B
The APB550 power supply is designed to deliver up to 550W of power safely and efficiently, boosting your equipment's performance to the maximum. The 80 Plus Bronze certification guarantees a complete and long-lasting performance, in addition to its multiple tests performed by renowned European testing laboratories.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
