Manufacturer number: 10060400

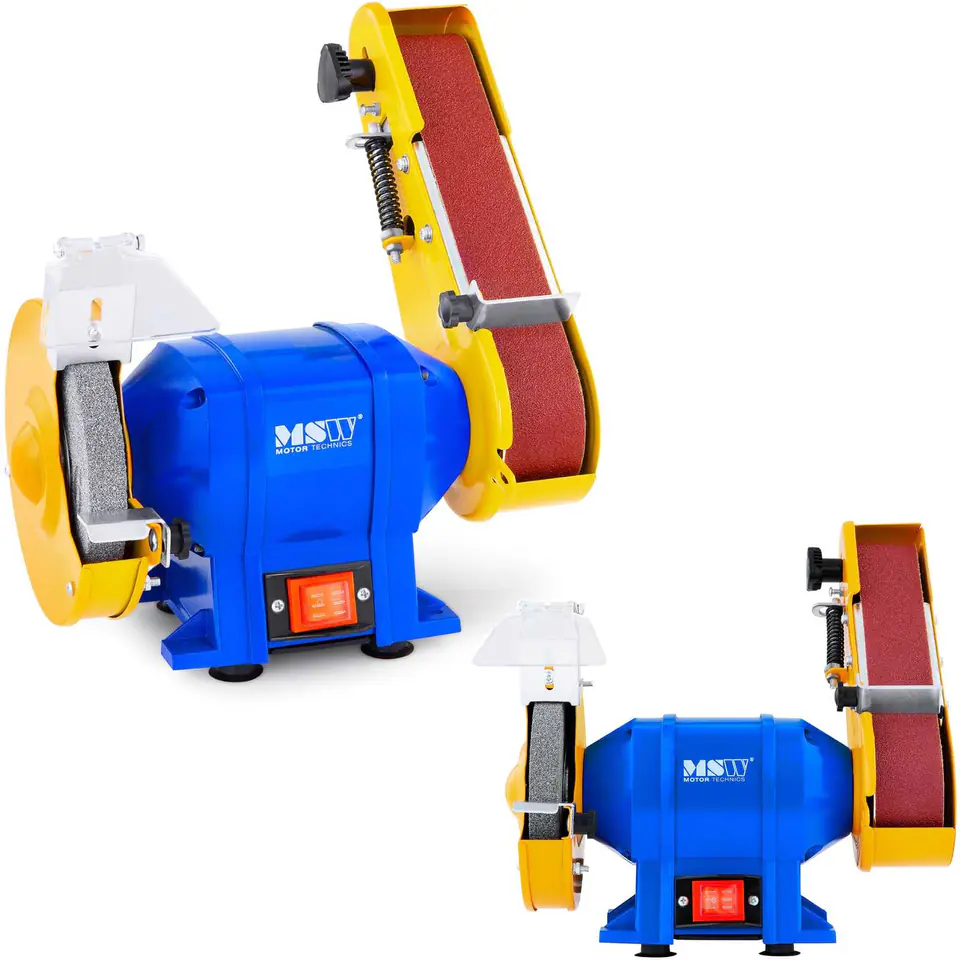

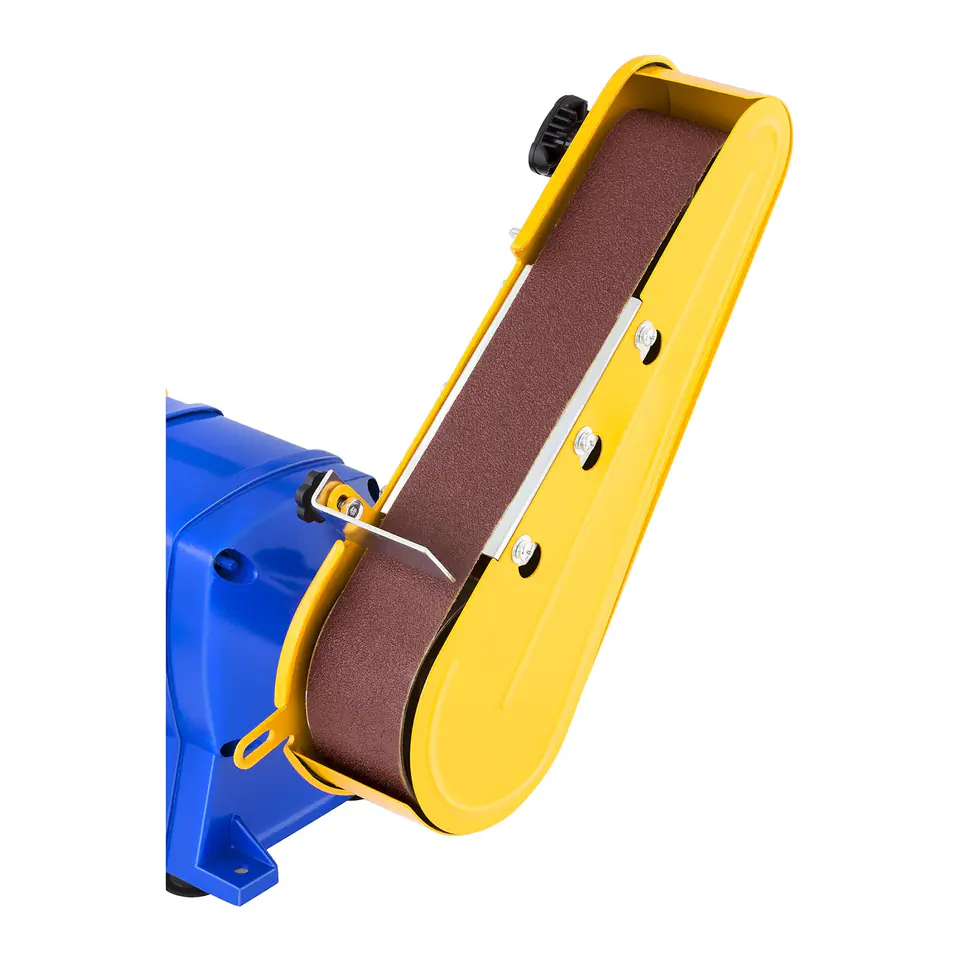

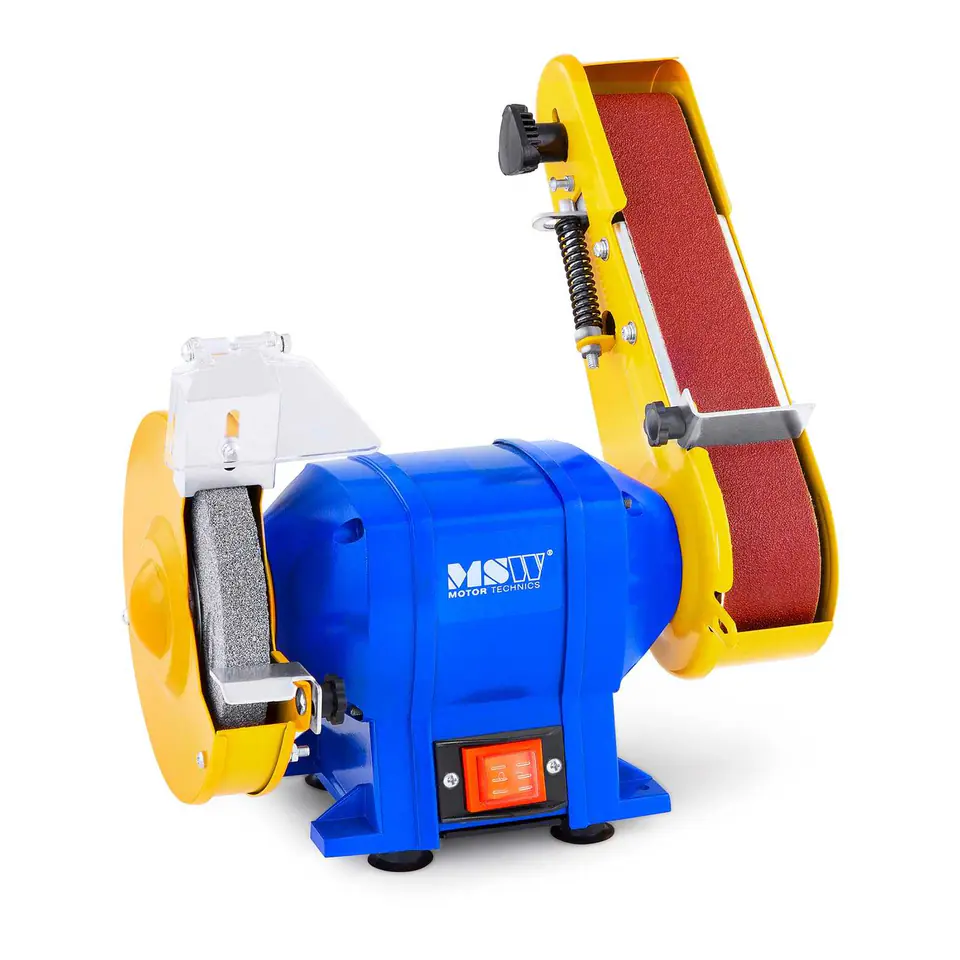

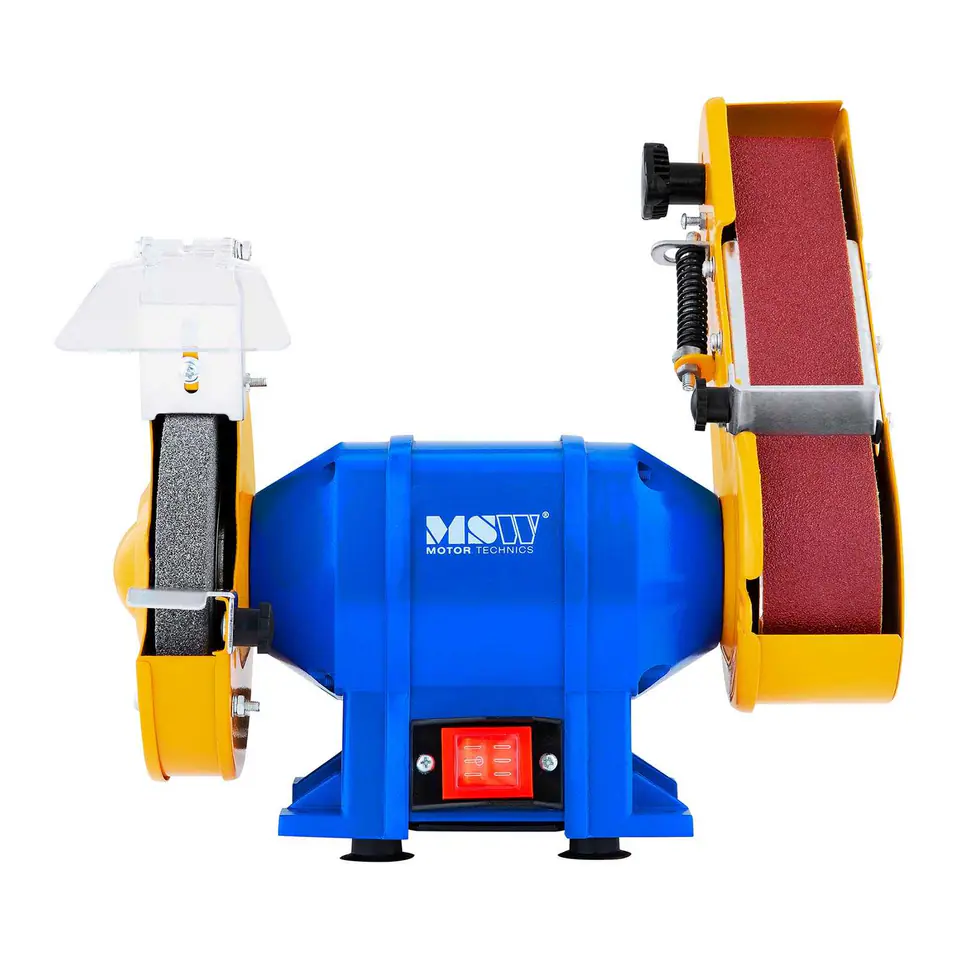

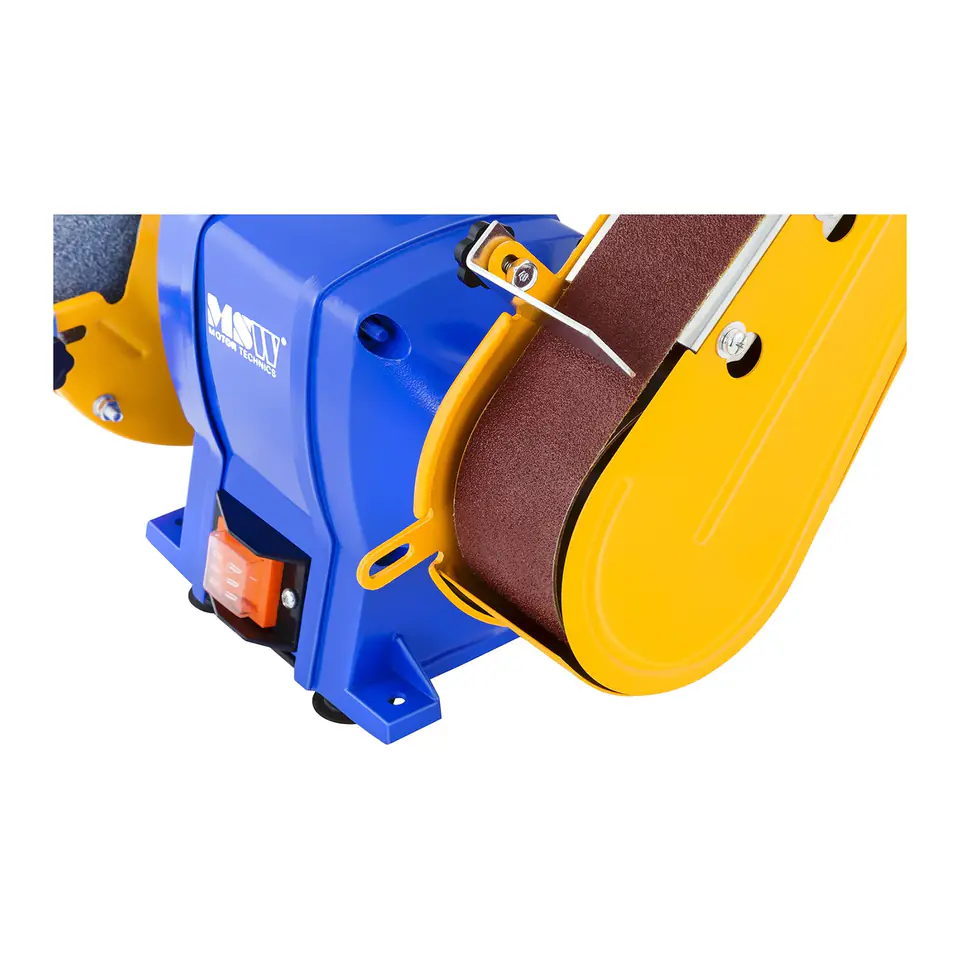

Practical MSW belt-disc sander thanks to its design will allow two ways of grinding on one machine. Stone grinding wheel (diameter 150 mm, grit size 36) and sanding belt (width 50 mm, grit size 80) will be used in polishing, sharpening or cutting various materials. The grinding wheel and belt can be dismantled by yourself and replaced with others of the same dimensions.
The 250W motor is both energy-efficient and efficient. It is able to provide the belt with a speed of 15 m / s and generate 2950 rpm of the disc. This guarantees proper processing of the ground workpiece. The device is started by an ON/OFF switch, which is protected by a special cover. It ensures that the switch is not contaminated by dust and metal spatter.
The grinder is designed to ensure safety during use. For this purpose, the following are used in the construction of the device:
- - Removable and adjustable spark deflectors effectively protect against spatter or filings,
- - Transparent overlays not only protect the user, but also do not limit his visibility during work,
- - Shield housings and tapes that protect the surroundings of the equipment from dirt, as well as prevent possible falling out of elements,
- - Adjustable stands guarantee precise and comfortable work. Prevent the ground object from escaping,
- - The ON/OFF switch is covered with a dust coating.
- - Multitasking - grinding, sharpening, polishing ,
- - Practicality - grinding disc and belt useful for various tasks,
- - Efficiency - up to 2950 rpm of the disc and belt speed of 15 m / s,
- - Safety - practical use of covers and caps,
- - High quality - casing made of cast iron, German construction
- - Model - GRIN250D
- - Catalogue number - 10060402
- - Article status - New
- - Housing material - Cast iron
- - Power supply - 230 V / 50 Hz
- - Power - 250 W
- - Disc diameter - 150 mm
- - Disc thickness - 20 mm
- - Diameter of the blade bore (center) - 12.7 mm
- - Blade grit - 36
- -Max. number of revolutions - 2950 rotations/min
- - Belt dimensions - 50 x 686 mm
- - Belt speed - 15 m/s
- - Belt grit - 80
- - Protection against shock - I protection class
- - Noise level - 76 dB (LpA) / 63 dB (LwA)
- -L. power cord - 1.5 m
- - Dimensions (LxWxH) - 27 x 24.5 x 18.6 cm
- - Weight - 6.85 kg
- - Shipping dimensions (LxWxH) - 42 x 34.5 x 22 cm
- - Shipping weight - 7,8 kg
- - Grinding machine GRIN250D
- - Sanding disc – 1 pc Ø150 x 20 mm, grit size 36
- - Sanding belt – 1 pc 50 x 686 mm, grit size 80
- - Spark deflector with transparent cover – 1 pc
- - Stand – 2 pcs.
- - Adjustment knobs – 2 pcs.
- - Manual EN
