Equipped with an RJ-45 connector with support for IEEE 802.3an / bz (10GBASE-T / NBASE-T) and 802.3x standards, E10G18-T1 helps smoothly migrate to a 10GbE network environment with existing infrastructure.

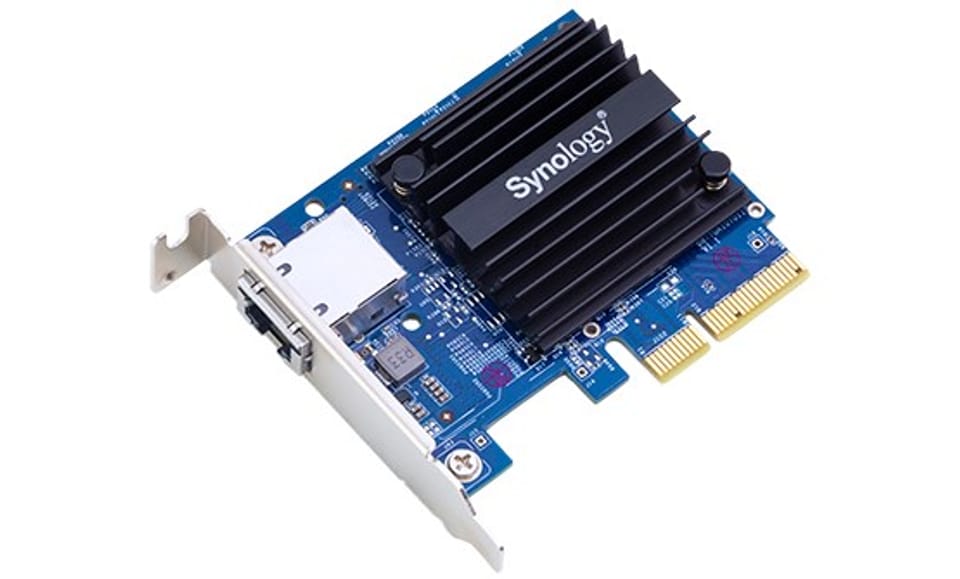

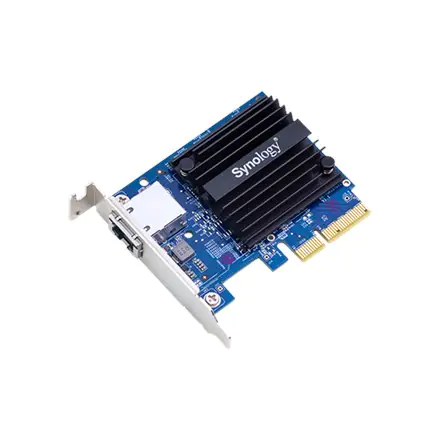

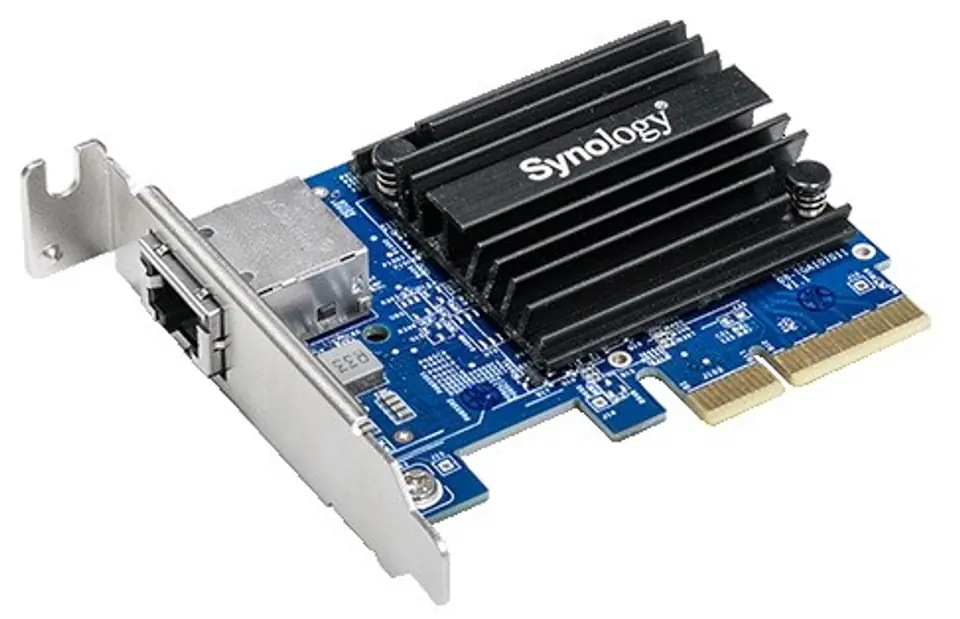

SYNOLOGY E10G18-T1 Wired Network Adapter
This product is not available
- Availability:
- expected delivery
- Brand:
- Synology
- Product code:
- E10G18-T1 / 4711174723102
Share this product:
Specification
| Answering machine: | no |
|---|---|
| Auto-negotiation: | Yes |
| Available ports: | 1x 10GBASE-T |
| Boot rom: | no |
| Certificates: | CE |
| Connectivity technology: | Wired |
| Data transfer rates (mbps): | 10000 |
| Depth: | 13.6 mm |
| Depth (mm): | 13.6 |
| Destiny: | NAS File Server |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 1000 Mbit/s, 100, 2500 Mbit/s, 5000, 10000 Mbit/s |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 86 mm |
| Height (mm): | 86 |
| Host interface: | PCI Express |
| Interface: | Ethernet |
| Interface type: | PCIe 3.0 x4 |
| Internal: | Yes |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Kind: | Internal |
| Maximum data transfer rate: | 10000 Mbit/s |
| Networking standards: | IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an |
| Operating humidity range (%): | 5 - 95 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | 0 - 40 °C |
| Operating temperature range (deg. c): | 0-40 |
| Other parameters: | Jumbo Frame 9 KB, TCP/UDP/IP Checksum Offload |
| Pci card form factor: | Full-height (low-profile) |
| Pci version: | 3.0 |
| Product colour: | Black, Blue |
| Quantity: | 1 |
| Standards and protocols: | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz |
| Storage temperature (t-t): | -20 - 60 °C |
| Warranty: | 5 years |
| Width: | 68.1 mm |
| Width (mm): | 68.1 |
