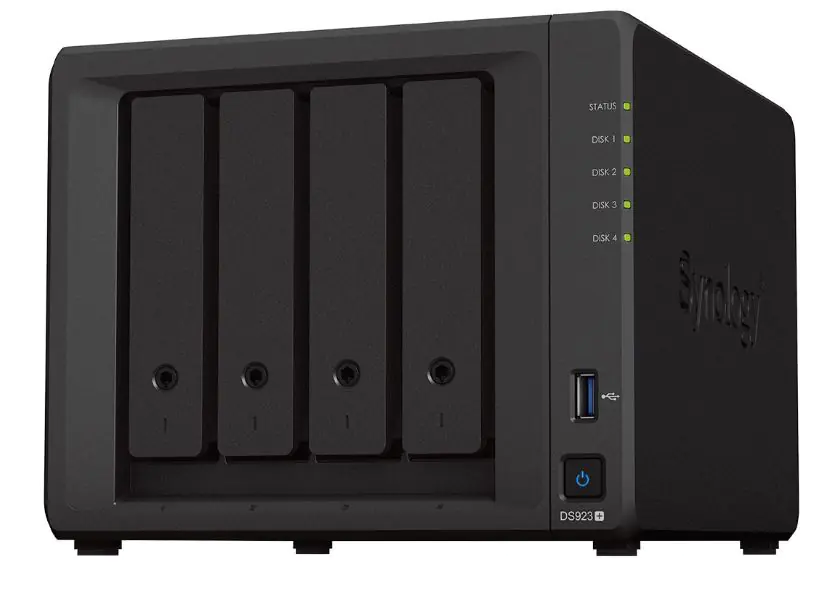

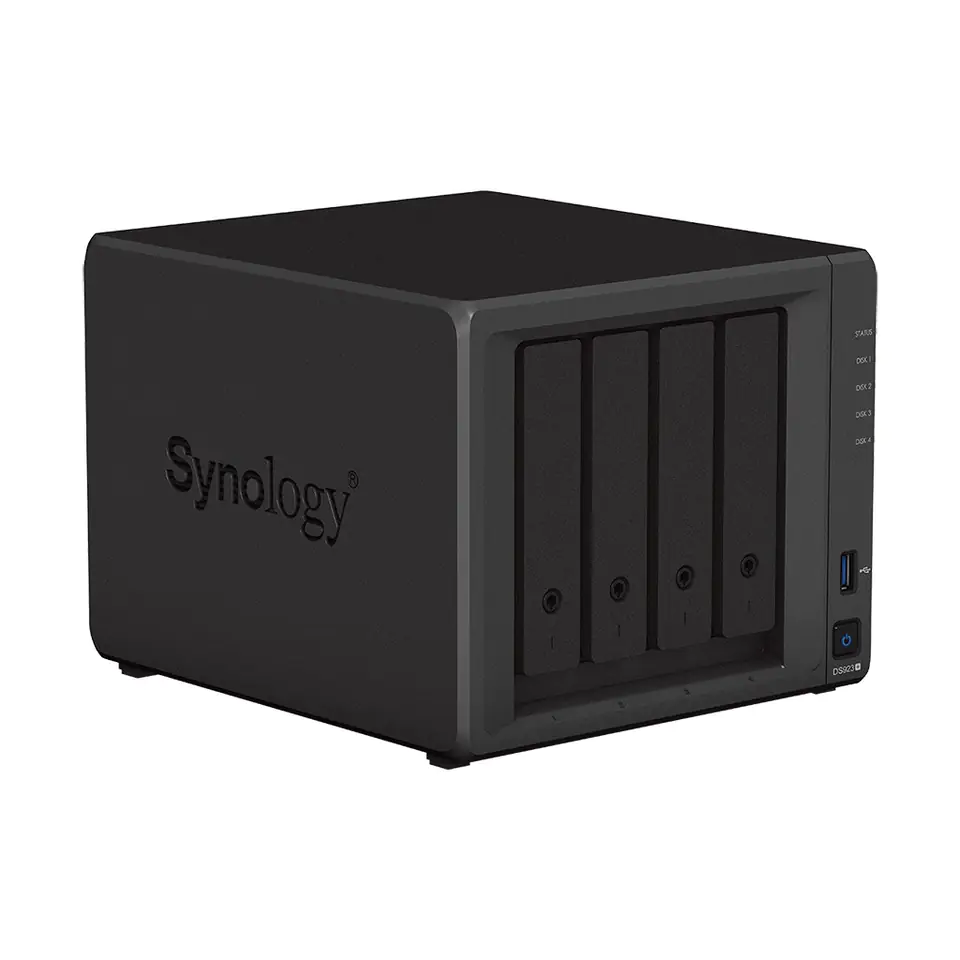

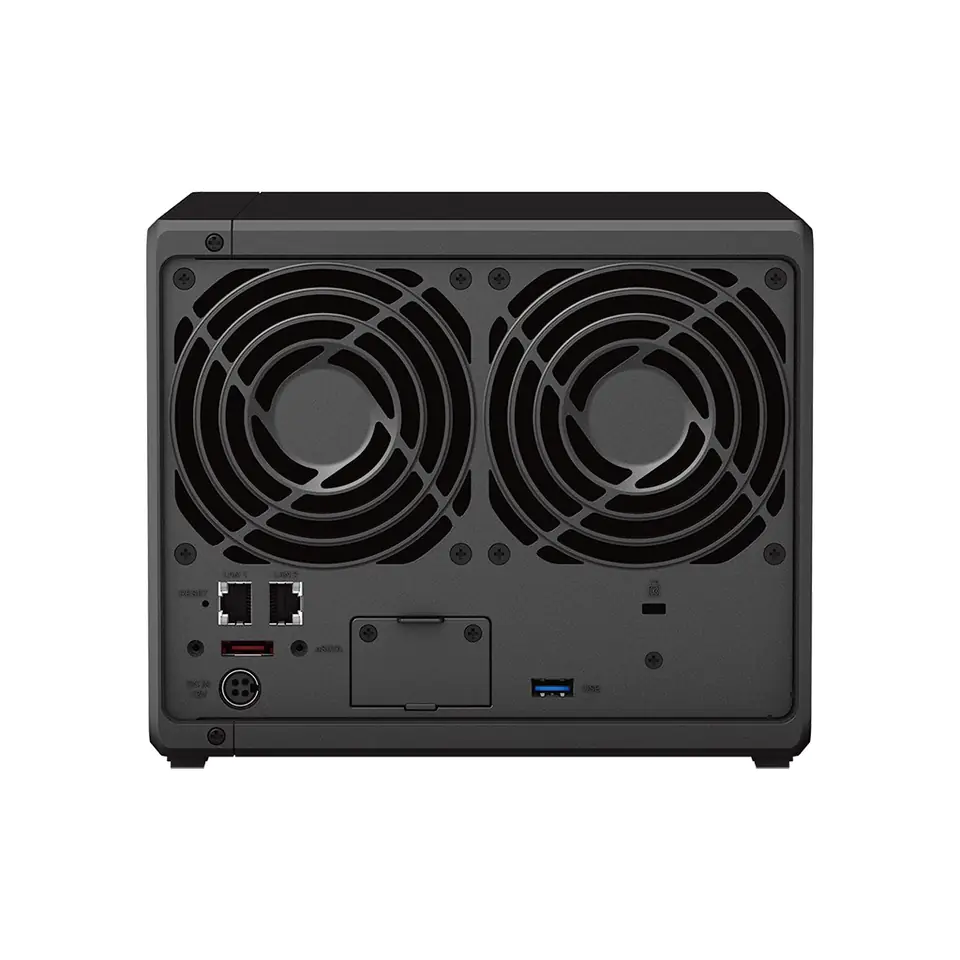

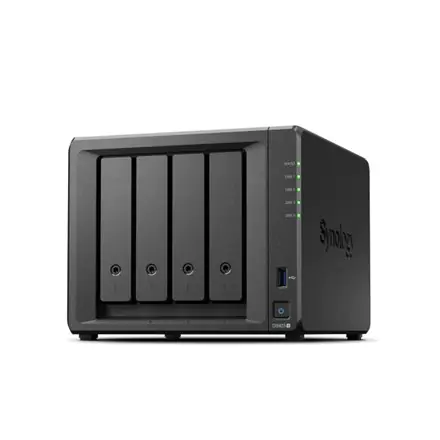

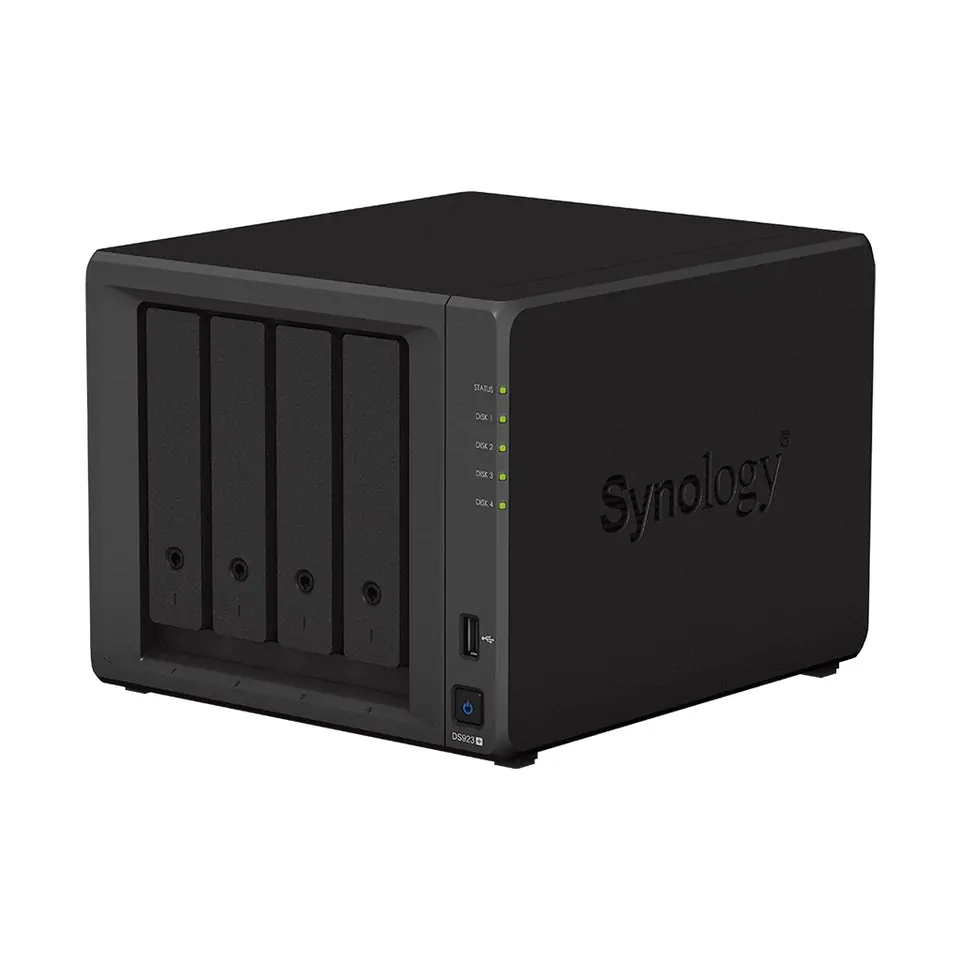

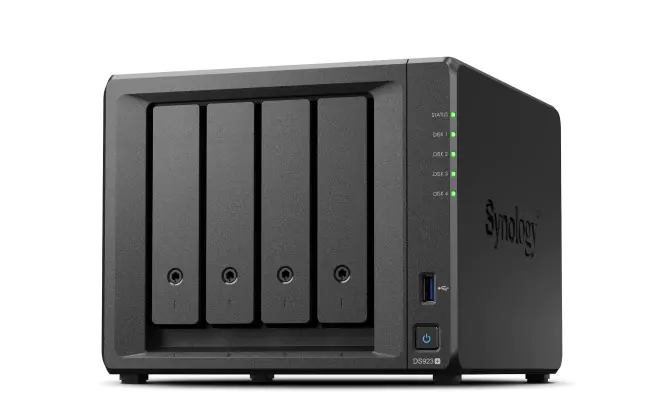

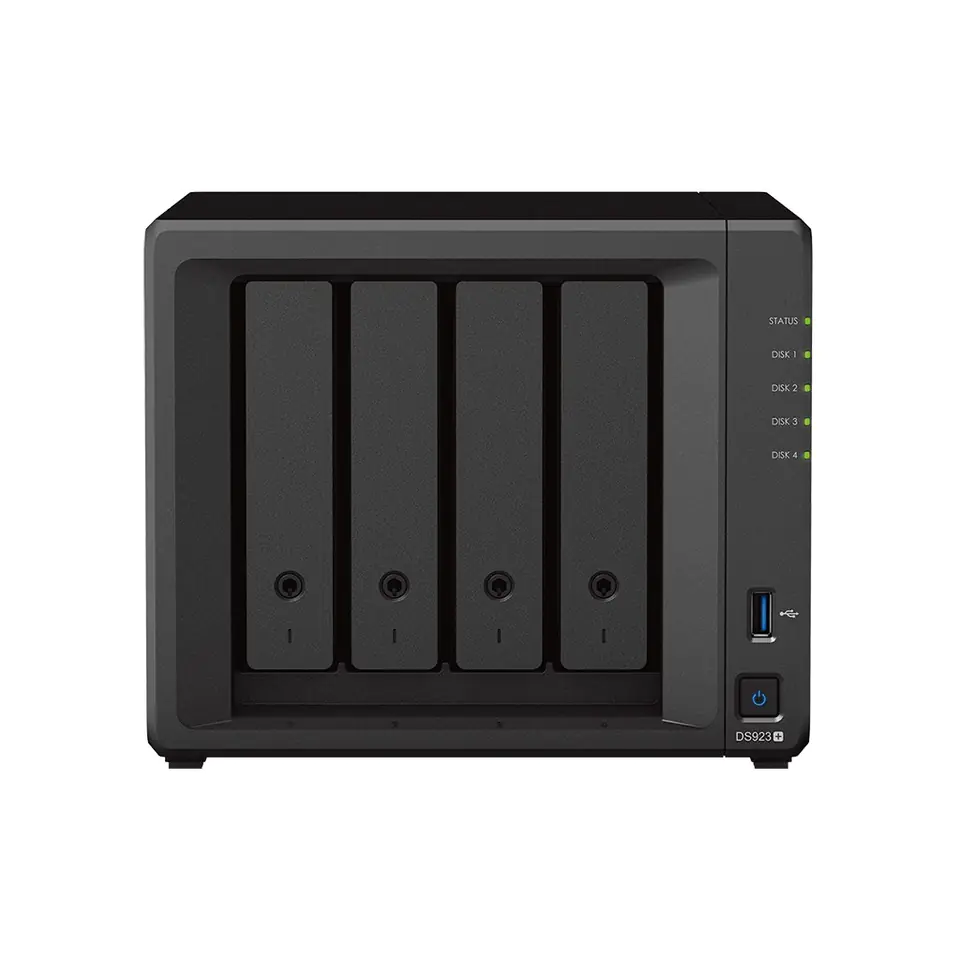

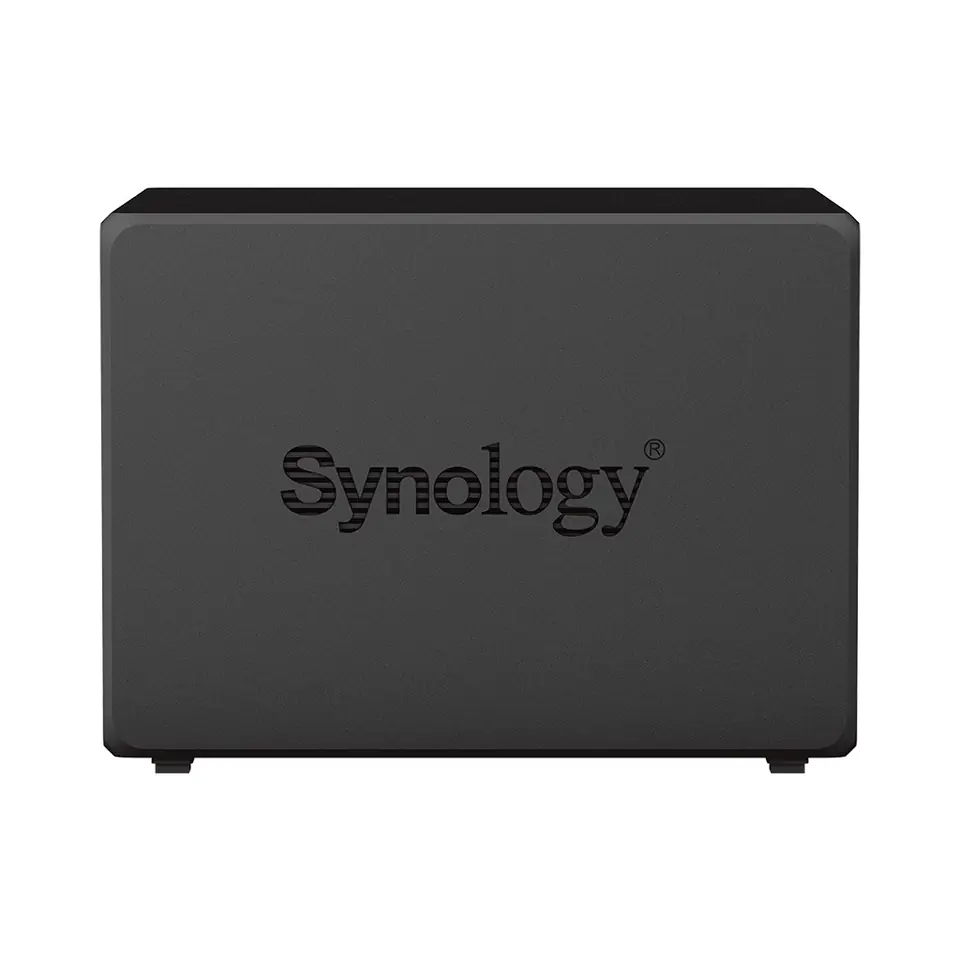

Synology DiskStation DS923+ NAS/storage server Tower Ethernet LAN Black R1600
This product is not available
- Availability:
- expected delivery
- Brand:
- Synology
- Product code:
- DS923+ / 4711174724451
Share this product:
Specification
| Ac input frequency: | 50 / 60 Hz |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Backup features: | Cloud, iSCSI LUN |
| Backup function: | Yes |
| Browser supported: | Google Chrome, Firefox, Microsoft Edge, Safari |
| Built-in display: | No |
| Built-in ftp server: | Yes |
| Built-in speaker(s): | No |
| Built-in upnp av media server: | Yes |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Cables included: | LAN (RJ-45), AC |
| Card reader integrated: | No |
| Chassis type: | Tower |
| Compliance certificates: | RoHS, CE |
| Cooling type: | Active |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth: | 223 mm |
| Device class: | Home & Home Office |
| Drive bay locking: | Yes |
| Ecc: | Yes |
| Esata ports quantity: | 1 |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Ethernet lan data rates: | 10, 100, 1000 Mbit/s |
| External power adapter: | Yes |
| Fan diameter: | 9.2 cm |
| Height: | 166 mm |
| Hot spare: | Yes |
| Hot-swap drive bays: | Yes |
| Installed storage drive type: | No |
| Internal memory: | 4 GB |
| Internal memory type: | DDR4L |
| Iscsi support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Management protocols: | SNMP |
| Maximum ram supported: | 32 GB |
| Memory slots: | 2 |
| Multilingual support: | Yes |
| Noise level: | 22.9 dB |
| Number of fans: | 2 fan(s) |
| Number of m.2 (m & b) slots: | 2 |
| Number of power supply units: | 1 |
| Number of storage drives supported: | 4 |
| On/off switch: | Yes |
| Online raid expansion: | Yes |
| Online raid migration: | Yes |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating system installed: | DiskStation Manager |
| Operating system version: | 7.1.1 |
| Operating temperature (t-t): | 0 - 40 °C |
| Pci express x2 (gen 3.x) slots: | 1 |
| Power cables quantity: | 1 |
| Power consumption (hdd standby): | 11.52 W |
| Power consumption (typical): | 35.51 W |
| Power supply location: | External |
| Power supply unit (psu) capacity: | 100 W |
| Processor boost frequency: | 3.1 GHz |
| Processor cores: | 2 |
| Processor family: | Ryzen Embedded |
| Processor frequency: | -2.6 GHz |
| Processor generation: | AMD Ryzen Embedded R1000 Series |
| Processor manufacturer: | AMD |
| Processor model: | R1600 |
| Product colour: | Black |
| Raid levels: | 5, 1, 10, 6, 0, JBOD |
| Raid support: | Yes |
| Redundant power supply (rps) support: | No |
| Reset button: | Yes |
| Security algorithms: | AES |
| Server operating systems supported: | Windows Server 2019, Windows Server 2016 |
| Storage drive sizes supported: | 2.5, 3.5" |
| Storage drives installed: | No |
| Storage temperature (t-t): | -20 - 60 °C |
| Supported file systems: | HFS+, BTRFS, Fat, ext4, ext3, NTFS |
| Supported network protocols: | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported storage drive interfaces: | M.2, Serial ATA III |
| Supported storage drive types: | HDD & SSD |
| Sustainability certificates: | RoHS, CE |
| Sustainability compliance: | Yes |
| Total installed storage capacity: | 0 TB |
| Type: | NAS |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb port: | Yes |
| Wake-on-lan ready: | Yes |
| Weight: | 2.34 kg |
| Width: | 199 mm |
