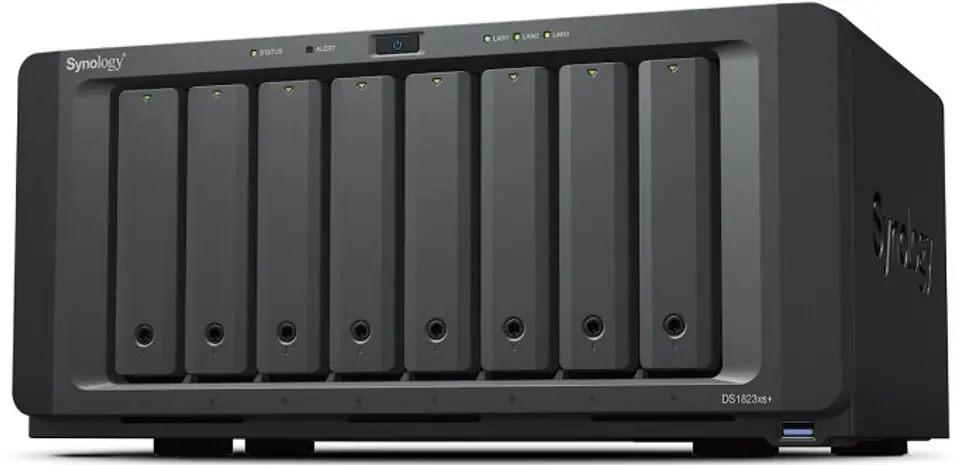

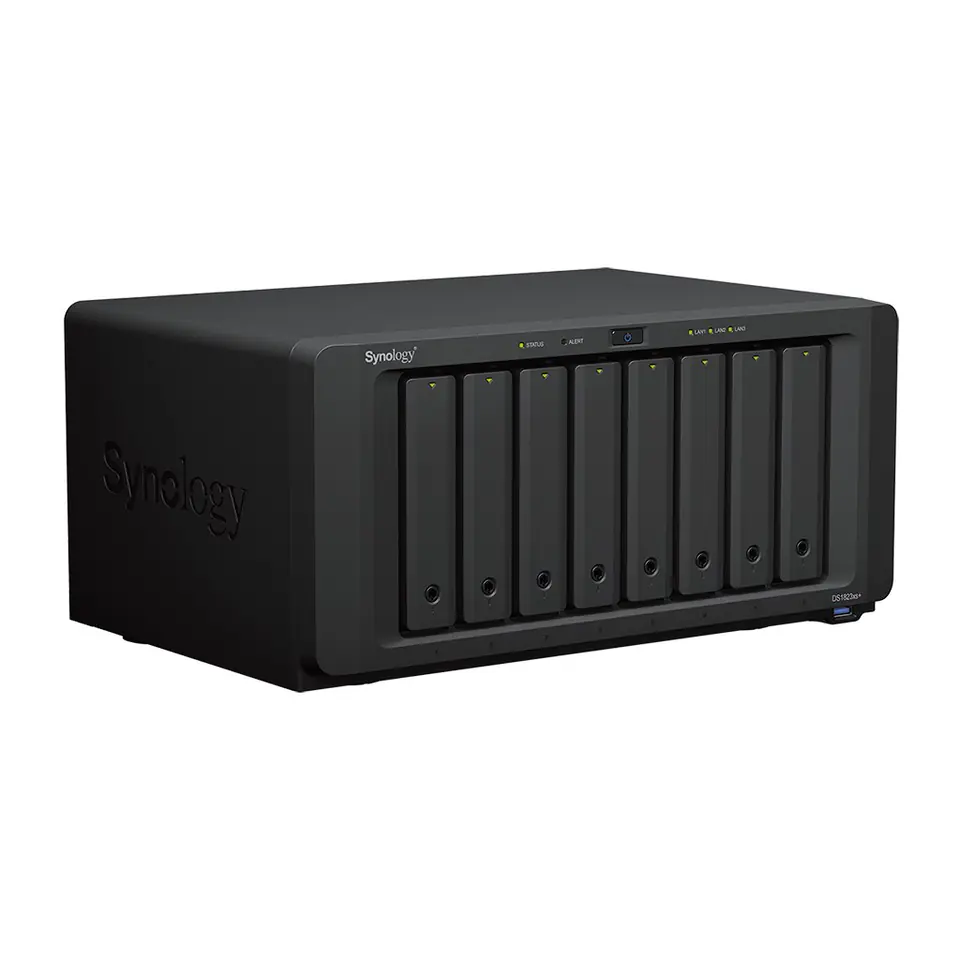

Synology DiskStation DS1823XS+ NAS/storage server Tower AMD Ryzen V1780B 8 GB DDR4 DiskStation Manager Black

This product is not available
Availability:
expected delivery
Brand:
Synology
Product code:
DS1823xs+ / 4711174724956

Specification

Ac input frequency:50 / 60 Hz
Ac input voltage:100 - 240 V
Access control list (acl):Yes
Backup features:Cloud, iSCSI LUN
Backup function:Yes
Browser supported:Google Chrome Firefox Microsoft Edge Safari
Built-in display:No
Built-in ftp server:Yes
Built-in speaker(s):No
Cable lock slot:Yes
Cable lock slot type:Kensington
Cables included:AC, LAN (RJ-45)
Card reader integrated:No
Chassis type:Tower
Compliance certificates:RoHS, CE
Cooling type:Active
Copper ethernet cabling technology:10BASE-T, 1000BASE-T, 100BASE-TX, 10GBASE-T
Depth:243 mm
Device class:Small & Medium Business
Ecc:Yes
Esata ports quantity:2
Ethernet lan:Yes
Ethernet lan (rj-45) ports:4
Ethernet lan data rate supported (max):10000 Mbit/s
Ethernet lan data rates:100, 10, 10000 Mbit/s, 1000 Mbit/s
Fan diameter:12 cm
Height:166 mm
Hot-swap drive bays:Yes
Installed storage drive type:No
Internal memory:8 GB
Internal memory type:DDR4
Iscsi support:Yes
Led indicators:Yes
Link aggregation:Yes
Management protocols:SNMP
Maximum ram supported:32 GB
Memory form factor:SO-DIMM
Memory slots:2
Multilingual support:Yes
Noise level:23.6 dB
Number of fans:2 fan(s)
Number of m.2 (m & b) slots:2
Number of power supply units:1
Number of processors supported:1
Number of storage drives supported:8
On/off switch:Yes
Online raid expansion:Yes
Online raid migration:Yes
Operating relative humidity (h-h):5 - 95%
Operating system installed:DiskStation Manager
Operating system version:7.1.1
Operating temperature (t-t):0 - 40 °C
Pci express x8 (gen 3.x) slots:1
Power cables quantity:1
Power consumption (typical):87.93 W
Power supply location:Built-in
Power supply unit (psu) capacity:250 W
Processor boost frequency:3.6 GHz
Processor cores:4
Processor family:Ryzen Embedded
Processor frequency:3.35 GHz
Processor generation:AMD Ryzen Embedded V1000 Series
Processor manufacturer:AMD
Processor model:V1780B
Product colour:Black
Raid levels:5, 10, 1, 0, 6, JBOD
Raid support:Yes
Redundant power supply (rps) support:No
Reset button:Yes
Security algorithms:AES
Server operating systems supported:Windows Server 2019
Snapshot:Yes
Storage drive sizes supported:M.2, 3.5", 2.5
Storage drives installed:No
Storage relative humidity (h-h):5 - 95%
Storage temperature (t-t):-20 - 60 °C
Supported file systems:exFAT, BTRFS, ext4, HFS+, ext3, NTFS, Fat
Supported storage drive interfaces:Serial ATA
Supported storage drive types:HDD & SSD
Sustainability compliance:Yes
System log:Yes
Total installed storage capacity:0 TB
Type:NAS
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:3
Usb port:Yes
Weight:6.2 kg
Width:343 mm

A private data center on your desk

DS1823xs+ is a powerful central storage server that can be easily deployed anywhere to provide shared storage and data sharing, endpoint and server backup, VM storage, surveillance management, and other business options. This is ideal when a dedicated server rack or data center is not available.

Security, reliability and scalability

Built-in data integrity protection, remote management options, and easy hardware upgrades make DS1823xs+ reliable, easy to maintain, and cost-effective.

Data integrity protection

The Btrfs file system helps prevent data corruption or loss through metadata mirroring, automatic file repair, and efficient point-in-time snapshots. ECC memory provides additional integrity protections.

Effective remote management

Monitor, replace, and manage drives and storage on Synology DSM. Remotely reboot, reset or view logs while the system is down with Out of Band (OOB) management.

Plug-and-play expansion

DS1823xs+ can be expanded up to 18 bays by adding two DX517 expansion units without system downtime with online storage and volume expansion capabilities.

Store, share and protect

Manage all your documents, photos and other files, back up applications and devices, and protect your physical assets with professional video surveillance

Flexible File Server

Use DS1823xs+ as your central file storage and data sharing hub. Provide easy access to business data from computers, phones and other devices, and set up advanced cross-site synchronization to enable collaboration between offices or branches.

Backup Repository

Back up files, folders, physical devices, VMs, and SaaS applications with free solutions and protect your NAS with built-in technologies.

Business application platform

Host cost-effective business solutions via containers, virtual machines, or native Synology DiskStation (DSM) solutions, including an advanced free backup package, universal mail server, and VMS monitoring system with transparent licensing.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
