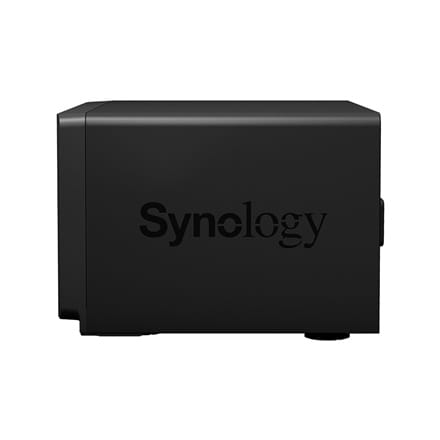

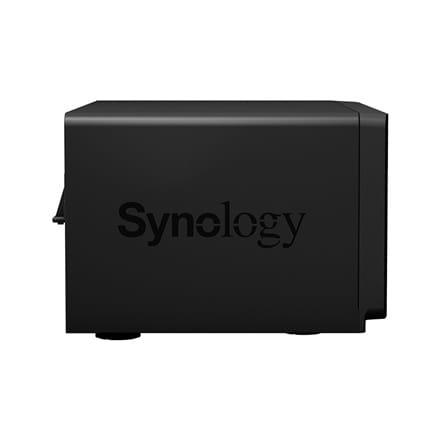

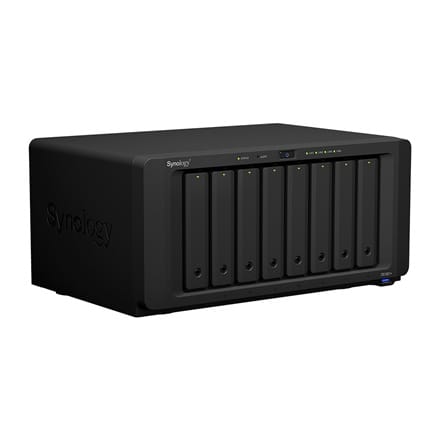

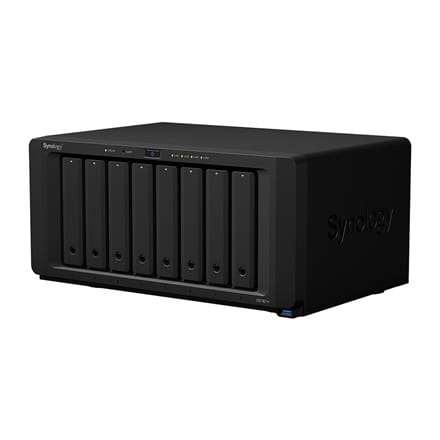

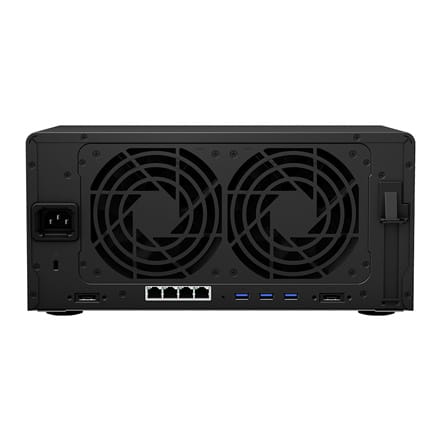

Synology DiskStation DS1821+ NAS/storage server Tower Ethernet LAN Black V1500B
This product is not available
- Availability:
- expected delivery
- Brand:
- Synology
- Product code:
- DS1821+ / 4711174723973
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100-240 V |
| Access control list (acl): | Yes |
| Backup features: | Cloud, iSCSI LUN |
| Backup function: | Yes |
| Browser supported: | Google Chrome, Firefox, Microsoft Edge, Internet Explorer 10+, Safari 10+ |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Cables included: | LAN (RJ-45), AC |
| Chassis type: | Tower |
| Cooling type: | Active |
| Depth: | 243 mm |
| Device class: | Large Enterprise Business |
| Ecc: | Yes |
| Esata ports quantity: | 2 |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 4 |
| Ethernet lan data rates: | 1000 Mbit/s |
| Fan diameter: | 12 cm |
| Fan diameter 2: | 12 cm |
| Harmonized system (hs) code: | 84714100 |
| Height: | 166 mm |
| Hot spare: | Yes |
| Hot-swap drive bays: | Yes |
| Installed storage drive type: | No |
| Internal memory: | 4 GB |
| Internal memory type: | DDR4 |
| Iscsi support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Maximum ram supported: | 32 GB |
| Maximum supported storage capacity: | 108 TB |
| Memory form factor: | SO-DIMM |
| Memory slots: | 2 |
| Multilingual support: | Yes |
| Noise level: | 22.2 dB |
| Number of fans: | 2 fan(s) |
| Number of m.2 (m & b) slots: | 2 |
| Number of power supply units: | 1 |
| Number of storage drives supported: | 8 |
| Number of users: | 2048 user(s) |
| On-board graphics card model: | Not available |
| On/off switch: | Yes |
| Online raid expansion: | Yes |
| Online raid migration: | Yes |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating system installed: | DiskStation Manager |
| Operating temperature (t-t): | 0 - 40 °C |
| Pci express x8 (gen 3.x) slots: | 1 |
| Power consumption (hdd standby): | 26.18 W |
| Power consumption (typical): | 59.8 W |
| Power supply location: | Built-in |
| Power supply unit (psu) capacity: | 250 W |
| Processor cores: | 4 |
| Processor family: | Ryzen Embedded |
| Processor frequency: | 2.2 GHz |
| Processor generation: | AMD Ryzen Embedded V1000 Series |
| Processor manufacturer: | AMD |
| Processor model: | V1500B |
| Product colour: | Black |
| Raid levels: | 6, 5, 1, 0, JBOD, 10 |
| Raid support: | Yes |
| Reset button: | Yes |
| Server operating systems supported: | Windows Server 2019, Windows Server 2016 |
| Snapshot: | Yes |
| Storage drive capacity: | 0 GB |
| Storage drive sizes supported: | 3.5", 2.5, M.2 |
| Storage drives installed: | No |
| Storage temperature (t-t): | -20 - 60 °C |
| Supported file systems: | BTRFS, ext3, NTFS, Fat, ext4, HFS+ |
| Supported network protocols: | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported storage drive interfaces: | M.2, Serial ATA |
| Supported storage drive types: | HDD & SSD |
| System log: | Yes |
| Total installed storage capacity: | 0 TB |
| Type: | NAS |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb port: | Yes |
| Wake-on-lan ready: | Yes |
| Web-based management: | Yes |
| Weight: | 6 kg |
| Width: | 343 mm |
