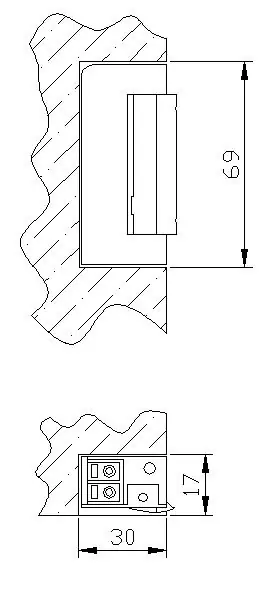

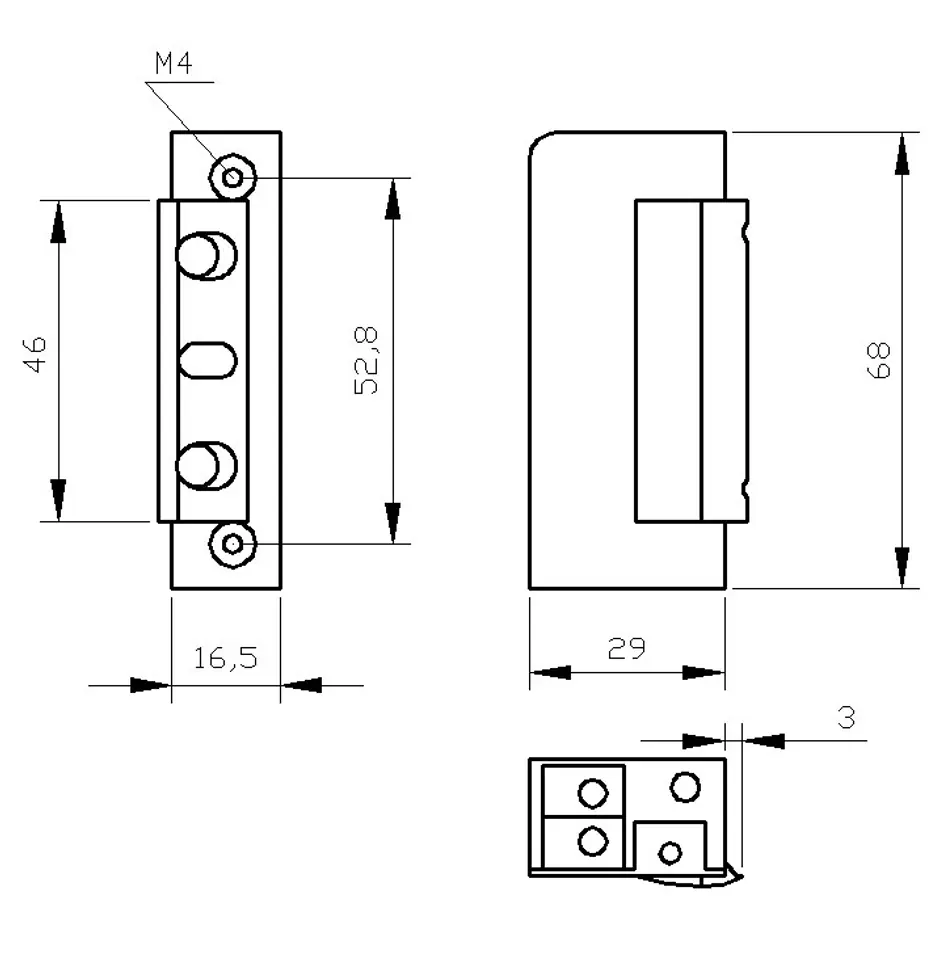

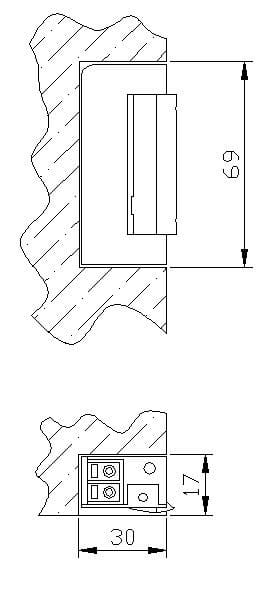

The Symmetrical, small electric strike R5-12.10 is designed for remote opening of left and right and double-leaf doors and wickets. Works with ratchet or ratchet lock. Designed for use where it is possible to make a socket with dimensions of 17 × 30 × 69 mm. It cooperates with intercom and video intercom installation in the entrance doors of single and multi-family buildings. It can be mounted outdoors with standard signboards. Symmetrical design and small dimensions allow it to be used for the system of sliding gates and door frames left and right. Adjustable ratchet in the range of 3 mm allows you to adjust the clearance.

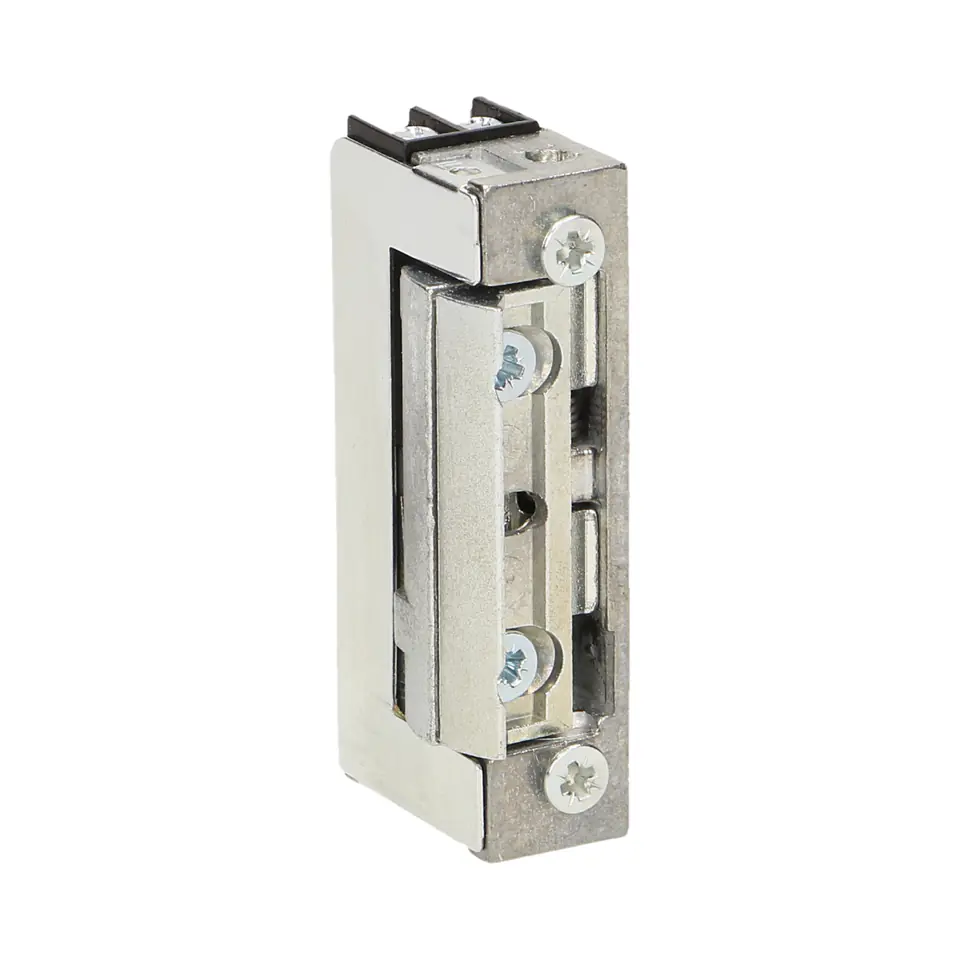

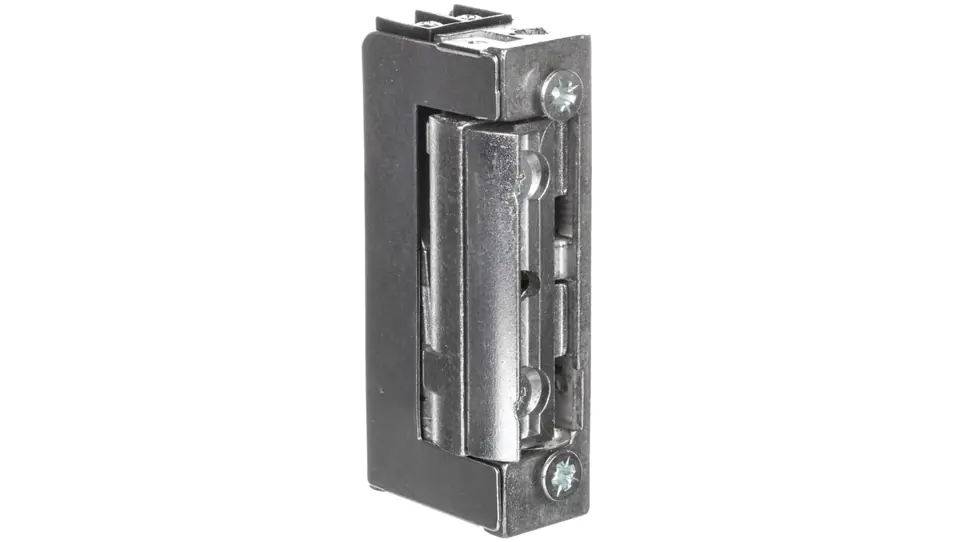

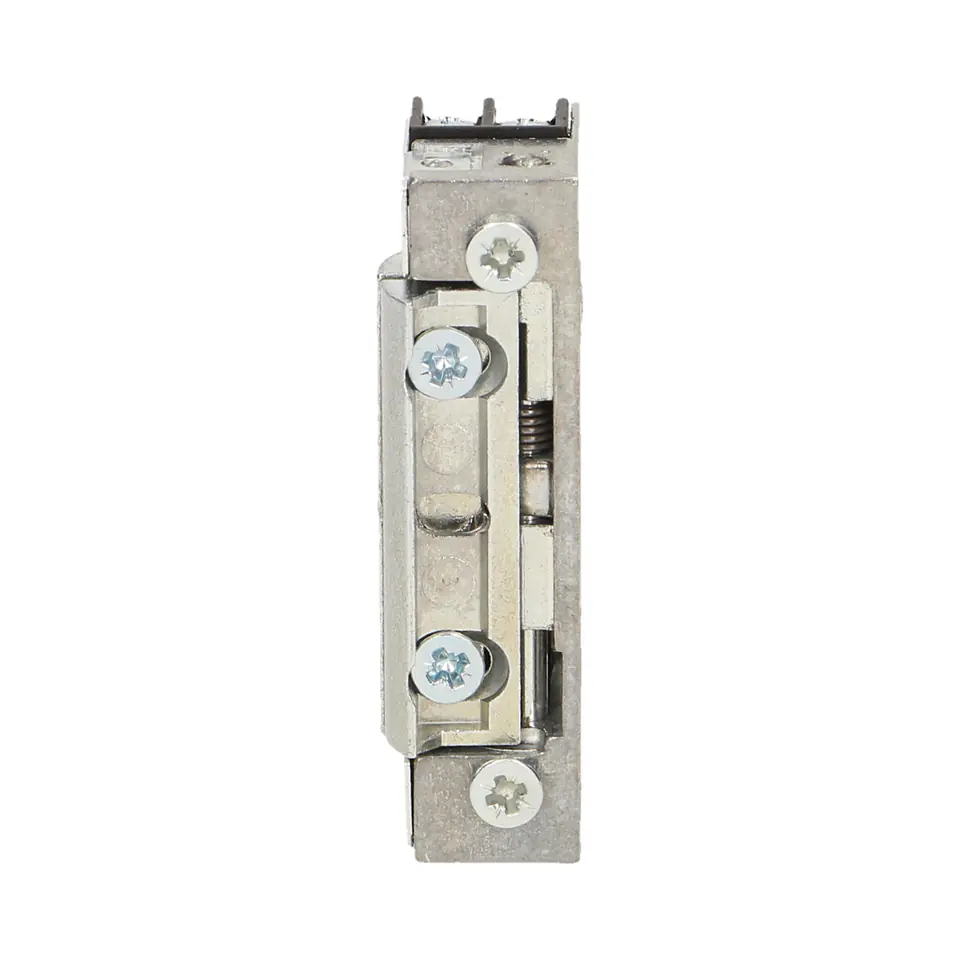

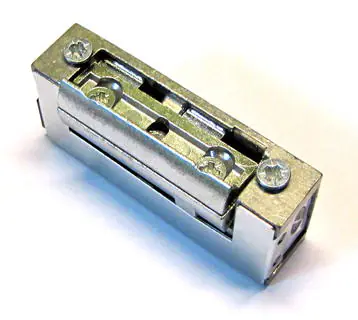

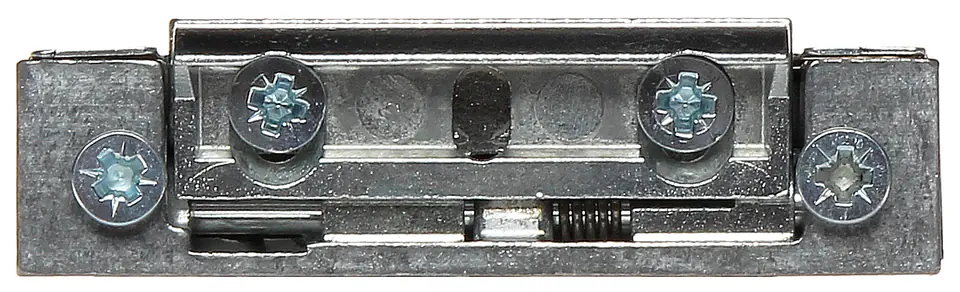

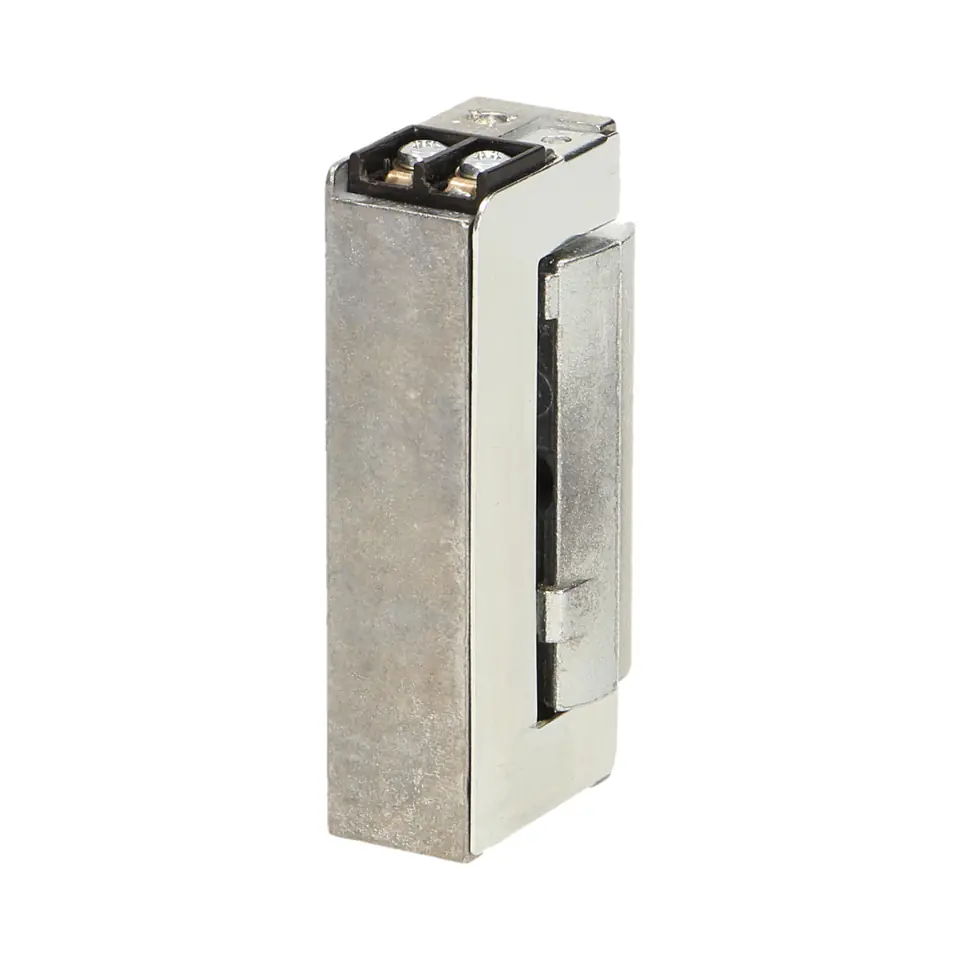

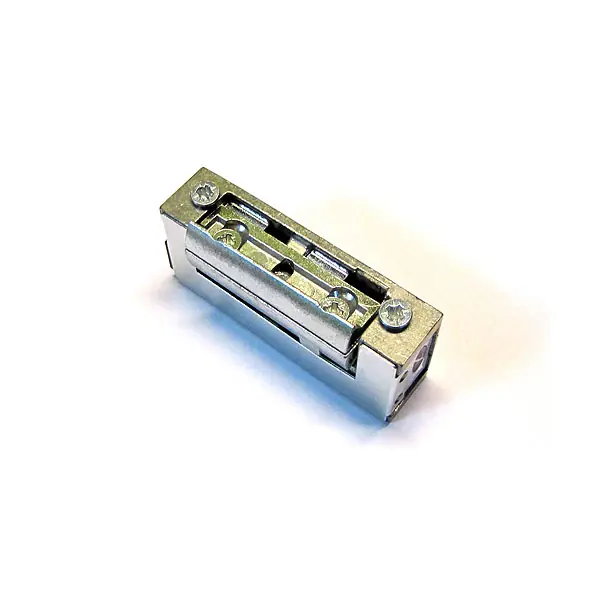

Symmetrical electric strike without memory, without lock
€18.90
Shipping from warehouse: D4
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Orno
- Product code:
- R5-12.10 / 5907438279778
Share this product:
Specification
| Hitch shape: | Flat |
|---|---|
| Model: | For standard doors |
| Mounting method: | Built-in |
| Opening direction according to din: | Left/Right |
| Pulse contact: | No |
| Type of current: | AC/DC |
| Voltage range [v]: | 12 |
| Voltage range [v] from: | 12 |
| Voltage range [v] to: | 12 |
| Waterproof: | No |
| With feedback: | No |
| With lock: | Yes |
| With mechanical unlocking: | No |
