| Compatibility:: | VIDOS DUO |
|---|---|
| Current efficiency of the power supply:: | 1.5 A |
| Dimensions:: | 70 x 98 x 59 mm |
| Housing type:: | DIN |
| Manufacturer / brand:: | VIDOS |
| Number of outputs:: | 4 pcs. |
| Operating temperature:: | -10 °C ... 50 °C |
| Output voltage adjustment:: | 21.6 ... 29 volts |
| Output voltage:: | 24 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 36 watts (Printing) |
| Scales:: | 0.33 kg |
| Security:: | Short-circuit Overload Surge Protector |
| Supply voltage:: | 85 ... 264 VAC |
| Warranty:: | 2 years |

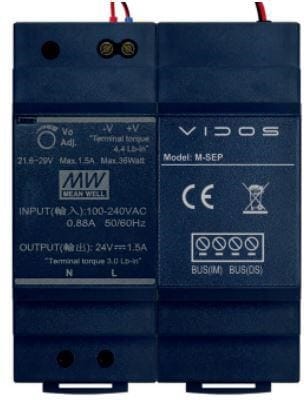

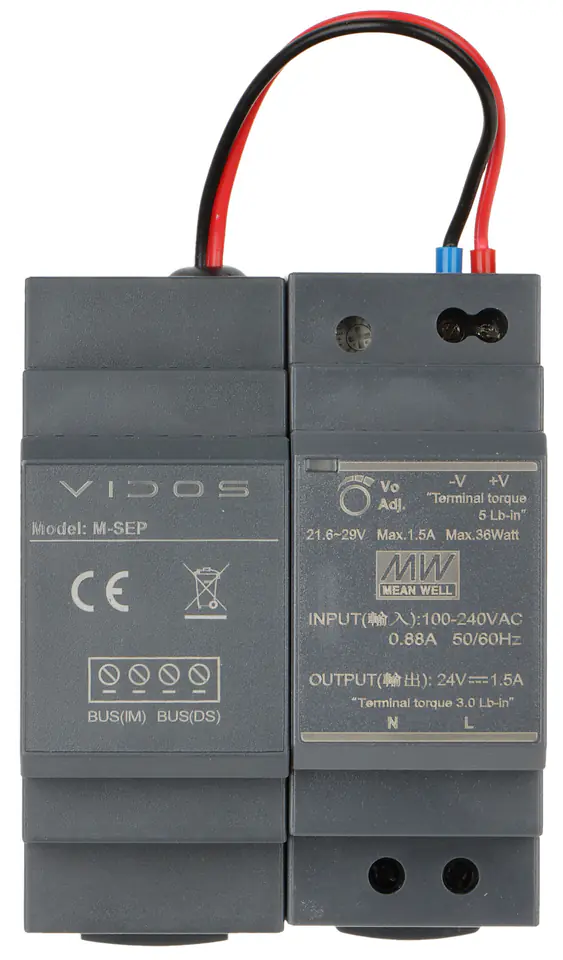

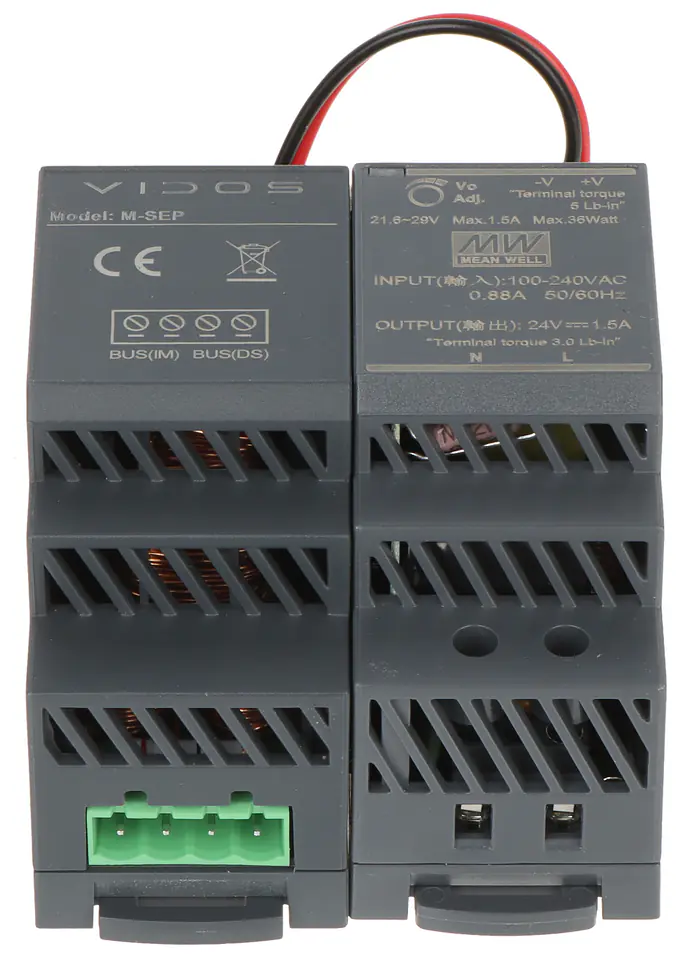

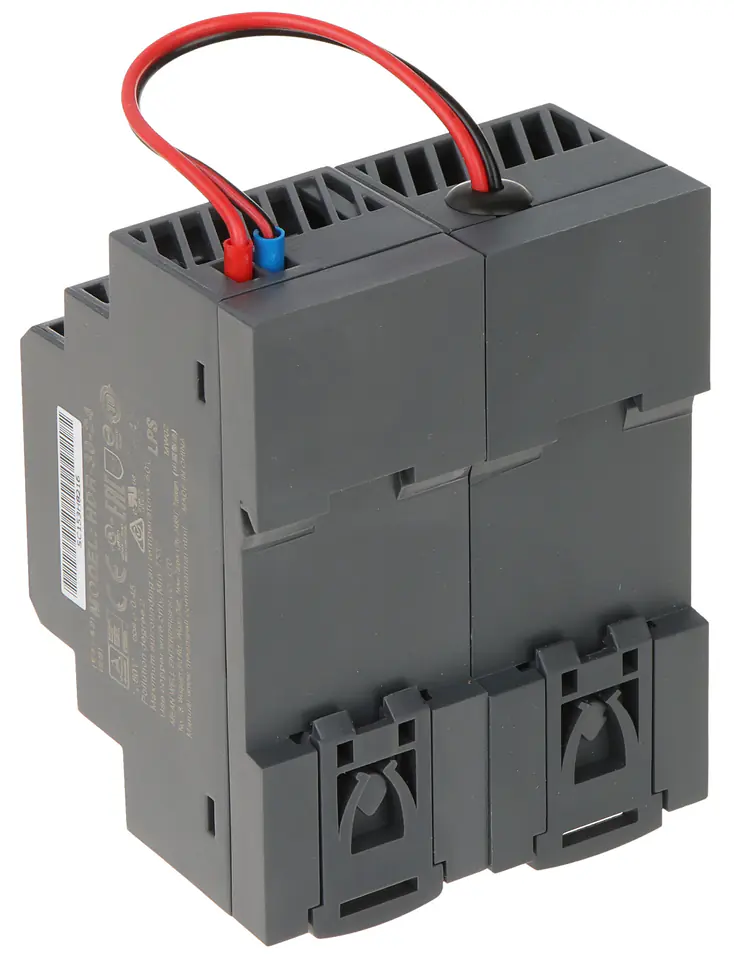

The M-SEP/HDR-30-24 power supply is designed to work in a two-core DIGITAL SYSTEM VIDOS DUOThe device combines the functions of a power supply and a voltage and signal separator
One M-SEP/HDR-30-24 power supply can power up to 4 monitors simultaneouslyIn multi-location systems, the number of power supplies depends on the distance and current load
The power supply works with all VIDOS DUO series devices
