Dual-output switching power supply with small size
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current

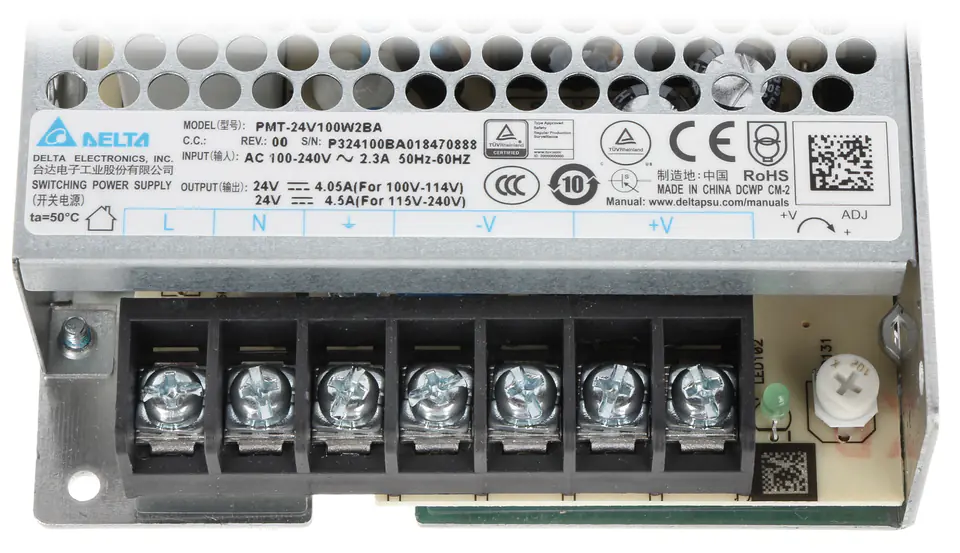

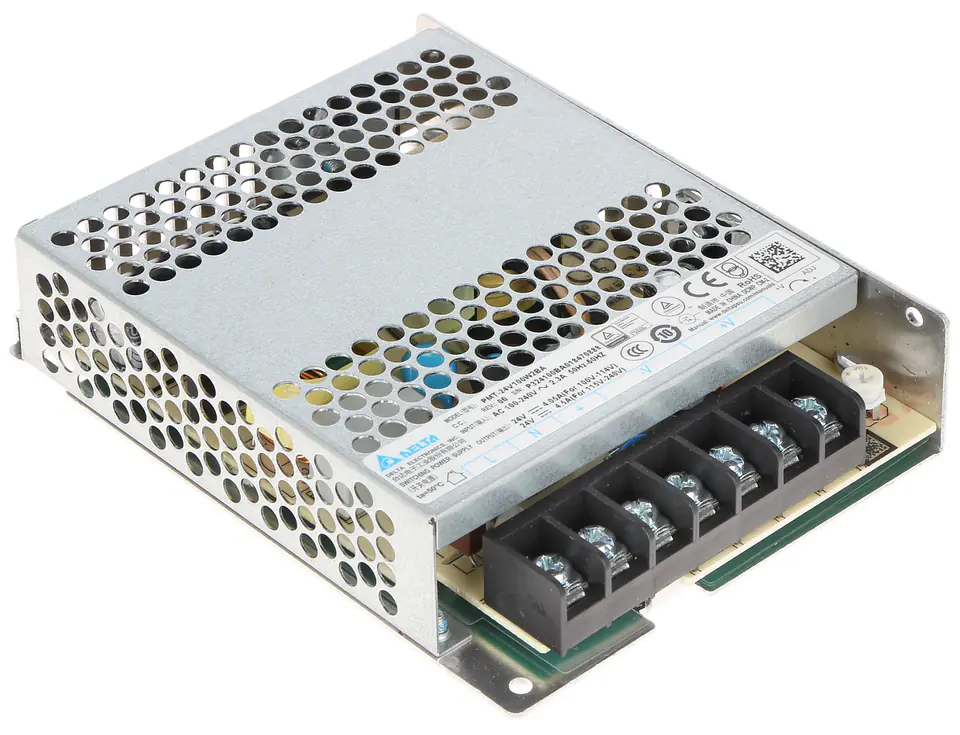

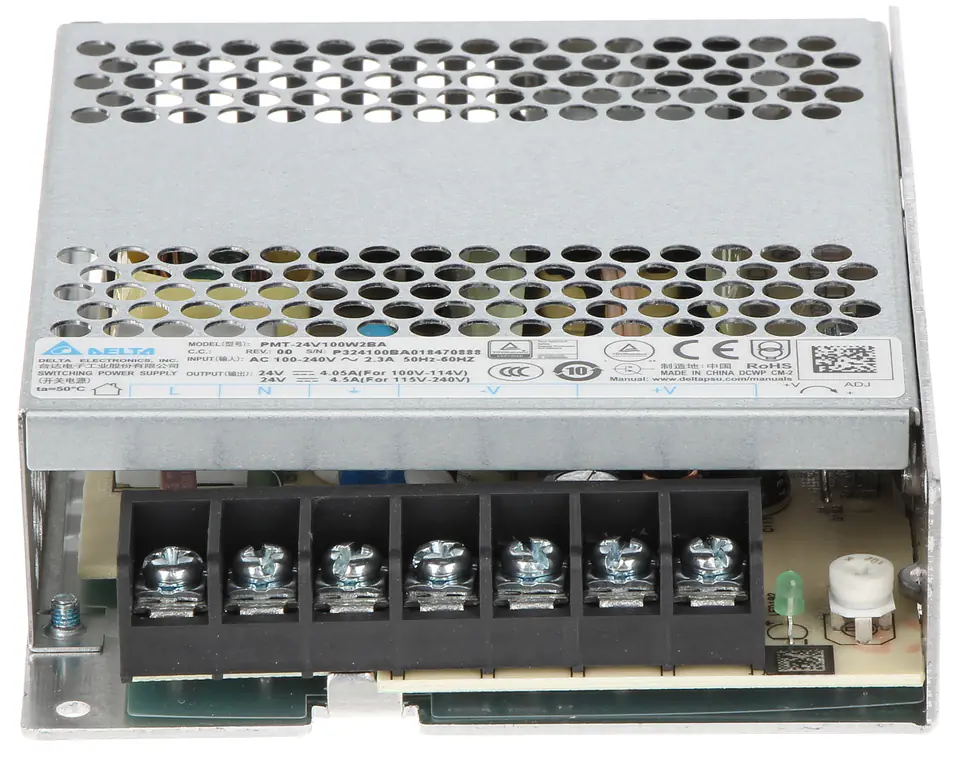

SWITCHING POWER SUPPLY PMT-24V100W2BA Delta Electronics
PLN 74.66
Shipping from warehouse: D4
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- DELTA ELECTRONICS
- Product code:
- PMT-24V100W2BA / 5902887054617
Share this product:
Specification
| Current efficiency of the power supply:: | 4.5 A |
|---|---|

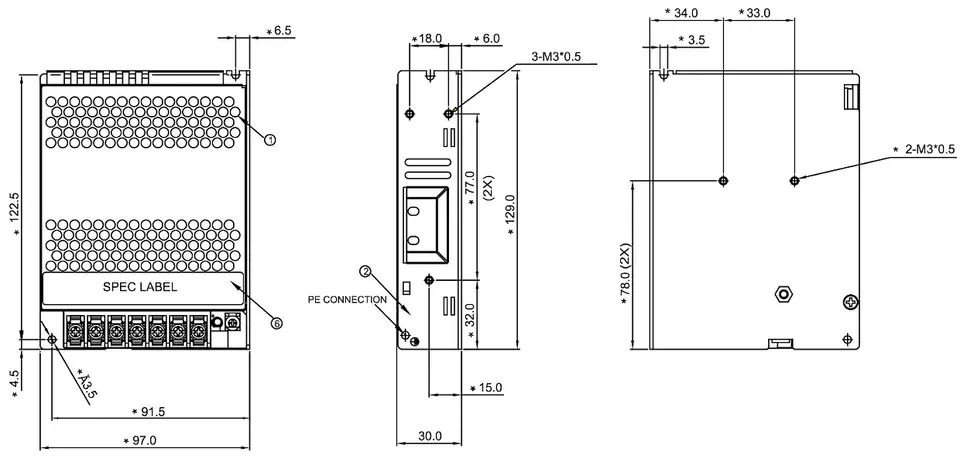

| Dimensions:: | 129 x 97 x 30 mm |
| Manufacturer / brand:: | Delta Electronics |
| Number of outputs:: | 1 pc. |
| Operating temperature / relative humidity:: | -30 °C ... 70 °C / 5 % ... 95 % |
| Output voltage adjustment:: | 21.6 ... 26.4 volts |
| Output voltage:: | 24 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 108 watts (Printing) |
| Scales:: | 0.28 kg |
| Security:: | Short-circuit Overload Overvoltage Thermal Shock Protection |
| Supply voltage:: | 100 ... 240 V AC |
| Warranty:: | 5 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
