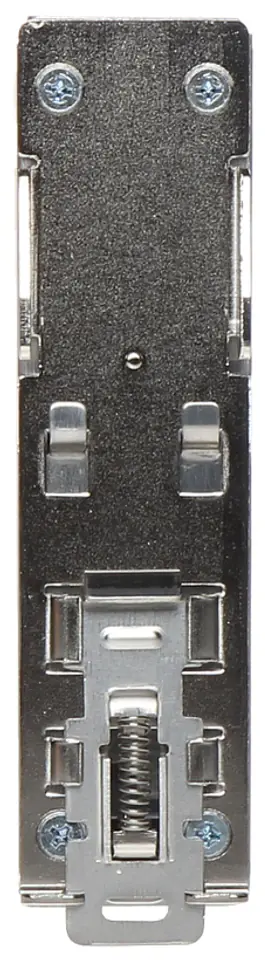

Switched-mode power supply installed on TS35/7.5 or 15 DIN rail, resistant to high operating temperatures (up to 70°C)

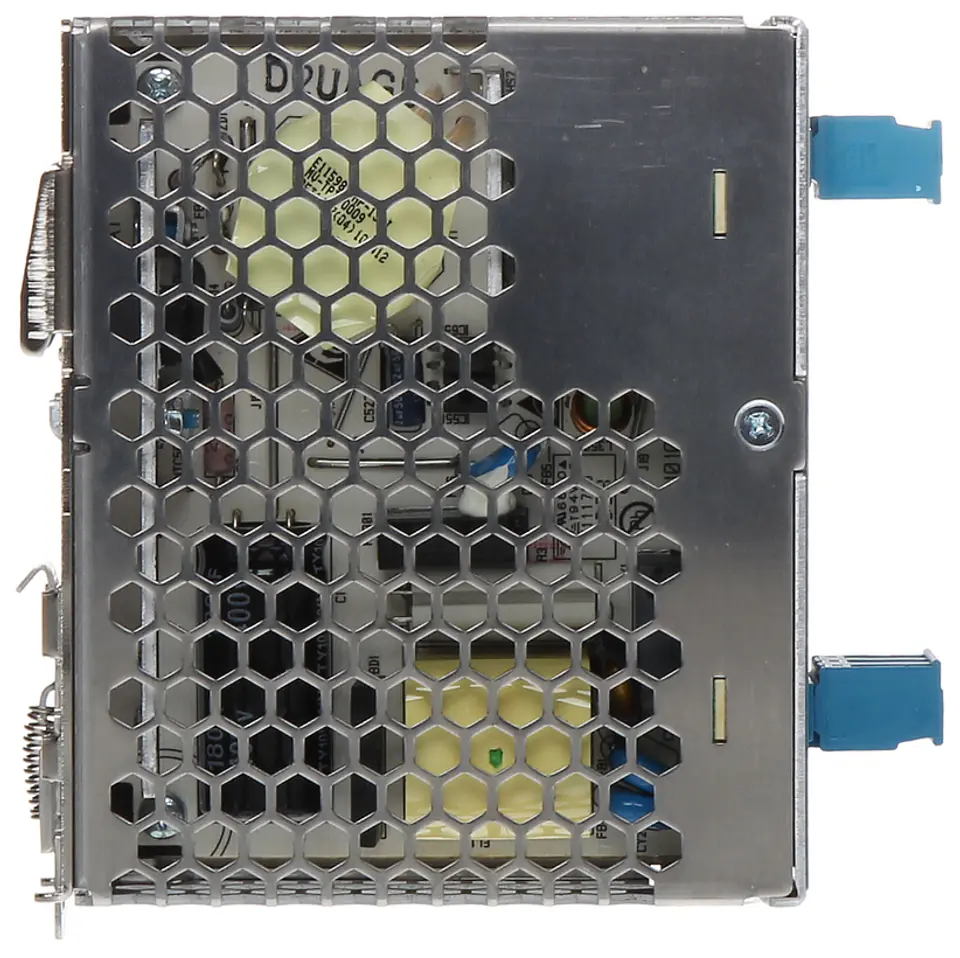

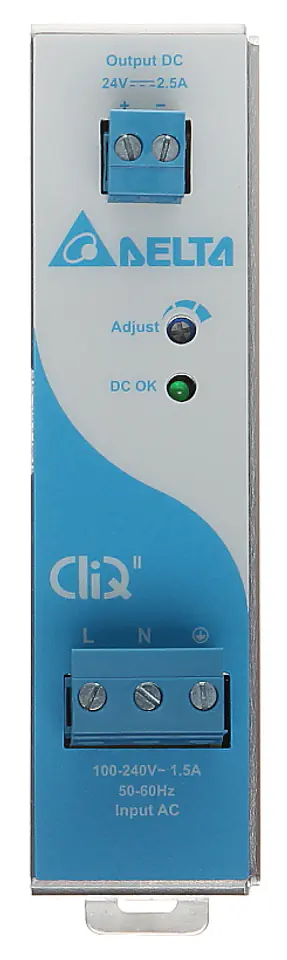

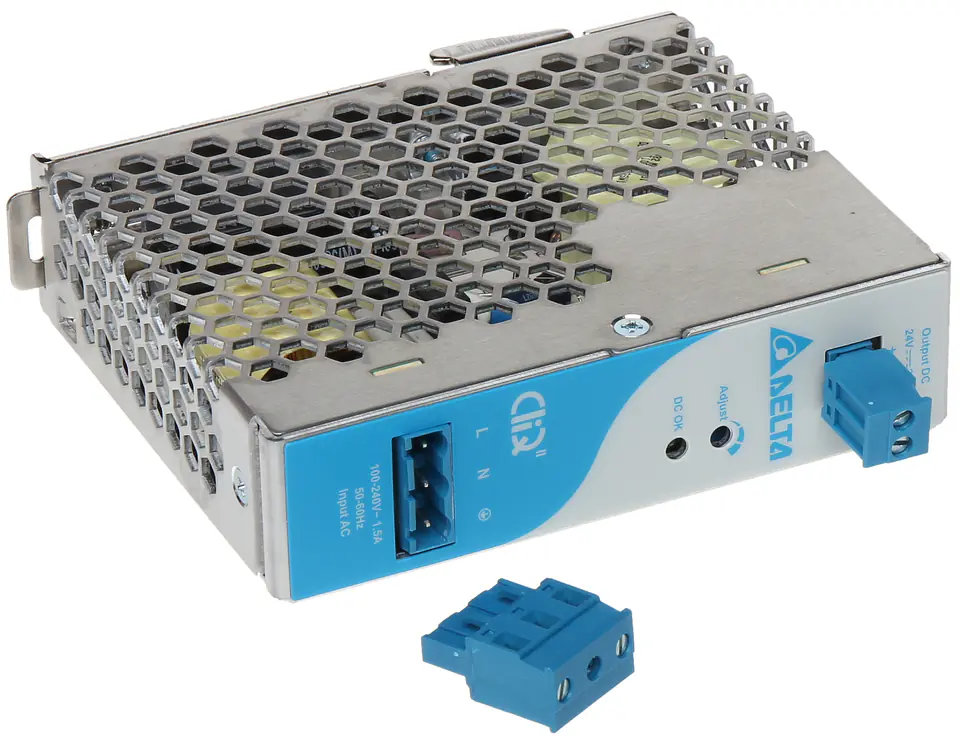

SWITCHING POWER SUPPLY DRP-024V060W-1BN
€49.05
Shipping from warehouse: D4
Estimated shipping: Tue, May 7 - Fri, May 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- DELTA ELECTRONICS
- Product code:
- DRP-024V060W-1BN / 5902887036354
Share this product:
Specification
| Current efficiency of the power supply:: | 2.5 A |
|---|---|

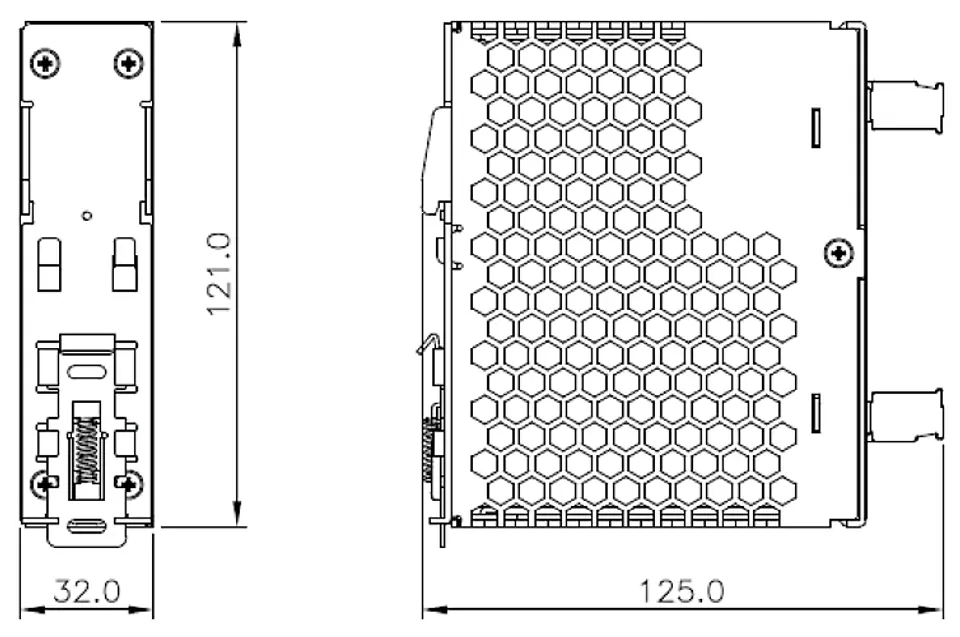

| Dimensions:: | 32 x 121 x 125 mm |
| Efficiency:: | 86 % |
| Housing type:: | DIN |
| Mtbf (mean time between failures):: | 1000000 hours |
| Number of outputs:: | 1 pc. |
| Operating temperature / relative humidity:: | -20 °C ... 75 °C / < 95 % |
| Output voltage adjustment:: | 24 ... 28 volts |
| Output voltage:: | 24 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 60 watts |
| Scales:: | 0.37 kg |
| Security:: | Short-circuit Surge Protection Overload Protection |
| Supply voltage:: | 86 ... 264 VAC |
| Vibration resistance:: | IEC60068-2-6, 10 ... 150 Hz max. 3 G for 60 minutes |
| Voltage tolerance:: | ± 2 % |
| Warranty:: | 5 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
