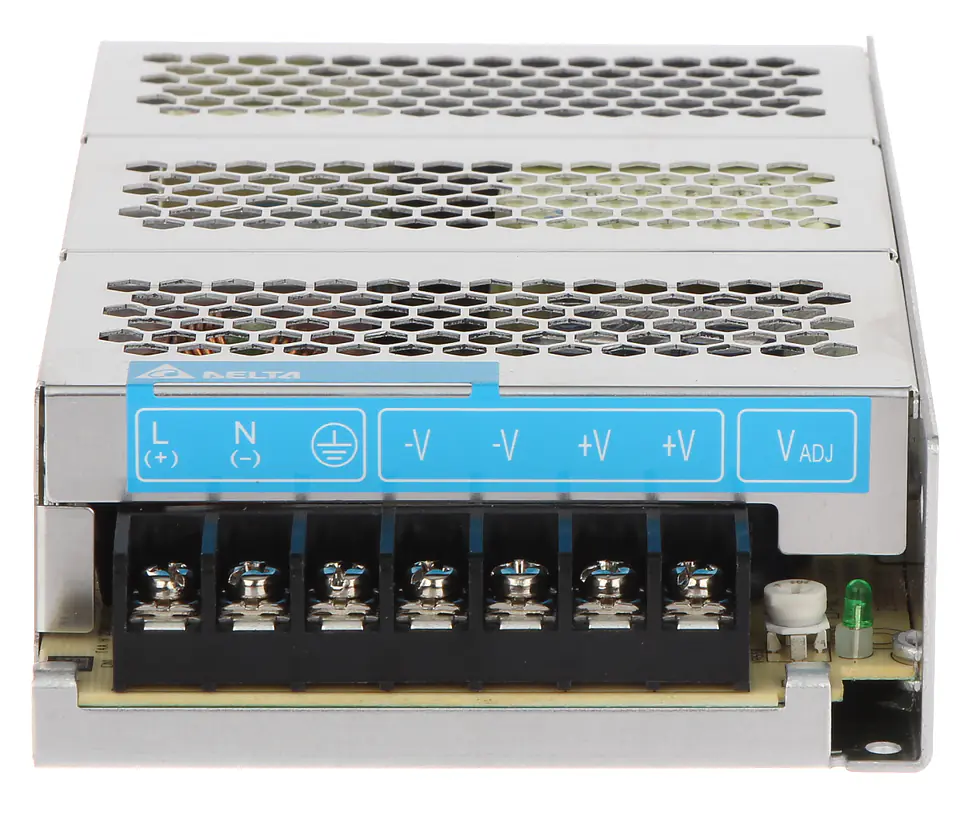

Power supply with two pairs of output terminals
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current

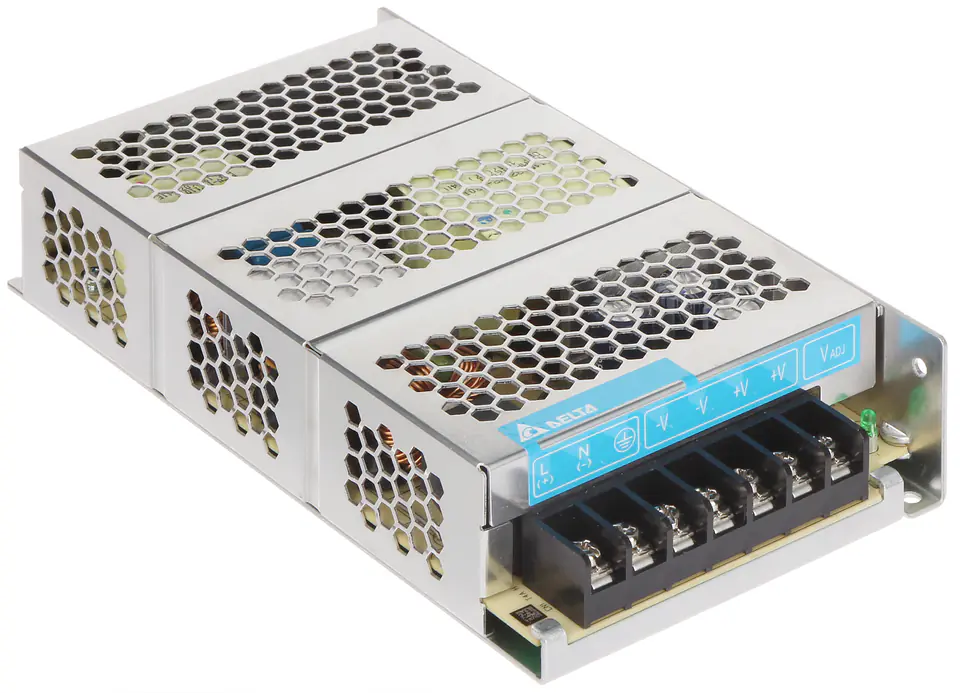

SWITCHING MODE POWER SUPPLY PMC-24V150W1BA Delta Electronics
This product is not available
- Availability:
- expected delivery
- Brand:
- DELTA ELECTRONICS
- Product code:
- PMC-24V150W1BA / 5902887057991
Share this product:
Specification
| Dimensions: | 180 x 97 x 38 mm |
|---|---|
| Number of output terminals: | 2 pcs. |
| Operating temperature / relative humidity: | -10 °C ... 70 °C / 5 % ... 95 % |
| Output voltage: | 24 volts DC |
| Output voltage adjustment: | 22.8 ... 27.6 volts |
| Power supply: | 150 watts (Printing) |
| Power supply current efficiency: | 6.25 amps |
| Producer / brand: | Delta Electronics |
| Scales: | 0.55 kg |
| Supply voltage: | 100 volts ... 240 VAC |
| Type of power supply: | Pulse |
| Warranty: | 5 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
