The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, keypads, intercoms and other devices included in the alarm system
DrC-100A is designed for mounting on a 35 mm DIN rail
SWITCHING BUFFER POWER SUPPLY DRC-100A
PLN 248.13
Shipping from warehouse: D4
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- MEAN WELL
- Product code:
- DRC-100A / 5902135301456
Share this product:
Specification
| Battery charging current:: | 2.5 A |
|---|---|
| Control of power supply operation:: | Indication of the presence of output voltage Technical outputs of relay type Bat. Low, AC OK |
| Current efficiency (total):: | 7 A |

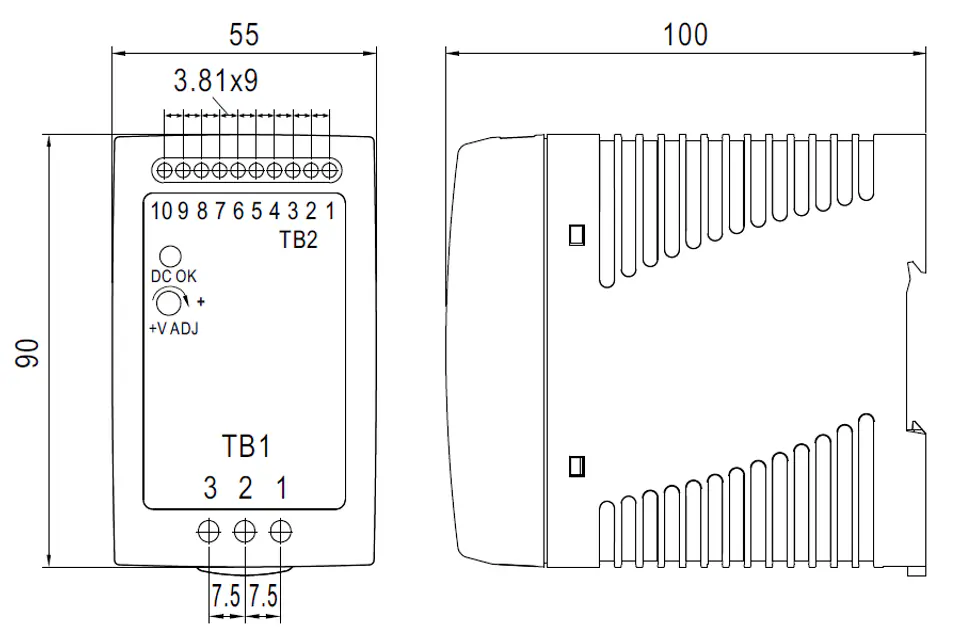

| Dimensions:: | 55 x 90 x 100 mm |
| Housing type:: | Plastic, DIN rail mounting, TS-35 |
| Input voltage:: | 100 ... 240 V AC |
| Output voltage:: | 12 ... 15 V DC (buffer operation) 13.8 V DC (battery mode) |
| Power supply type:: | Pulse |
| Power:: | 96.6 W (max. max) |
| Scales:: | 0.350 kg |
| Security:: | Short-circuit Surge Overload Reverse Connection Before Over-Discharging |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
