SWITCH POE HIKVISION DS-3E0510HP-E

€108.61
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Fri, Jan 30 - Mon, Feb 2
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
HIKVISION
Product code:
DS-3E0510HP-E / 6941264031611

Specification

10g support:No
Basic switching rj-45 ethernet ports quantity:8
Basic switching rj-45 ethernet ports type:Gigabit Ethernet (10/100/1000)
Dc input voltage:54 V
Depth:27.8 mm
Fiber ports quantity:1
Forwarding rate:14.88 Mpps
Full duplex:Yes
Harmonized system (hs) code:85176990
Housing material:Metal
Mac address table:4000 entries
Networking standards:IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Operating relative humidity (h-h):5 - 95%
Operating temperature (t-t):-10 - 40 °C
Power consumption (max):120 W
Power over ethernet (poe):Yes
Product colour:Blue
Rack mounting:No
Storage relative humidity (h-h):5 - 95%
Storage temperature (t-t):-40 - 85 °C
Store-and-forward:Yes
Switch type:Unmanaged
Switching capacity:20 Gbit/s
Total power over ethernet (poe) budget:110 W
Weight:590 g
Width:217.6 mm

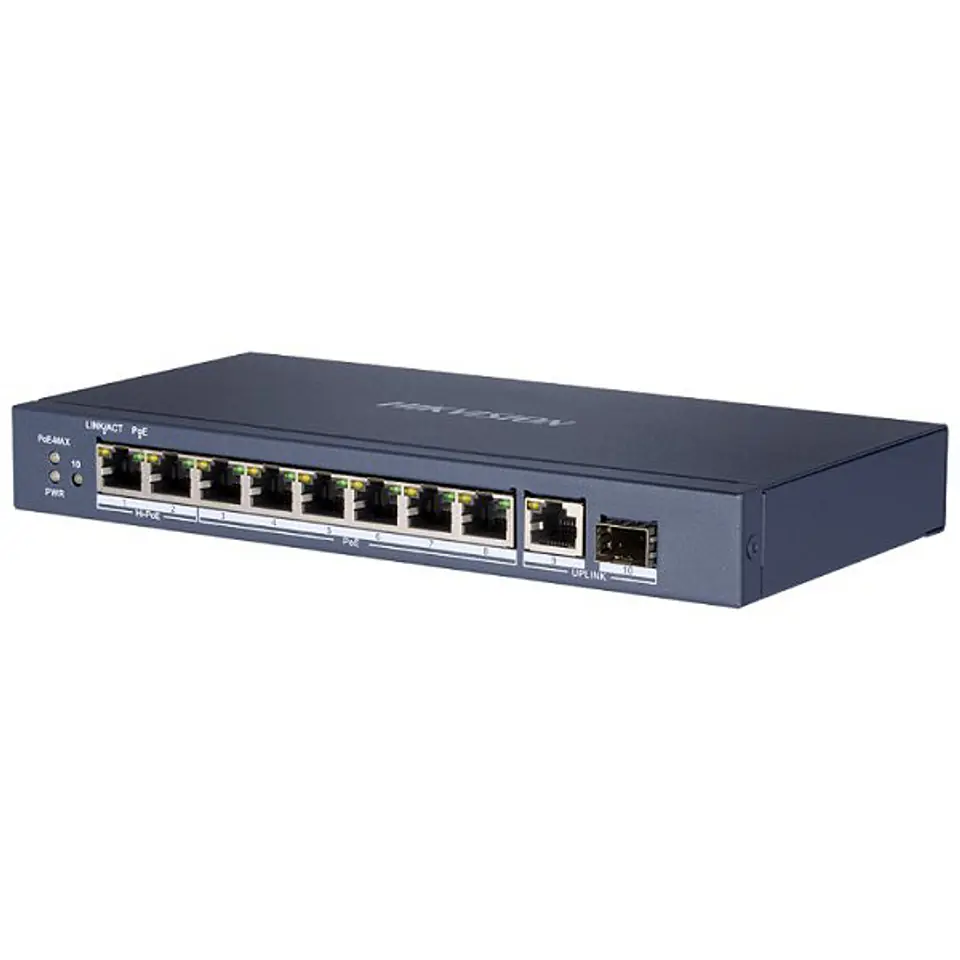

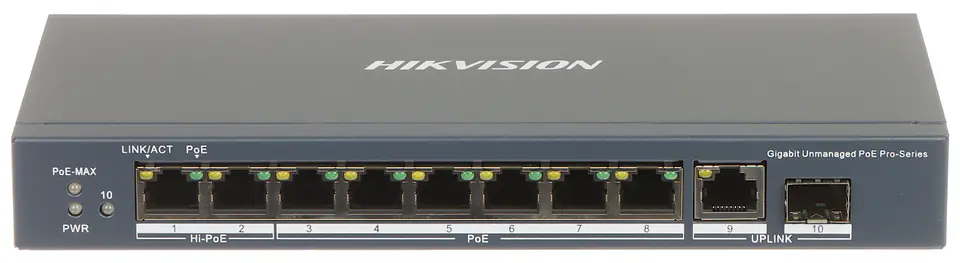

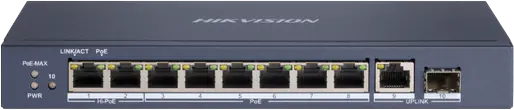

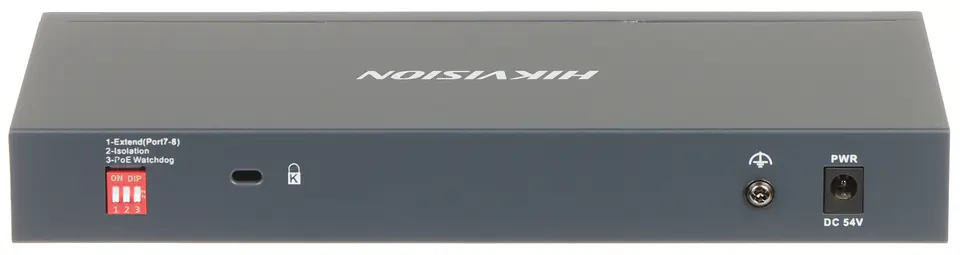

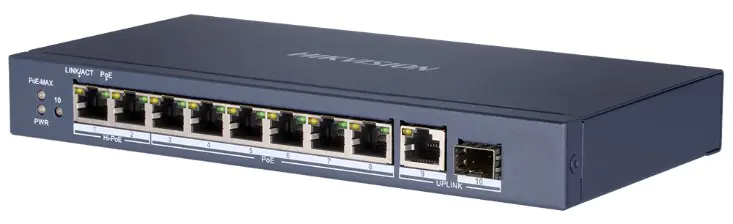

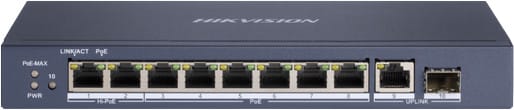

The DS-3E0510HP-E 10-port Unmanaged Switch from leading manufacturer Hikvision is a state-of-the-art device that supports network management of surveillance equipment. The switch is powered by PoE and also supports Hi-Poe providing long range, port isolation and PoE watchdog functionality (automatically detecting and restarting unresponsive cameras).

  • Ports: 10
  • PoE ports: 1 to 8
  • Throughput: 20 Gbps
  • 6 KV surge protection for PoE ports
  • PoE power budget: 110 W
  • PoE Standard: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
  • Long range transmission up to 300 m

One cable two functions!

With technology that allows you to transmit data and power over a single cable, you don't have to worry about the power cable! Just the right DVR or switch and everything works!
