Hermetic power supply in metal housing
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current

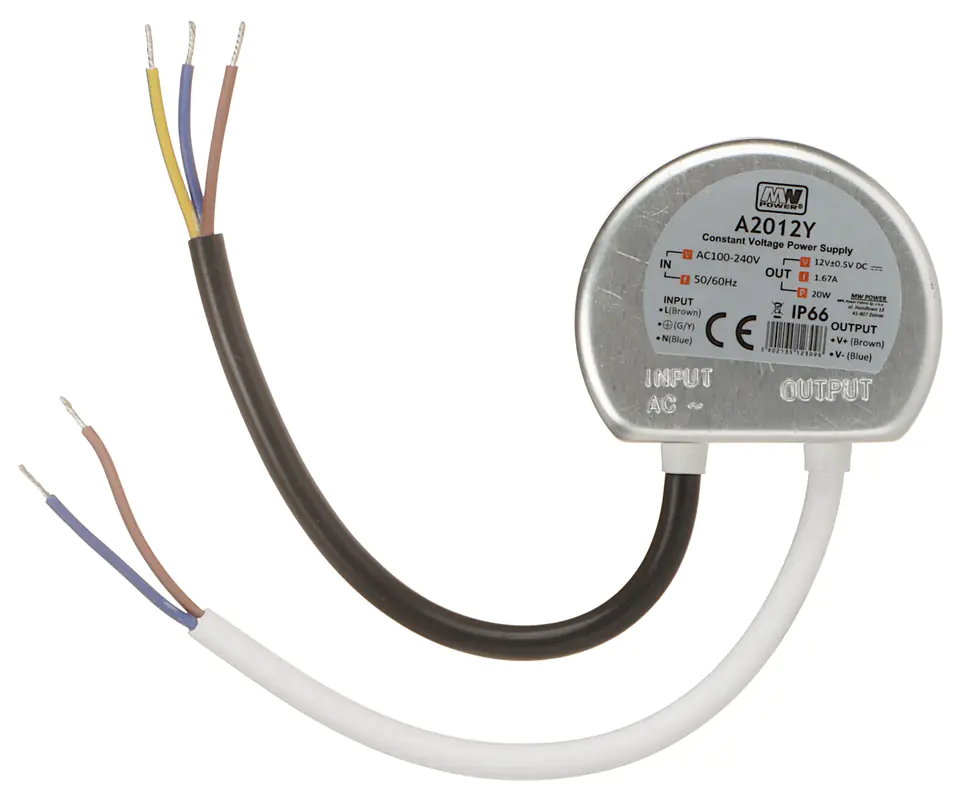

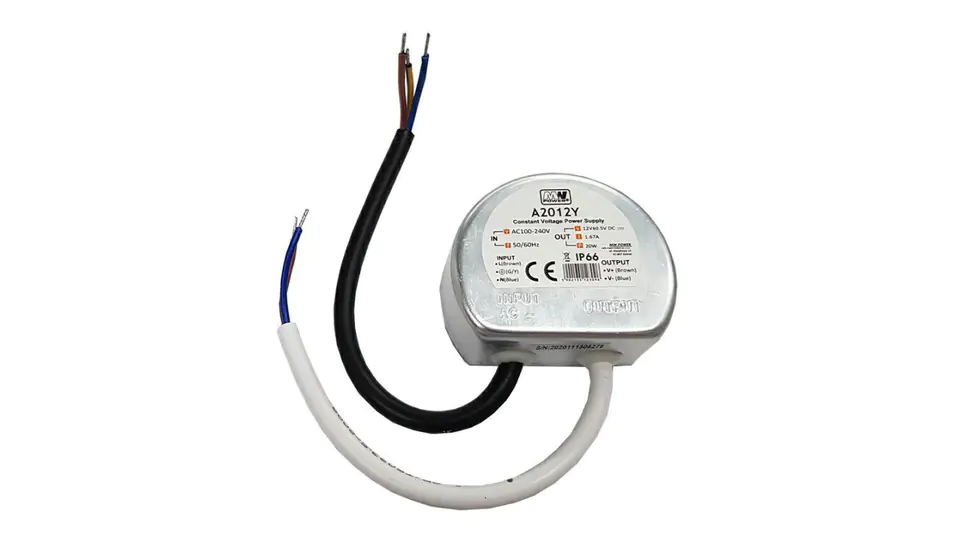

SWITCH MODE POWER SUPPLY 12V/1.67A-TP MW POWER
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- LUX06238 / 5902135123096
Share this product:
Specification
| Dimensions: | 57 x 48 x 25 mm |
|---|---|
| Efficiency: | 83 % |
| Enclosure type: | Aluminium |
| Frequency range: | 47 ... 63 Hz |
| Number of outputs: | 1 pc |
| Operating temperature: | -20 °C ... 50 °C |
| Output voltage: | 12 volts DC |
| Output voltage tolerance: | ± 5 % |
| Power supply: | 7.97 watts |
| Power supply current efficiency: | 1.67 amps |
| Producer / brand: | MW POWER |
| Scales: | 0.12 kg |
| Sealing: | IP66 |
| Security: | Overload short-circuit overvoltage thermal |
| Selected features: | Can be installed in a 60mm electrical box |
| Supply voltage: | 90 ... 264 VAC |
| Type of power supply: | Pulse |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
