| Case:: | Metal, Wall mountable |
|---|---|
| Compatibility:: | Hikvision IP video intercoms |
| Dimensions:: | 269 x 119 x 102 mm |
| Manufacturer / brand:: | Hikvision |
| Number of ports:: | 6 + 2 x Uplink |
| Operating temperature:: | -30 °C ... 70 °C |
| Power:: | 220 VDC |
| Sap code:: | 305300201 |
| Scales:: | 1.42 kg |
| Selected features:: | PoE power supply - 24 V DC, compatible with Hikvision IP access control systems |
| Warranty:: | 3 years |
DS-KAD606 is dedicated to work with video intercoms and panels in the Hikvision IP standard
Supports up to 6 internal panels or video intercomsAs connected directly to the switch, the DS-KAD606 is powered by 24V DC via UTP (cat. 5e) connection cables

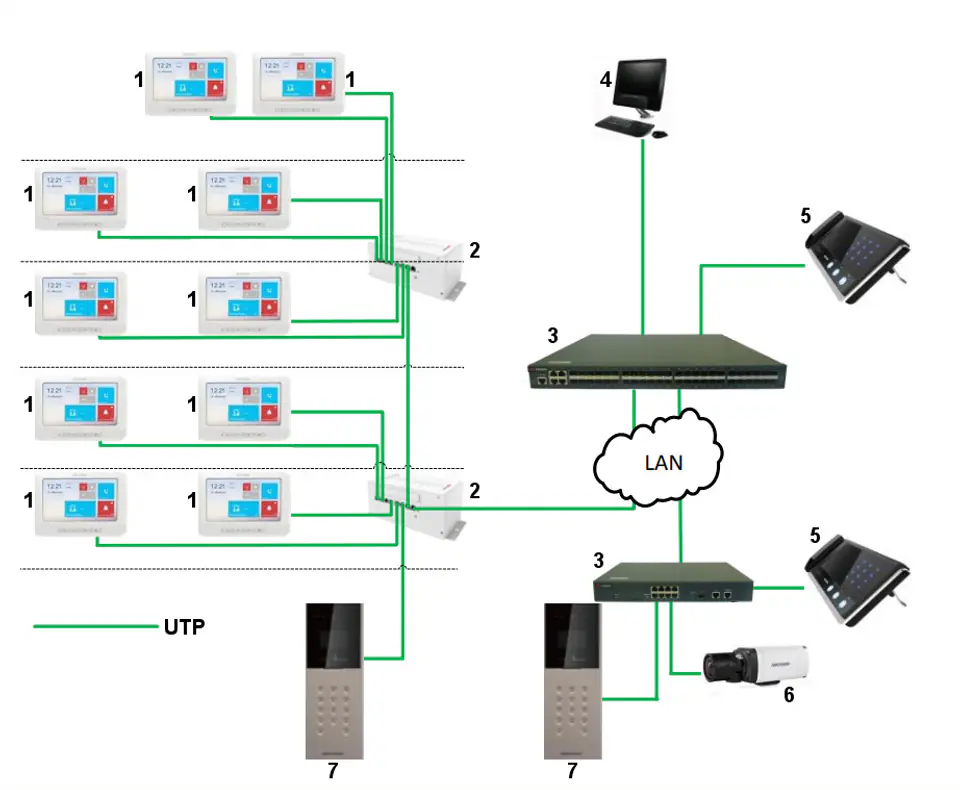

For larger installations, it is possible to cascade devicesIt allows you to create a large supervisory system with itIn addition, it is possible to connect the ds-KAD606-based system to the Internet
