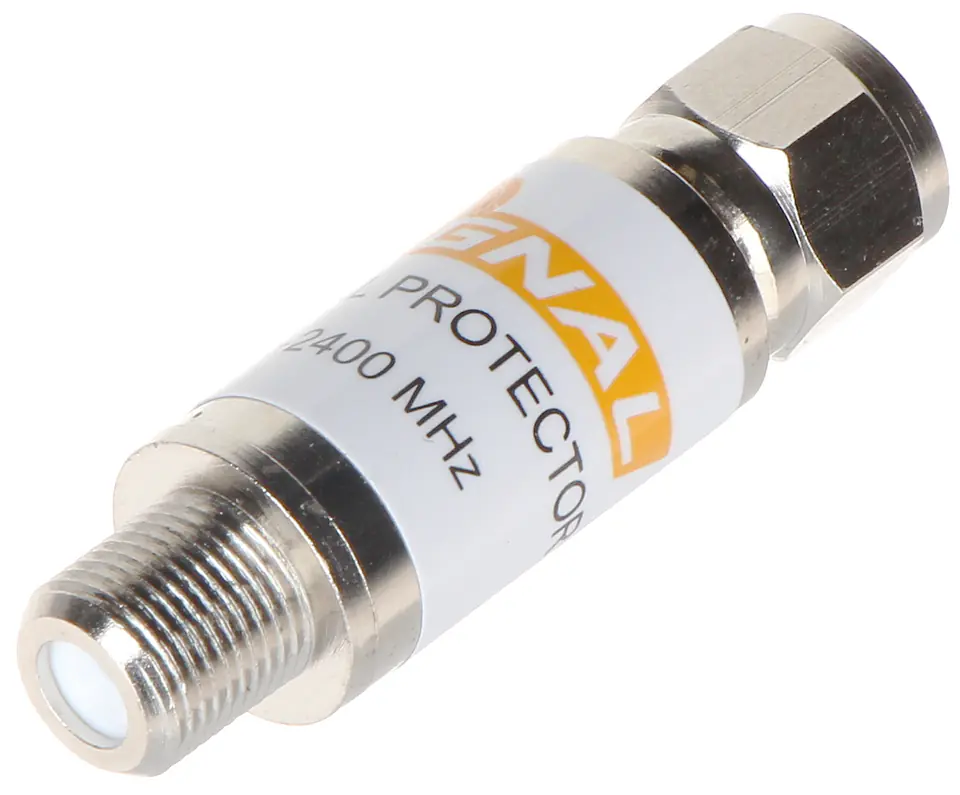

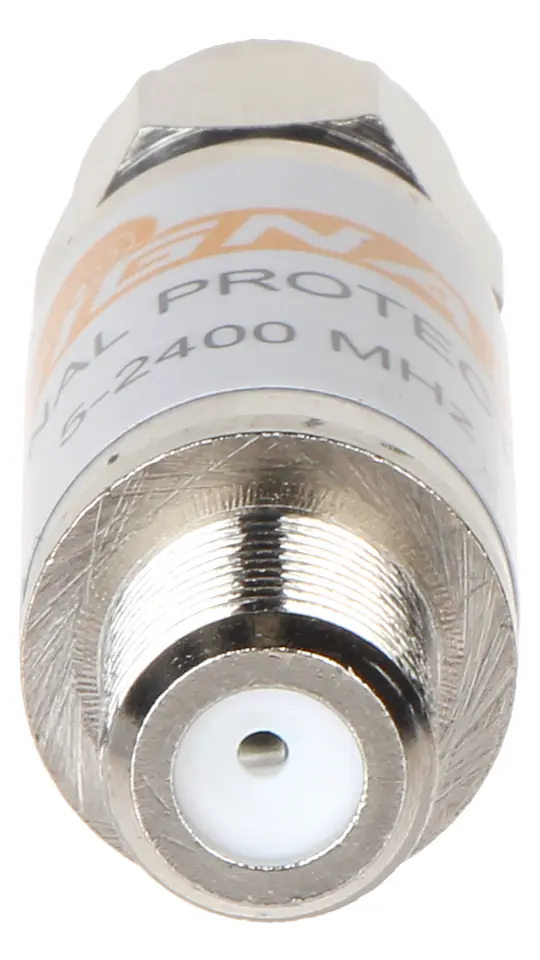

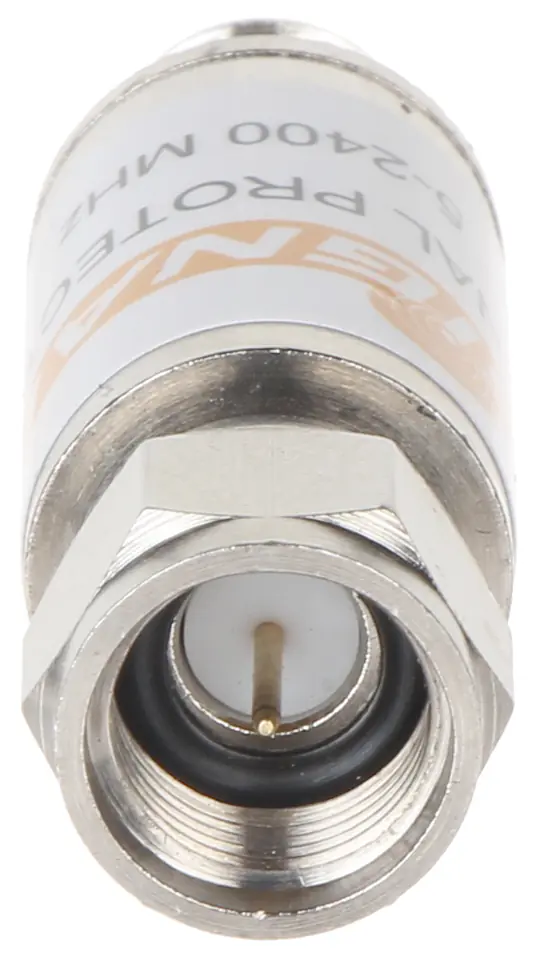

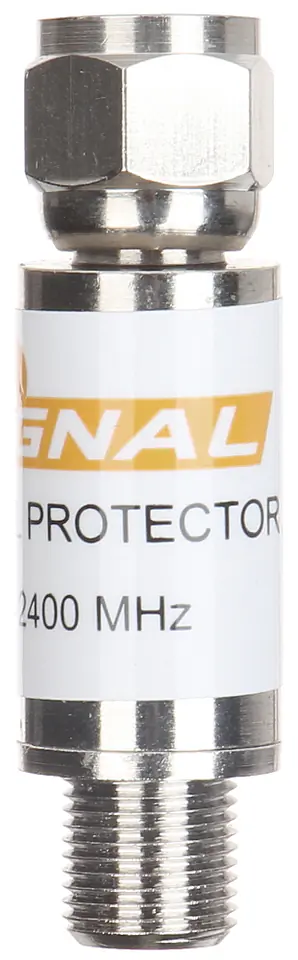

SURGE PROTECTION TV ZPP-4645F

€3.21
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Thu, May 16 - Mon, May 20
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
SIGNAL RAFAŁ KUCHARSKI
Product code:
R48602 / 5907634571997

Specification

Attenuation:< 0.5 dB
Dimensions:40 x 12.5 mm
Frequency range:5  ... 2400 MHz
Impedance:75 Ω
Input and input connector:Socket F
Residual tension:10 mV / 230 V AC
Shielding efficiency:5  ... 300 MHz - 85 dB300 ... 470 MHz - 80 dB470 ... 1000 MHz - 75 dB
Voltage protection:35 volts
Warranty:2 years

ZPP-4645F is a surge protection of receivers, operating in the full range of terrestrial TVIt is used, for example, to protect: TV sets, HiFi set, amplifiersThe device operates after exceeding 35 V, in the 5-2400 MHz band with attenuation not greater than 0.5 dBTsuch parameters also allow operation in cable networks with return channelReplacement for MSS-01

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
