| Connection 1: | F connector |
|---|---|
| Control and disconnection system: | No |
| Explosion-proof design: | No |
| Frequency range [hz] from: | 5 |
| Frequency range [hz] to: | 2400 |
| Indication of activation on the device: | Lack |
| Mounting method: | Other |
| With contact for remote signalling: | No |

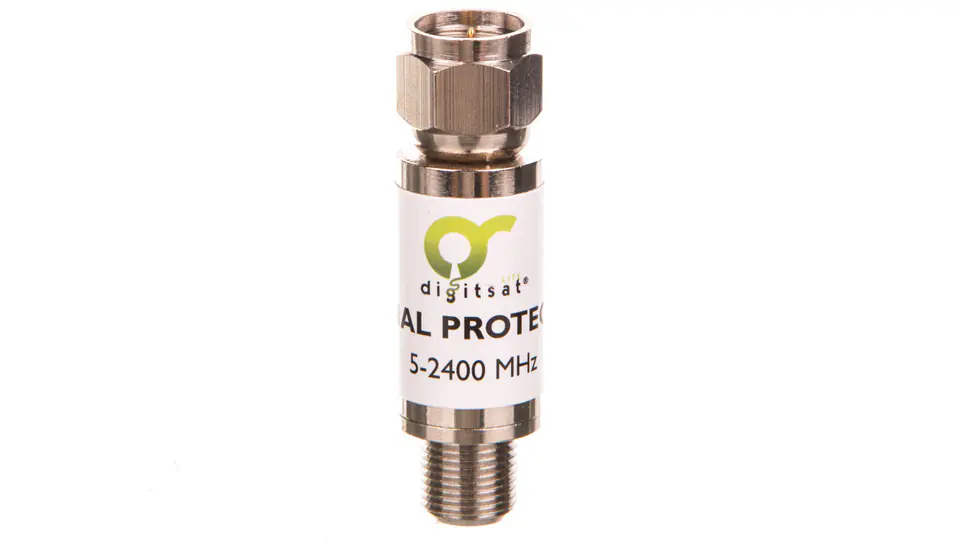

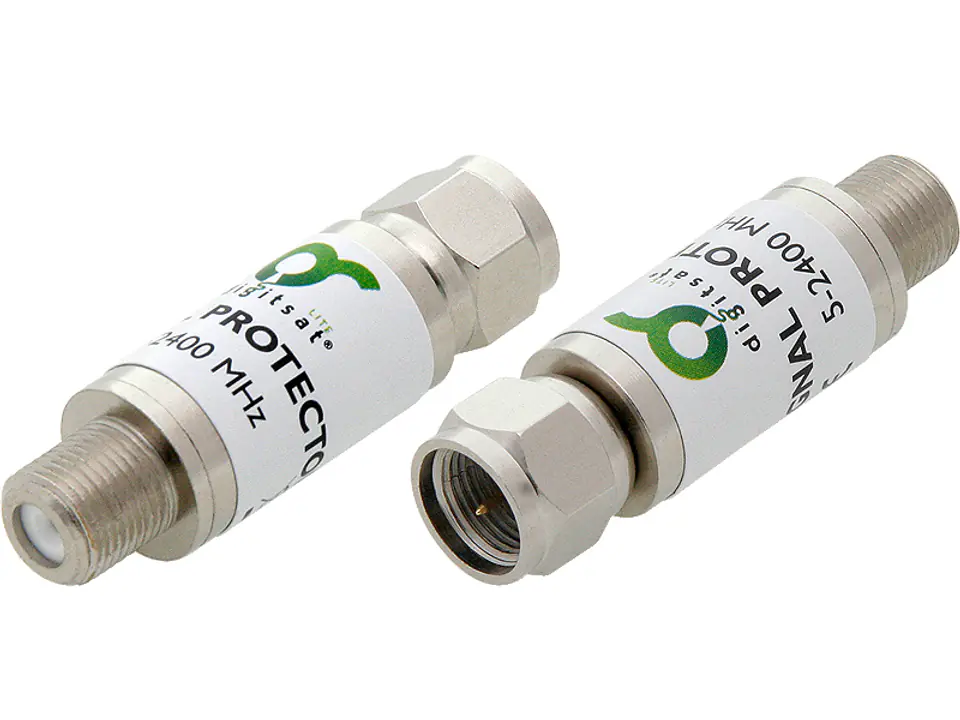

ONYX surge protection is used on signal inputs. It is recommended to use protection on the first device behind a terrestrial or satellite dish. Devices to which the surge protector is screwed must absolutely be grounded.
TECHNICAL DATA:
- Operating range: 5-2400MHz
- Attenuation: <1.5 dB
- I/O impedance: 75 Ohm
- Residual voltage (100V/ms): <800V
- Fit: >10 dB
