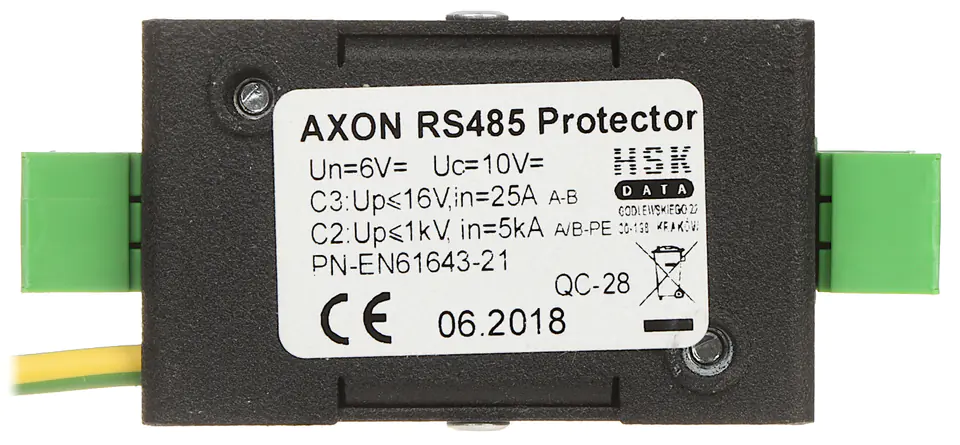

The AXON-RS485 surge arrester is designed for surge protection of electronic devices operating in control systems of industrial cameras based on RS-485 transmission or its variants with a voltage not higher than 5VAXON-RS485 contains protective elements limiting overvoltages occurring between the transmission line and the PE protective wire, enabling the discharging of the jamming charge to the groundThe device also uses limiting elements dangerous voltage that may occur between lines

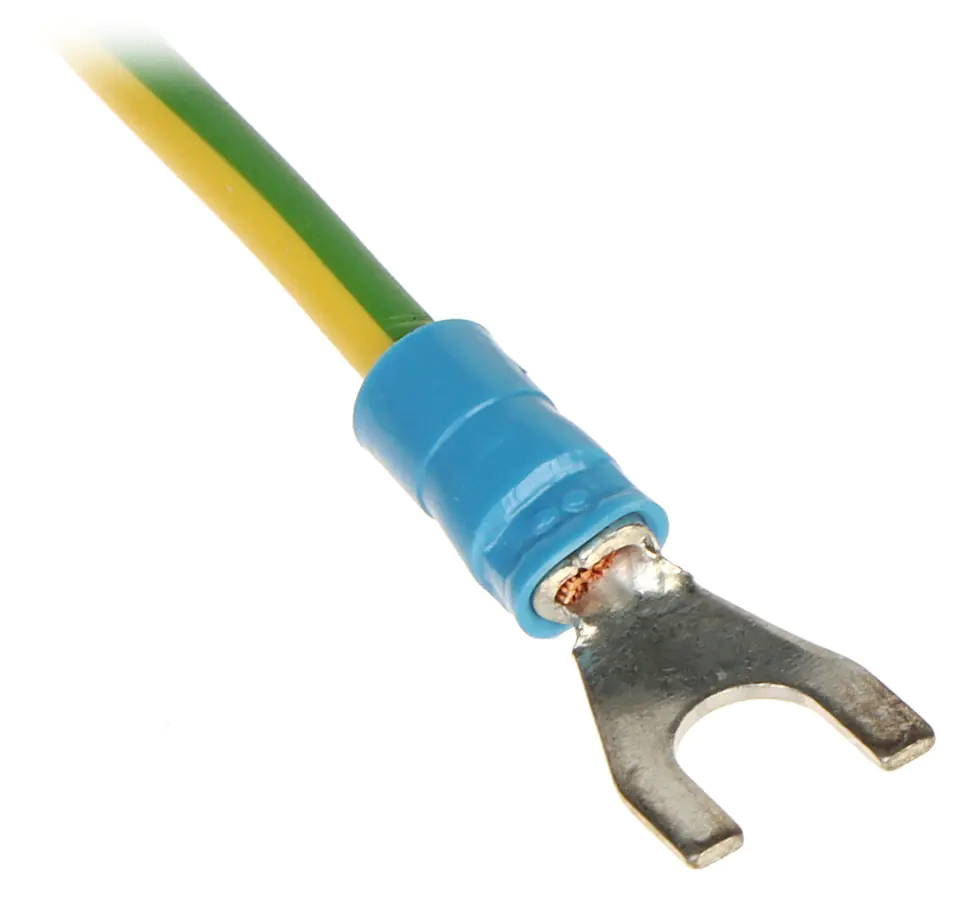

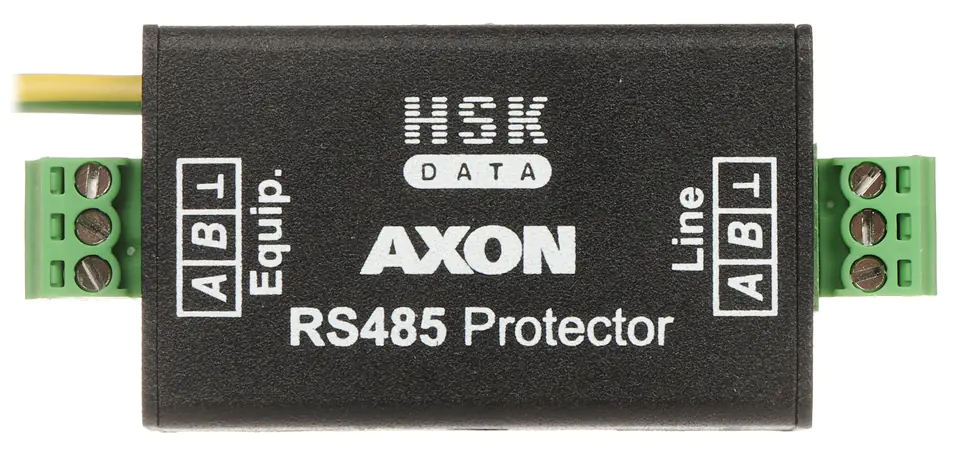

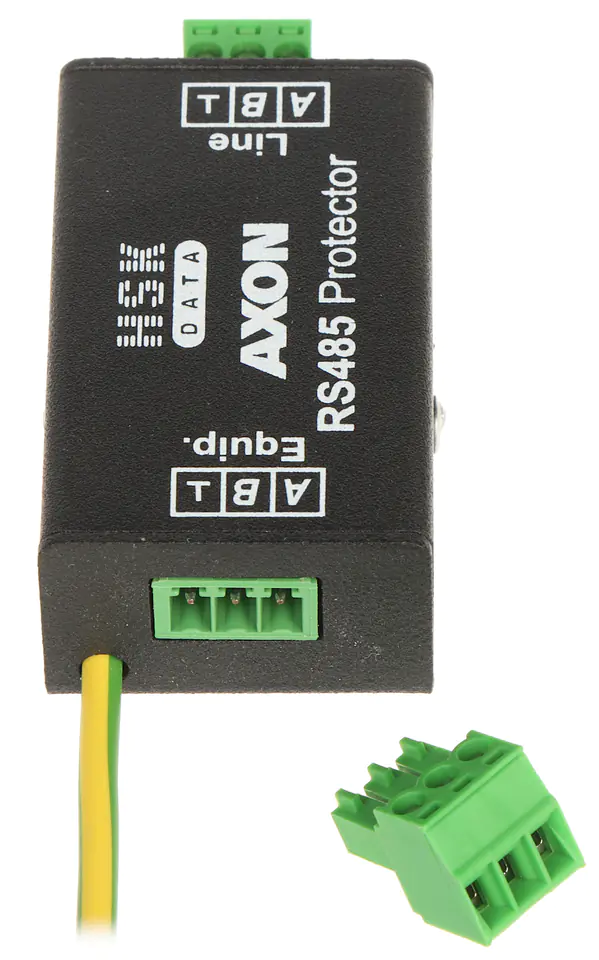

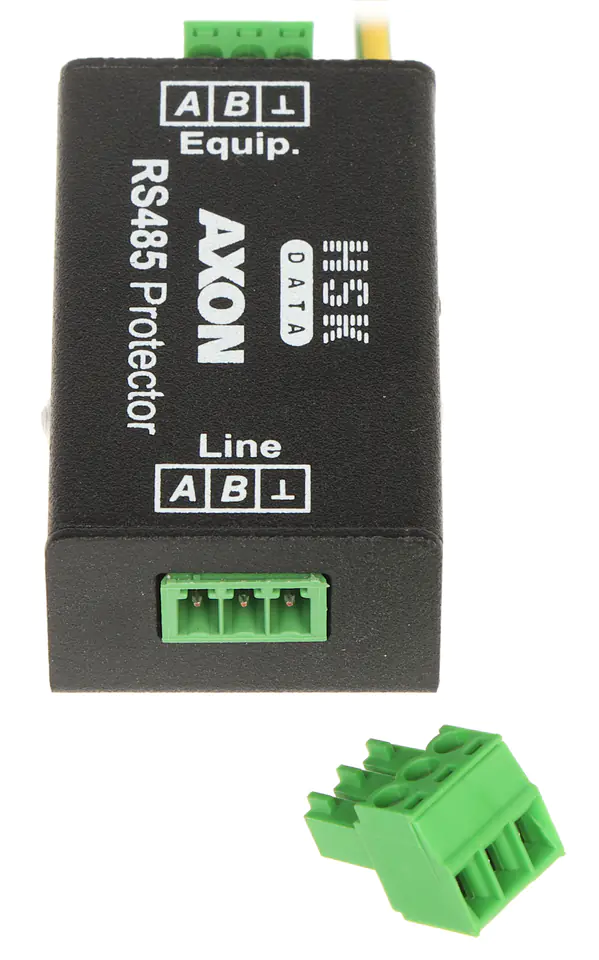

As a result, AXON-RS485 provides comprehensive protection for the devices attached to itAXON-RS485 has a metal, shielding housingAs connection elements, detachable clamping connectors are usedTerminals A, B are used to connect protected transmission lines, while the third terminal can be used by the installer as signal ground if necessaryGrounding wire, terminated with a fork tip, is led out and connects directly to the housingThe device is The transmission line is connected to the terminals \"Line\", while the protected device to \"Equip\" The condition for proper operation of AXON-RS485 is to connect it to an efficient grounding or PE protective conductor
