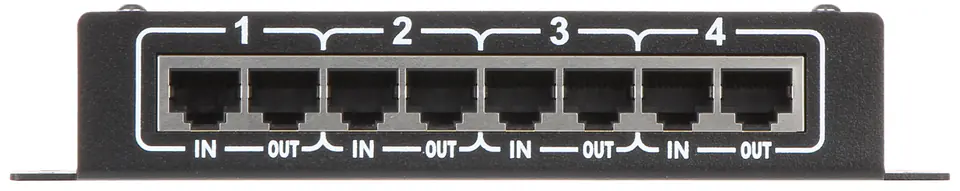

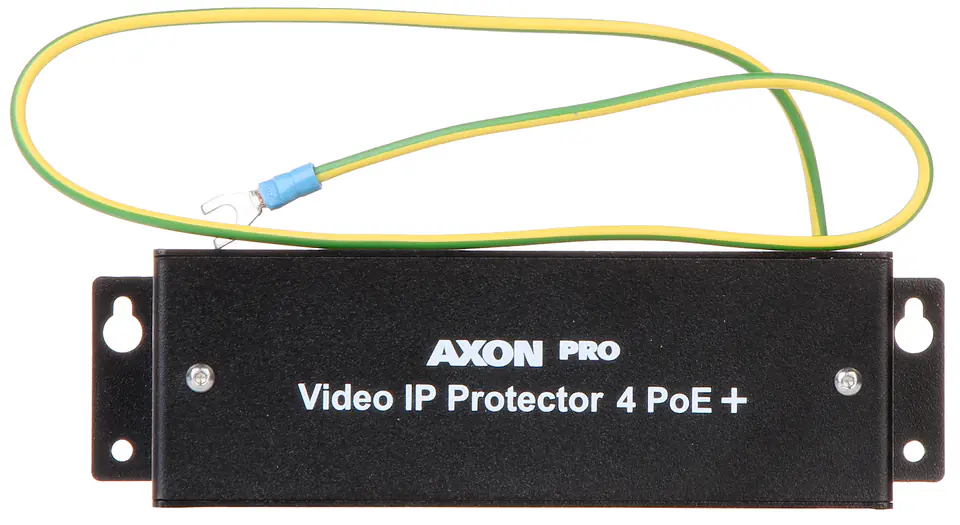

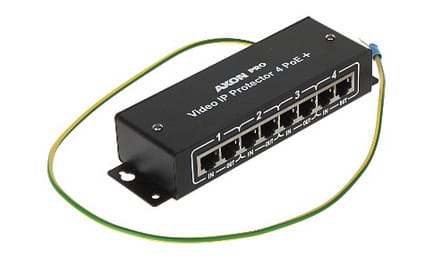

SURGE ARRESTER AXON-PRO-IP-4POE+

This product is not available

Availability:: expected delivery
Product code:: AXON-PRO-IP-4POE+ / 5904743335403

Specification

≤ 1000 v - 1.2/50 μs:	Line-to-ground protection voltage [C2]:
0.33 kg:	Scales:
0.52 m:	Ground wire length:
1, 2, 3, 4, 5, 6, 7, 8:	Protected cable pairs:
120 volts:	Voltage:
150 volts:	Maximum voltage:
167 x 50 x 32 mm:	Dimensions:
2 ka - 8/20 μs:	Nominal discharge current (line-ground) [C2]:
2 years:	Warranty:
4:	Number of channels:
600 ma:	Nominal supply current:
8 x shielded rj-45 jacks ( 4 inputs, 4 outputs ):	Connector type:
Metal, black:	Case:

AXON-PRO-IP-4POE+ is a multi-channel device from AXON for surge protection of devices connected to 10/100/1000 Mbps Ethernet networks and powered remotely in PoE+PoE+ technology allows you to power devices with increased power consumption, e.g. HD cameras

Protects every wire in the four-pair cable and discharges the electrical charge to the groundProtects the data transfer path and the power supply pathateverusing the shielded RJ-45 socket allows you to maintain the continuity of the screen when using FTP twisted pairThe condition for proper operation of AXON-PRO-IP-4POE+ is to connect it to a working ground or PE protective wire

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
